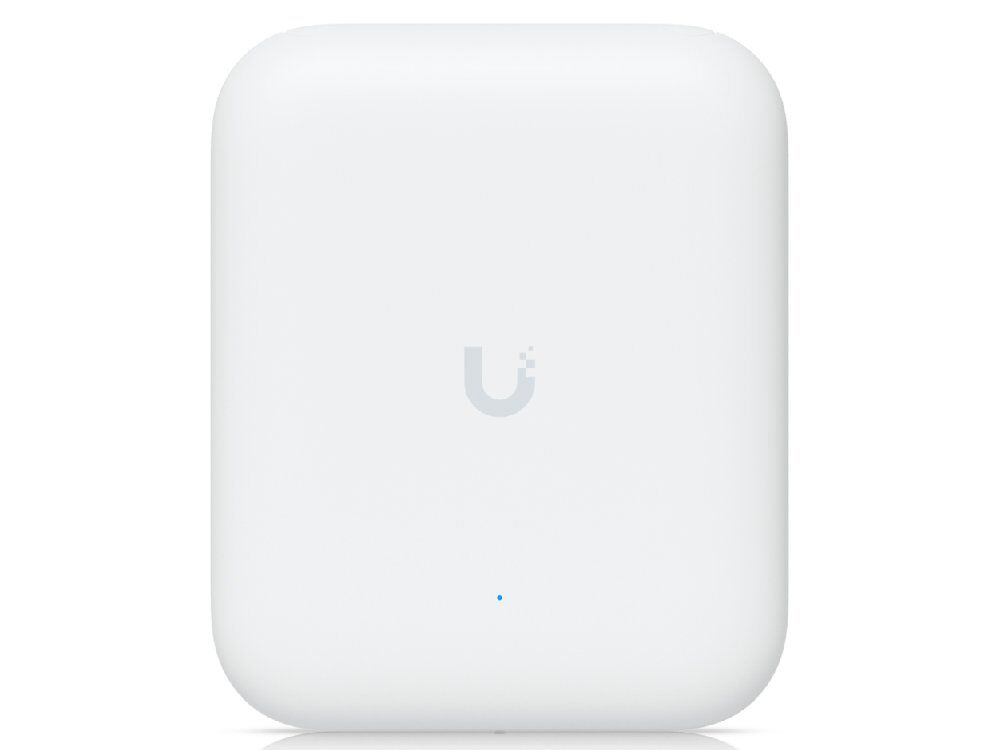

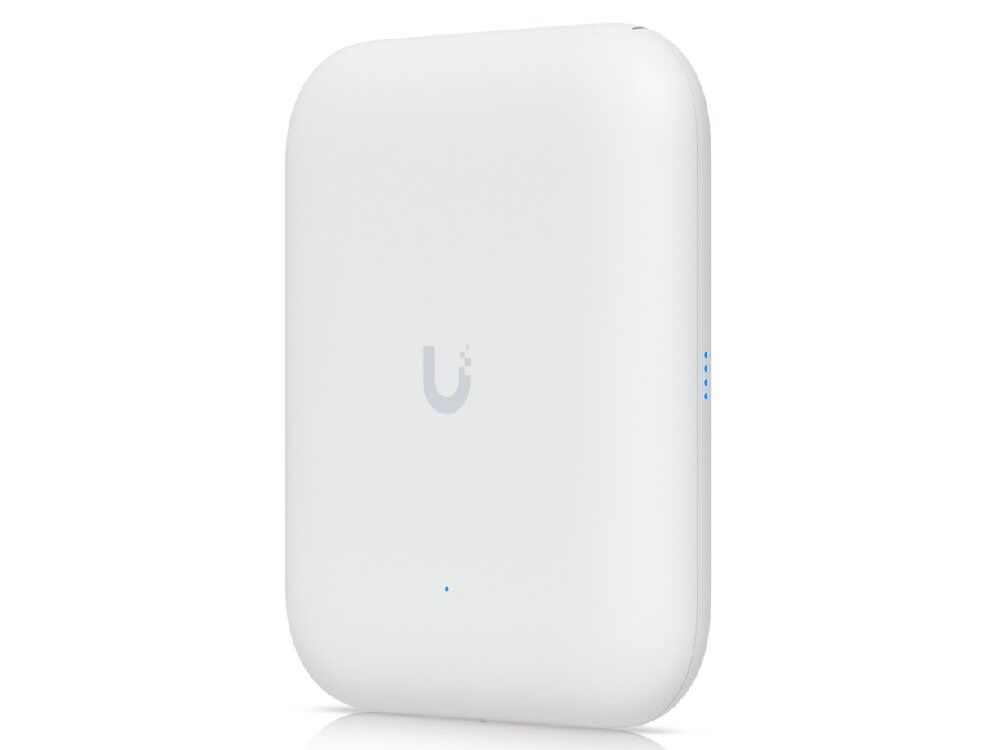

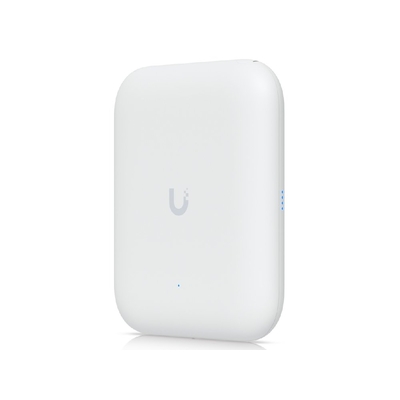

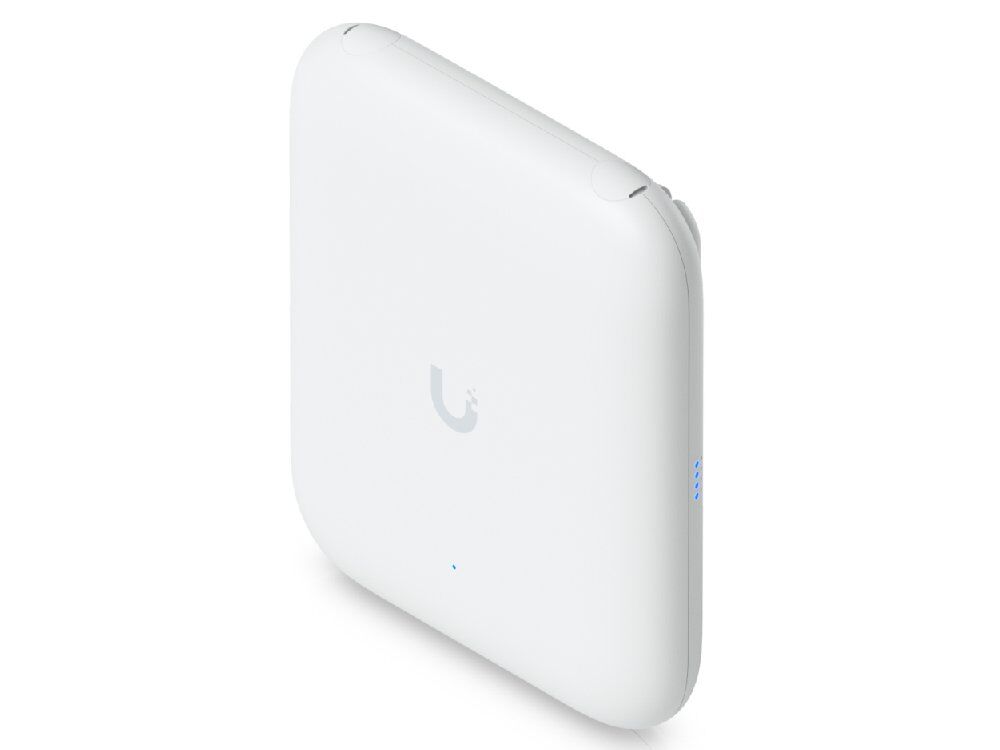

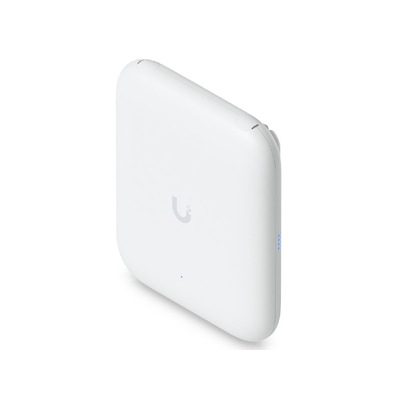

All-weather IP67 WiFi 7 AP with 6 spatial streams, extended-range AFC 6 GHz support, integrated directional super antenna, and articulation mounting bracket.

WiFi 7 with 6 GHz support

6 spatial streams

Long-range 6 GHz performance with AFC*

465 m² (5,000 ft²) open space coverage with the integrated directional super antenna

Software-switchable from internal directional to included external omni antennas

300+ connected devices

Powered using PoE+

2.5 GbE uplink

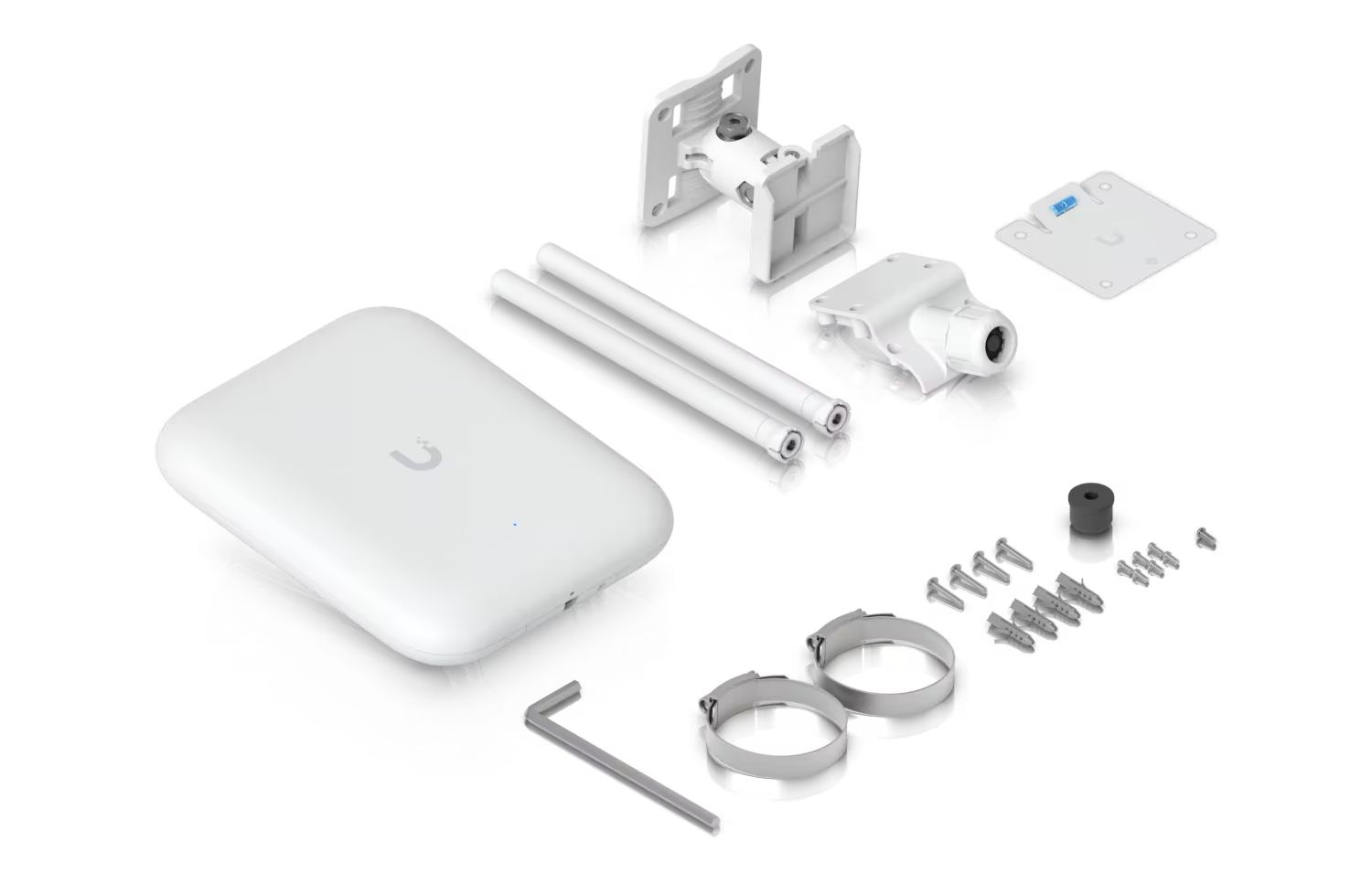

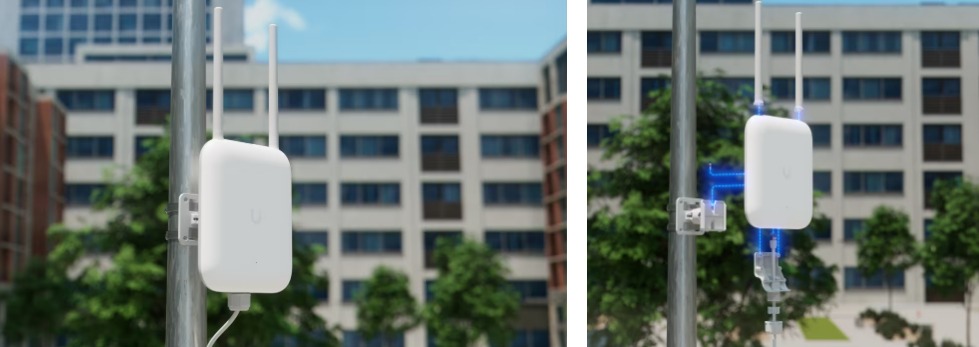

Versatile wall and pole mounting

Weatherproof (outdoor exposed)









(U7-Pro-Outdoor)

Mechanical

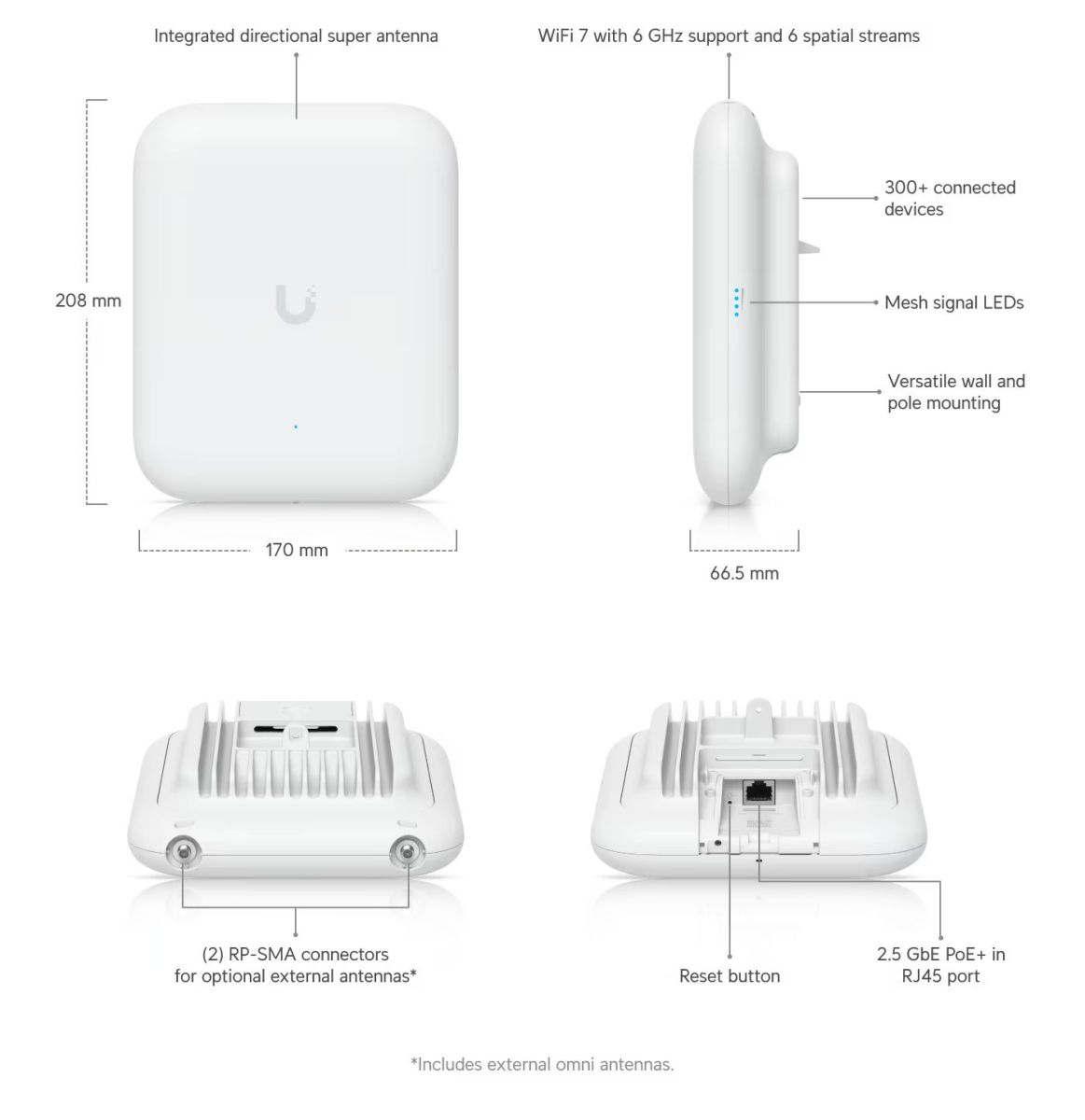

Dimensions Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6")
With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8")
Weight Device: 1.2 kg (2.6 lb)
Mount: 130 g (0.3 lb)
Enclosure material UV-stabilized polycarbonate, aluminum alloy
Mount material UV-stabilized polycarbonate
Pole mount diameter 25–63.5 mm (1–2.5") on pipe outer diameter
Wind survivability 74.6 N at 200 km/h (16.8 lbf at 125 mph)
Weatherproofing IPX6
IP67 with cable-gland door kit (Included)
Hardware

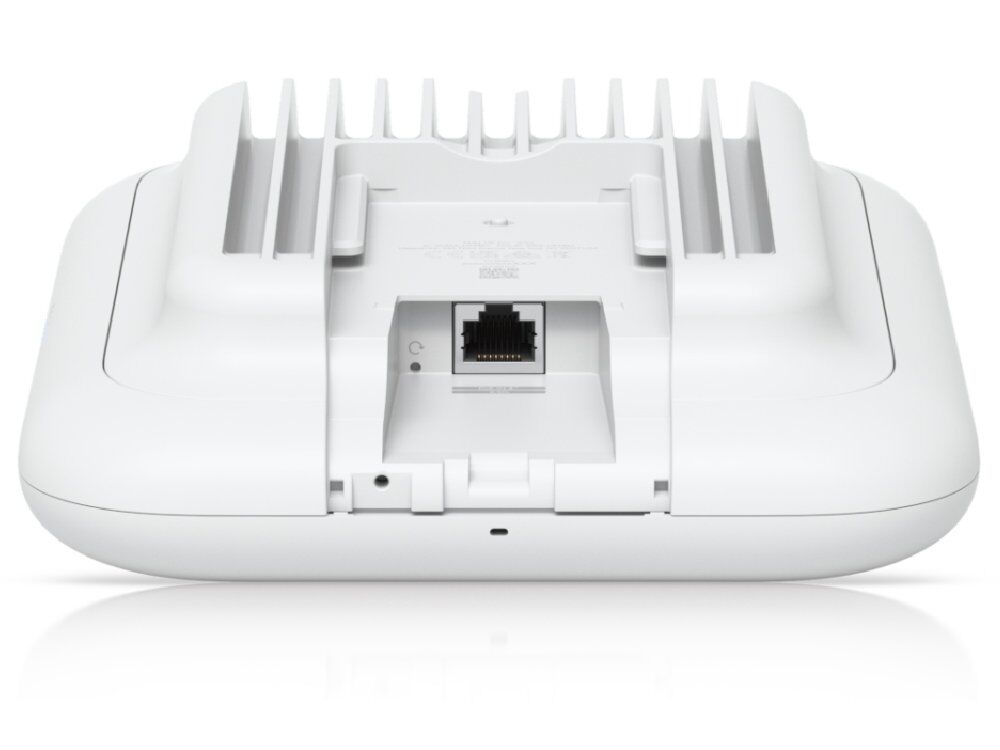

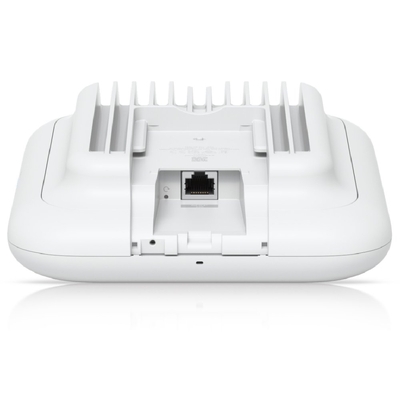

Networking interface (1) 1/2.5 GbE RJ45 port
Management interface Ethernet
Power method PoE+
Power supply UniFi PoE switch
Supported voltage range 42.5—57V DC
Max. power consumption 21W
Max. TX power
2.4 GHz
5 GHz
6 GHz

23 dBm
26 dBm
26 dBm*
*With 6 GHz Extended Range mode. Available in FCC/IC region only.
MIMO
2.4 GHz
5 GHz
6 GHz

2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
Max. data rate
2.4 GHz
5 GHz
6 GHz

688 Mbps (BW40)
4.3 Gbps (BW240)
5.7 Gbps (BW320)
Antenna gain
2.4 GHz
5 GHz
6 GHz

Directional internal: 8 dBi / External omni: 6 dBi
Directional internal: 11 dBi / External omni: 8 dBi
Directional internal: 10 dBi / External omni: –
Antenna beamwidth
2.4 GHz
5 GHz
6 GHz

90°
90°
90°
Antennas (1) Directional internal antenna

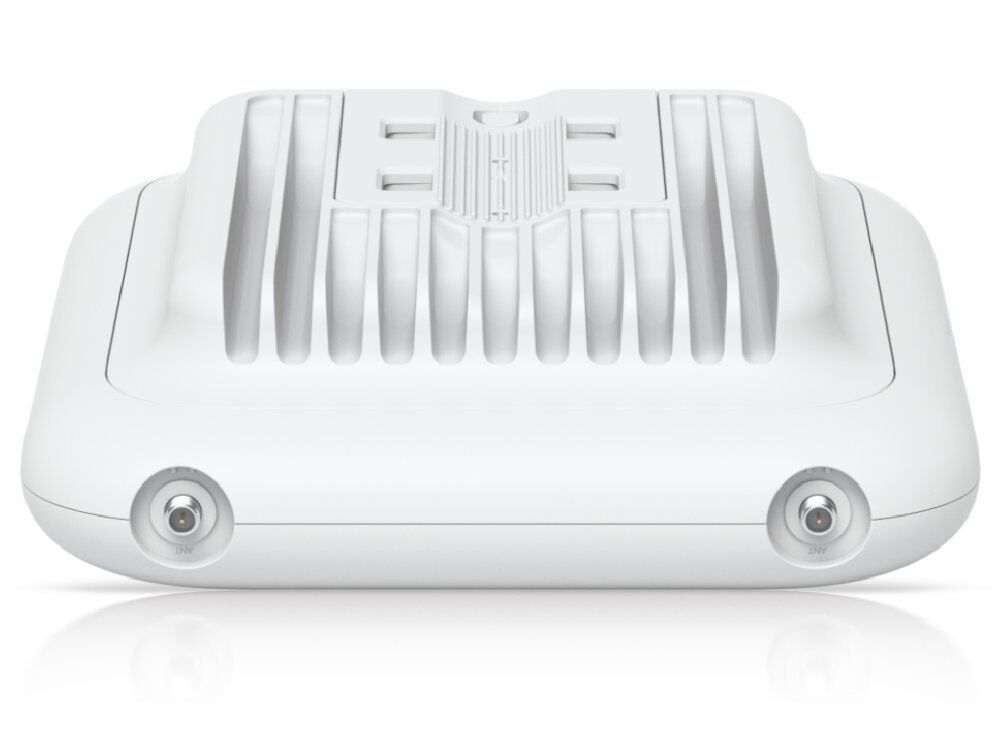

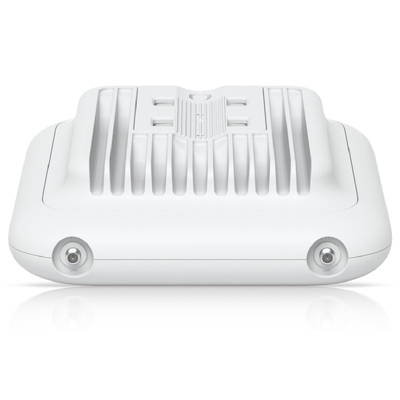

(2) RP-SMA connectors for external antenna
LEDs (1) Power: white/blue
(4) Mesh signal: blue
Button Factory reset
Mounting Wall, ceiling, pole (Included)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
SKU U7-Pro-Outdoor
Brand Ubiquiti
Shipping Weight 1.2000kg

Manufacturer Warranty: 2 Years Manufacturer Warranty
