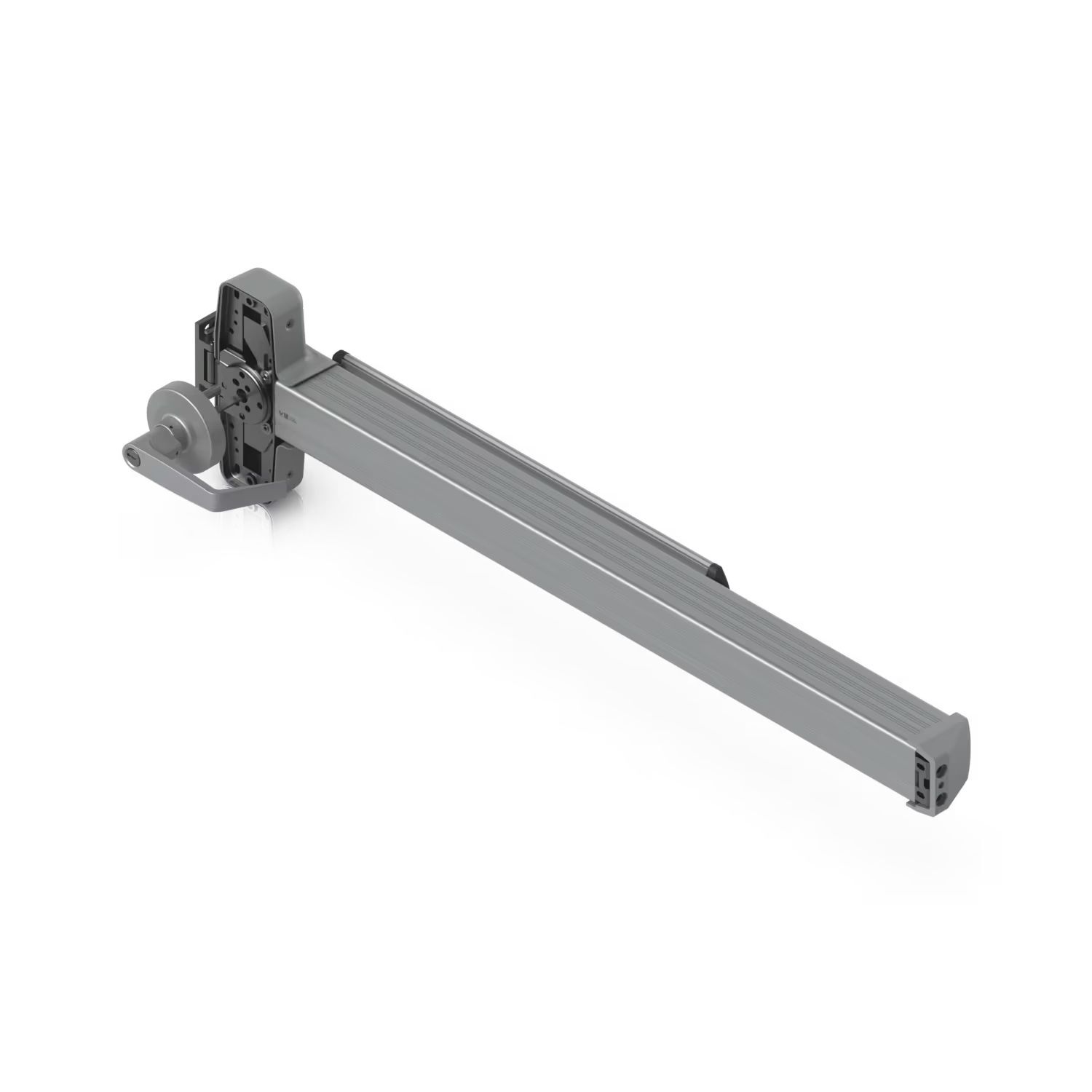

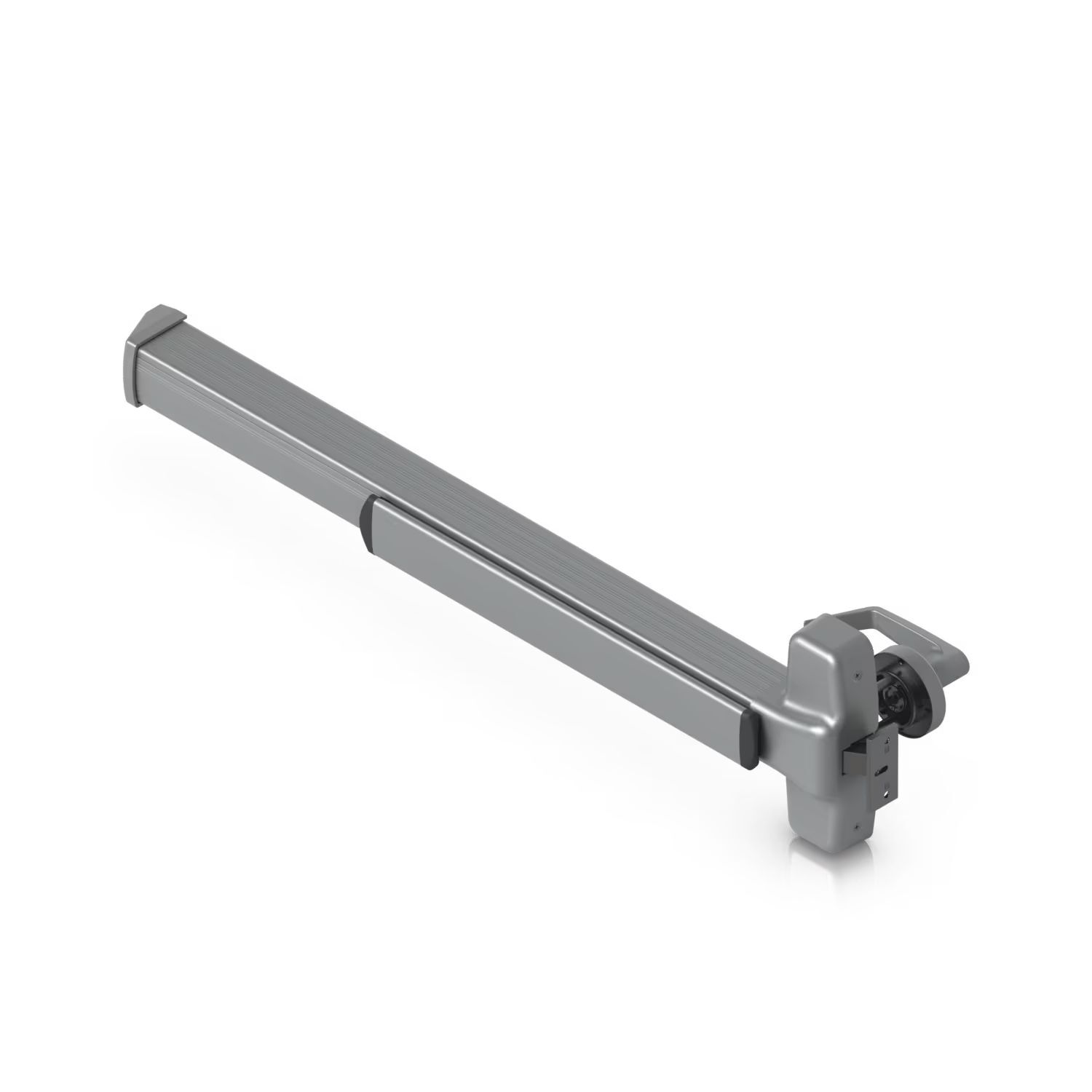

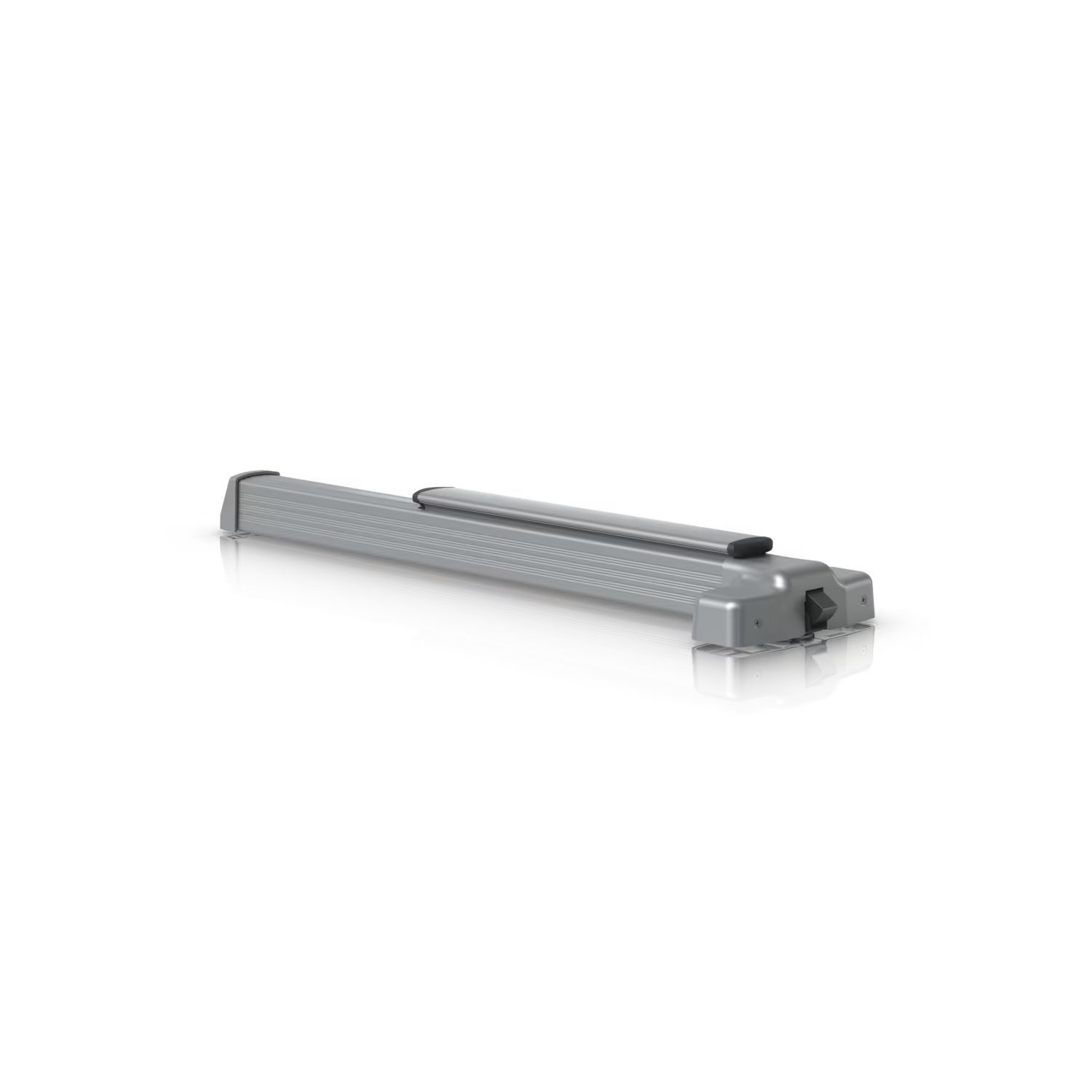

Ubiquiti UACC-PanicBar A single-latched bar installed on emergency exit doors
Model # UACC-PanicBar
-
SKU: UACC-PanicBar
$783.00
- Pick Up Available
- Australian Warranty
- Checkout Securely
A single-latched bar installed on emergency exit doors, allowing quick and easy egress by pushing the bar to open the door during emergencies.
(1).jpg)
(UACC-PanicBar)
Mechanical
| Item | Specification |
|---|---|
| Dimensions | 838 x 294 x 94 mm (33 x 11.6 x 3.7") |
| Weight | 5.8 kg (12.8 lb) |
| Enclosure Material | Aluminum, stainless steel |
| Supported Door Width | 3′ standard for door width of 2′4″ to 3′ (711 to 914 mm) |
| Supported Door Thickness | 1-3/4” (44 mm) and 2” (51 mm) thick of metal or wood door |
| Strike | For 3/4” (19 mm) stop |
| Reversible | Non-handed, reversible for all functions and trims |
| Stiley | 4-1/4” (108 mm) minimum |
| Connection | 2 lines for dry relay |
| Wiring Connection | Dry output — Contact rating: 30V DC, 1A — Push = Short / Release = Open |
Hardware
| Item | Specification |
|---|---|
| Certifications | UL 305, UL 10C, CAN/ULC-S132 |
| Standards | ANSI/BHMA A156.3 Grade 1 Exit Devices |
| Code Compliance | Meets California Building Code Sec. 11B-309.4 |
| SKU | UACC-PanicBar |
| Brand | UBIQUITI |
| Shipping Weight | 5.8000kg |
| Shipping Width | 0.094m |
| Shipping Height | 0.838m |
| Shipping Length | 0.294m |
Manufacturer Warranty : 1 Year Manufacturer Warranty
