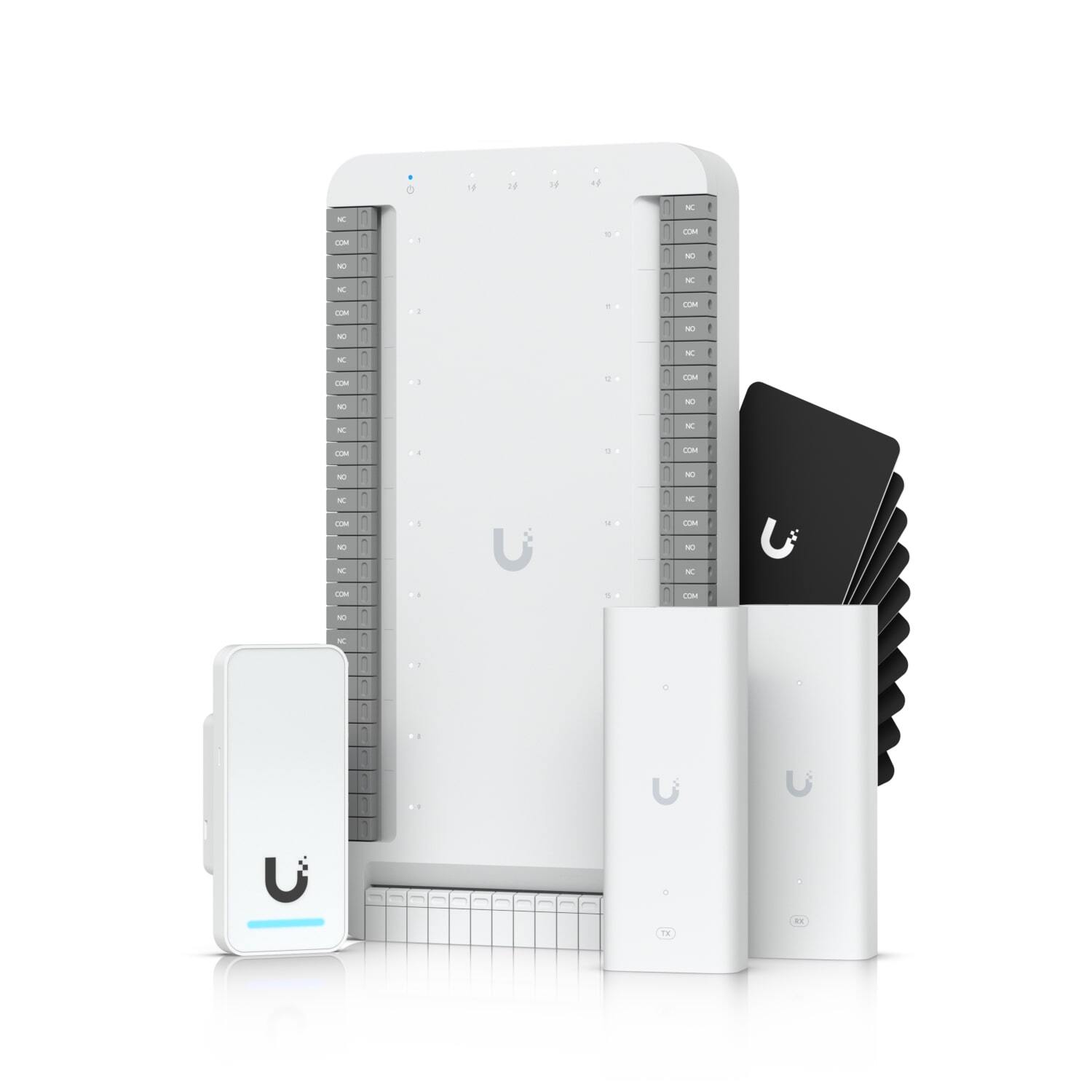

Ubiquiti UA-SK-Elevator Starter Kit with Floor Selection Up18 floors
Model# UA-SK-Elevator
-
SKU: UA-SK-ELEVATOR
- Pick Up Available
- Australian Warranty
- Checkout Securely
Ubiquiti Elevator Starter Kit, UA-SK-Elevator, PoE++ , Up/Down/Stop/Full/Door Open, Close/5 Car Position,1 Emergency, Floor Selection Up18 flooors

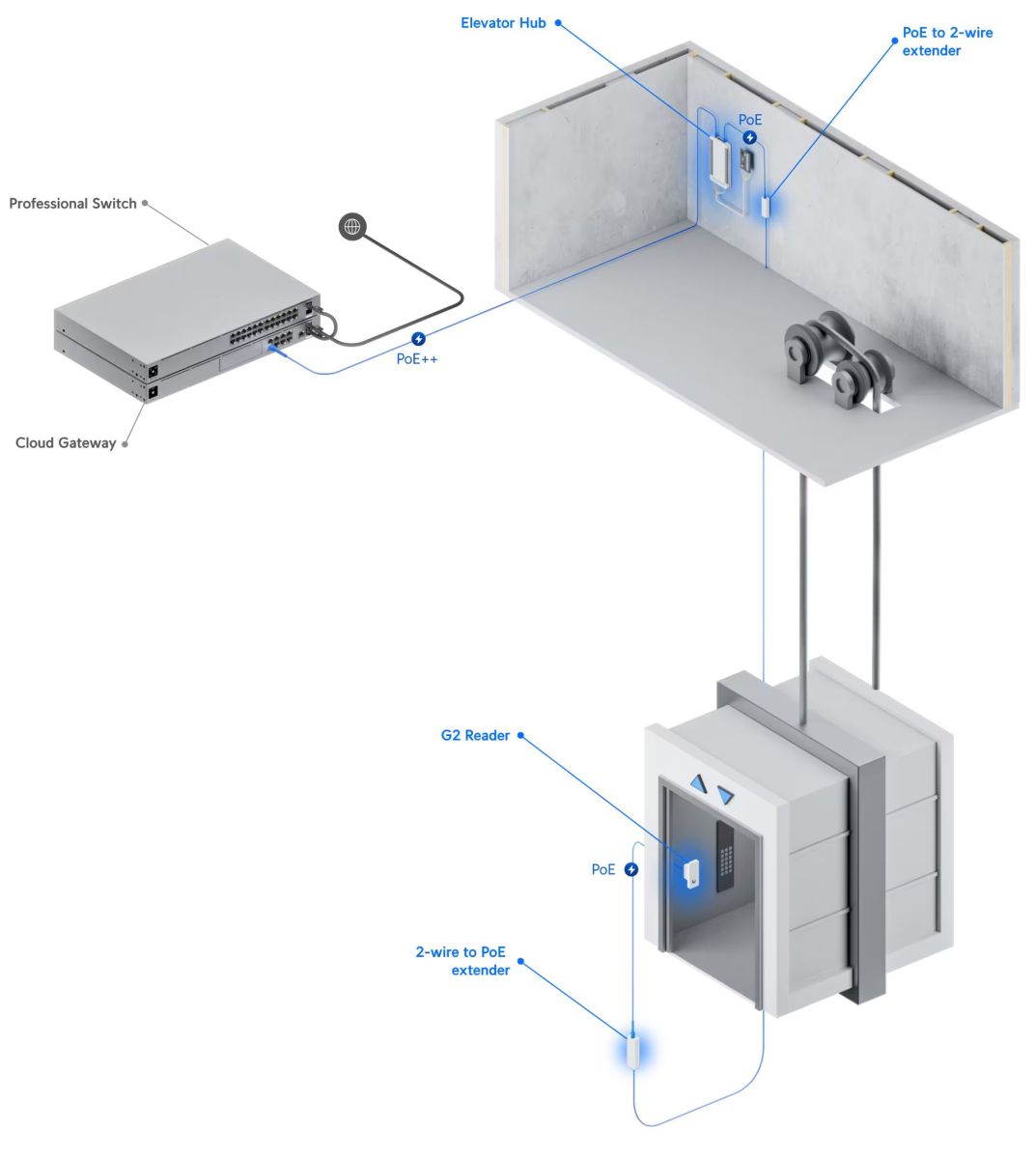

Connects to in-elevator readers with PoE to authorize floor selection. Supports up to 18 floors with digital inputs for elevator car status and emergency.

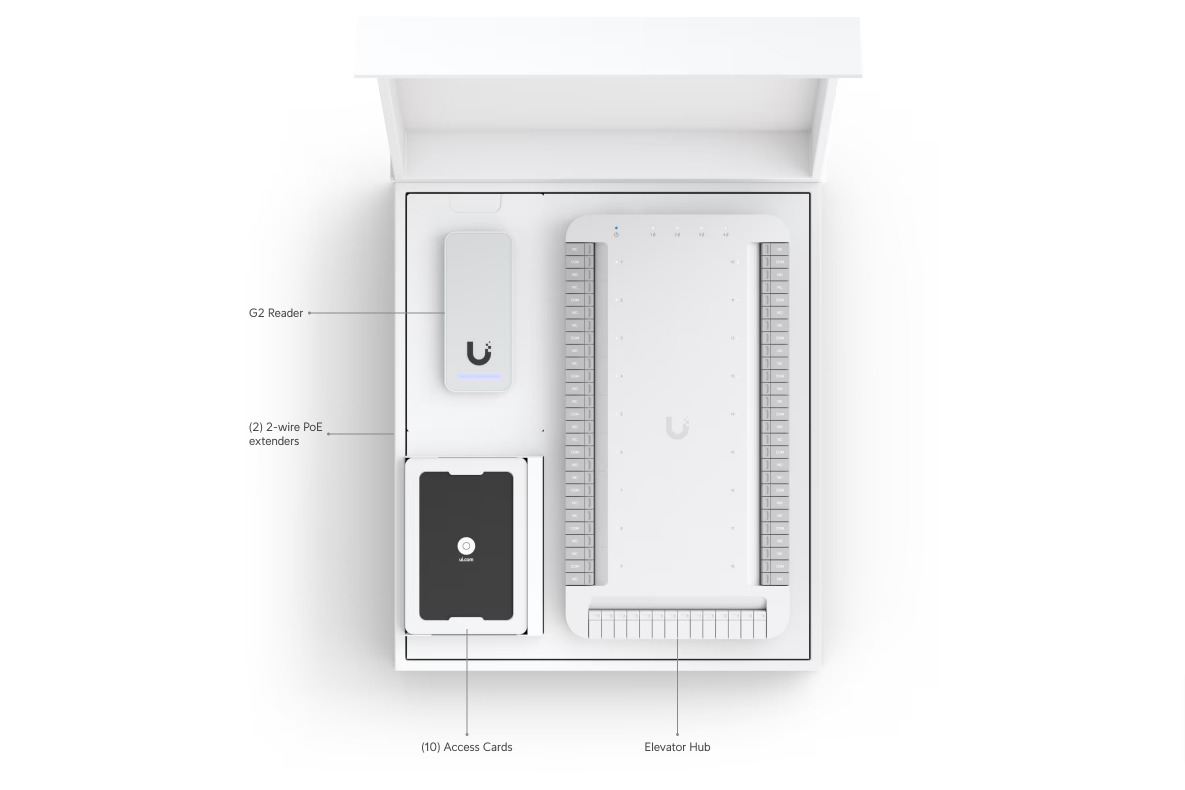

(1) Elevator Hub
(1) G2 Reader
(2) 2-wire PoE extenders
(10) Access Cards
.jpg)
(UA-SK-ELEVATOR)

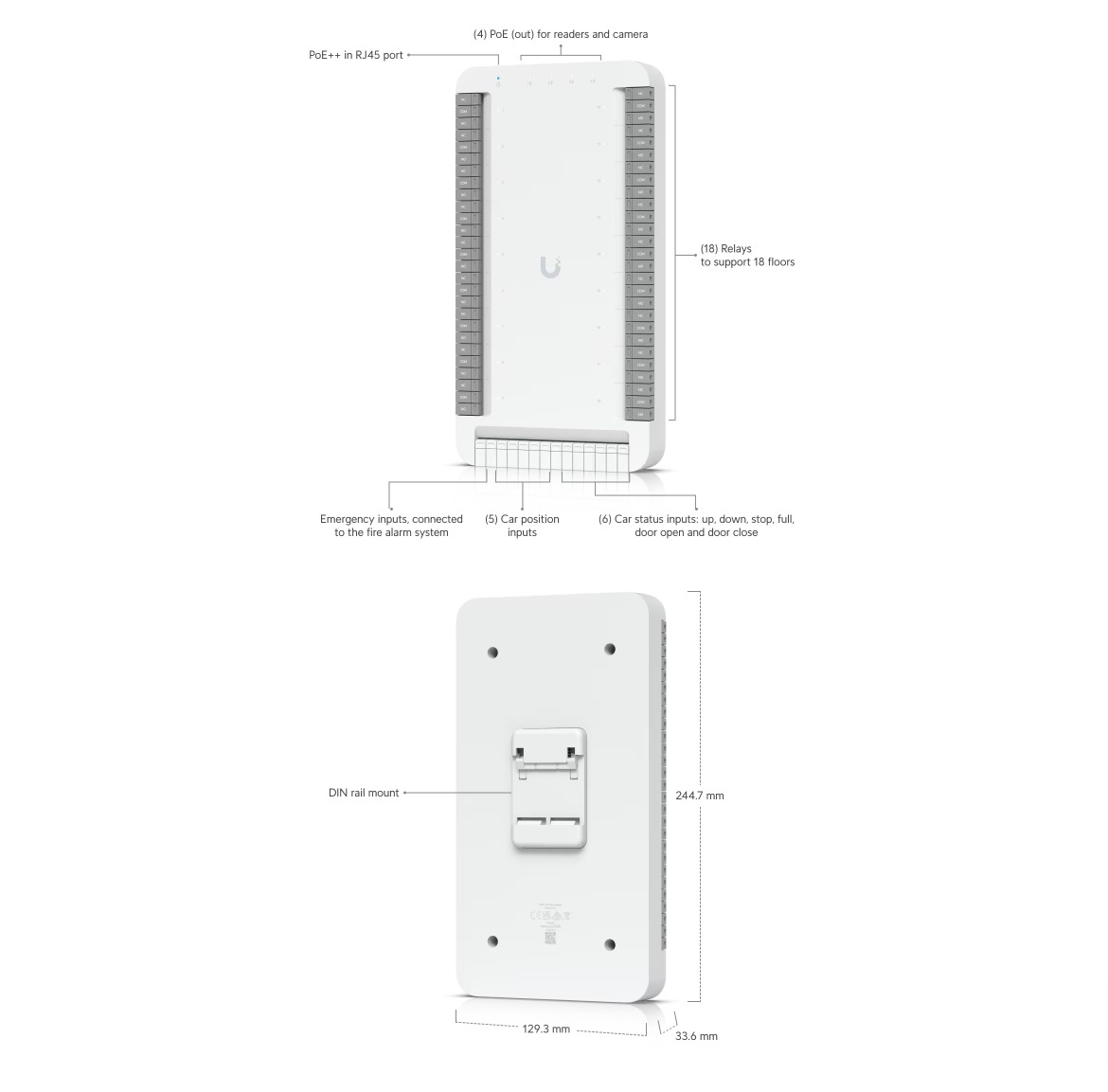

| UA-Hub-Elevator Mechanical |
|
|---|---|
| Dimensions | 129.3 x 244.7 x 33.6 mm (5.1 x 9.6 x 1.3") |
| Weight | 537 g (1.2 lb) |
| Enclosure material | Polycarbonate |
| Mounting material | Polycarbonate |
| Hardware | |
| Networking interface | (4) 10/100/1000 Base-T |
| Management interface | (1) 10/100/1000 Base-T |
| Power method | PoE++ |
| Max. power consumption | 7W (Without PoE output) |
| PoE input | (1) PoE++, 50V DC, 1.2A |
| PoE output | PoE passthrough, (4) PoE, 50V DC, total 42W |
| ESD/EMP protection | Air: ±8kV, contact: ±4kV |
| Digital input | (6) Car position; Up/down/stop/full/door open/door close (1) Emergency |
| Outputs | (18) Relays Rating 30V DC/2A |
| LEDs | System: white/blue/red Output relays: white |
| Buttons | (1) Factory-reset Terminal blocks |
| Operating temperature | -10 to 40° C (14 to 104° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| UACC-Extender-2Wire-Tx/Rx Mechanical |
|
| Dimensions | 40 x 105 x 25 mm (1.6 x 4.1 x 1") |
| Weight | PoE in: 77 g (2.7 oz) PoE out: 79 g (2.8 oz) |
| Enclosure material | Polycarbonate |
| Mounting material | Polycarbonate |
| Hardware | |
| Networking interface | (1) 10/100 MbE (1) Homeplug AV |
| Management interface | (1) 10/100 MbE |
| Power method | PoE++ |
| Max. power consumption | 3W (Without PoE output) |
| PoE input | (1) PoE++, 50V DC, Max. 1.2A |
| PoE output | (1) PoE+, 48V DC, 0.72A |
| ESD/EMP protection | Air: ±8kV, contact: ±4kV |
| LED | White |
| Operating temperature | -10 to 40° C (14 to 104° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| UA-G2 Mechanical |
|
| Dimensions | 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4") |
| Weight | 82 g (2.9 oz) |
| Enclosure material | Polycarbonate, glass |
| Mounting | In wall, gang box |
| Weatherproofing | IP55 |
| Hardware | |
| Networking interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1 |
| Power method | PoE |
| Supported voltage range | 48V DC |
| Max. power consumption | 5W |
| ESD/EMP protection | Air: ±15kV, contact: ±8kV |
| Sensors | Proximity sensor |
| Speaker | (1) 8 ohm, 0.7W |
| LEDs | R/G/B/W |
| Button | (1) Factory-reset |
| NFC frequency | 13.56 MHz |
| NFC read range | < 30 mm |
| NFC standards | ISO 14443A, 14443B, 15693 |
| NFC technology | NFC Tag 1,2,3,4,5 MIFARE Classic MIFAREPlus MIFARE Ultralight MIFARE DESFire |
| Operating temperature | -30 to 45° C (-22 to 113° F) |
| Operating humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| UA-Card Mechanical |
|
| Dimensions | 85.6 x 54 x 0.8 mm (3.4 x 2.1 x 0.03") |
| Weight | 5 g (0.18 oz) |
| Format | ISO 7810 ID-1 |
| NFC frequency | 13.56 MHz |
| NFC technology | ISO/IEC 14443 Type A MIFARE DESFire UniFi Access Proprietary Security Protocol |
| SKU | UA-SK-ELEVATOR |
| Barcode # | 810010079152 |
| Brand | UBIQUITI |
| Shipping Weight | 1.0000kg |
Manufacturer Warranty : 1 Year Manufacturer Warranty
