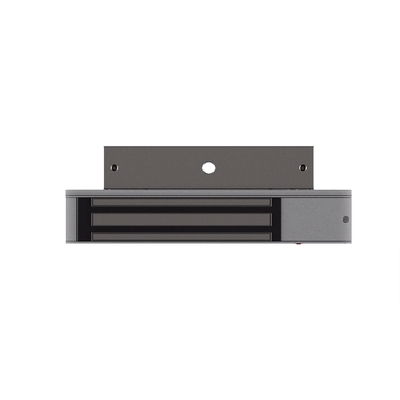

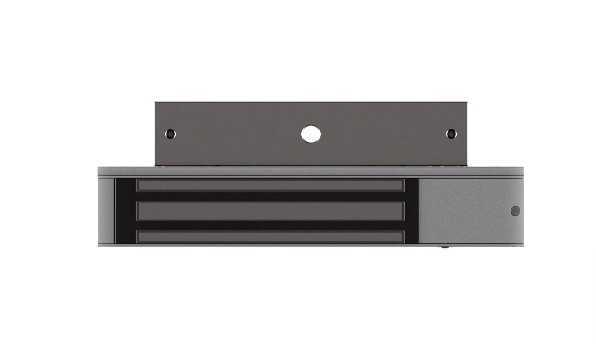

Ubiquiti UA-Lock-Magnetic-270kg Magnetic Lock



Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub.

Holds up to 270 kg or 540 kg (600-1,200 lb)

Can be installed on a wide variety of door types*

*— Access Lock Magnetic 270kg: All types including full glass
— Access Lock Magnetic 540kg: All types excluding full glass



Compatibility:

UA-G2-SK-Pro

,

UA-G2-SK

,

EAH-8

,

UA-Hub

(UA-Lock-Magnetic-270kg)

Mechanical

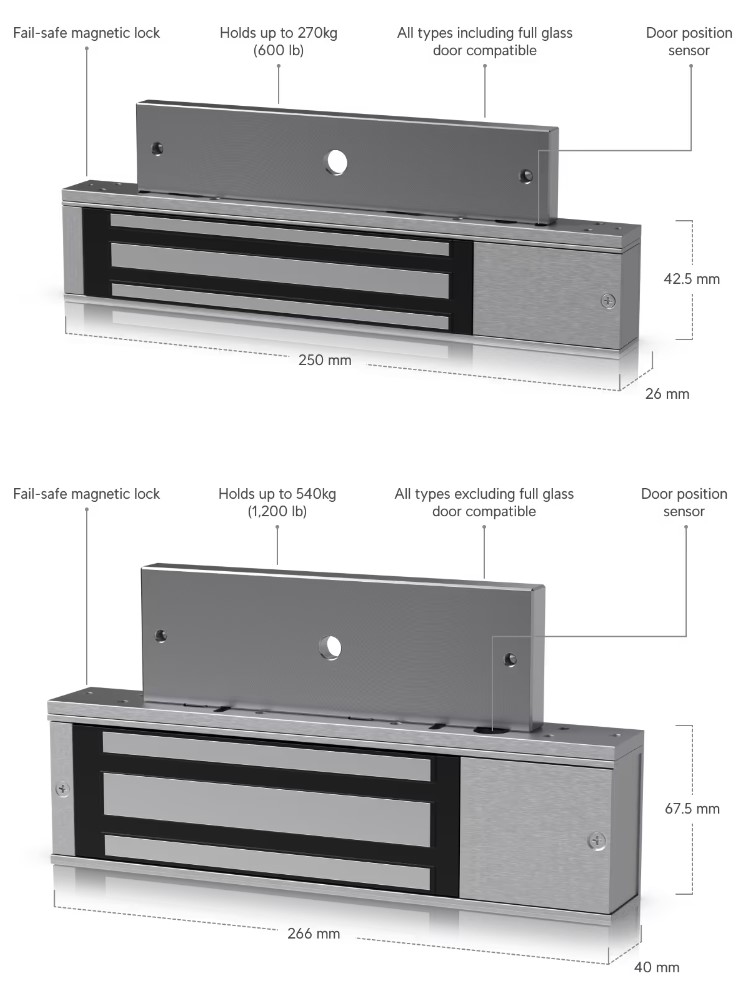

Dimensions UA-Lock-Magnetic-270kg
Lock body: 250 x 42.5 x 26 mm(9.8 x 1.7 x 1" )
Install plate: 250 x 25x 5 mm (9.8 x 1 x 0.2" )
Armature: 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4")

UA-Lock-Magnetic-540kg
Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6")
Install plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2")
Armature: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6")
Weight UA-Lock-Magnetic-270kg
Lock body: 1 kg (2.2 lb)
Install plate: 70 g (0.15 lb)
Armature: 600 g (1.3 lb)

UA-Lock-Magnetic-540kg
Lock body: 2.9 kg (6.4 lb)
Install plate: 145 g (0.3 lb)
Armature: 1.4 kg (3.1 lb)
Enclosure material Device/brackets: aluminum
Armature: steel
Hardware
Voltage 12V DC
Current power UA-Lock-Magnetic-270kg: 800mA ±10%
UA-Lock-Magnetic-540kg: 500mA ±10%
Wiring connection Connect below terminals to UA-Hub:
Lock 12V/NC (connect to Power Lock Relay NC on UA-Hub)
Lock 12V/COM (connect to Powered Lock Relay COM on UA-Hub)
DPS/+ (DPS+ on UA-Hub)
DPS/-(DPS-onUA-Hub)
Lock type Fail safe lock
Single door
Holding force UA-Lock-Magnetic-270kg: 270 kg (600 lb)
UA-Lock-Magnetic-540kg: 540 kg (1,200 lb)
LED Green: unlocked
Red: locked
Suitability UA-Lock-Magnetic-270kg: wooden/metal/glass door
UA-Lock-Magnetic-540kg: wood/metal door
Mounting accessories UA-Lock-Magnetic-270kg
L bracket : door thickness < 42 mm (< 1.7"), outward opening door
Z bracket: used with L bracket for inward opening door
U bracket: used with glass door

UA-Lock-Magnetic-540kg
L bracket: door thickness < 42 mm (< 1.7"), outward opening door
Z bracket: used with L bracket for inward opening door
Ambient operating temperature -10 to 50° C (14 to 122° F)
Ambient operating humidity 5 to 90% noncondensing
Certifications FCC, IC, CE
SKU UA-Lock-Magnetic-270kg
Barcode # 810010076502
Brand UBIQUITI
Shipping Weight 1.0000kg
Manufacturer Warranty : 1 Year Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Ubiquiti UA-Lock-Magnetic-270kg Magnetic Lock

Model # UA-Lock-Magnetic-270kg

  • SKU: UA-Lock-Magnetic-270kg

$318.70
WAS $319.00
Sale Ends on:
23:55 pm, 18 May 2025
In Stock
