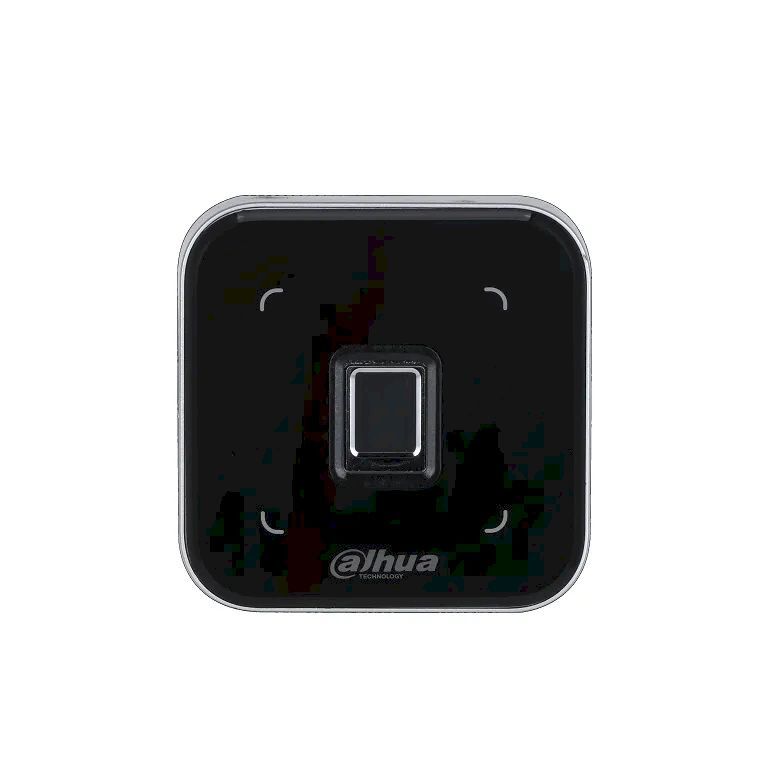

Fingerprint Enrollment Reader > PC material and acrylic panel suitable for indoor use > Support IC card (Mifare card), ID card issuing, and fingerprint collection > USB2.0 interface. Plug and play, no need to install driver > LED indicator and buzzer prompt for successful card issuing and > Supports SmartPSS AC and DSS Pro platforms

(DHI-ASM101A)

Basic Product Type Capacitive fingerprint enrollment reader Buzzer Yes Casing PC/acrylic panel Function Communication Mode ID card; IC card (Mifare card) Prompt of Succeeded in Issuing Card Card issuer flashes green Performance IC Card Encryption Yes Card Reading Frequency 13.56MHz/125KHz Card Issuing Distance 0 cm5 cm (0"0.20") Fingerprint Sensor Type Capacitive fingerprint sensor Fingerprint Recording Time 1800 ms General Power Supply 5V 0.5A DC Power Consumption Standby ? 1.0W, working ? 1.7W Product Dimensions 70 mm × 70 mm × 26 mm (2.76" × 2.76" × 1.02") (L × W × H) Packaging Dimensions 110 mm × 97 mm × 90 mm (4.33" × 3.82" × 3.54") (L × W × H, 1 in inner carton) 578 mm × 313 mm × 204 mm (22.76" × 12.32" × 8.03") (L × W × H, carton) Operating Temperature 20°C to +65°C (4°F to +149°F) Operating Humidity 5%RH95% (non-condensing) Operating Environment Indoor Gross Weight 0.17 kg (0.37 lb) Installation Desk mount Certifications CE; FCC
