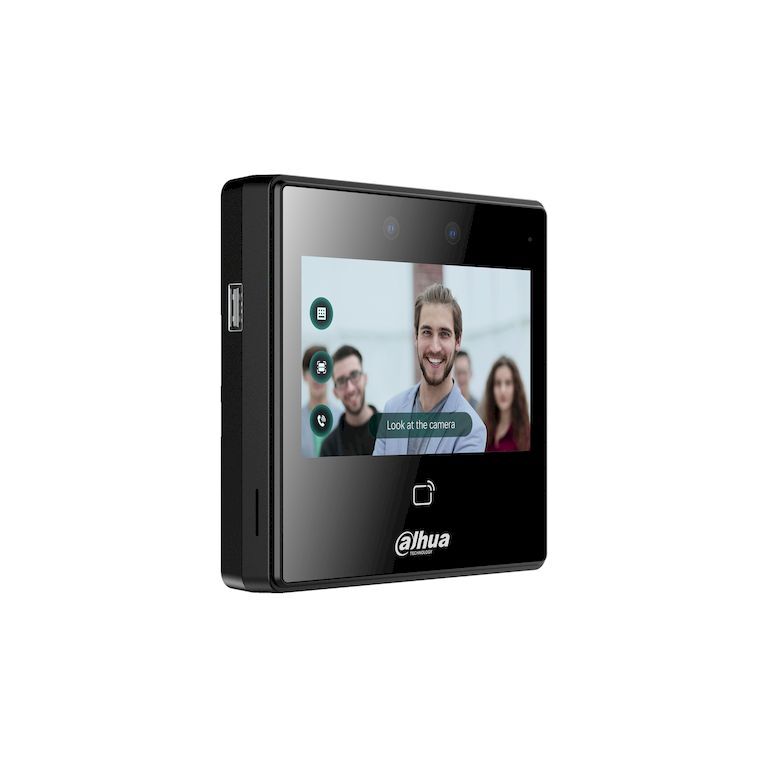

(DHI-ASI3213A-W)
System
Main Processor
Embedded Processor
Network Protocol
IPv4; RTSP; RTP; TCP; UDP; SIP; P2P
OSDP Protocol
Yes
Interoperability
ONVIF; CGI
SDK and API
Yes
Basic
Product Type
Standalone
Display Screen
4.3" LCD
Screen Type
Capacitive Touchscreen
Screen Resolution
480 (H) × 272(V)
Camera
2-MP CMOS HD dual-lens camera
WDR
DWDR
Light Compensation
Auto IR
Voice Prompt
Yes
Casing
PC + ABS
Function
Unlock Mode
Password, remote, card, face and combination unlock
Card Type
IC card
Period List
128 periods
Holiday Period
128 periods
Network Update
Yes
First User Unlock
Yes
Remote Verification
Yes
Restricted List/Trusted List
Yes
Wi-Fi
Yes
Wireless Standard
IEEE802.11b/802.11g/802.11n
Wireless Frequency Range
2.4 GHz
Peripheral Card Reader
1 × RS485 card reader;1 × Wiegand card reader
Multi-user Authentication
Yes
Real-time Monitoring
Yes
Web Configuration
Yes
Auto Registration
Yes
Performance
Card Reading Distance
0 cm3 cm (0"1.18")
Face Recognition Height Range
1.1 m 2.0 m (3.61 ft6.56 ft)
Face Recognition Distance
0.3 m1.5 m (0.98 ft4.92 ft)
Face Recognition Accuracy
99.9%
Face Recognition Time
0.2 s
Read Speed (QR Code )
500 ms
Code Type
Paper; Electronic
User
User (Card) Type
Normal user; VIP users; patrol users; guest user; blocklist user; other user
Capacity
User Capacity
3,000
Face Image Capacity
3,000
Card Capacity
5,000
Password Capacity
3,000
Record Capacity
300,000
Port
RS-485
1
Wiegand
1
USB
1 × USB 2.0
Network Port
1 × RJ-45 10/100 Mbps self-adaptive Ethernet port
Exit Button
1
Lock Control
1
Door Status Detection
1
Alarm
Anti-pass Back
Yes
Tamper Alarm
Yes
Duress Alarm
Yes
Door Sensor Timeout
Yes
Intrusion
Yes
Illegal Card Exceeding Threshold
Yes
General
Power Adapter
Standard
Power Supply
12 VDC, 1.5 A
Power Consumption
?18 W
Product Dimensions
115.0 mm × 118.0 mm × 27.1 mm (4.53" × 4.65" × 1.07") (H × W × W)
Packaging Dimensions
190 mm × 179 mm × 127 mm (7.48" × 4.65" × 5.00") (L × W × H, protection box)
Operating Temperature
10 °C to +40 °C (+14 °F to +104 °F)
Operating Humidity
0%90% (RH), non-condensing
Operating Environment
Indoor
Net Weight
250 g (0.55 lb)
Gross Weight
400 g (0.88 lb)
Accessory
Wall mount bracket (included)
Installation
Wall mount; 86 case mount; desk mount
| SKU | DHI-ASI3213A-W |
| Model # | 1.0.01.25.11698-0022 |
| Barcode # | 6923169713434 |
| Brand | DAHUA |
| Shipping Weight | 0.4000kg |
Manufacturer Warranty
