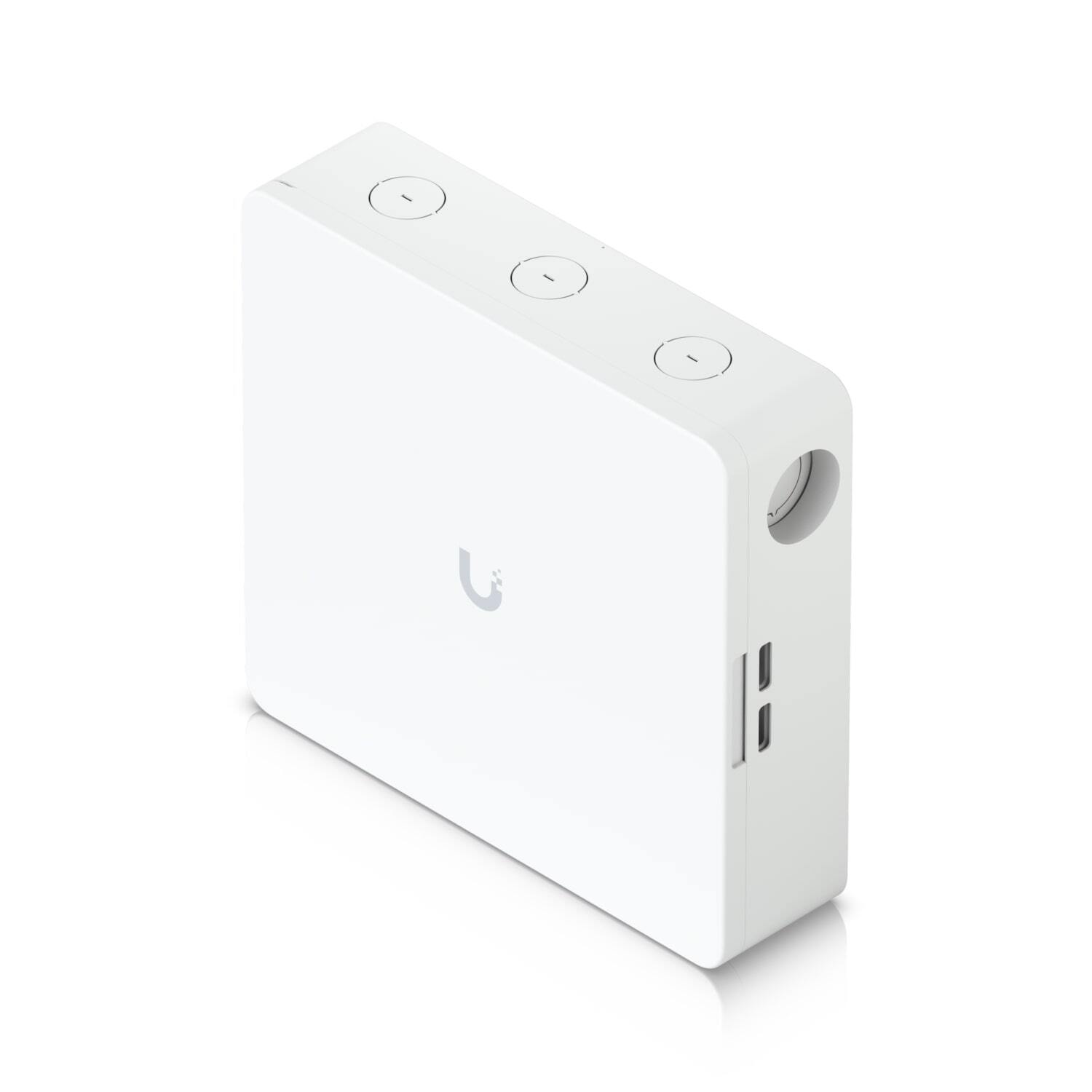

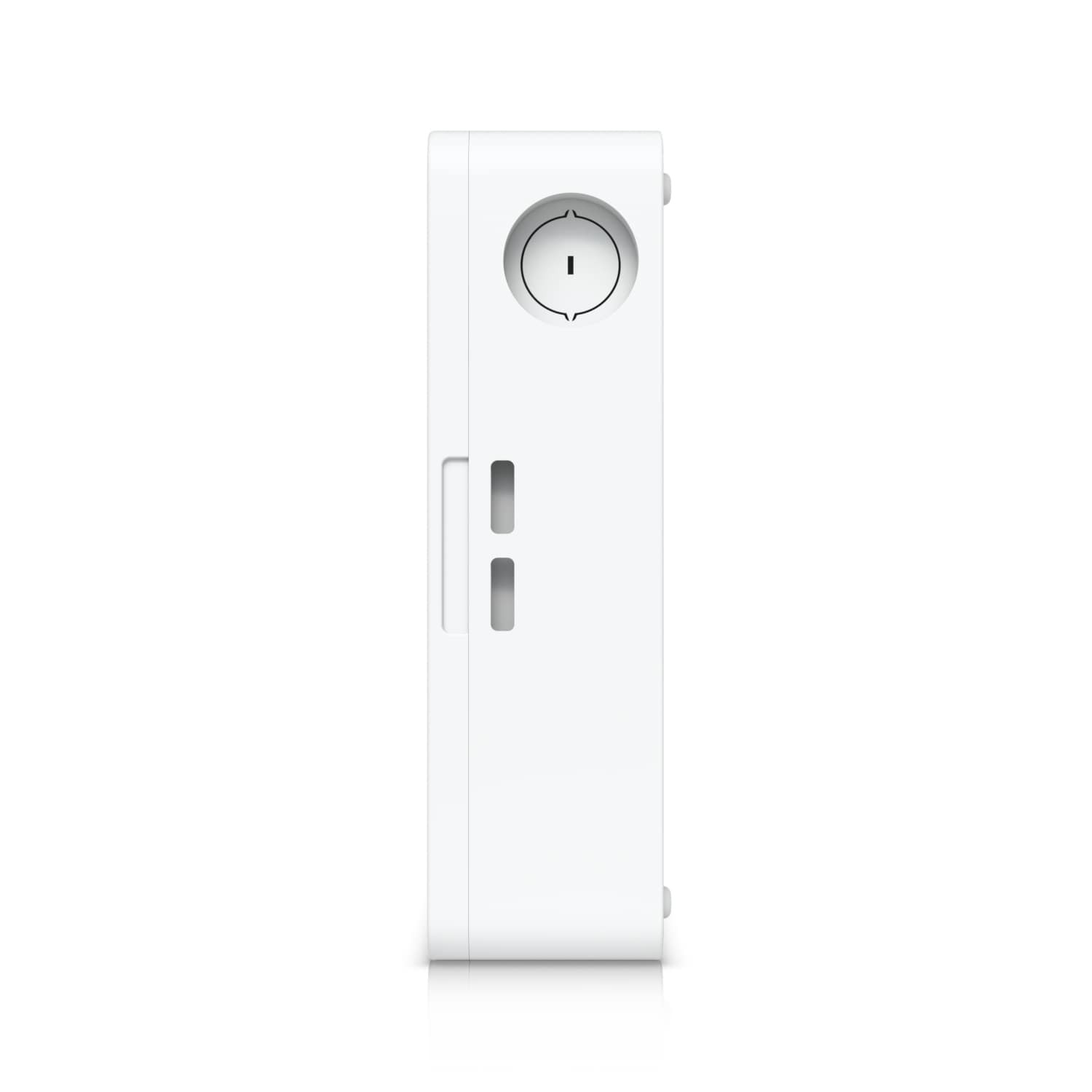

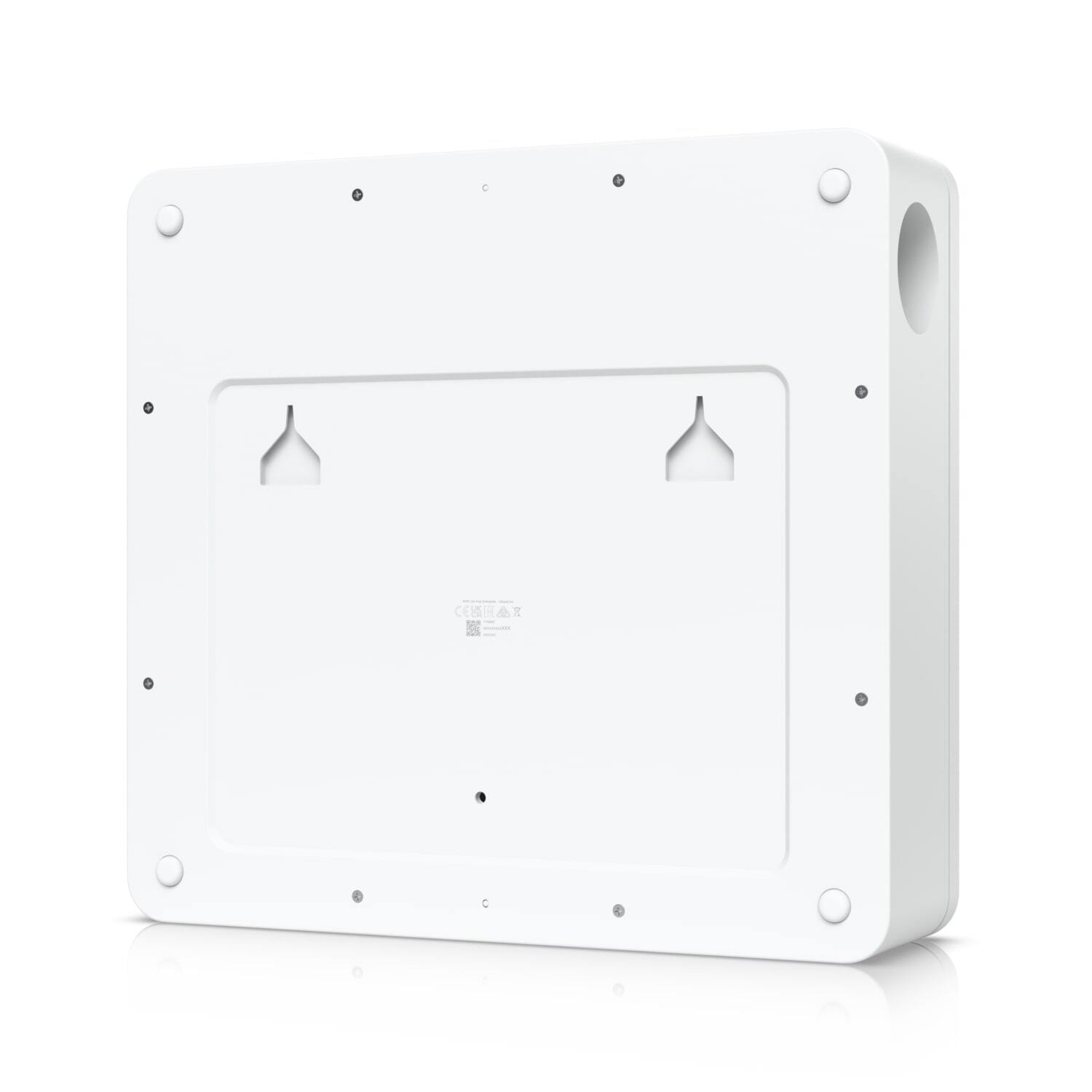

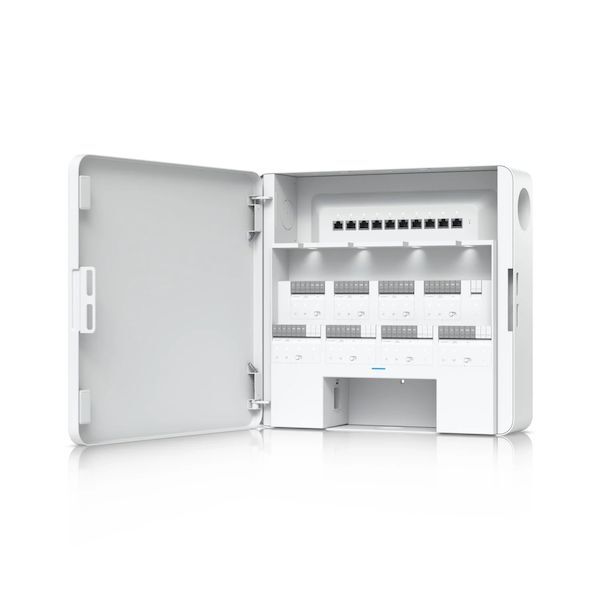

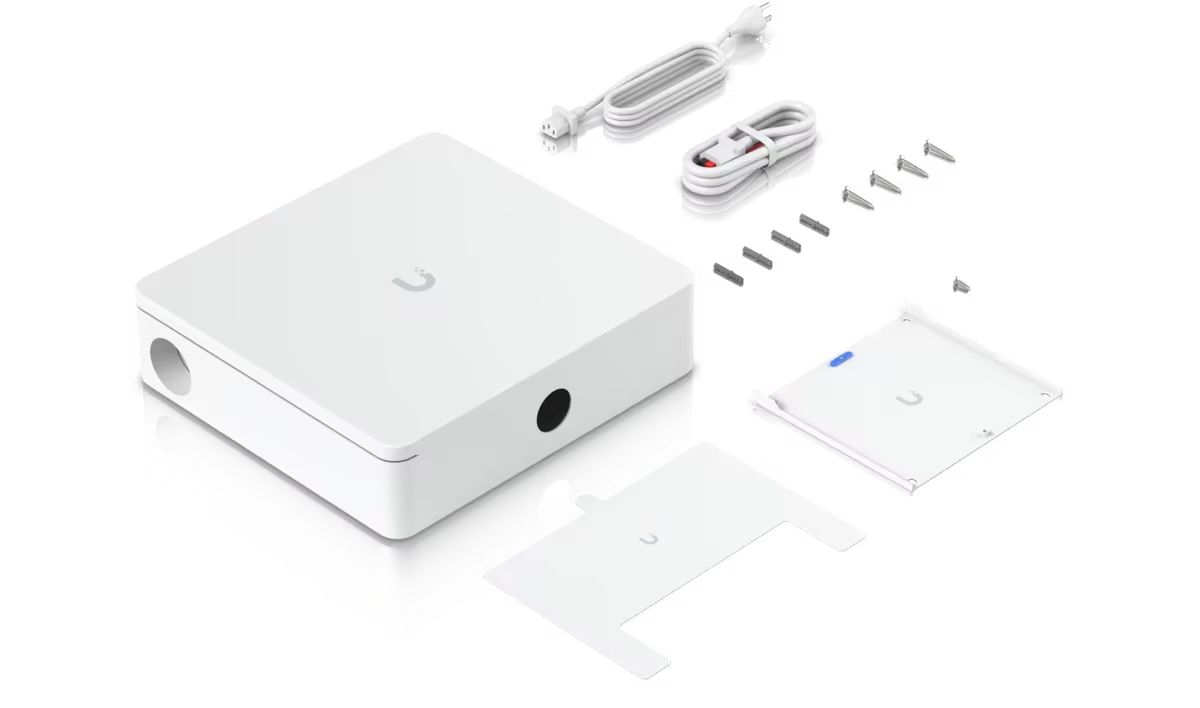

Ubiquiti Enterprise Access Hub, With Entry And Exit Control to Eight Doors, Battery Backup Support,(8) Lock terminals (12V or Dry)

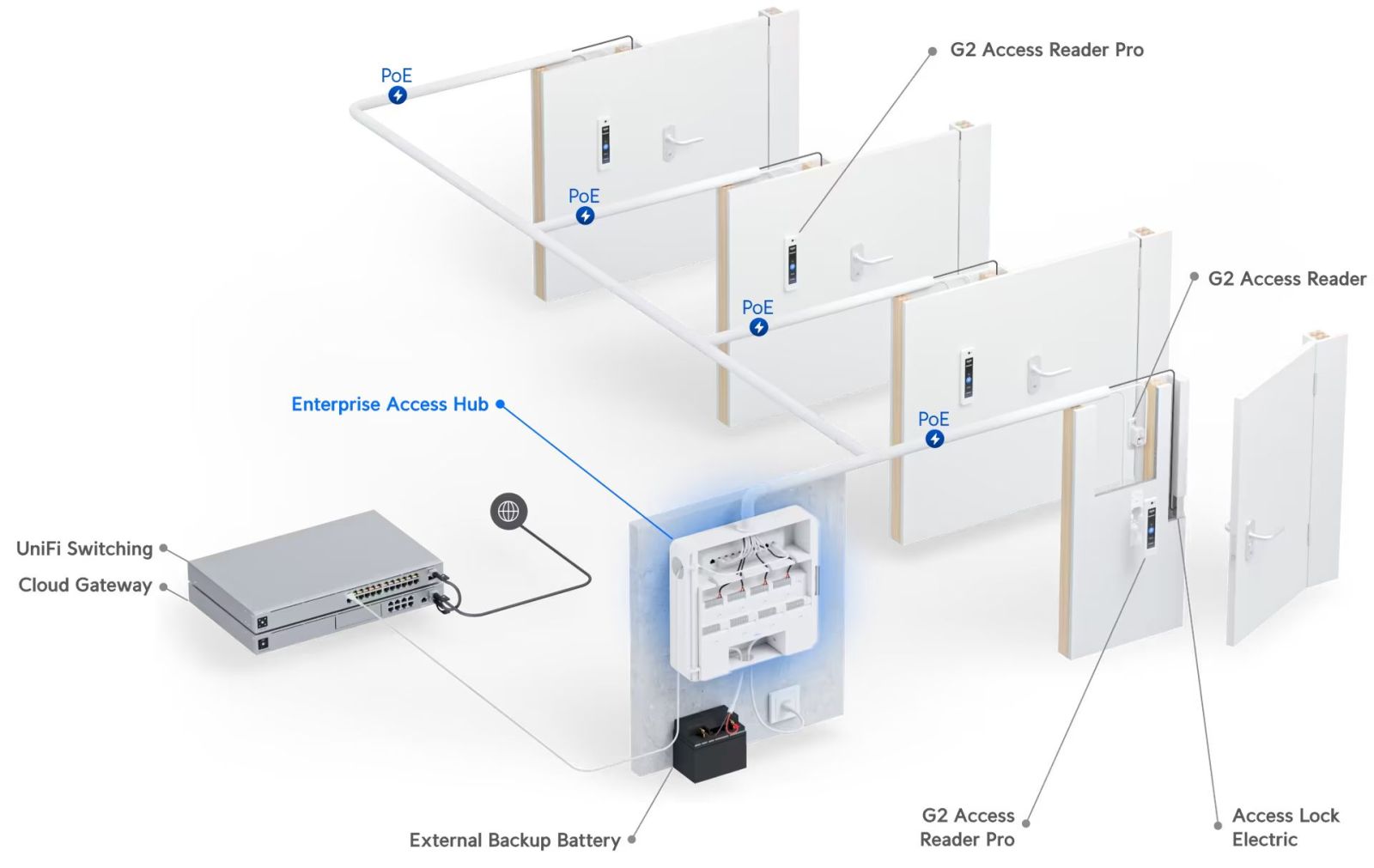

Enterprise-grade access hub with entry and exit control to eight doors and battery backup support.



(8) Lock terminals (12V or Dry)

(8+8) Inputs for request-to-exit devices and door position sensors

(8) PoE ports for Access Readers

(4) AUX terminals for chimes, sirens, or door openers

(1) Battery backup input (32–48V)

(EAH-8)

Mechanical
Dimensions 379 x 355 x 105 mm (15 x 14 x 4.1")
Weight Device: 9.1 kg (20 lb)
Mount: 624 g (1.4 lb)
Enclosure material SGCC housing with PC cover
Mounting material SGCC wall mount plate
Hardware
Networking interface (10) 10/100/1000 Base-T
Power method Universal input, 100-240V AC,~4.4A Max, 50/60Hz
32–48V DC Lead Acid Battery
Power supply AC/DC, internal
Max. power consumption 240W
PoE interface (8) PoE (Pins 1, 2+; 3, 6-)
Voltage range PoE mode 44–57V DC
Total available PoE 60W
Max. PoE wattage per port 15.4W
Button (1) Factory-reset
LEDs System: white/blue
Output relays: steady white
Ethernet: flashing white
Digital input (8) Inputs for request-to-exit devices
(8) Inputs for door position sensors
(1) Emergency
Dry output relay (8) Lock terminals (12V or Dry)
(4) AUX terminals for advanced setup (Chime/Siren/Door opener)
Powered output relay Lock: 12V DC, 1A/ Dry
Aux: Dry only
Recommend max. cable length
  18 AWG
UACC-Cable-DoorLockRelay length
20
AWG length



22
AWG length



24
AWG length



UA-Lock-Electric
(400mA)
100 m
(328 ft)
66 m
(217 ft)
42 m
(138 ft)
25 m
(82 ft)
UA-Lock-Magnetic-270kg
(800mA)
46 m
(151 ft)
30 m
(98 ft)
20 m
(66 ft)
12 m
(29 ft)
UA-Lock-Magnetic-540kg
(500mA)
80 m
(262 ft)
51 m
(167 ft)
32 m
(105 ft)
20 m
(66 ft)
Other locks
(1A)
36 m
(118 ft)
24 m
(79 ft)
15 m
(49 ft)
9 m
(30 ft)
Operating environment Indoor use only
Operating temperature 0 to 40° C (32 to 104° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
SKU EAH-8
Barcode # 810084693117
Brand Ubiquiti
Shipping Weight 0.8000kg

Manufacturer Warranty : 2 Years Manufacturer Warranty
