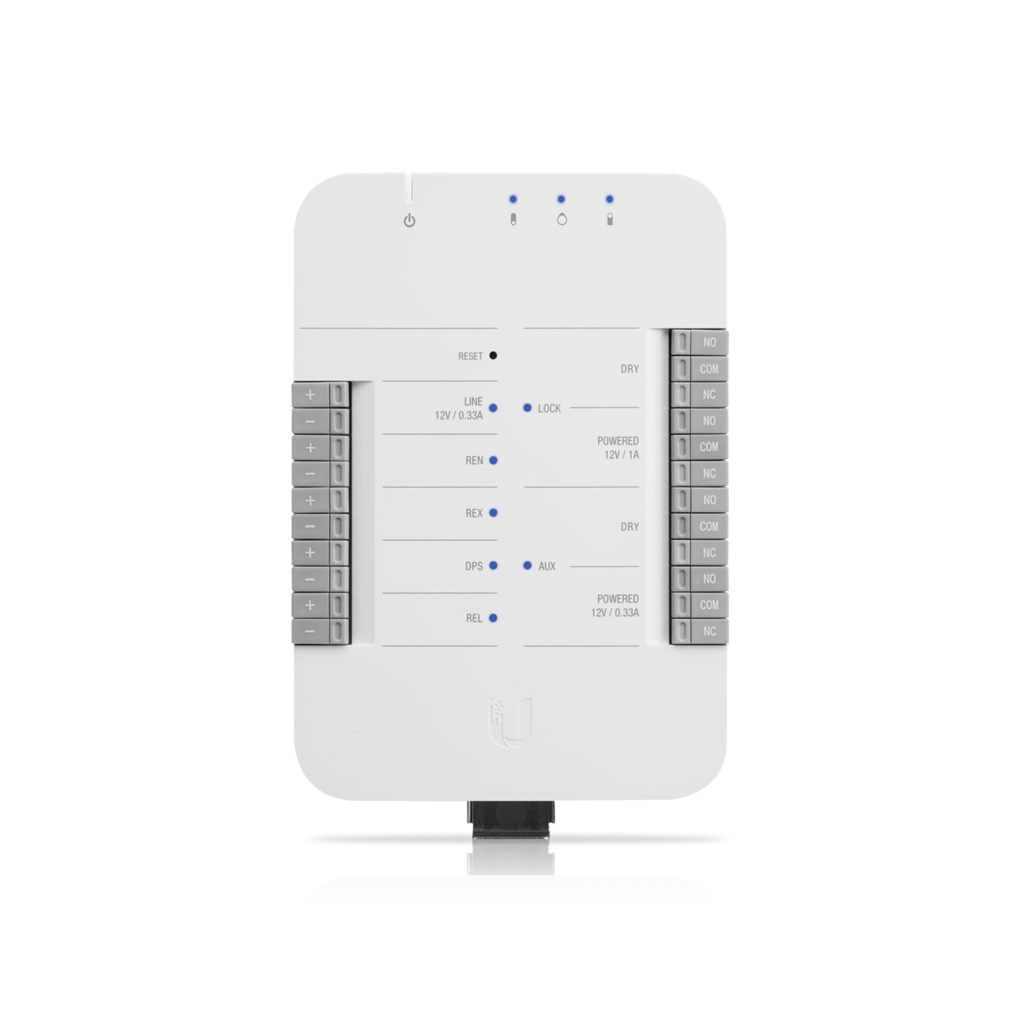

Ubiquiti UniFi Access Hub - Single Door Entry Mechanism - PoE Powered, Supports UA-LITE and UA-PRO - Four Inputs and 12v Dry Relays for Most Door Lock

A single-door mechanism that provides complete entry and exit control via connected Access Readers.





(2) Lock terminals (12V and Dry)

(2) AUX terminals for an external siren and automatic door opener

(4) Additional inputs (sensors and buttons)

Connect and power using PoE++

Connect to two UniFi Access readers and one UniFi Protect camera





Installation Tutorial







(UA-HUB)

Technical Specifications

Mechanical
Dimensions 190 x 126 x 30.5 mm (7.48 x 4.96 x 1.2")
Weight 457 g (16.12 oz)
Enclosure material Plastic Enclosure with Metal Mount Plate

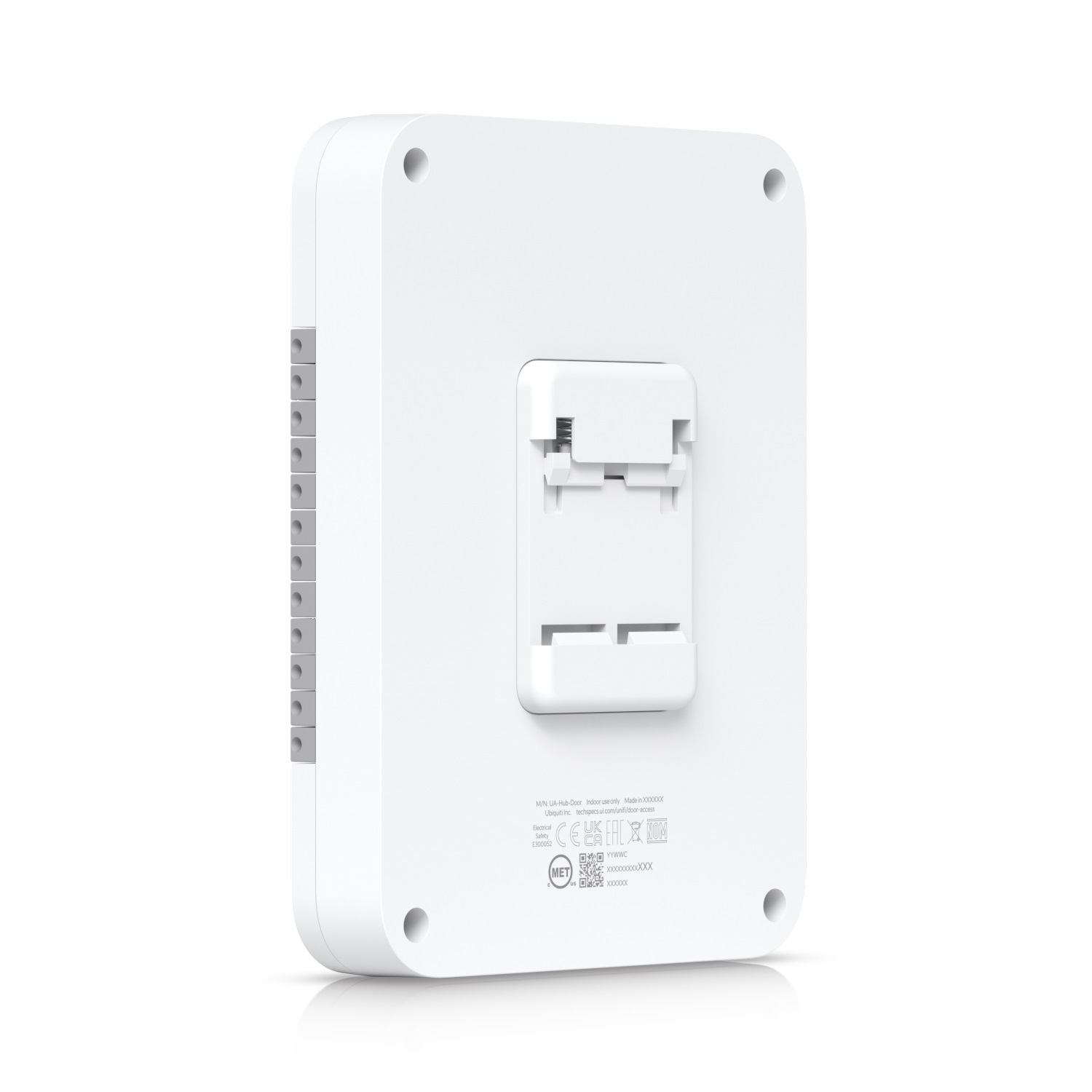

Mounting options DIN rail
Hardware
Networking interface (4) 1GbE
Max. power consumption 51W
Power method PoE++
Input terminals REX - request to exit
REN - request to enter
REL - remote release
DPS - door position sensor
Dry output relay
Lock
Aux
Rated 30VDC, up to 1A
Rated 30VDC, up to 1A
Powered output relay
Lock
Aux
Line
12VDC, up to 1A
12VDC, up to 0.33A
12VDC, up to 0.33A
LEDs (1) System, (3) PoE out, (4) Input
(2) Output Relays, (1) 12VDC Out
Buttons (1) Factory reset
Operating temperature 0 to 40° C (32 to 104° F)
Operating humidity 5 - 90% noncondensing
Certifications CE, FCC, IC
SKU UA-HUB
Barcode # 810084690598
Brand UBIQUITI
Shipping Weight 0.8000kg

Manufacturer Warranty : 1 Year Manufacturer Warranty
