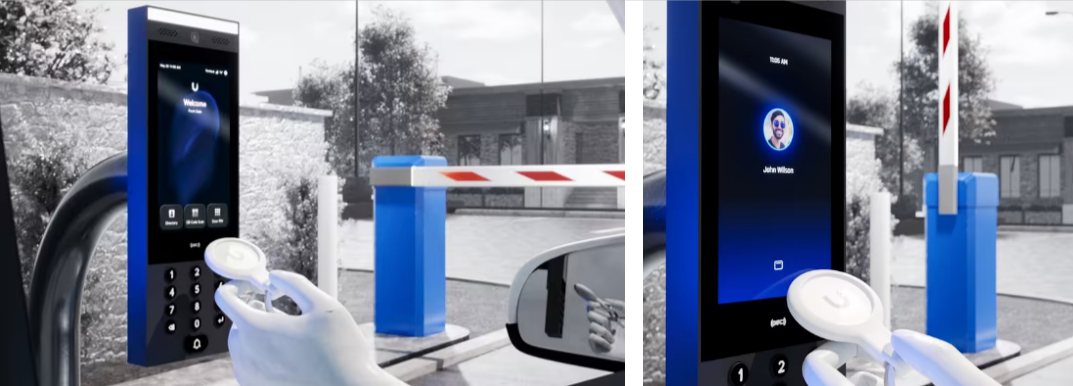

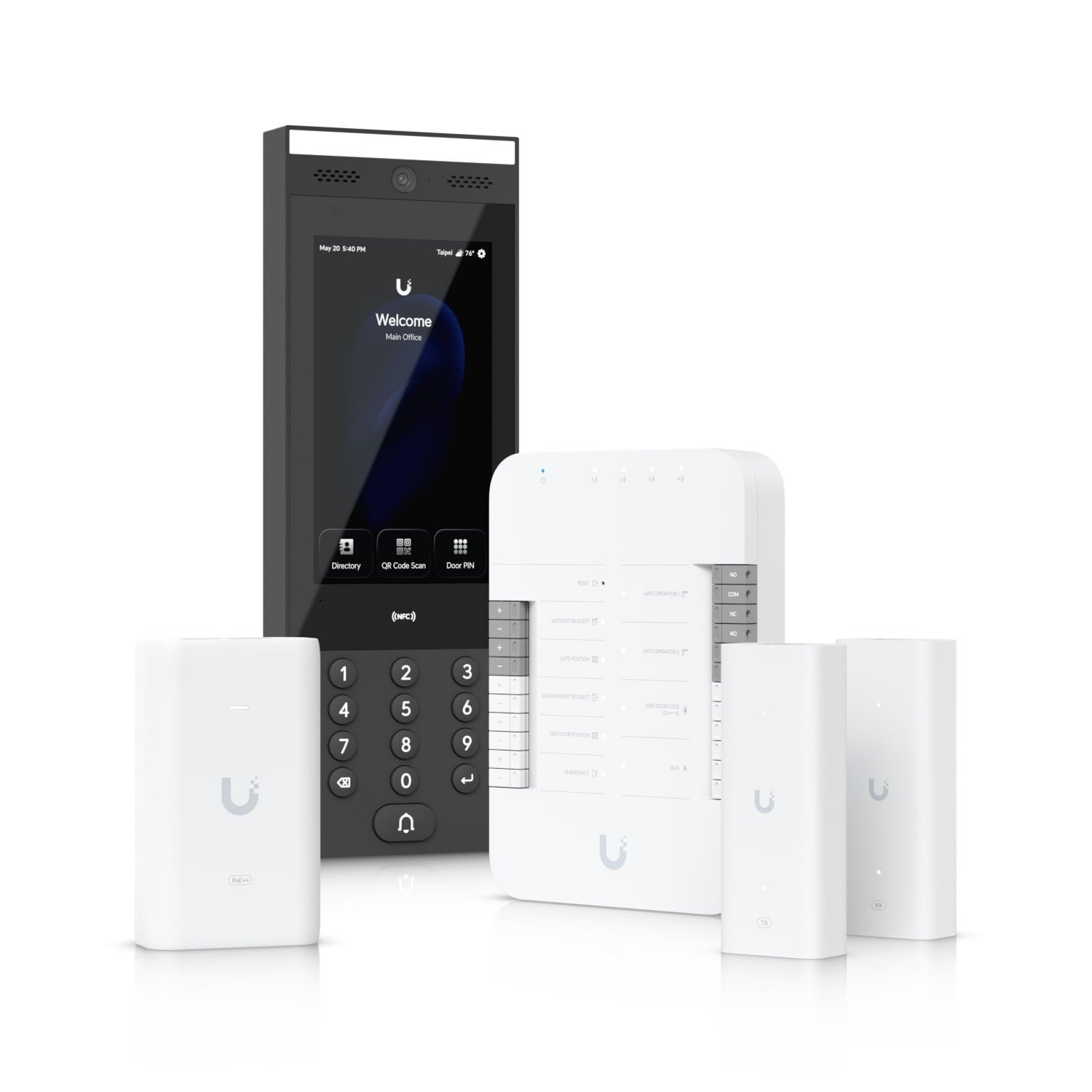

Starter kit with a Gate Hub, G3 Intercom, PoE++ adapter, and PoE++ over twisted pair extender for access control at a single gate with Touch Pass support.

(UA-G3-SK-Gate)

Overview – In the Box

Item	Quantity
Gate Hub	1
G3 Intercom	1
PoE++ Adapter	1
2-wire Retrofit Extenders	2
Touch Passes	10 free 1-year passes

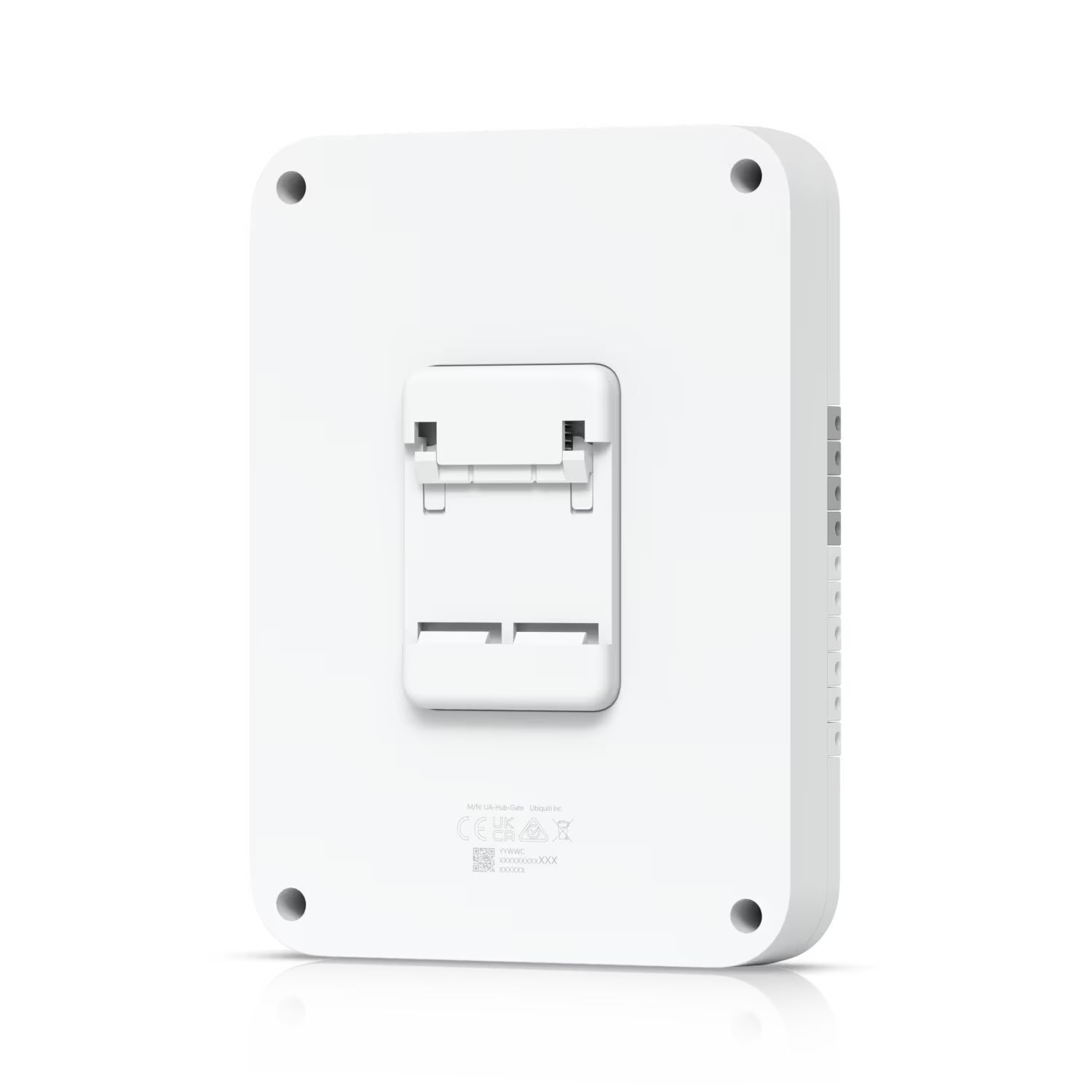

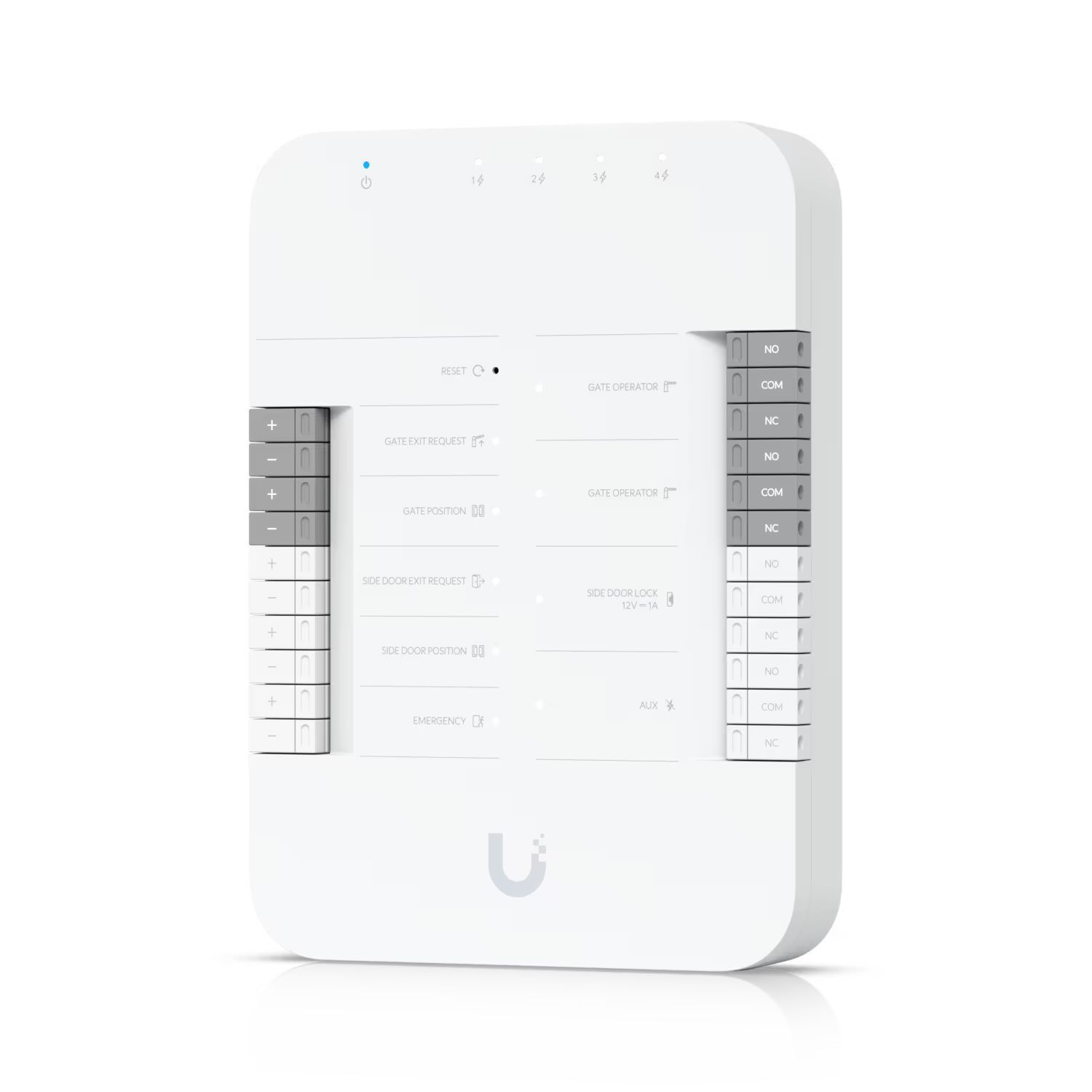

Gate Hub Specifications

Category	Details
Dimensions	175 x 126 x 26 mm (6.9 x 5 x 1")
Supported Doors	1 gate, 1 side door
Input Terminals	Gate/Side door requests, positions, and emergency
Power Method	PoE++
Mounting	DIN-rail (Included)
Weight	460 g (1 lb)
Enclosure Material	Polycarbonate
Indoor/Outdoor Use	Indoor only (outdoor with waterproof box)

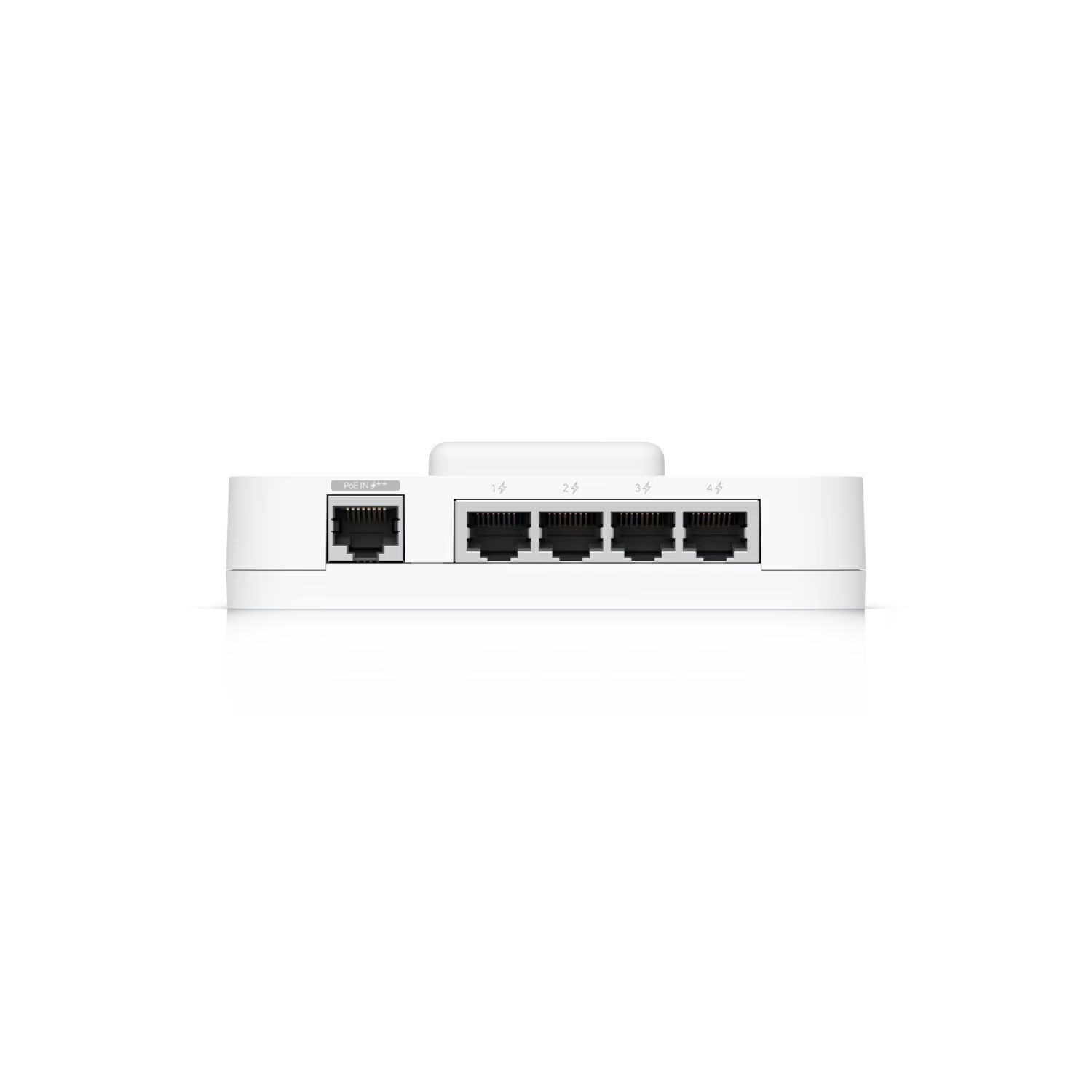

Networking Interface	(5) 10/100/1000 Base-T
PoE Interface	(1) PoE++ input, (4) PoE outputs
Max. Power Consumption	22W (without PoE), 50W (with PoE)
Dry Output Relay	(2) Operator, (1) Aux - 30V DC, 1A
Powered Output Relay	12V DC, 1A
LEDs / Buttons	White/Blue LED, Factory-reset button
Cable Length (by AWG)	Detailed per lock type (UA-Lock, magnetic, etc.)
Standards & Certifications	UL 294, CE, FCC, IC, CAN/ULC-60839-11-1, NDAA Compliant
UL 294 Level	Destructive, Line Security, Endurance, Standby: Level I
Temperature Range	-30 to 60° C (-22 to 104° F)
Humidity Range	5 to 90% noncondensing

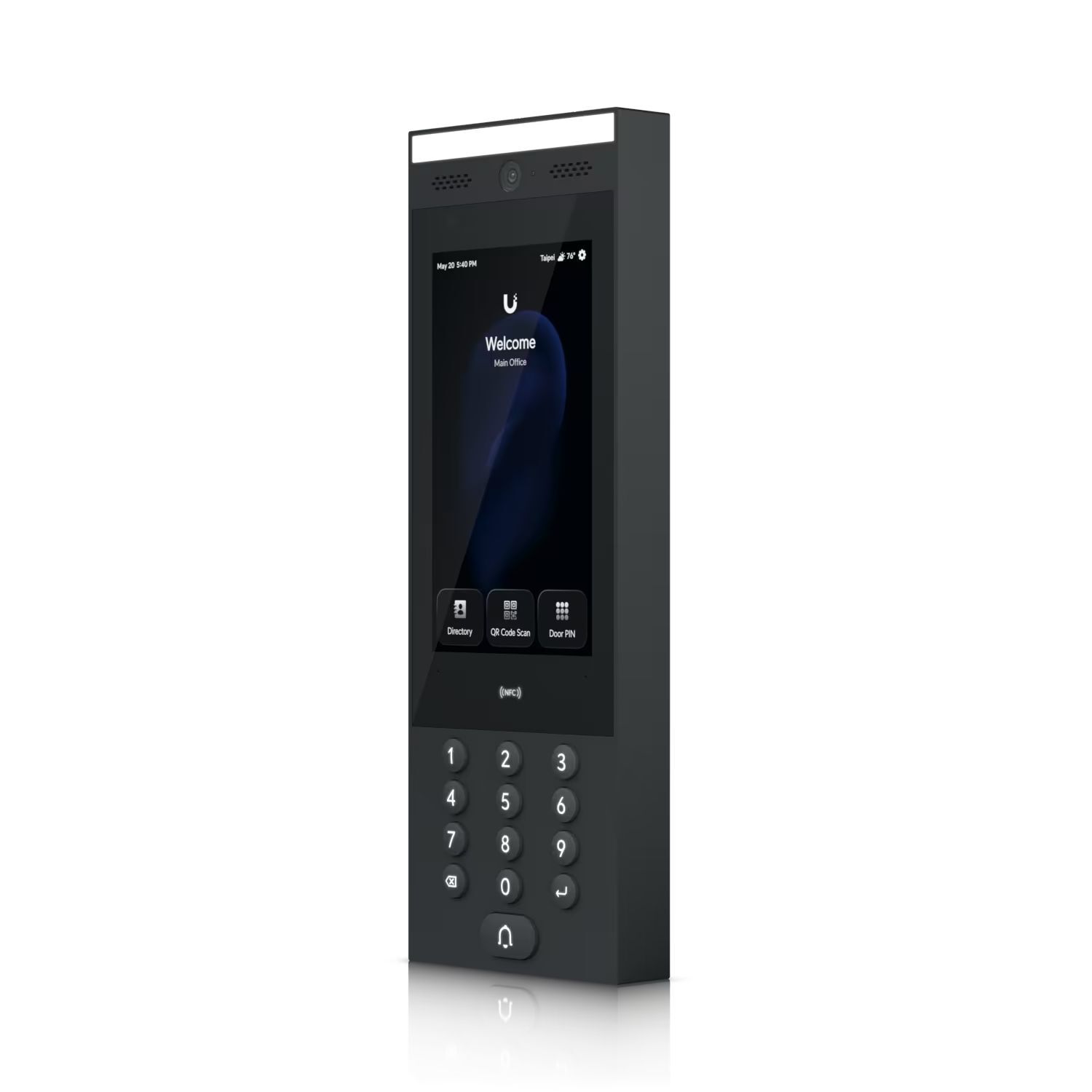

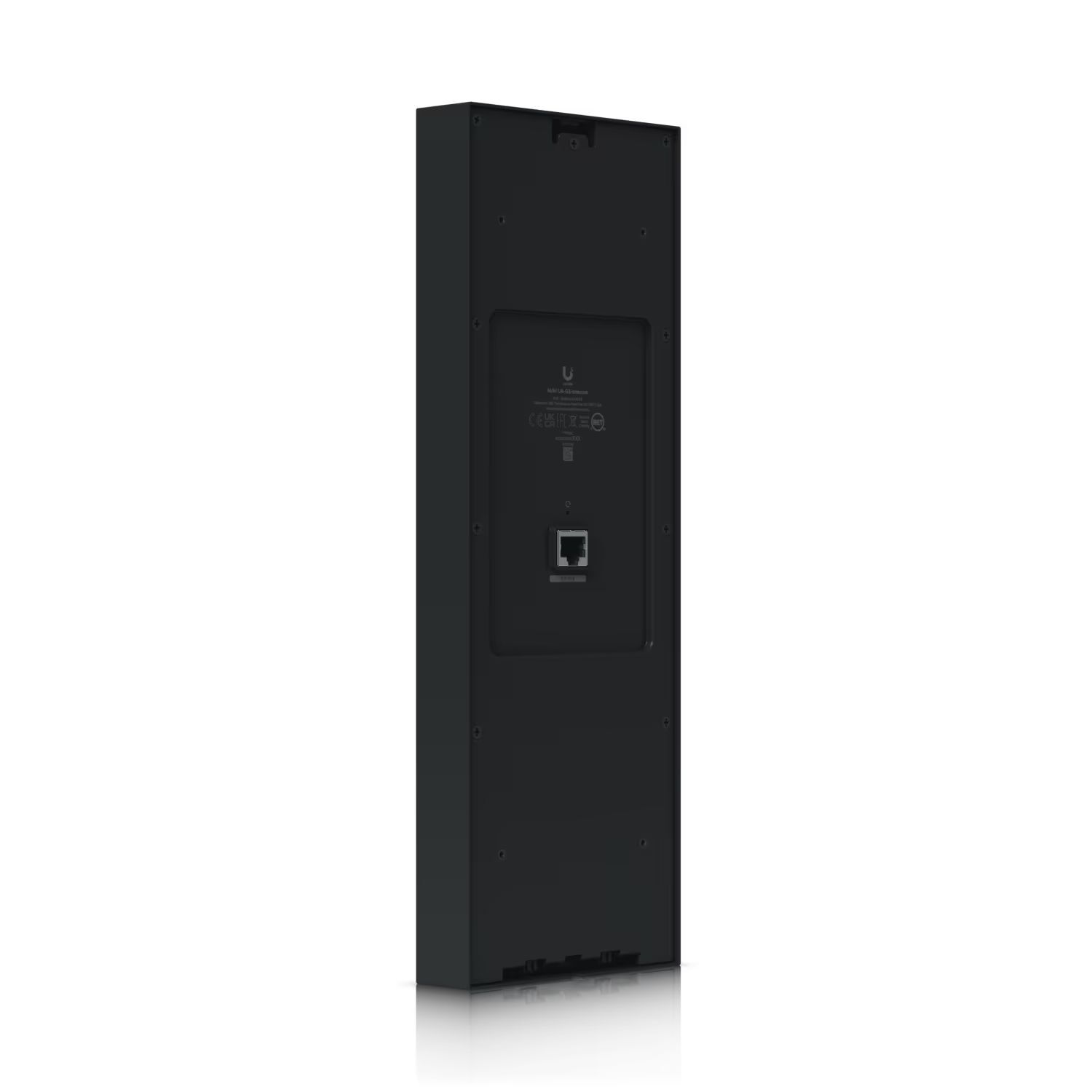

G3 Intercom Specifications

Category	Details
Dimensions	324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1")
Integrated Camera	Yes
Access Methods	NFC, Keyfob, PIN, Wallets, Mobile
Two-Way Intercom	Yes
Display	177 mm (7"), 1024 x 600 px, capacitive touch, 1000 nits
Weatherproofing	IP65
Weight	Device: 965 g, Bracket: 445 g
Mounting	Wall, gooseneck pedestal (Included), optional kits
Enclosure Material	Aluminum alloy, UV polycarbonate, glass
Connectivity	GbE RJ45, BLE 4.2, NFC
Power	PoE
Max. Power Consumption	13W
Supported Voltage	48V DC
Sensors	Proximity, ALS
NFC Specs	13.56 MHz, <30 mm range, multiple tech standards supported
Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1, NDAA Compliant
Temperature Range	-30 to 60° C (-22 to 140° F)
Humidity Range	5 to 90% noncondensing

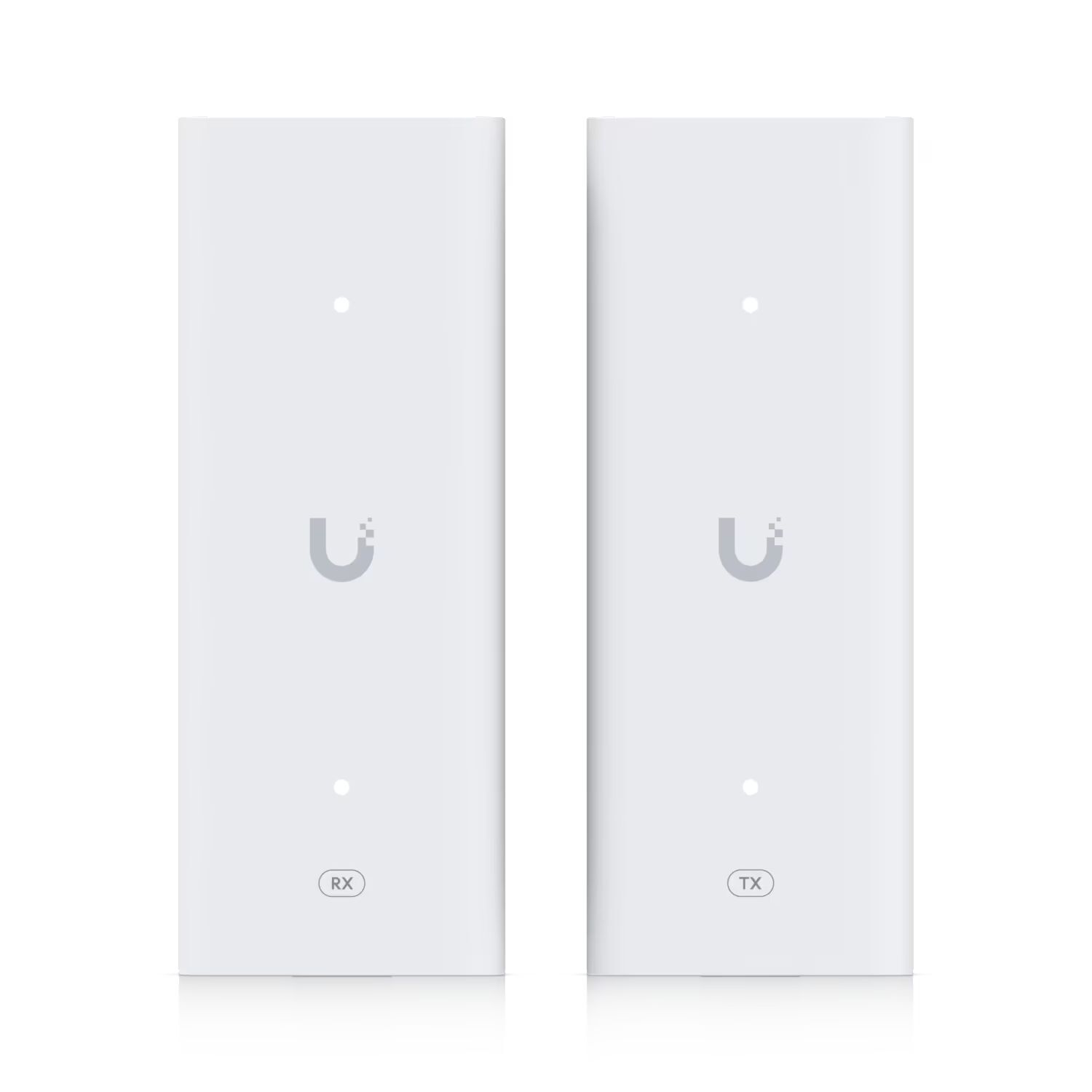

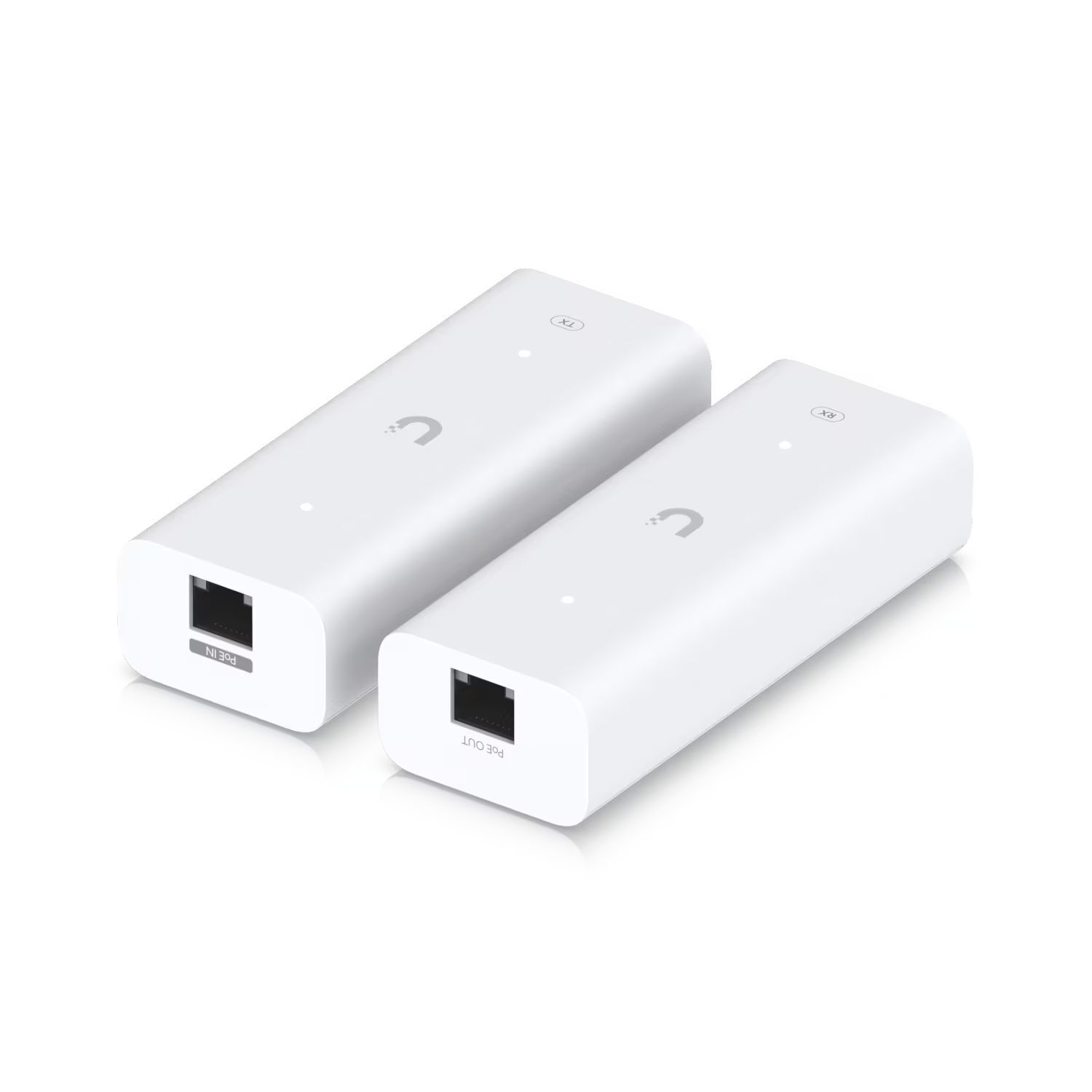

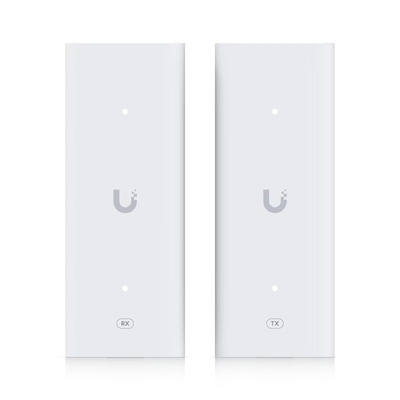

Retrofit Extender Specifications

Component	Dimensions	Weight
PoE In/Out	40 x 105 x 25 mm (1.6 x 4.1 x 1")	77 g (PoE In), 79 g (PoE Out)
Adapter	43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2")	140 g

Other Specifications	Details
Material	Polycarbonate (Enclosure & Mount)
Networking Interface	(1) 10/100 MbE, (1) Homeplug AV
Power Method	PoE++
Max. Power Consumption	3W (Without PoE output)
ESD/EMP Protection	±8kV (air), ±4kV (contact)
Ambient Temp / Humidity	-10 to 40° C (14 to 104° F), 5 to 90% RH noncondensing
Certifications	CE, FCC, IC, NDAA Compliant

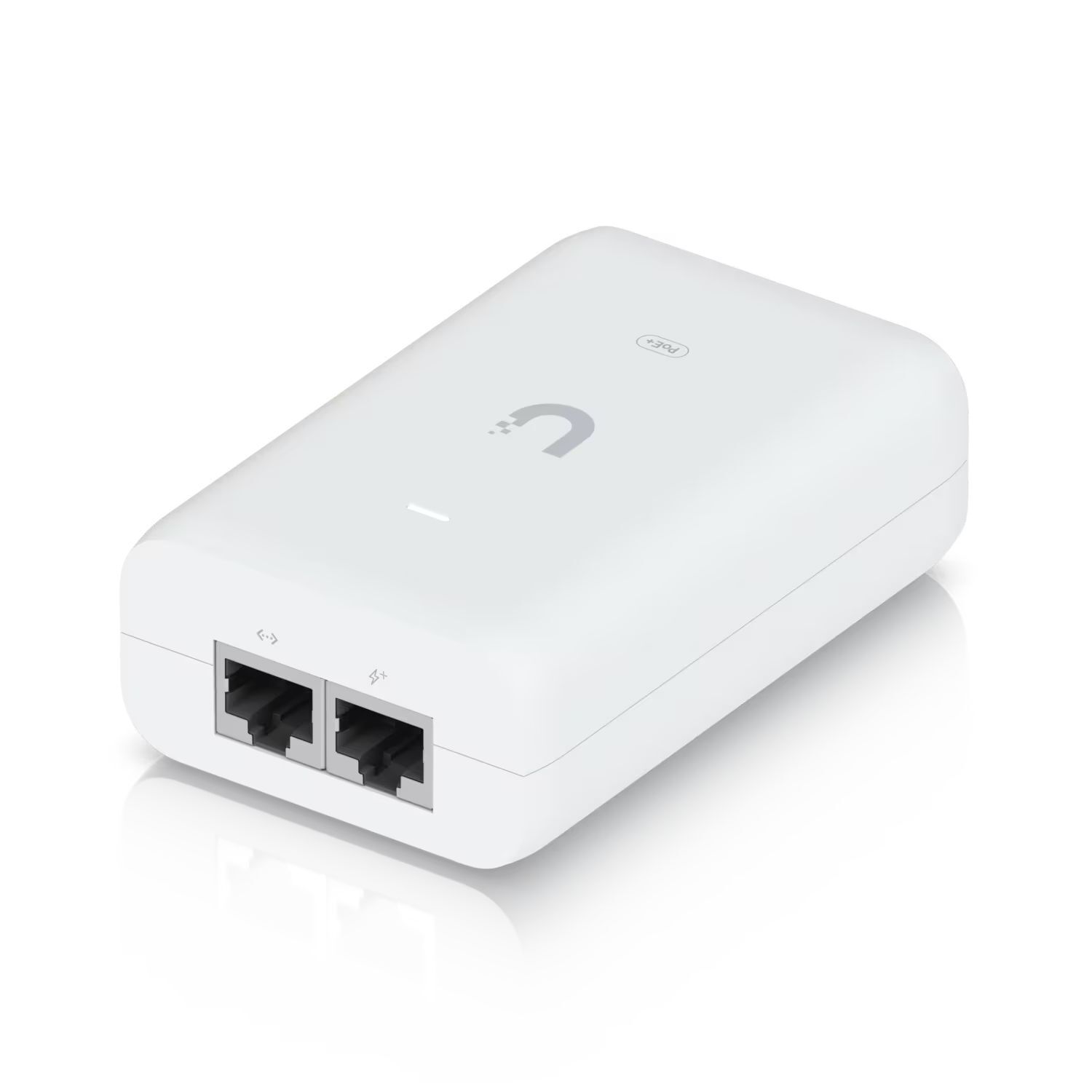

PoE++ Adapter Specifications

Category	Details
Model	U-PoE++
Dimensions	106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
Weight	210 g (7.4 oz)
Output Voltage	48V DC @ 1.25A
Rated Input	100—240V AC @ 50/60Hz
Max. PoE+ Wattage	60W
Efficiency	85+%
Protection Features	Surge, clamping, shunt capacitance, response time <1 ns
Power Supply	Universal AC/DC input
Certifications	CE, FCC, IC, UL, UKCA, KC, CCC, RoHS, NDAA Compliant
Temp & Humidity Range	Operating: 0–40° C, Storage: -30–70° C, Humidity: 10–95% noncondensing

SKU	UA-G3-SK-Gate
Brand	UBIQUITI
Shipping Weight	2.3000kg

Manufacturer Warranty : 1 years Manufacturer Warranty
