Ubiquiti UA-G3-Flex-W Reader Flex Third-generation NFC card reader
Model # UA-G3-Flex-W
-
SKU: UA-G3-Flex-W
- Pick Up Available
- Australian Warranty
- Checkout Securely

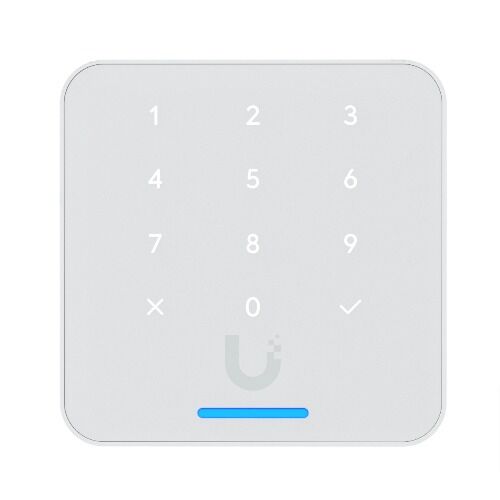

Third-generation NFC card reader with a keypad and Apple Touch Pass support.
Unlock with the keypad, NFC card, UniFi Identity mobile app, or Touch Pass
Provides entry and exit greeting messages
Push button performance (Usable with moisture or most gloves)
IP55-rated weather resistance (-30 to 60°C)

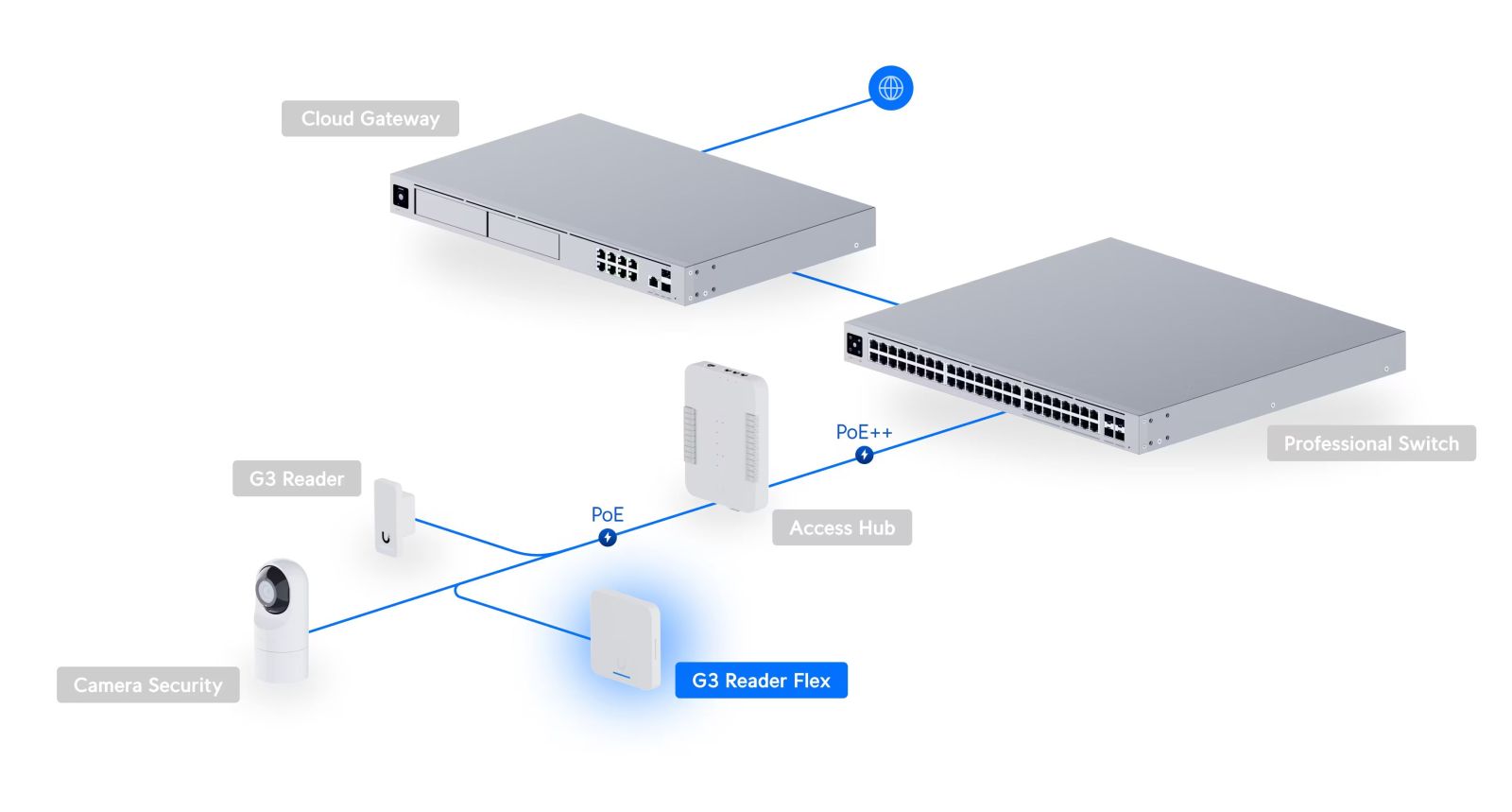

Connects to UniFi Access Hub via PoE
.jpg)
(2).jpg)
(2).jpg)
(2).jpg)
(UA-G3-Flex-W)
| Mechanical | |
|---|---|

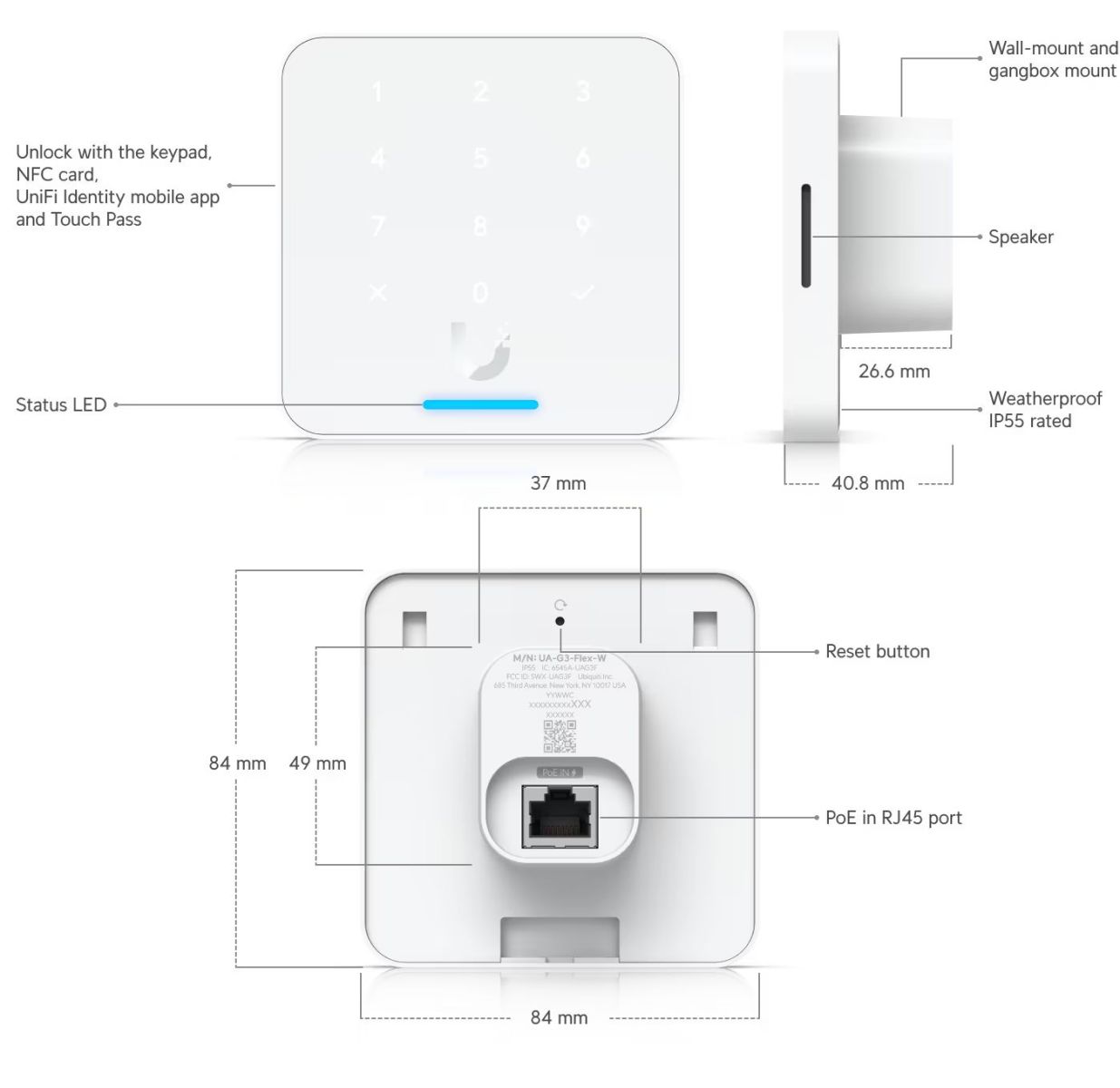

| Dimensions | 84 x 84 x 40.8 mm (3.3 x 3.3 x 1.6") |
| Weight | 165 g (5.8 oz) |
| Enclosure material | Polycarbonate, glass, aluminium alloy |
| Mounting material | Polycarbonate, aluminum alloy |

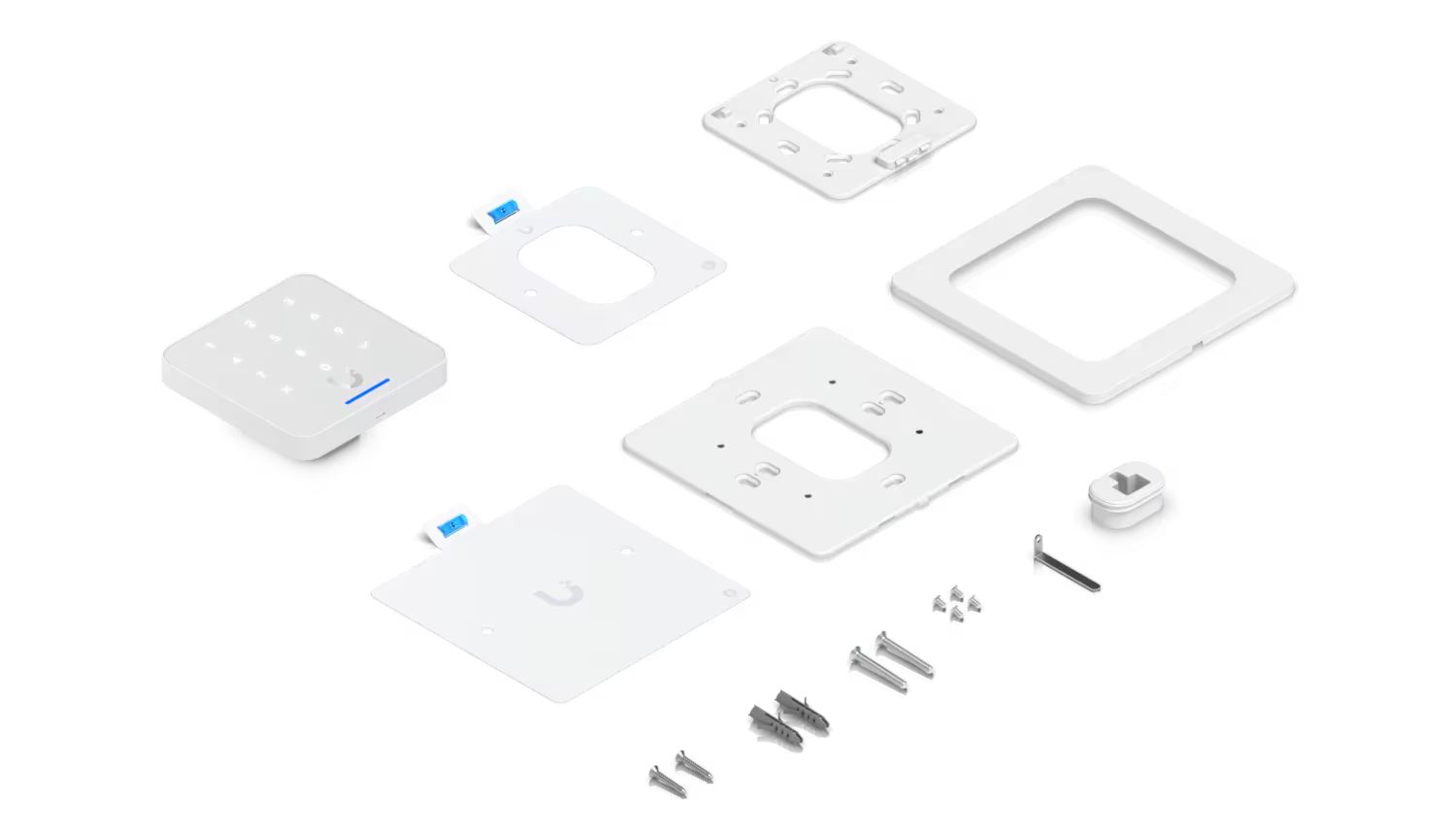

| Mounting | Wall, gang box, junction box |
| Weatherproofing | IP55 |
| Hardware | |
| Networking interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1 NFC |
| Power method | PoE |
| Supported voltage range | 44–57V DC |
| Max. power consumption | 5W |
| Sensor | (12) Capacitive buttons |
| Speaker | (1) 8 ohm, 1W |
| LEDs | (1) Status light (12) Keys backlight |
| Button | (1) Factory-reset |
| NFC frequency | 13.56 MHz |
| NFC read range | < 30 mm |
| NFC technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0 |
| Operating environment | Outdoor use |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Document number, and issue date and/or revision level | UA-G3-Flex V01 |
| Software | |
| Management application | UniFi Access: Version 3.0.15 and later |
| SKU | UA-G3-Flex-W |
| Brand | Ubiquiti |
| Shipping Weight | 0.1600kg |
