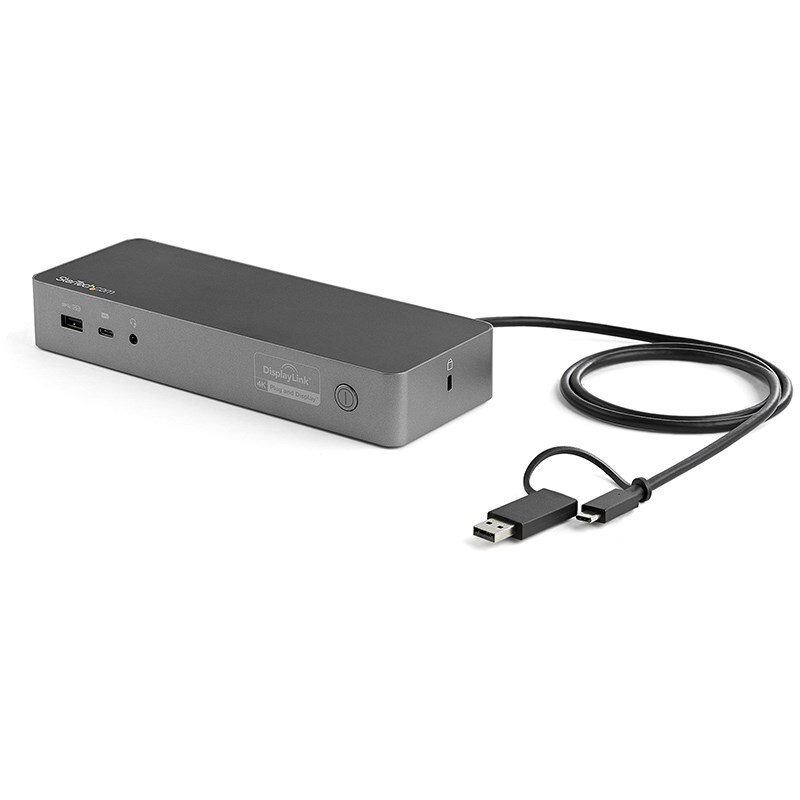

STARTECH.COM | DK30C2DPEP

Hybrid USB-C and USB-A Dual-Monitor Dock with 100W Power Delivery

Build a flexible dual-display workstation for USB-C or USB-A laptops, with DisplayLink graphics, four selectable HDMI/DisplayPort outputs, Gigabit Ethernet and up to 100W laptop charging over USB-C.

Flexible dual video

Choose any two outputs from two HDMI and two DisplayPort connections.

High-resolution workspace

Run two 4K 60Hz displays, or one 5K 60Hz display through both DisplayPort outputs.

100W USB-C charging

The included 150W power adapter enables up to 100W USB Power Delivery 3.0.

Hybrid host support

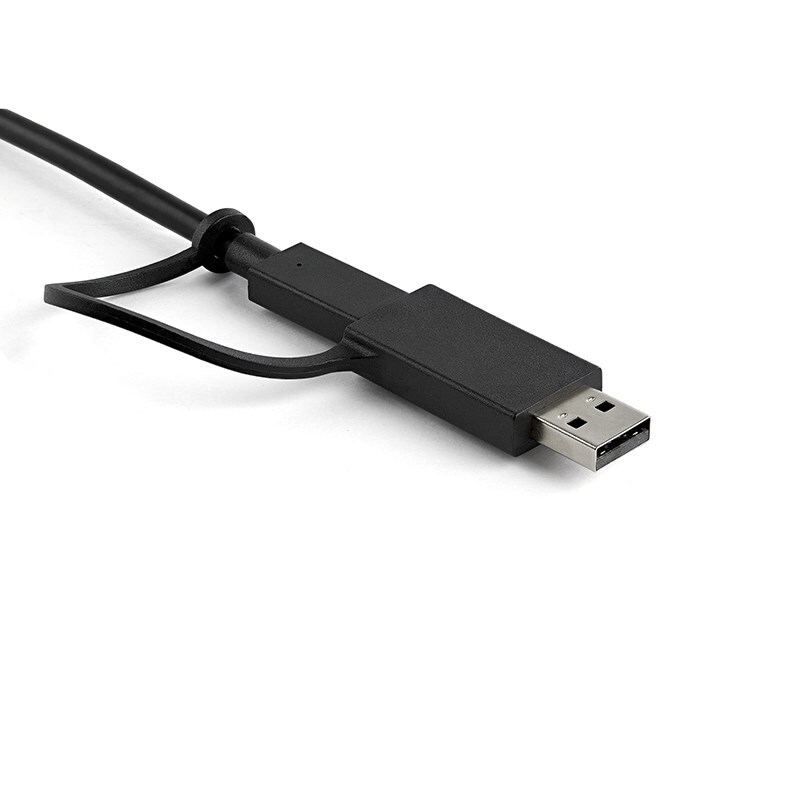

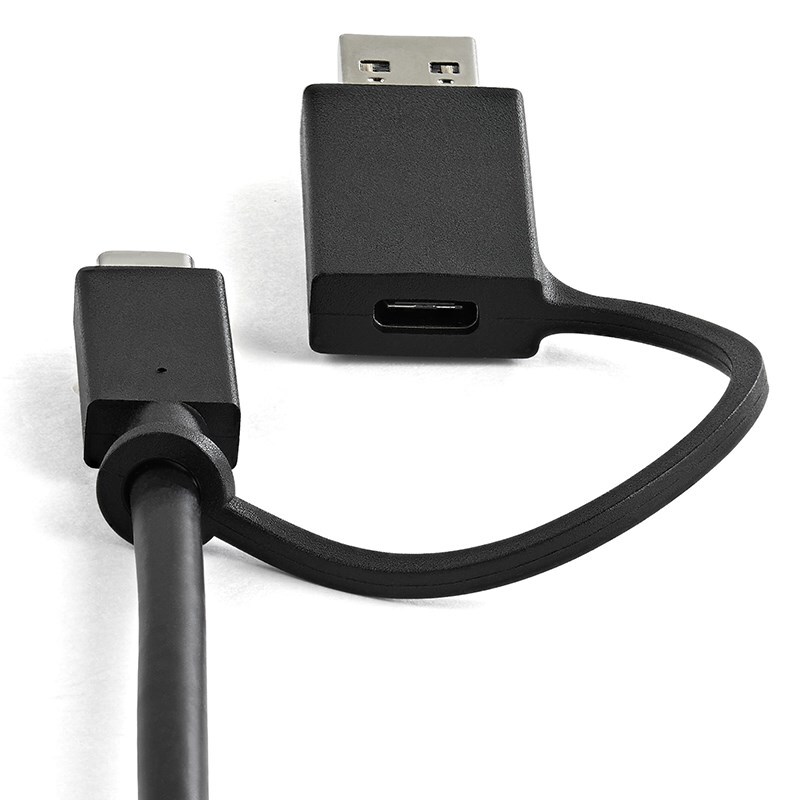

The included 1m cable connects to USB-C and has an attached USB-A adapter.

What to know

DisplayLink software is required. A USB-A host can use the dock for data and displays, but cannot receive USB-C Power Delivery. A 5K display requires both DisplayPort outputs connected to the same monitor.

Frequently asked questions

How many monitors can the DK30C2DPEP support?

It supports two monitors at the same time using any combination of its two HDMI and two DisplayPort outputs.

Can it run two 4K displays at 60Hz?

Yes. The dock supports dual displays up to 4096 x 2160 at 60Hz.

Can it support a 5K monitor?

Yes. One 5K 5120 x 2880 display at 60Hz can be connected using both DisplayPort outputs.

Does it charge a USB-C laptop?

Yes. With the included 150W adapter, it supplies up to 100W USB Power Delivery 3.0 to a compatible USB-C host.

Does it charge a laptop connected by USB-A?

No. USB-A hosts can use data and display functions, but USB Power Delivery charging is unavailable.

Does this dock require software?

Yes. It uses DisplayLink technology and requires the appropriate DisplayLink driver.

What USB ports are provided?

It has four 5Gbps downstream USB ports: one USB-C and three USB-A, including two 7.5W power-only fast-charge ports.

What is included and how long is the warranty?

It includes the dock, a 1m combination USB-C/USB-A host cable, a 150W universal power adapter and documentation, with a 3-year StarTech.com warranty.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DK30C2DPEP)

Features and highlights

DisplayLink hybrid dock for USB-C and USB-A host laptops
Two DisplayPort and two HDMI outputs; use any two for dual 4K 60Hz
Single 5K 60Hz output through both DisplayPort ports
Up to 100W USB Power Delivery 3.0 from the included 150W adapter
Four 5Gbps downstream USB ports: one USB-C and three USB-A
Two 7.5W power-only fast-charge ports, Gigabit Ethernet and TRRS audio
PXE Boot, Wake-on-LAN, full-duplex networking, K-slot and mounting holes
Includes a 1m USB-C host cable with attached USB-A adapter

Compatibility check: Install the current DisplayLink driver. USB-C charging requires a USB-C host that supports USB Power Delivery; USB-A hosts are not charged.

Specifications

Product type	Hybrid USB-C / USB-A universal docking station
Host connection	USB-C or USB-A via included 1m combination cable
Video outputs	2 x DisplayPort; 2 x HDMI; any two may be used simultaneously
Maximum display modes	Dual 4096 x 2160 at 60Hz; single 5120 x 2880 at 60Hz via both DisplayPort outputs
USB ports	1 x USB-C 5Gbps power-only (7.5W); 1 x USB-A 5Gbps power-only (7.5W); 2 x USB-A 5Gbps data (up to 4.5W each)
Networking	Gigabit Ethernet with PXE Boot, Wake-on-LAN and full duplex
Audio	3.5mm four-position headset port
Laptop charging	Up to 100W USB Power Delivery 3.0 with USB-C host; no host charging over USB-A
Power adapter	150W adapter included
Security / mounting	Kensington-style security slot; optional mounting-bracket support
Dimensions / weight	220 x 80 x 30mm; 280g
Package dimensions / weight	161 x 278 x 108mm; 1,420g

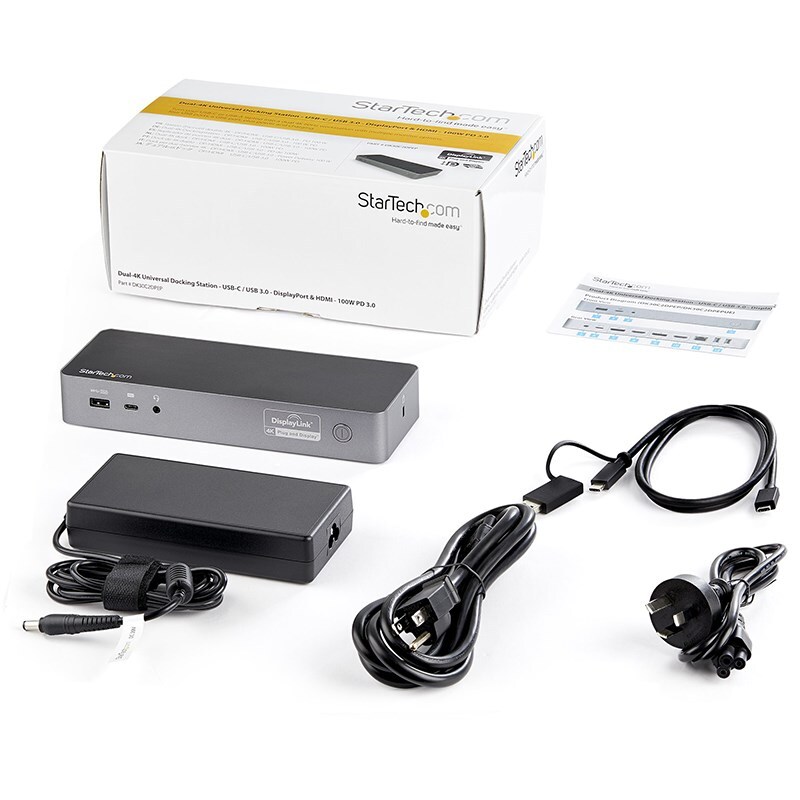

In the box	Dock, 1m USB-C cable with attached USB-A adapter, universal power adapter and power cords, quick-start guide
UPC	065030879972
Warranty	3 years

SKU	DK30C2DPEP
Barcode #	65030879972
Brand	STARTECH
Shipping Weight	1.4200kg
Shipping Width	0.011m
Shipping Height	0.027m
Shipping Length	0.016m

Warranty and Australian supply

DK30C2DPEP is supplied by DeviceDeal as an Australian-market product and carries the official 3-year StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
