STARTECH.COM | DKT30CHCPD

Compact USB-C Multiport Adapter with 4K HDMI and 100W PD

Add 4K HDMI, Gigabit Ethernet, USB-A and USB-C data to a laptop through one USB-C port, with up to 92W laptop charging when used with a suitable 100W USB-C PD adapter.

4K HDMI output

Connect up to 4096 x 2160 at 24Hz or 3840 x 2160 at 30Hz.

Two downstream USB ports

Includes one USB-A 5Gbps fast-charge port and one USB-C 5Gbps data port.

Gigabit Ethernet

Add reliable wired networking to a compatible USB-C laptop.

92W laptop charging

A 100W PD source can deliver up to 92W after the adapter reserves 8W.

What to know

The host USB-C port must support DisplayPort Alt Mode for HDMI and USB Power Delivery for charging. A power adapter is not included. The adapter is bus powered and has an integrated wrap-around 150mm host cable.

Frequently asked questions

What resolution does the DKT30CHCPD support?

HDMI supports up to 4096 x 2160 at 24Hz or 3840 x 2160 at 30Hz.

Does it support ultrawide monitors?

Yes. It supports up to 3440 x 1440 at 60Hz or 2560 x 1080 at 60Hz.

How much charging power reaches the laptop?

With a 100W USB-C PD source, up to 92W reaches the laptop because the adapter reserves 8W.

Is a USB-C charger included?

No. A compatible USB-C Power Delivery charger is required for passthrough laptop charging.

What USB ports are provided?

It has one USB-A 5Gbps BC 1.2 fast-charge port and one USB-C 5Gbps data port.

Does it include wired networking?

Yes. It includes a Gigabit Ethernet port.

What must the laptop USB-C port support?

It must support DisplayPort Alt Mode for HDMI video and USB Power Delivery for charging.

Can it work without an external power adapter?

Yes. The adapter can be USB bus powered for connectivity, but an external USB-C PD source is needed to charge the laptop.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DKT30CHCPD)

Features and highlights

Compact USB-C multiport adapter for travel and hot-desking
HDMI up to 4096 x 2160 at 24Hz or 3840 x 2160 at 30Hz
Ultrawide support up to 3440 x 1440 at 60Hz or 2560 x 1080 at 60Hz
One USB-A 5Gbps BC 1.2 fast-charge port
One downstream USB-C 5Gbps data port
Gigabit Ethernet connection
100W USB Power Delivery 3.0 passthrough with up to 92W available to the laptop

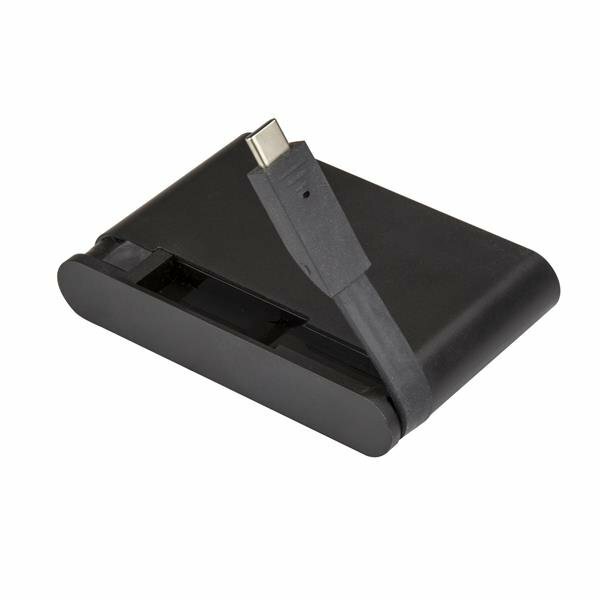

Integrated wrap-around 150mm USB-C host cable; no power adapter included

Compatibility check: The host USB-C port must support DP Alt Mode for video and USB Power Delivery for charging. Supply a compatible USB-C PD charger if laptop charging is required.

Specifications

Product type	Portable USB-C multiport adapter
Host connection	Integrated 150mm USB-C cable; approximately 250mm total product length
Video output	1 x HDMI
Maximum HDMI resolution	4096 x 2160 at 24Hz or 3840 x 2160 at 30Hz
Ultrawide modes	3440 x 1440 at 60Hz or 2560 x 1080 at 60Hz
USB ports	1 x USB-A 5Gbps BC 1.2 fast-charge; 1 x USB-C 5Gbps data
Networking	Gigabit Ethernet
Power Delivery	100W PD 3.0 passthrough input; adapter reserves 8W; up to 92W to laptop
Power adapter	Not included; USB bus powered or powered by optional USB-C PD adapter
Host requirements	USB-C DP Alt Mode for video; USB Power Delivery for charging
Operating systems	Windows, macOS and ChromeOS
Dimensions / weight	60 x 60 x 16mm adapter body; 60g
Package dimensions / weight	86 x 107 x 18mm; 66g
In the box	USB-C multiport adapter with integrated cable and instruction manual
Warranty	3 years

SKU	DKT30CHCPD
Barcode #	65030879187
Brand	Startech
Shipping Weight	0.1300kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.170m
Shipping Cubic	0.000850000m3

Warranty and Australian supply

DKT30CHCPD is supplied by DeviceDeal as an Australian-market product and carries the official 3-year StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
