StarTech.com · DK30C2DAGPD

StarTech USB-C Dual DisplayPort Multiport Adapter with 100W PD

Turn a compatible Windows USB-C laptop into a dual-DisplayPort workstation with selectable video or USB bandwidth, two USB-A ports, Gigabit Ethernet and 100W PD passthrough.

2 x DisplayPortDual 4K 30HzUp to 100W PD input3-year warranty

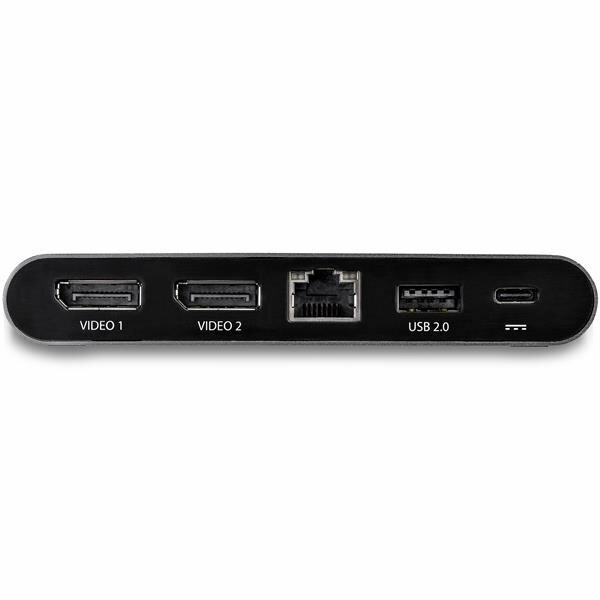

StarTech DK30C2DAGPD USB-C dual DisplayPort multiport adapter with mode switch and 100W Power Delivery passthrough

Product overview

DK30C2DAGPD uses DisplayPort Alt Mode and MST without a display driver. Its physical switch selects dual 1080p with USB 5Gbps, or dual 4K 30Hz with USB 480Mbps; a compatible USB-C power adapter is optional and not included.

Features that matter

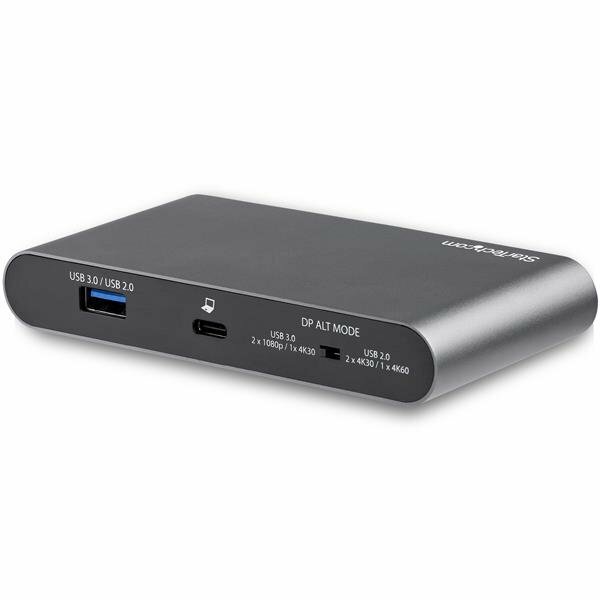

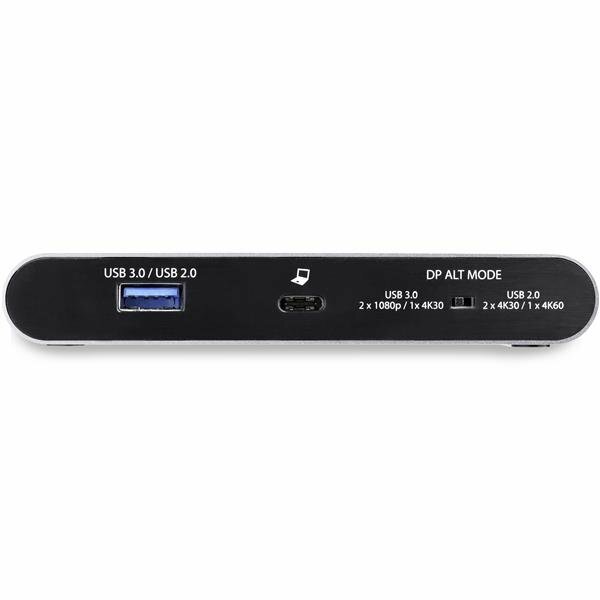

Two selectable operating modes

Choose dual 1080p with USB 5Gbps, or dual 4K 30Hz with USB 480Mbps by moving the DP Alt Mode switch.

Single-display 4K 60Hz

A single DisplayPort monitor can run up to 4096 x 2160 or 3840 x 2160 at 60Hz on compatible hardware.

100W Power Delivery passthrough

Accepts up to 100W PD 3.0 from the host power adapter and provides up to 85W to the laptop after the dock reserves 15W.

Portable wired expansion

Adds one USB-A 5Gbps port, one USB-A 480Mbps port and Gigabit Ethernet with an included 1m USB-C cable.

What to know before ordering

Check USB-C capabilities

Full operation requires a host USB-C port supporting DisplayPort Alt Mode; PD passthrough also requires USB PD 2.0 or 3.0.

Dual displays require MST

The host must support MST for two independent displays. MacBook compatibility is limited to one external monitor for this MST adapter.

Power adapter is not included

Use a compatible USB-C power adapter sized for the laptop and dock; up to 15W is reserved for the adapter and attached peripherals.

Warranty confidence in Australia

Australian version · Official StarTech.com warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is StarTech DK30C2DAGPD?

DK30C2DAGPD is a USB-C DisplayPort Alt Mode multiport adapter with two DisplayPort outputs, two USB-A ports, Gigabit Ethernet and 100W PD passthrough.

What are the two switch modes?

The USB 5Gbps mode supports dual 1080p or single 4K 30Hz; the four-lane DisplayPort mode supports dual 4K 30Hz or single 4K 60Hz with USB 480Mbps.

How much power can reach the laptop?

With a compatible 100W USB-C PD adapter, up to 85W is available to the laptop because the dock reserves up to 15W for itself and attached peripherals.

Is a USB-C power adapter included?

No. The dock can be bus powered, or it can use a compatible USB-C power adapter supplied separately for PD passthrough.

Will it support two monitors on a MacBook?

The official datasheet states that MacBook compatibility is limited to one monitor because this adapter uses MST for dual-display output.

Which USB and network ports are included?

It has one USB-A 5Gbps port, one USB-A 480Mbps port and one Gigabit Ethernet RJ-45 port.

What is included in the package?

The package contains one multiport adapter, one 1m USB-C host cable and one quick-start guide. A USB-C power adapter is not included.

What warranty applies in Australia?

DK30C2DAGPD is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.

(DK30C2DAGPD)

Features and highlights

DK30C2DAGPD key capabilities

Product-specific highlights verified for this exact StarTech.com model.

Two selectable operating modes

Choose dual 1080p with USB 5Gbps, or dual 4K 30Hz with USB 480Mbps by moving the DP Alt Mode switch.

Single-display 4K 60Hz

A single DisplayPort monitor can run up to 4096 x 2160 or 3840 x 2160 at 60Hz on compatible hardware.

100W Power Delivery passthrough

Accepts up to 100W PD 3.0 from the host power adapter and provides up to 85W to the laptop after the dock reserves 15W.

Portable wired expansion

Adds one USB-A 5Gbps port, one USB-A 480Mbps port and Gigabit Ethernet with an included 1m USB-C cable.

Key highlights

Dual DP via MST
Dual 4K 30Hz or dual 1080p
1 x USB 5Gbps + 1 x USB 2.0
GbE + up to 85W laptop charging
Official 3 years StarTech.com manufacturer warranty in Australia

Technical specifications

StarTech DK30C2DAGPD

Verified specifications and package details for the exact model.

General and Video

Product type

USB-C DisplayPort Alt Mode multiport adapter

Displays supported

2, using host MST support

Dual DisplayPort maximum

4096 x 2160 at 24Hz or 3840 x 2160 at 30Hz

Single DisplayPort maximum

4096 x 2160 or 3840 x 2160 at 60Hz

Single ultrawide maximum

3440 x 1440 at 60Hz

MacBook external displays

Warranty

3 Years

UPC

065030878746

Operating Modes

USB 5Gbps / 2-lane DP mode

Dual 1080p or single 4K 30Hz; USB up to 5Gbps; Ethernet up to 1000Mbps

USB 480Mbps / 4-lane DP mode

Dual 4K 30Hz or single 4K 60Hz; USB up to 480Mbps; Ethernet up to 100Mbps

Connections

Host

1 x USB-C 5Gbps; 1m USB-C cable included

Power input

1 x USB-C, PD only

Video

2 x DisplayPort

Network

1 x RJ-45 Gigabit Ethernet

USB-A

1 x 5Gbps, 4.5W; 1 x 480Mbps, 2.5W

Power and Physical

Power source

Bus powered or host USB-C power adapter

Power Delivery input

Up to 100W PD 3.0

Maximum laptop charging

Up to 85W

Dock power consumption

15W

Colour / material

Black plastic

Product dimensions (L x W x H)

120 x 60 x 18.8mm

Product weight

150g

Environmental and Packaging

Operating temperature

050°C

Storage temperature

-2070°C

Humidity

095% RH, non-condensing

Package dimensions (W x D x H)

206 x 146 x 40mm

Shipping weight

292g

Package contents

Multiport adapter; USB-C cable; quick-start guide
