StarTech Dual Monitor USB 3.0 Docking Station, HDMI & DVI, 6 x USB - USB3SDOCKHD
Model # USB3SDOCKHD
-
SKU: USB3SDOCKHD
- Pick Up Available
- Australian Warranty
- Checkout Securely
This USB 3.0 dock combines a 6 port USB 2.0/USB 3.0 hub, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station.
Display Adaptability
Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI and DVI external monitor output providing up to 1920x1200p resolutions, as well as an included DVI to VGA adapter for added flexibility.
Integrated USB Hub
The built-in USB hub features 2 USB 3.0 ports and 4 USB 2.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they connected directly to your laptop.
Versatile Design
With an upright design, the dock occupies as little desk space as your smart phone, so it's perfect for hoteling or hot desk environments.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a reliable wired network.
StarTech.com’s laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
(USB3SDOCKHD)
| Warranty Information | ||
|---|---|---|
| Warranty | 3 Years | |
| Hardware | ||
| 4K Support | No | |
| Bus Type | USB 3.0 | |
| Chipset ID | DisplayLink - DL-3900 VIA/VLI - VL810 Terminus - FE1.1 Realtek - RTL8211E | |
| Displays Supported | 2 | |
| Fast-Charge Port(s) | No | |
| Industry Standards | IEEE 802.3, 802.3u, and 802.3ab | |
| Performance | ||
| Auto MDIX | Yes | |
| Compatible Networks | 10/100/1000 Mbps | |
| Full Duplex Support | Yes | |
| Maximum Digital Resolutions | 1920 x 1200 Lower resolutions are also supported. | |
| Type and Rate | USB 2.0 - 480 Mbit/s | |
| USB 3.0 - 5 Gbit/s | ||
| Connector(s) | ||
| Connector Type(s) | 1 - DVI-I (29 pin) Female | |
| 1 - HDMI (19 pin) Female | ||
| 1 - RJ-45 Female | ||
| 1 - USB Type-B (9 pin) USB 3.0 Female | ||
| 2 - 3.5 mm Mini-Jack (3 Position) Female | ||
| 2 - USB Type-A (9 pin) USB 3.0 Female | ||
| 4 - USB Type-A (4 pin) USB 2.0 Female | ||
| Software | ||
| OS Compatibility | Windows® XP SP3 (32-bit), Vista, 7, 8, 8.1, 10 macOS 10.6 - 10.12, 10.14 Chrome OS™ v55+ | |
| Special Notes / Requirements | ||
| Note | The DVI-I connector supports DVI-I signaling (digital and analog) | |
| System and Cable Requirements | CPU: i3 Dual core 2.8GHz or better RAM: 2GB or higher Available USB 3.0 port | |
| Indicators | ||
| LED Indicators | 1 - Power (Blue) | |
| 1 - USB Hub Link (Blue) | ||
| Power | ||
| Input Current | 0.8A | |
| Input Voltage | 100 - 240 AC | |
| Output Current | 4A | |
| Output Voltage | 5 DC | |
| Plug Type | C | |
| Power Consumption (In Watts) | 20 | |
| Power Source | AC Adapter Included | |
| Environmental | ||
| Operating Temperature | 10°C to 40°C (50°F to 104°F) | |
| Storage Temperature | -10°C to 80°C (14°F to 176°F) | |
| Physical Characteristics | ||
| Color | Black | |
| Enclosure Type | Plastic | |

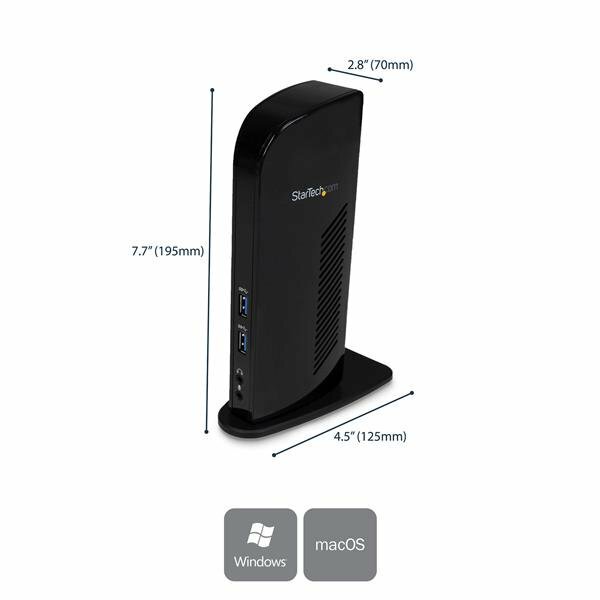

| Product Height | 7.7 in [19.5 cm] | |
| Product Length | 4.9 in [12.5 cm] | |
| Product Width | 2.8 in [70 mm] | |
| Weight of Product | 13.1 oz [370 g] | |
| Packaging Information | ||
| Package Height | 4.3 in [10.9 cm] | |
| Package Length | 10.7 in [27.3 cm] | |
| Package Quantity | 1 | |
| Package Width | 7.5 in [19 cm] | |
| Shipping (Package) Weight | 33.4 oz [947 g] | |
| What's in the Box | ||
| Included in Package | 1 - USB 3.0 Docking Station | |
| 1 - 3.3 ft [1 m] USB 3.0 Cable | ||
| 1 - DVI to VGA Adapter | ||
| 1 - Universal Power Adapter (NA/JP, EU, UK, ANZ) | ||
| 1 - Instruction Manual | ||
| SKU | USB3SDOCKHD |
| Barcode # | 65030847674 |
| Brand | STARTECH |
| Shipping Weight | 0.9500kg |
| Shipping Width | 0.190m |
| Shipping Height | 0.110m |
| Shipping Length | 0.277m |
| Shipping Cubic | 0.005789000m3 |
