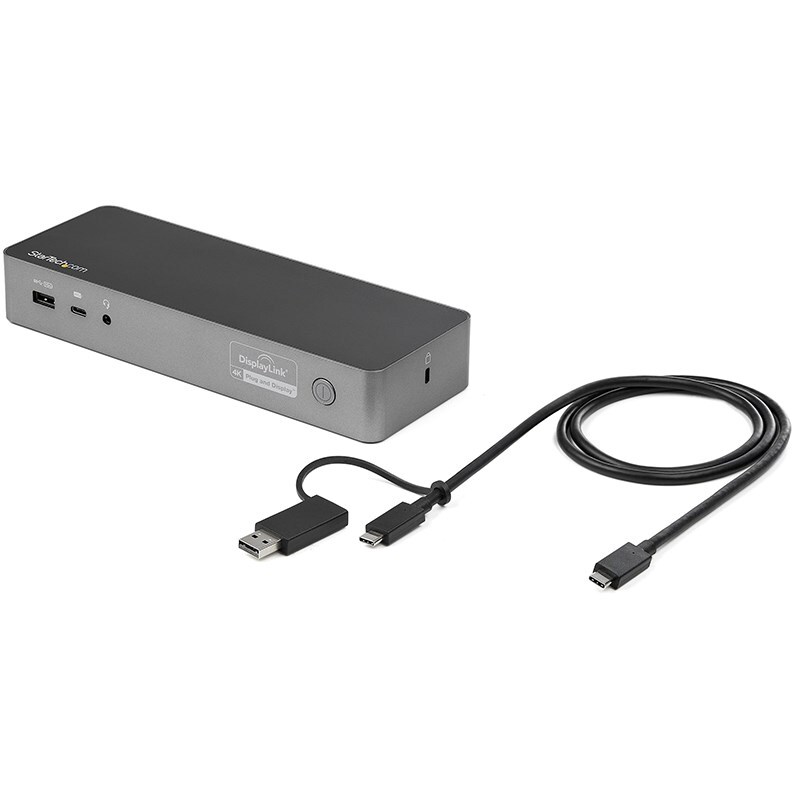

StarTech USB-C & USB-A Dock, Hybrid Universal Laptop Docking Station - DK30C2DPPD
Model # DK30C2DPPD
-
SKU: DK30C2DPPD
- Pick Up Available
- Australian Warranty
- Checkout Securely
Hybrid USB-C and USB-A Dual-Monitor Dock with 60W Power Delivery
Connect USB-C or USB-A laptops to a productive dual-display workstation with flexible HDMI and DisplayPort outputs, four USB ports, Gigabit Ethernet and up to 60W USB-C charging.
Four video connectors
Choose any two from two HDMI and two DisplayPort outputs.
Dual 4K 60Hz
Drive two 4096 x 2160 displays at 60Hz.
Single 5K option
Use both DisplayPort outputs for one 5120 x 2880 display at 60Hz.
60W Power Delivery
Charge compatible USB-C laptops using the included 135W adapter.
What to know
DisplayLink software is required. USB-A provides display and data connectivity but does not charge the host. Single-monitor 5K operation uses both DisplayPort connections.
Frequently asked questions
How many displays can the DK30C2DPPD connect?
It supports two displays simultaneously using any combination of its two HDMI and two DisplayPort outputs.
What is the maximum dual-display resolution?
It supports two displays up to 4096 x 2160 at 60Hz.
Can I connect one 5K monitor?
Yes. One 5120 x 2880 display at 60Hz can be driven using both DisplayPort outputs.
How much laptop charging does it provide?
It provides up to 60W USB Power Delivery 3.0 to a compatible USB-C host.
Can it connect to a USB-A laptop?
Yes, using the attached USB-A adapter on the included host cable; host charging is unavailable over USB-A.
Is a DisplayLink driver required?
Yes. Install the appropriate DisplayLink software for the host operating system.
Which network and audio connections are included?
It includes Gigabit Ethernet and a 3.5mm four-position headset port.
What comes in the package?
The package includes the dock, a 1m combination USB-C/USB-A cable, a 135W universal power adapter with power cords and a quick-start guide.
Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.
(DK30C2DPPD)
Features and highlights
- Universal DisplayLink docking station for USB-C and USB-A laptops

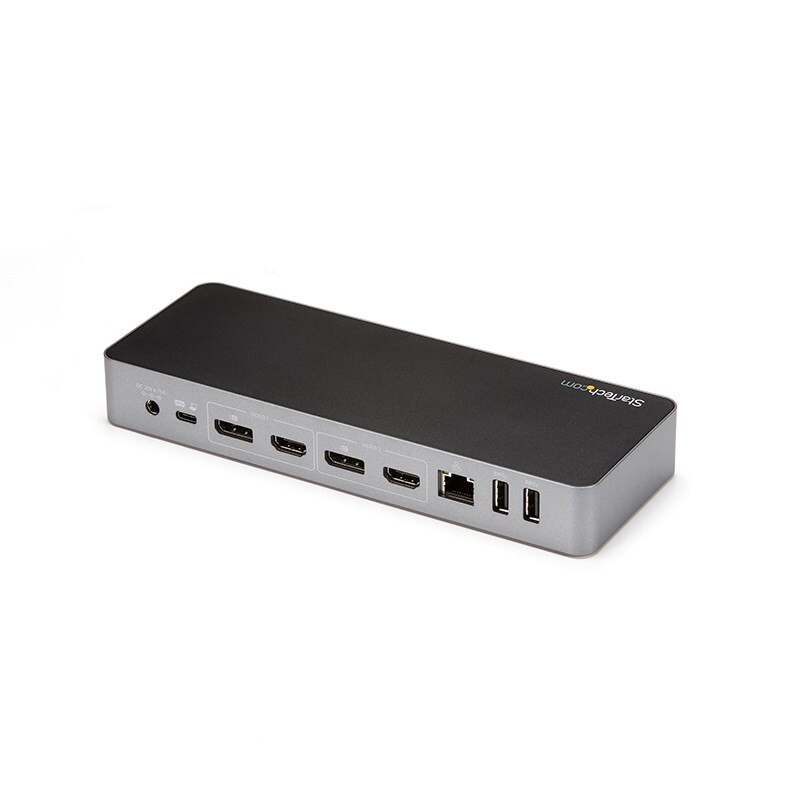

- Two HDMI and two DisplayPort outputs with any two usable simultaneously
- Dual 4K 60Hz or single 5K 60Hz display support
- Up to 60W USB Power Delivery 3.0 for compatible USB-C hosts
- Four 5Gbps downstream USB ports, including USB-C and USB-A fast-charge ports
- Gigabit Ethernet with PXE Boot and Wake-on-LAN, plus TRRS headset audio
- K-slot and mounting holes for secure, organised deployment

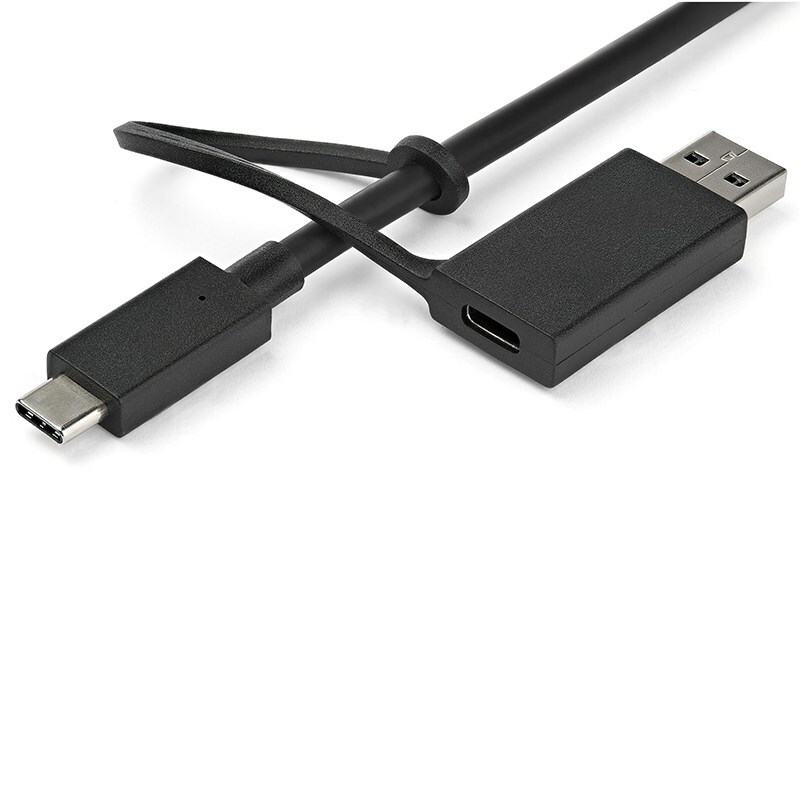

- Includes 1m combination USB-C cable with attached USB-A adapter
Specifications
| Product type | Hybrid USB-C / USB-A universal docking station |
|---|---|
| Host connection | USB-C or USB-A via included 1m combination cable |
| Video outputs | 2 x DisplayPort; 2 x HDMI; any two may be used simultaneously |
| Maximum display modes | Dual 4096 x 2160 at 60Hz; single 5120 x 2880 at 60Hz via both DisplayPort outputs |
| USB ports | 1 x USB-C 5Gbps power-only fast-charge port; 1 x USB-A 5Gbps power-only fast-charge port; 2 x USB-A 5Gbps data ports |
| Networking | Gigabit Ethernet with PXE Boot and Wake-on-LAN |
| Audio | 3.5mm four-position headset port |
| Laptop charging | Up to 60W USB Power Delivery 3.0 with USB-C host; no charging over USB-A |
| Power adapter | 135W adapter included |
| Security / mounting | Kensington-style security slot; optional mounting-bracket support |
| Dimensions / weight | 220 x 80 x 30mm; 450g |
| Package dimensions / weight | 184 x 278 x 127mm; 1,478g |
| In the box | Dock, 1m USB-C cable with attached USB-A adapter, universal power adapter and power cords, quick-start guide |
| UPC | 065030879958 |
| Warranty | 3 years |
| SKU | DK30C2DPPD |
| Barcode # | 65030861212 |
| Brand | STARTECH |
| Shipping Weight | 1.5500kg |
| Shipping Width | 0.011m |
| Shipping Height | 0.028m |
| Shipping Length | 0.016m |
