Startech DKT30CHVPD2 USB-C Multiport Adapter HDMI/VGA 100W PD
Model # DKT30CHVPD2
-
SKU: DKT30CHVPD2
- Pick Up Available
- Australian Warranty
- Checkout Securely

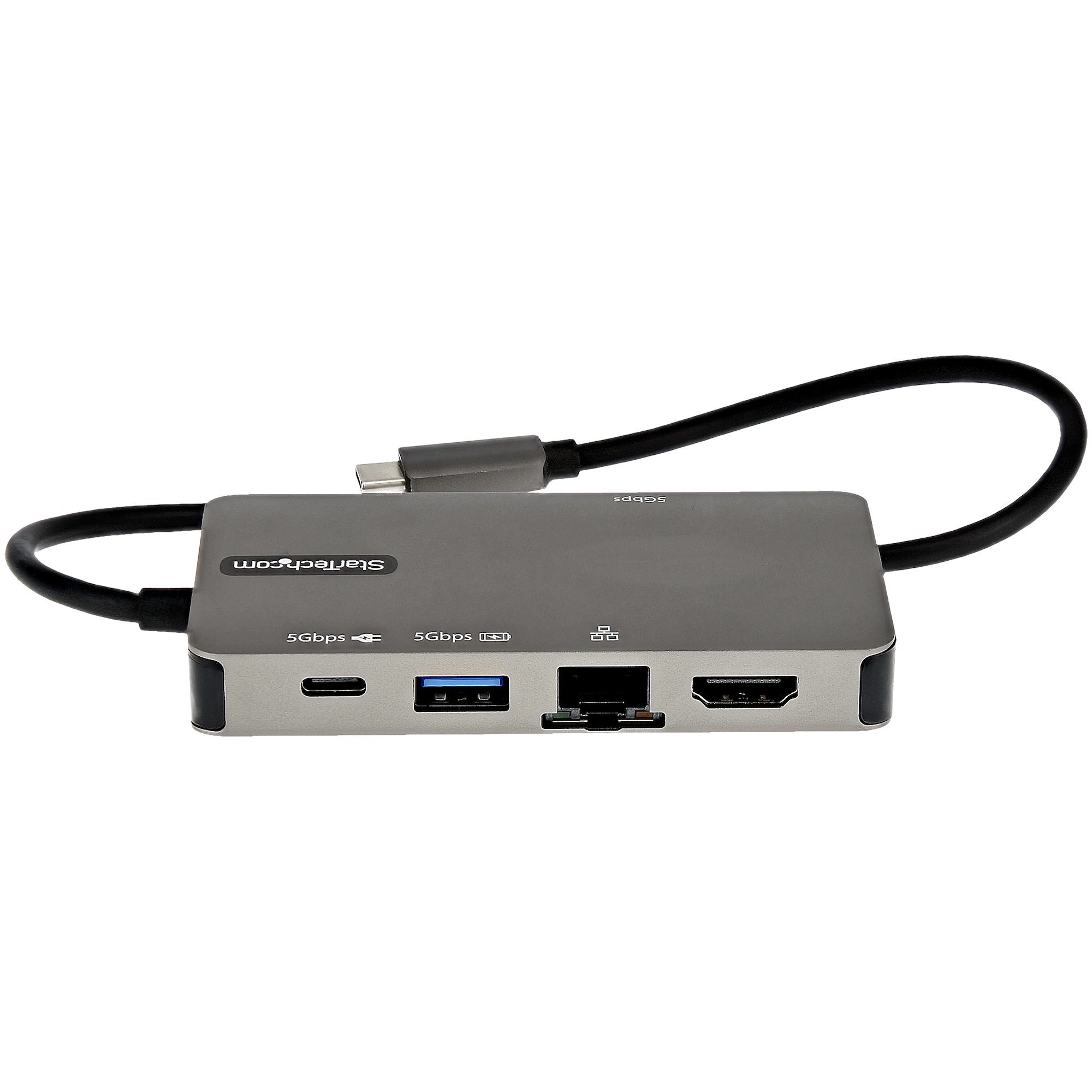

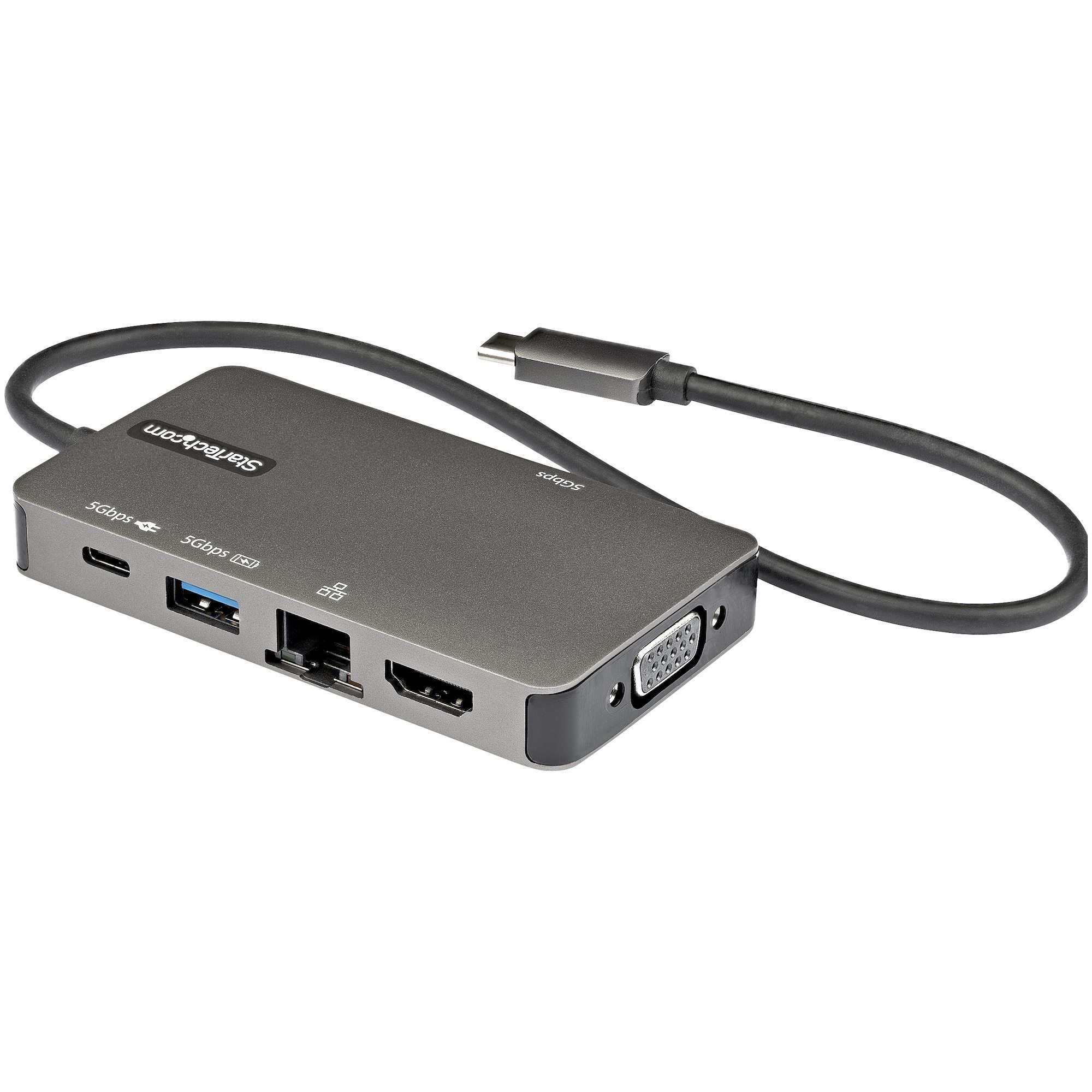

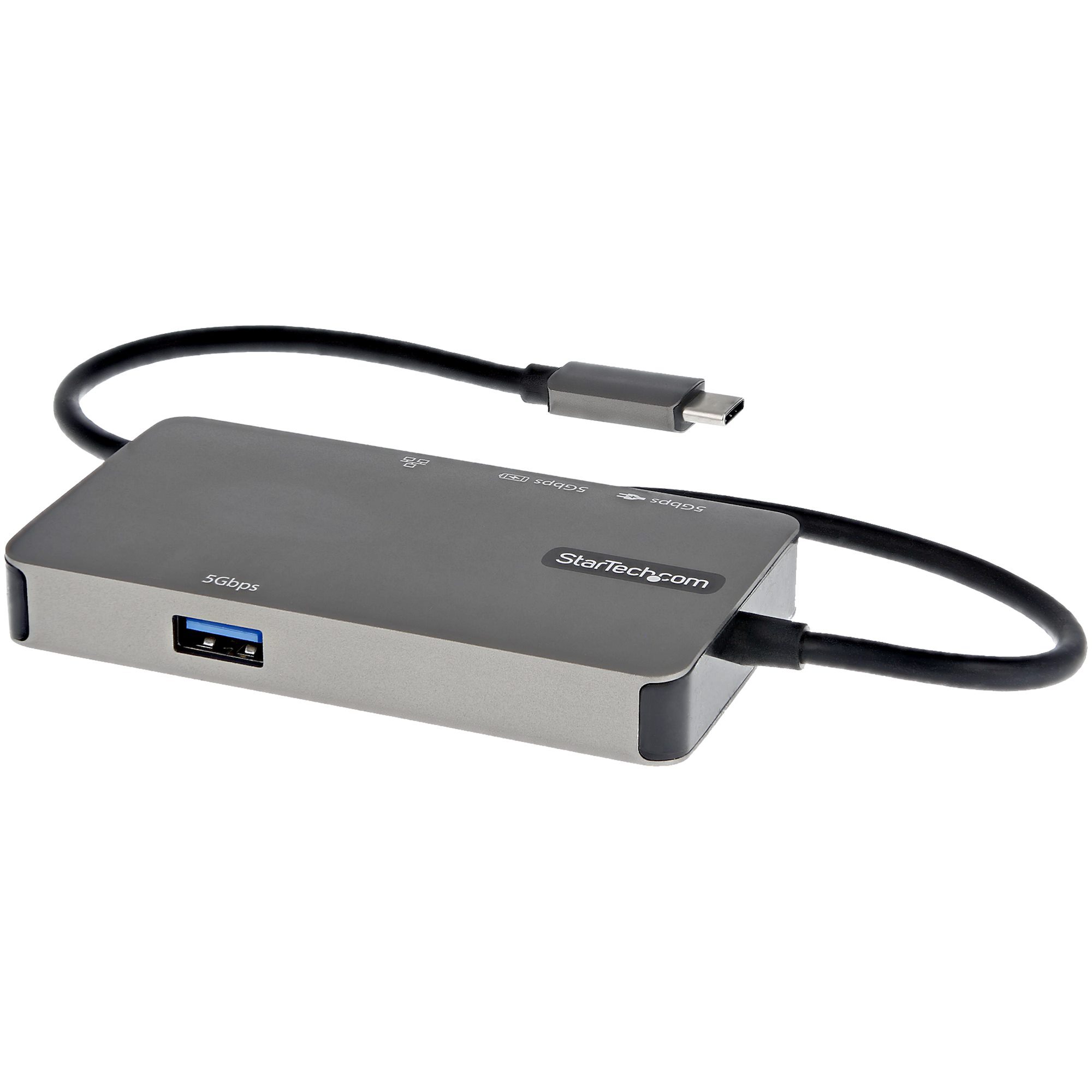

USB-C Multiport Adapter with 4K HDMI or VGA and 100W PD
Add a choice of HDMI or VGA video, USB-A and USB-C connectivity, Gigabit Ethernet and Power Delivery passthrough through one portable USB-C adapter.
HDMI or VGA
Choose 4K 30Hz HDMI or 1080p VGA for one display.
Three USB connections
Two USB-A ports and one dual-purpose USB-C port.
Gigabit Ethernet
Add reliable wired networking.
Up to 85W charging
A 100W source leaves up to 85W after the adapter reserves 15W.
What to know
Only one monitor can be connected at a time. A USB-C power adapter is not included, and one USB-A port is dedicated to 7.5W power-only charging.
Frequently asked questions
What video output and resolution does the DKT30CHVPD2 support?
Choose HDMI up to 3840 x 2160 at 30Hz or VGA up to 1080p for one external display.
How many external displays can the DKT30CHVPD2 connect?
It supports one external display at a time through either HDMI or VGA.
Does the DKT30CHVPD2 charge the connected laptop?
Yes. It accepts up to 100W PD 3.0, reserves 15W and provides up to 85W to the laptop.
Which USB ports are included on the DKT30CHVPD2?
It includes one USB-A 5Gbps data port, one USB-A 7.5W power-only port and one dual-role USB-C 5Gbps/PD port.
What other connections or readers does the DKT30CHVPD2 include?
It includes Gigabit Ethernet; this model does not include a memory-card reader or audio port.
What must the host USB-C port support?
The host must support DP Alt Mode for video and USB Power Delivery for charging.
Is a separate power adapter required or included?
A USB-C power adapter is not included. It can operate from bus power or use a compatible PD source for laptop charging.
What cable and warranty are supplied with the DKT30CHVPD2?
It has an attached 300mm USB-C host cable. It is backed by a 3-year StarTech.com manufacturer warranty.
Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.
(DKT30CHVPD2)
Features and highlights
- Six-in-one USB-C mini travel dock
- HDMI up to 3840 x 2160 at 30Hz or VGA up to 1080p
- Two USB-A ports: one 5Gbps data and one 7.5W power-only charging port
- One dual-purpose USB-C 5Gbps / 100W PD input port
- Gigabit Ethernet connection
- 100W USB Power Delivery 3.0 with up to 85W to laptop
- Attached 300mm USB-C host cable
- Bus-powered operation when no USB-C charger is connected
Specifications
| Product type | Portable USB-C multiport adapter |
|---|---|
| Video outputs | 1 x HDMI; 1 x VGA; one output at a time |
| Maximum resolution | HDMI: 3840 x 2160 at 30Hz; VGA: 1080p |
| Displays supported | 1 |
| USB ports | 1 x USB-A 5Gbps data; 1 x USB-A 7.5W power-only; 1 x dual-role USB-C 5Gbps / 100W PD input |
| Networking | Gigabit Ethernet |
| Power Delivery | 100W PD 3.0 input; 15W reserved; up to 85W to laptop |
| Power adapter | Not included; USB bus powered or host USB-C PD adapter |
| Cable length | 300mm |
| Dimensions / weight | 52 x 95 x 14mm; 110g |
| Package dimensions / weight | 143 x 173 x 33mm; 146g |
| In the box | USB-C multiport adapter and quick-start guide |
| UPC | 065030891752 |
| Warranty | 3 years |
| SKU | DKT30CHVPD2 |
| Barcode # | 65030891752 |
| Brand | Startech |
| Shipping Weight | 0.1400kg |
| Shipping Width | 0.003m |
| Shipping Height | 0.017m |
| Shipping Length | 0.015m |
