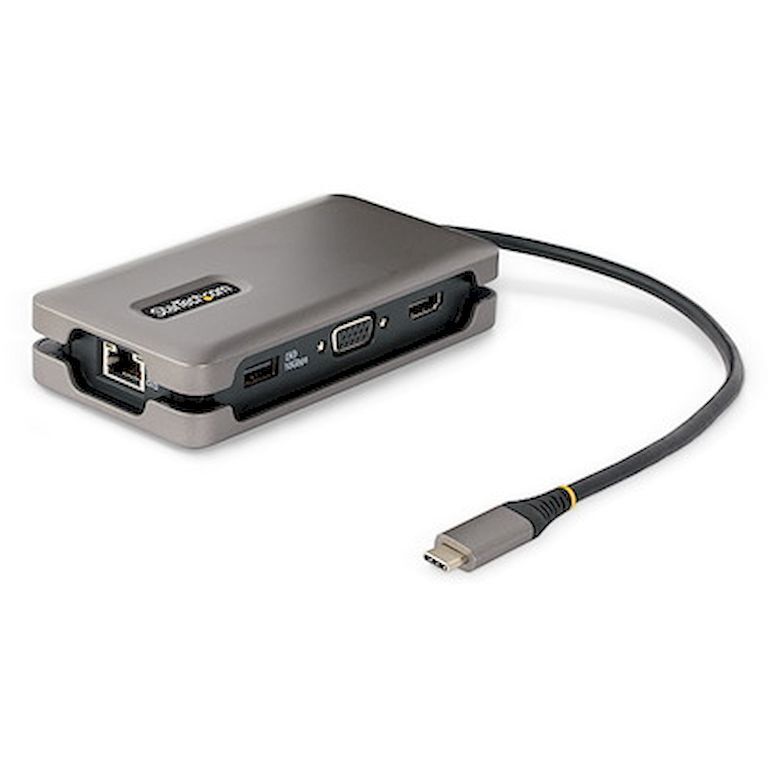

StarTech DKT31CVHPD3 USB-C MULTIPORT ADAPTER HDMI/VGA HUB
Model # 5728264
-
SKU: DKT31CVHPD3
- Pick Up Available
- Australian Warranty
- Checkout Securely
USB-C Multiport Adapter with HDMI or VGA, 10Gbps USB and Gigabit Ethernet
Add modern HDMI or legacy VGA video, three fast USB ports, wired networking and Power Delivery pass-through to a compatible USB-C laptop or tablet through one attached cable.
HDMI or VGA flexibility
Connect one HDMI display up to 4K 60Hz or one VGA display up to 1920 × 1200 at 60Hz.
Three-port 10Gbps hub
Two USB-A ports and one USB-C data port support fast storage, input devices and other USB peripherals.
Built for mobile desks
A flexible 32cm attached host cable and wraparound cable manager suit raised laptops and frequent travel.
What to know
Only one video output can be used at a time. The host must support DisplayPort Alt Mode, and laptop charging requires a separate USB-C PD power adapter connected to the dedicated input.
Frequently asked questions
Can the DKT31CVHPD3 use HDMI and VGA at the same time?
No. It supports one external display at a time through either HDMI or VGA.
What resolutions does the DKT31CVHPD3 support?
HDMI supports up to 4K at 60Hz, while VGA supports up to 1920 × 1200 or 1080p at 60Hz, subject to host and display capability.
Which USB ports are included on the DKT31CVHPD3?
It includes two USB-A ports and one USB-C data port, each supporting USB 3.2 Gen 2 data rates up to 10Gbps.
How much laptop charging can the DKT31CVHPD3 provide?
With a suitable USB-C PD power adapter, it accepts up to 100W and can provide up to 84W to the connected host.
Is the USB-C power adapter included?
No. The adapter can operate from bus power, but a compatible USB-C PD power adapter is required for pass-through laptop charging.
Does the DKT31CVHPD3 provide Ethernet?
Yes. It has a Gigabit Ethernet port with PXE Boot and Wake-on-LAN support.
What host connection is required for video?
A USB-C, USB4 or Thunderbolt 3/4 port with DisplayPort Alt Mode is required. A data-only USB-C port cannot drive the video outputs.
How long is the attached host cable?
The attached USB-C host cable is 32cm long and uses a flexible TPE jacket with integrated wraparound cable management.
Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.
(DKT31CVHPD3)
Features and highlights
- HDMI 2.0b output supports up to 4K 60Hz from a compatible DP Alt Mode host
- VGA output supports up to 1920 × 1200 or 1080p at 60Hz
- Three USB 3.2 Gen 2 ports: two USB-A and one USB-C, up to 10Gbps
- Gigabit Ethernet with PXE Boot and Wake-on-LAN support
- USB Power Delivery 3.0 input accepts up to 100W and provides up to 84W to the host
- Attached 32cm TPE USB-C cable with integrated wraparound management
- Compatible with USB-C, USB4 and Thunderbolt 3/4 hosts that support DP Alt Mode
Specifications
| Product type | Portable USB-C multiport adapter / docking station |
|---|---|
| Host connection | Attached USB-C cable; 32cm TPE jacket |
| Video outputs | 1 × HDMI 2.0b and 1 × VGA; one output at a time |
| HDMI resolution | Up to 4K at 60Hz |
| VGA resolution | Up to 1920 × 1200 at 60Hz or 1080p at 60Hz |
| USB expansion | 2 × USB-A and 1 × USB-C data; USB 3.2 Gen 2 up to 10Gbps |
| Network | 1 × Gigabit Ethernet RJ45; PXE Boot and Wake-on-LAN |
| Power Delivery | PD 3.0 input up to 100W; up to 84W to host; power adapter not included |
| Power mode | Bus powered or USB-C PD powered |
| Warranty | 3-year StarTech.com manufacturer warranty |
| SKU | DKT31CVHPD3 |
| Barcode # | 65030891998 |
| Brand | STARTECH |
| Shipping Weight | 0.1900kg |
| Shipping Width | 0.140m |
| Shipping Height | 0.030m |
| Shipping Length | 0.170m |
