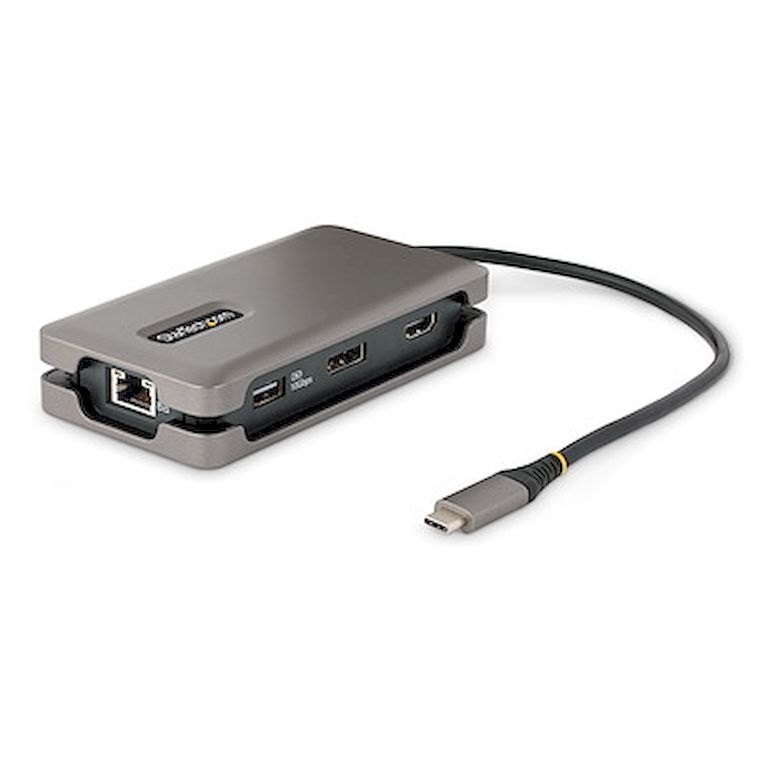

STARTECH.COM | DKT31CDHPD3

USB-C Multiport Adapter with 4K 60Hz HDMI or DisplayPort, 10Gbps Hub and PD

Create a single-display workstation with a choice of HDMI or DisplayPort, a three-port 10Gbps USB hub, Gigabit Ethernet and laptop charging.

HDMI or DisplayPort

Choose one 4K 60Hz digital video output.

Three-port 10Gbps hub

Connect two USB-A devices and one USB-C device.

Managed Gigabit Ethernet

Includes PXE Boot and Wake-on-LAN support.

Up to 85W charging

A 100W source leaves up to 85W after 15W is reserved.

What to know

A USB-C power adapter is not included. The adapter reserves 15W, and its integrated cable manager keeps the 320mm host lead contained in transit.

Frequently asked questions

What video output and resolution does the DKT31CDHPD3 support?

It provides HDMI 2.0b or DisplayPort 1.4 output up to 4K 60Hz, depending on the connected host and display.

How many external displays can the DKT31CDHPD3 connect?

It supports one external display at a time through either HDMI or DisplayPort.

Does the DKT31CDHPD3 charge the connected laptop?

Yes. It accepts up to 100W PD 3.0, reserves 15W and can provide up to 85W to the laptop.

Which USB ports are included on the DKT31CDHPD3?

It includes two USB-A 10Gbps ports and one USB-C 10Gbps downstream data port.

What other connections or readers does the DKT31CDHPD3 include?

It includes Gigabit Ethernet with PXE Boot and Wake-on-LAN; it does not include a memory-card reader.

What must the host USB-C port support?

The host must support DP Alt Mode for video and USB Power Delivery for charging.

Is a separate power adapter required or included?

A USB-C power adapter is not included. The dock can operate from bus power or use a compatible PD source for laptop charging.

What cable and warranty are supplied with the DKT31CDHPD3?

It has an attached 320mm TPE USB-C cable with an integrated wraparound cable manager. It is backed by a 3-year StarTech.com manufacturer warranty.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DKT31CDHPD3)

Features and highlights

Portable USB-C, USB4 and Thunderbolt 3/4 compatible mini dock
HDMI 2.0b or DisplayPort 1.4 output up to 4K 60Hz
One external display supported at a time
Two USB-A and one USB-C 10Gbps downstream ports
Gigabit Ethernet with PXE Boot and Wake-on-LAN
100W USB Power Delivery 3.0 with up to 85W available to the laptop
Attached 320mm TPE USB-C host cable
Integrated wraparound cable manager for travel

Compatibility check: The host USB-C connection must support DisplayPort Alt Mode for video and USB Power Delivery for charging. Use either HDMI or DisplayPort, not both.

Specifications

Product type	Portable USB-C multiport adapter
Host compatibility	USB-C, USB4 and Thunderbolt 3/4
Video outputs	1 x HDMI 2.0b; 1 x DisplayPort 1.4; one output at a time
Maximum resolution	4K 60Hz
Displays supported	1
USB hub	2 x USB-A 10Gbps; 1 x USB-C 10Gbps
Networking	Gigabit Ethernet; PXE Boot; Wake-on-LAN
Power Delivery	100W PD 3.0 input; 15W reserved; up to 85W to laptop
Power adapter	Not included
Cable length	320mm
Cable management	Integrated wraparound channel
Warranty	3 years

SKU	DKT31CDHPD3
Barcode #	65030893077
Brand	Startech
Shipping Weight	0.1600kg
Shipping Width	0.140m
Shipping Height	0.030m
Shipping Length	0.170m

Warranty and Australian supply

DKT31CDHPD3 is supplied by DeviceDeal as an Australian-market product and carries the official 3-year StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
