Startech DKT31CHPD3 USB C Multiport Adapter 4K 60Hz HDMI PD
Model # DKT31CHPD3
-
SKU: DKT31CHPD3
- Pick Up Available
- Australian Warranty
- Checkout Securely
USB-C Multiport Adapter with 4K 60Hz HDMI, 10Gbps USB Hub and 100W PD
Add one high-resolution HDMI screen plus USB-A and USB-C 10Gbps connections while passing power to a compatible USB-C laptop or tablet.
4K 60Hz HDMI
DP 1.4 Alt Mode hosts support the maximum video mode and HDR.
10Gbps USB hub
Use one USB-A and up to two USB-C peripheral connections.
BC 1.2 charging
The USB-A port can provide up to 7.5W with suitable power.
100W PD input
Connect a compatible USB-C source for laptop charging.
What to know
A USB-C power adapter is not included. When no power source is connected, the shared PD USB-C port can be used as an additional 10Gbps data port.
Frequently asked questions
What video output and resolution does the DKT31CHPD3 support?
HDMI supports 4K 60Hz and HDR on DP 1.4 Alt Mode hosts, or up to 4K 30Hz on DP 1.2 hosts.
How many external displays can the DKT31CHPD3 connect?
It supports one external HDMI display.
Does the DKT31CHPD3 charge the connected laptop?
Yes. It accepts up to 100W USB Power Delivery 3.0; available laptop power depends on the connected source and adapter load.
Which USB ports are included on the DKT31CHPD3?
It includes one USB-A 10Gbps port, one USB-C 10Gbps data port and a second USB-C port shared between 10Gbps data and PD input.
What other connections or readers does the DKT31CHPD3 include?
The USB-A port supports BC 1.2 charging up to 7.5W with suitable power; this model does not include Ethernet or a card reader.
What must the host USB-C port support?
The host must support DP Alt Mode, with DP 1.4 required for 4K 60Hz, and USB Power Delivery for charging.
Is a separate power adapter required or included?
A USB-C power adapter is not included. The adapter can run from bus power or use a compatible PD source for host charging.
What cable and warranty are supplied with the DKT31CHPD3?
It has an attached 250mm USB-C host cable. It is backed by a 3-year StarTech.com manufacturer warranty.
Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.
(DKT31CHPD3)
Features and highlights

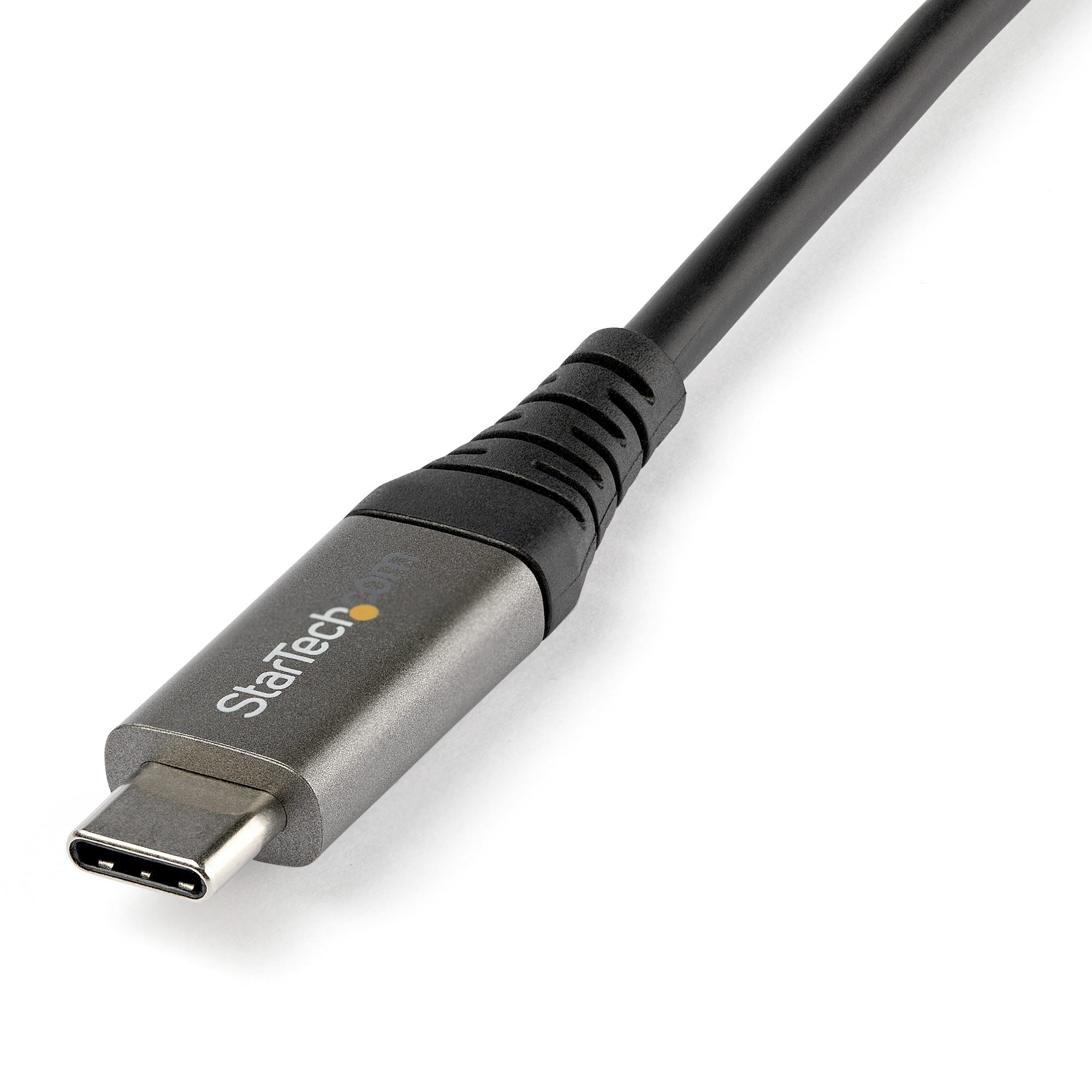

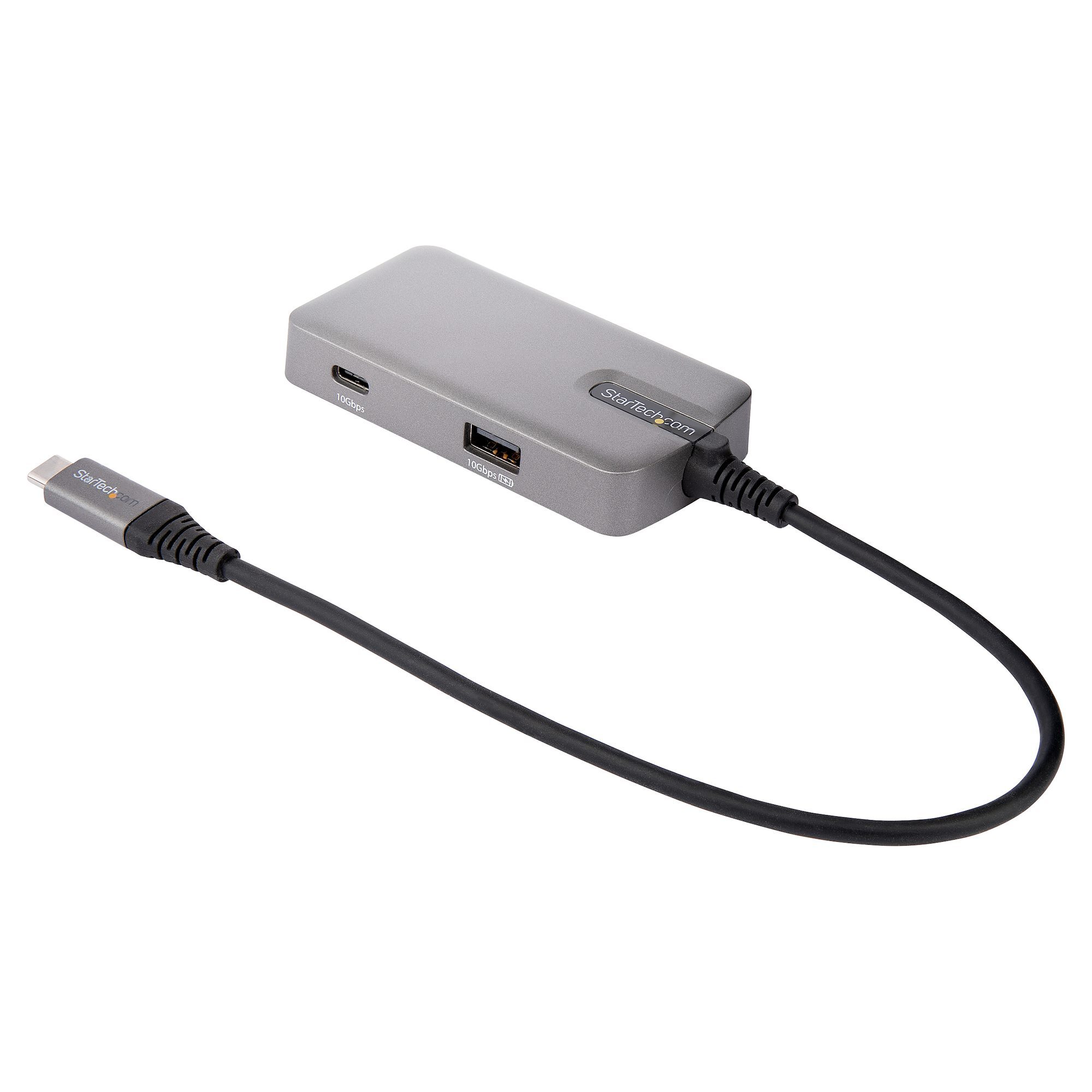

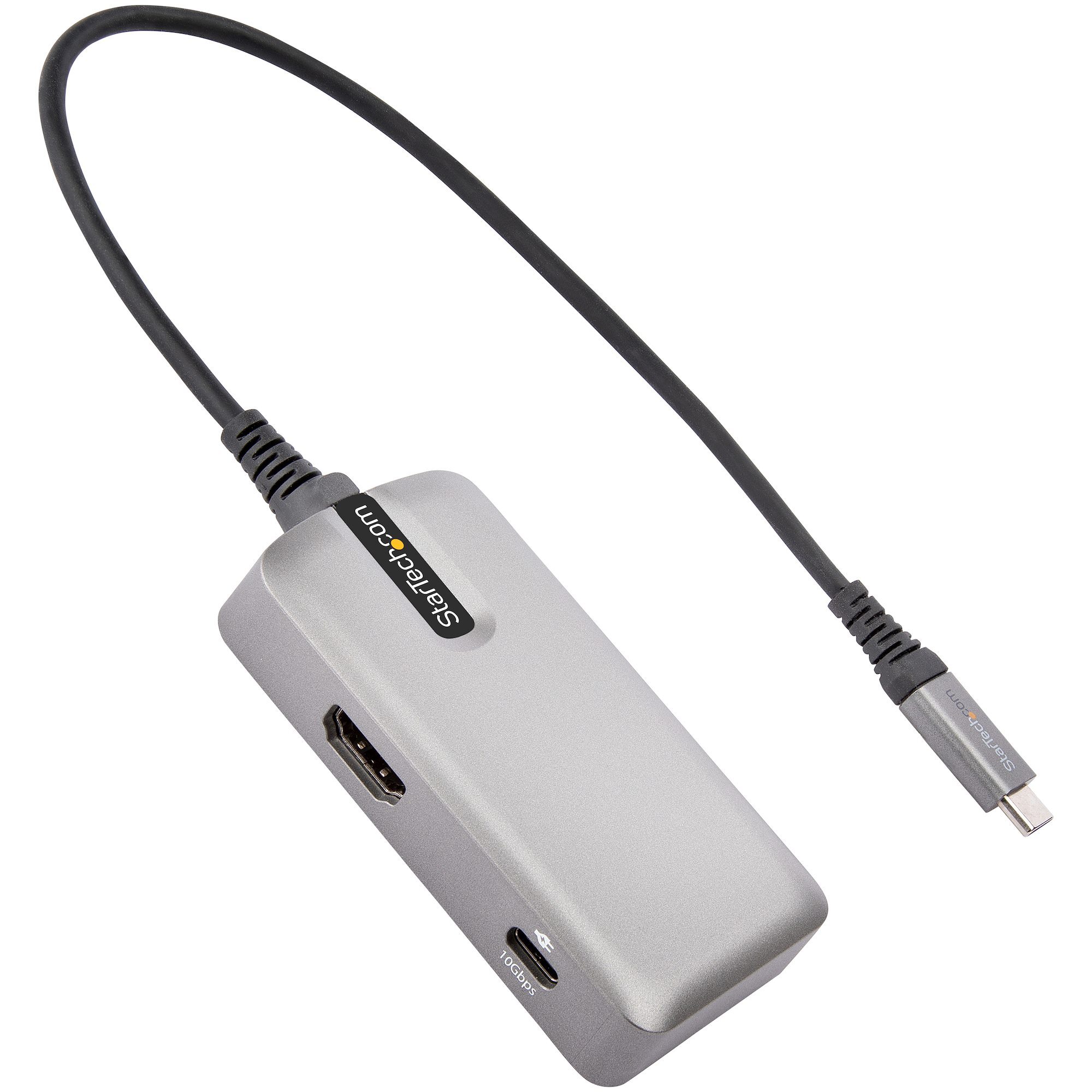

- Portable USB-C multiport adapter with 250mm host cable
- HDMI 2.0 output with HDR support
- 4K 60Hz on DP 1.4 Alt Mode hosts; 4K 30Hz on DP 1.2 hosts
- One USB-A 10Gbps port with BC 1.2 charging
- One dedicated USB-C 10Gbps data port
- One USB-C 10Gbps data / 100W PD shared port
- USB Power Delivery 3.0 with Fast Role Swap
- Bus-powered operation when a USB-C power adapter is not connected
Specifications
| Product type | Portable USB-C multiport adapter |
|---|---|
| Host connection | Attached USB-C cable |
| Video output | 1 x HDMI 2.0 with HDR |
| Maximum resolution | 4K 60Hz with DP 1.4 Alt Mode; 4K 30Hz with DP 1.2 Alt Mode |
| Displays supported | 1 |
| USB ports | 1 x USB-A 10Gbps BC 1.2; 1 x USB-C 10Gbps data; 1 x USB-C 10Gbps data / 100W PD input |
| Power Delivery | 100W PD 3.0 input |
| Power adapter | Not included |
| Cable length | 250mm |
| Colour | Space grey |
| Warranty | 3 years |
| SKU | DKT31CHPD3 |
| Barcode # | 65030880763 |
| Brand | Startech |
| Shipping Weight | 0.1400kg |
| Shipping Width | 0.004m |
| Shipping Height | 0.021m |
| Shipping Length | 0.015m |
