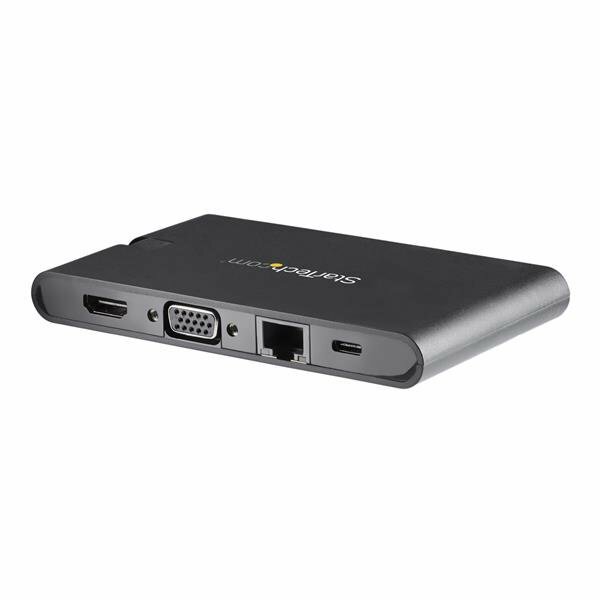

STARTECH.COM | DKT30CHVSCPD

USB-C Travel Dock with HDMI or VGA, SD Readers and 100W PD

Create a complete mobile workstation with HDMI or VGA video, three USB-A ports, SD and microSD readers, Gigabit Ethernet and laptop charging.

HDMI or VGA

Choose 4K 30Hz HDMI or 1920 x 1200 60Hz VGA.

Three USB-A ports

Each supports data and charging, with a combined 10W across all ports.

Dual card readers

Access SD and microSD cards simultaneously.

Up to 85W charging

A 100W source leaves up to 85W after 15W is reserved.

What to know

Only one video output can be used at a time. A USB-C power adapter is required for Power Delivery and fast charging but is not included.

Frequently asked questions

What video output and resolution does the DKT30CHVSCPD support?

Choose HDMI up to 3840 x 2160 at 30Hz or VGA up to 1920 x 1200 at 60Hz.

How many external displays can the DKT30CHVSCPD connect?

It supports one external display at a time through either HDMI or VGA.

Does the DKT30CHVSCPD charge the connected laptop?

Yes. It accepts up to 100W PD 3.0, reserves 15W and supplies up to 85W to the laptop.

Which USB ports are included on the DKT30CHVSCPD?

It includes three USB-A 5Gbps data and charging ports; each can provide up to 7.5W, with 10W combined and one fast-charge port at a time.

What other connections or readers does the DKT30CHVSCPD include?

It includes simultaneous SD and microSD readers plus Gigabit Ethernet.

What must the host USB-C port support?

The host USB-C port must support DP Alt Mode for video and USB Power Delivery for charging.

Is a separate power adapter required or included?

A USB-C power adapter is not included. The dock is bus powered for standard use, but a compatible PD source is needed for charging.

What cable and warranty are supplied with the DKT30CHVSCPD?

It has an integrated wraparound 118mm USB-C host cable. It is backed by a 3-year StarTech.com manufacturer warranty.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DKT30CHVSCPD)

Features and highlights

Nine-in-one portable USB-C mini dock
One HDMI output up to 3840 x 2160 at 30Hz or one VGA output up to 1920 x 1200 at 60Hz

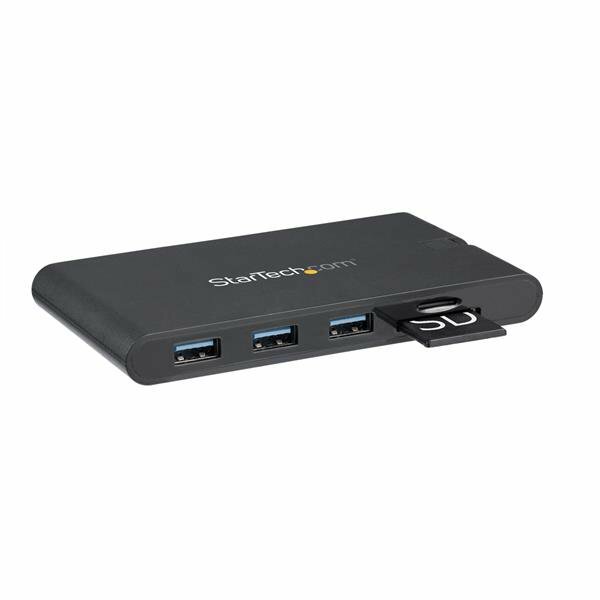

Three USB-A 5Gbps data and charging ports
Up to 7.5W per USB-A port with 10W combined; one fast-charge port at a time
Simultaneous SD and microSD card access
Gigabit Ethernet
100W PD 3.0 input with up to 85W to laptop

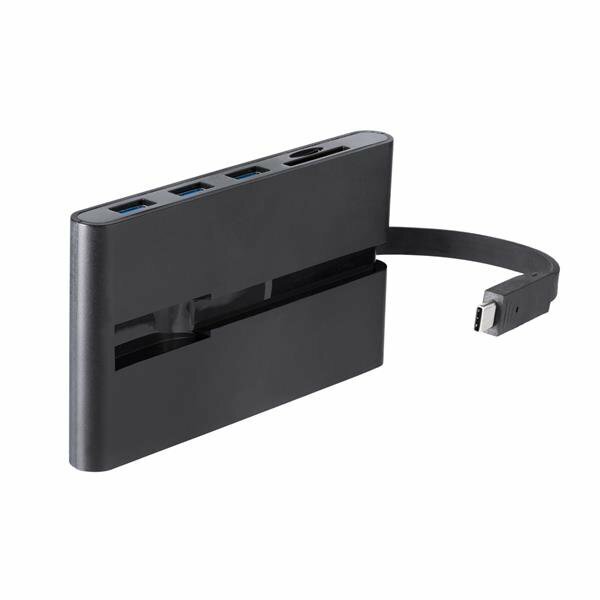

Wraparound 118mm USB-C host cable

Compatibility check: The host USB-C port must support DP Alt Mode for video and USB Power Delivery for charging. HDMI and VGA are alternative single-monitor outputs.

Specifications

Product type	Portable USB-C travel dock
Video outputs	1 x HDMI; 1 x VGA; one output at a time
Maximum resolution	HDMI: 3840 x 2160 at 30Hz; VGA: 1920 x 1200 at 60Hz
Displays supported	1
USB ports	3 x USB-A 5Gbps data and charging; up to 7.5W each, 10W combined, one fast-charge port at a time
Card readers	SD and microSD; simultaneous access supported
Networking	Gigabit Ethernet
Power Delivery	100W PD 3.0 input; 15W reserved; up to 85W to laptop
Power adapter	Not included; USB bus powered or host USB-C PD adapter
Cable length	118mm wraparound cable
Dimensions / weight	122 x 70 x 14mm; 129g
Package dimensions / weight	170 x 146 x 32mm; 170g
In the box	Multiport adapter and user manual
UPC	065030879170
Warranty	3 years

SKU	DKT30CHVSCPD
Barcode #	65030879170
Brand	STARTECH
Shipping Weight	0.1600kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.170m
Shipping Cubic	0.000850000m3
