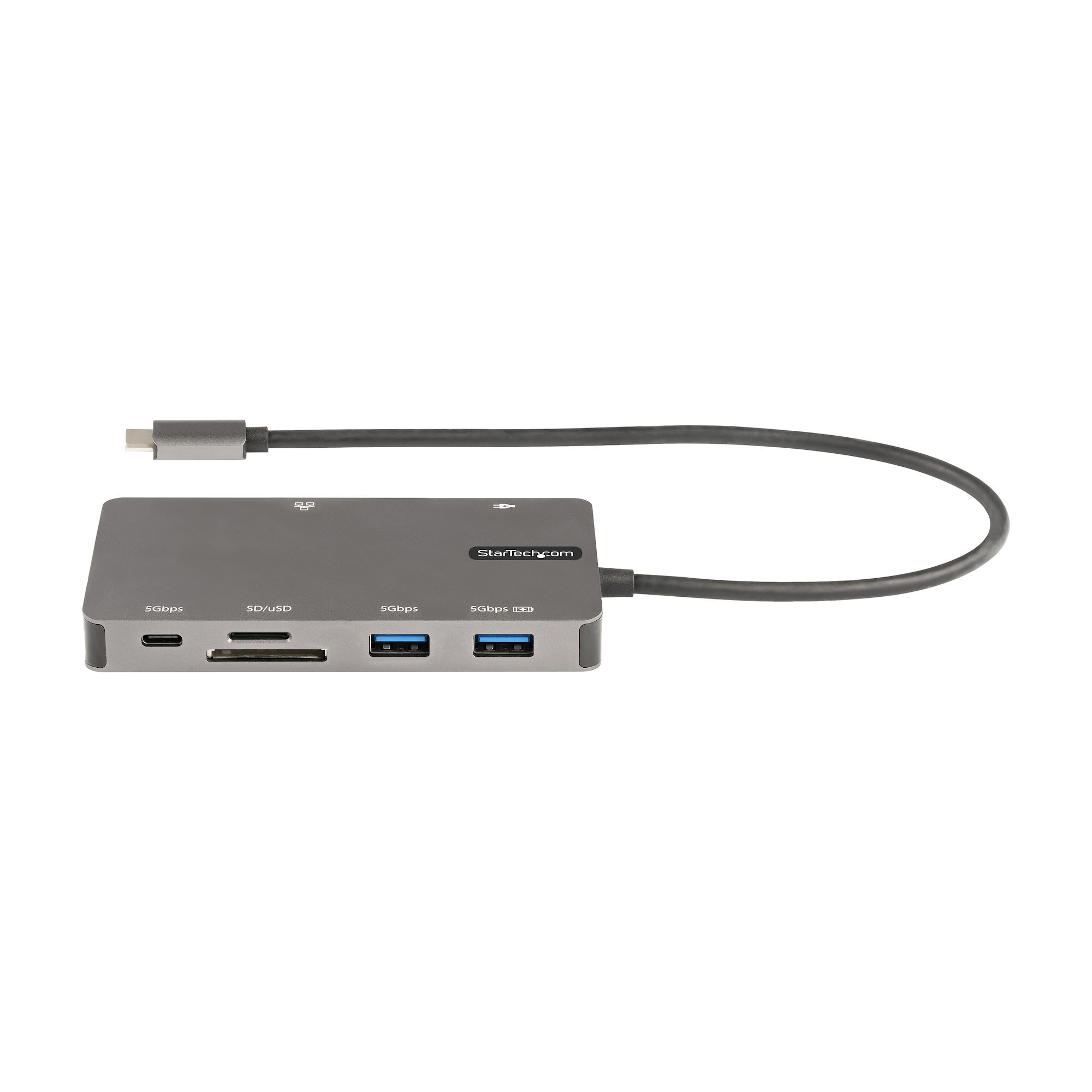

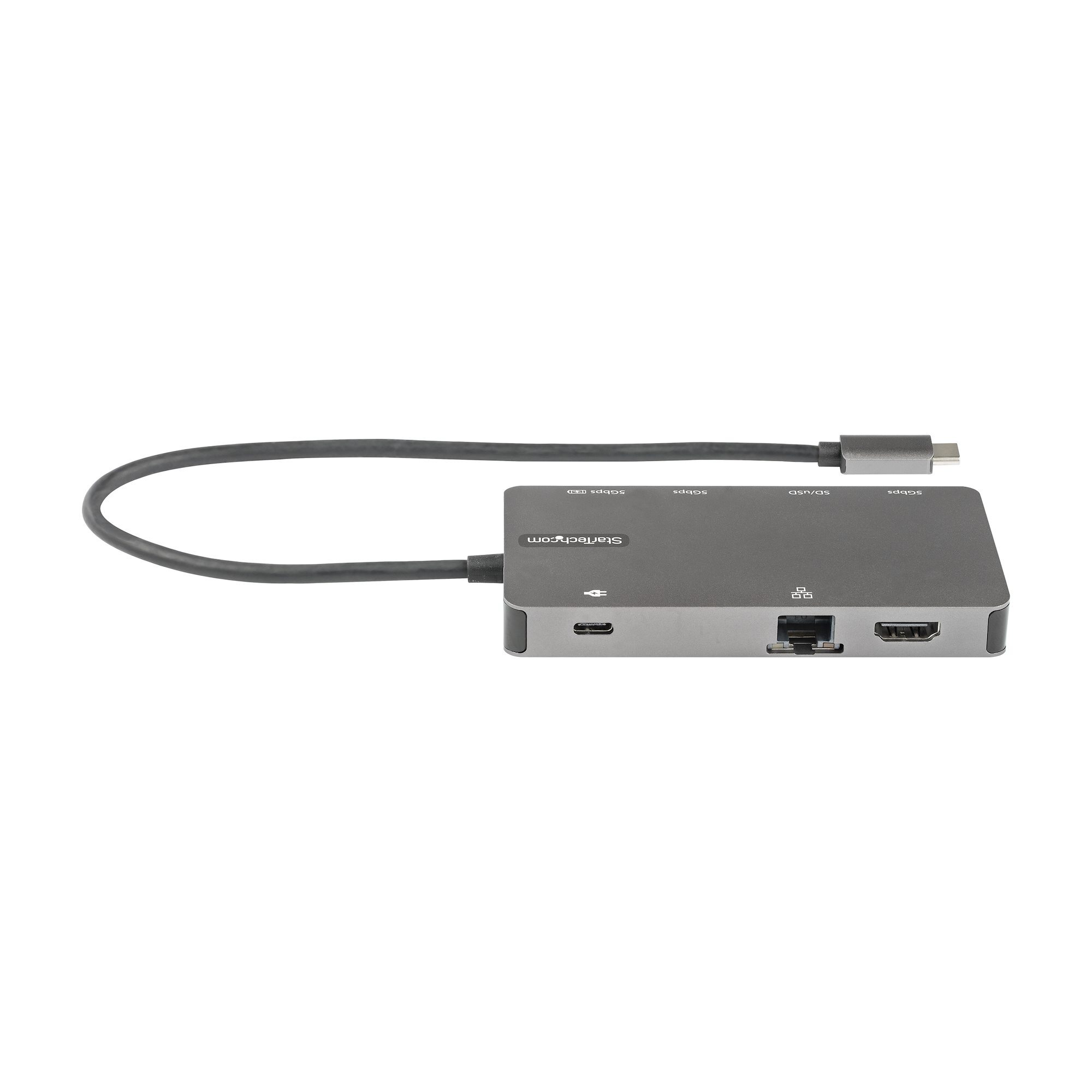

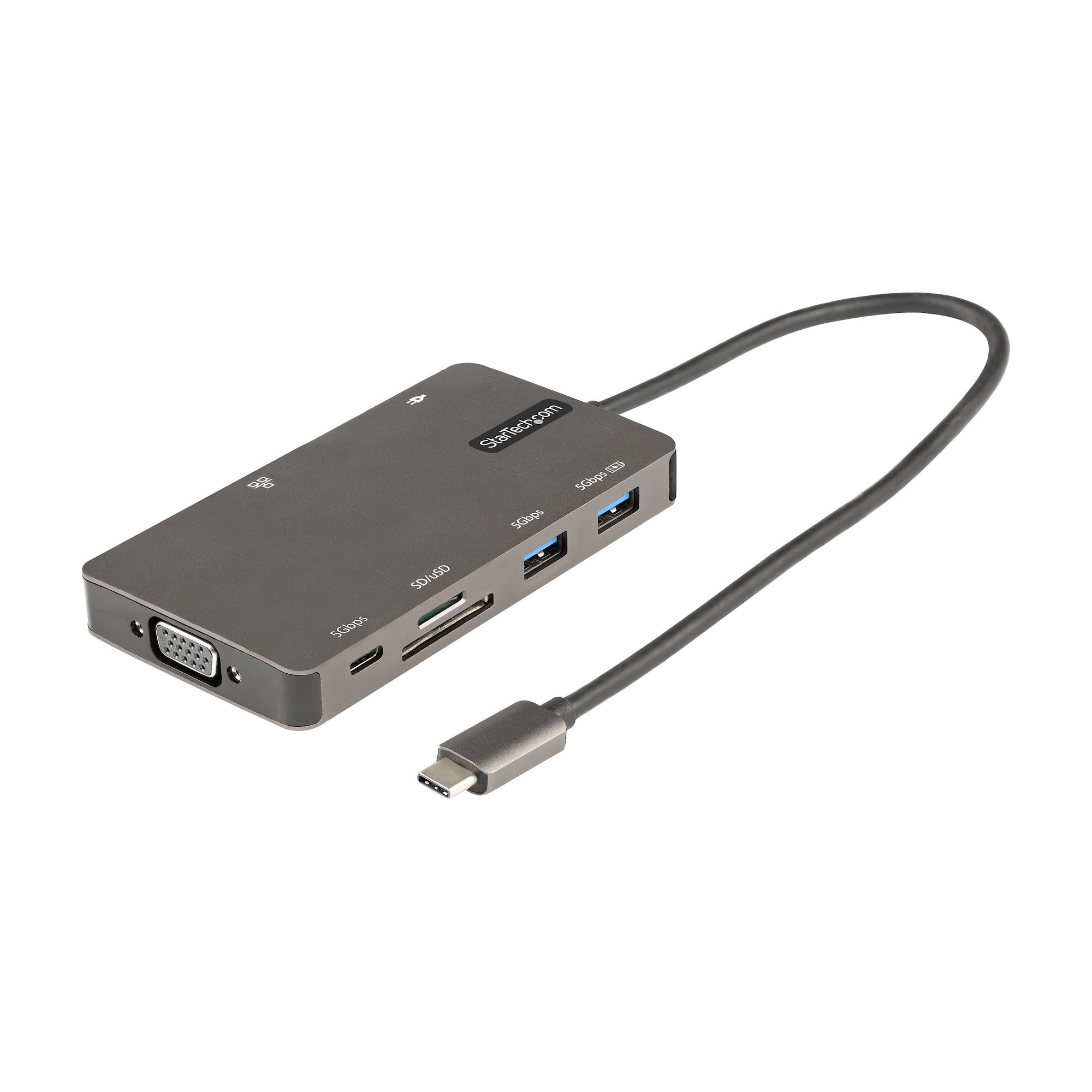

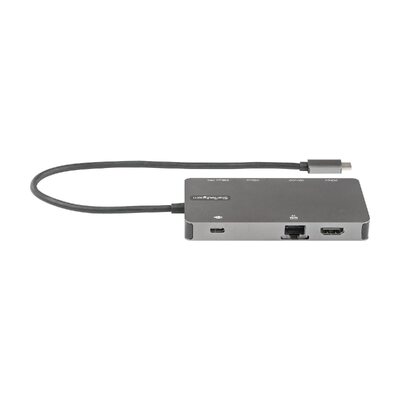

STARTECH.COM | DKT30CHVSDPD

USB-C Multiport Adapter with HDMI or VGA, GbE, SD and 100W PD

Connect one HDMI or VGA display, USB-A and USB-C devices, SD media and Gigabit Ethernet while passing power to a compatible USB-C laptop.

HDMI or VGA

Choose 4K 30Hz HDMI or 1080p 60Hz VGA.

USB-A and USB-C

Includes two USB-A data ports and one USB-C data port.

SD, microSD and GbE

Add media access plus managed wired networking features.

Up to 85W charging

A 100W source leaves up to 85W after 15W is reserved.

What to know

A USB-C power adapter is not included. One USB-C port is for 5Gbps data and the other is dedicated to Power Delivery input.

Frequently asked questions

What video output and resolution does the DKT30CHVSDPD support?

Choose HDMI up to 4K 30Hz or VGA up to 1080p at 60Hz for one external display.

How many external displays can the DKT30CHVSDPD connect?

It supports one external display at a time through either HDMI or VGA.

Does the DKT30CHVSDPD charge the connected laptop?

Yes. It accepts up to 100W PD 3.0, reserves 15W and provides up to 85W to the laptop.

Which USB ports are included on the DKT30CHVSDPD?

It includes two USB-A 5Gbps ports, one USB-C 5Gbps data port and a separate USB-C 100W PD input-only port.

What other connections or readers does the DKT30CHVSDPD include?

It includes SD and microSD readers plus Gigabit Ethernet with PXE Boot and Wake-on-LAN.

What must the host USB-C port support?

The host must support DP Alt Mode for video and USB Power Delivery for charging.

Is a separate power adapter required or included?

A USB-C power adapter is not included. The adapter can be bus powered or connected to a compatible PD source.

What cable and warranty are supplied with the DKT30CHVSDPD?

It has an attached 300mm USB-C host cable. It is backed by a 3-year StarTech.com manufacturer warranty.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DKT30CHVSDPD)

Features and highlights

Nine-in-one USB-C multiport adapter
HDMI up to 4K 30Hz or VGA up to 1080p 60Hz; one display at a time
Two USB-A 5Gbps ports, including one 7.5W BC 1.2 charging port
One USB-C 5Gbps data port plus a separate USB-C 100W PD input
Separate SD and microSD card readers
Gigabit Ethernet with PXE Boot and Wake-on-LAN
100W PD 3.0 with up to 85W to laptop
Attached 300mm USB-C host cable

Compatibility check: The host USB-C port must support DP Alt Mode for video and USB Power Delivery for charging. HDMI and VGA cannot be used together.

Specifications

Product type	Portable USB-C multiport adapter
Video outputs	1 x HDMI; 1 x VGA; one output at a time
Maximum resolution	HDMI: 4K 30Hz; VGA: 1080p 60Hz
Displays supported	1
USB ports	1 x USB-A 5Gbps; 1 x USB-A 5Gbps BC 1.2 7.5W; 1 x USB-C 5Gbps data; 1 x USB-C 100W PD input only
Card readers	SD and microSD
Networking	Gigabit Ethernet with PXE Boot and Wake-on-LAN
Power Delivery	100W PD 3.0 input; 15W reserved; up to 85W to laptop
Power adapter	Not included; USB bus powered or host USB-C PD adapter
Cable length	300mm
Dimensions / weight	110 x 60 x 14mm; 115g
Package dimensions / weight	142 x 171 x 35mm; 172g
In the box	USB-C multiport adapter and quick-start guide
Warranty	3 years

SKU	DKT30CHVSDPD
Barcode #	65030891769
Brand	Startech
Shipping Weight	0.1600kg
Shipping Width	0.003m
Shipping Height	0.017m
Shipping Length	0.014m

Warranty and Australian supply

DKT30CHVSDPD is supplied by DeviceDeal as an Australian-market product and carries the official 3-year StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
