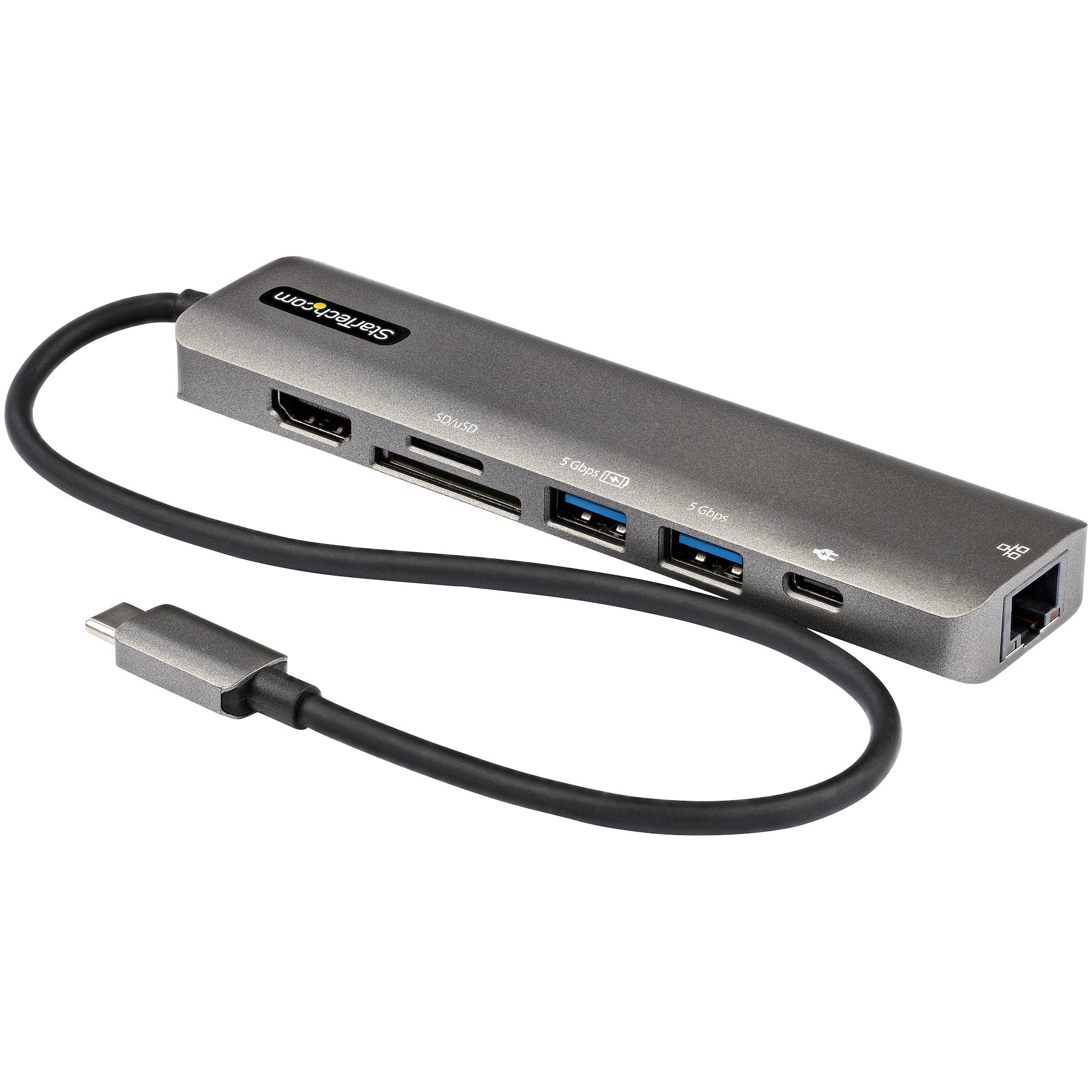

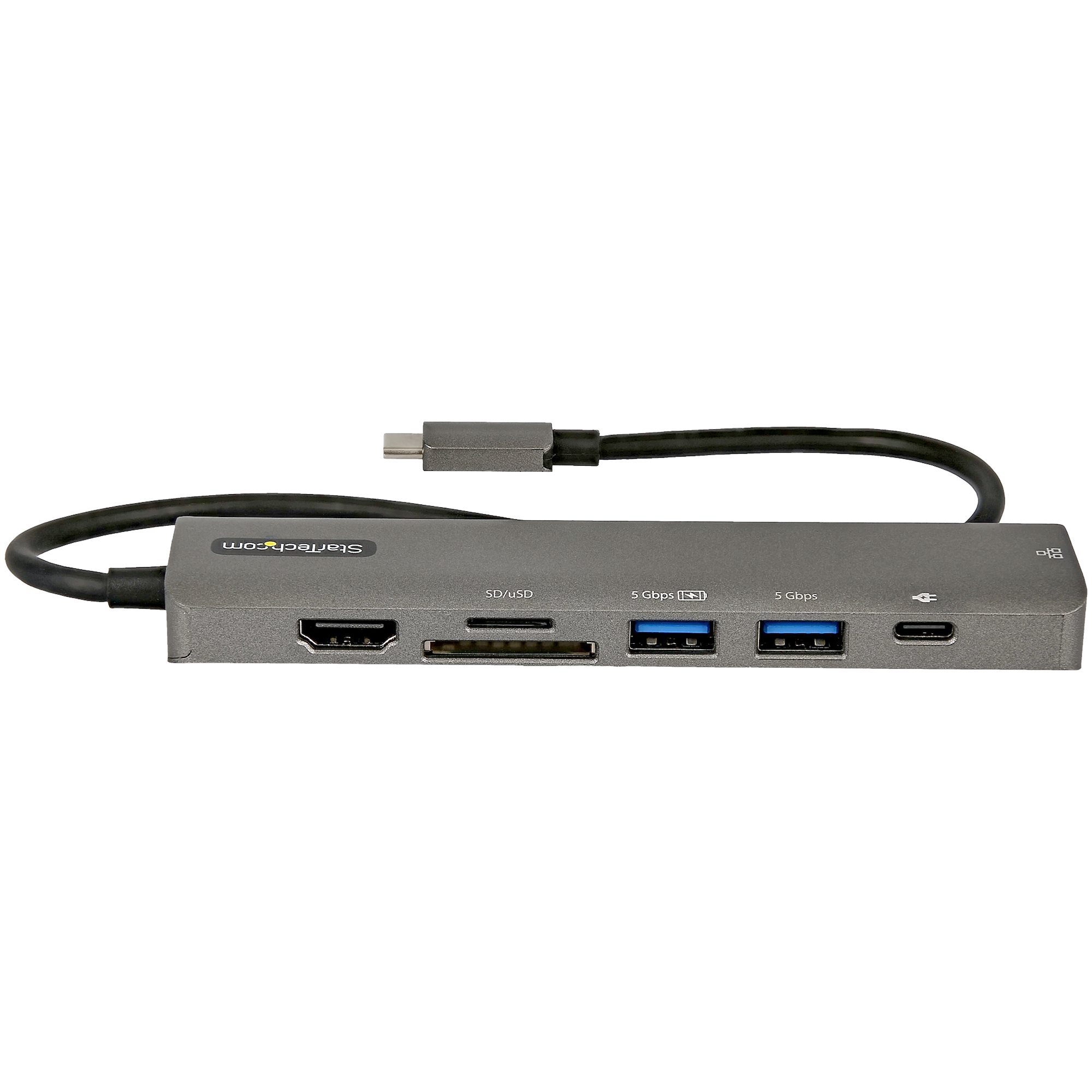

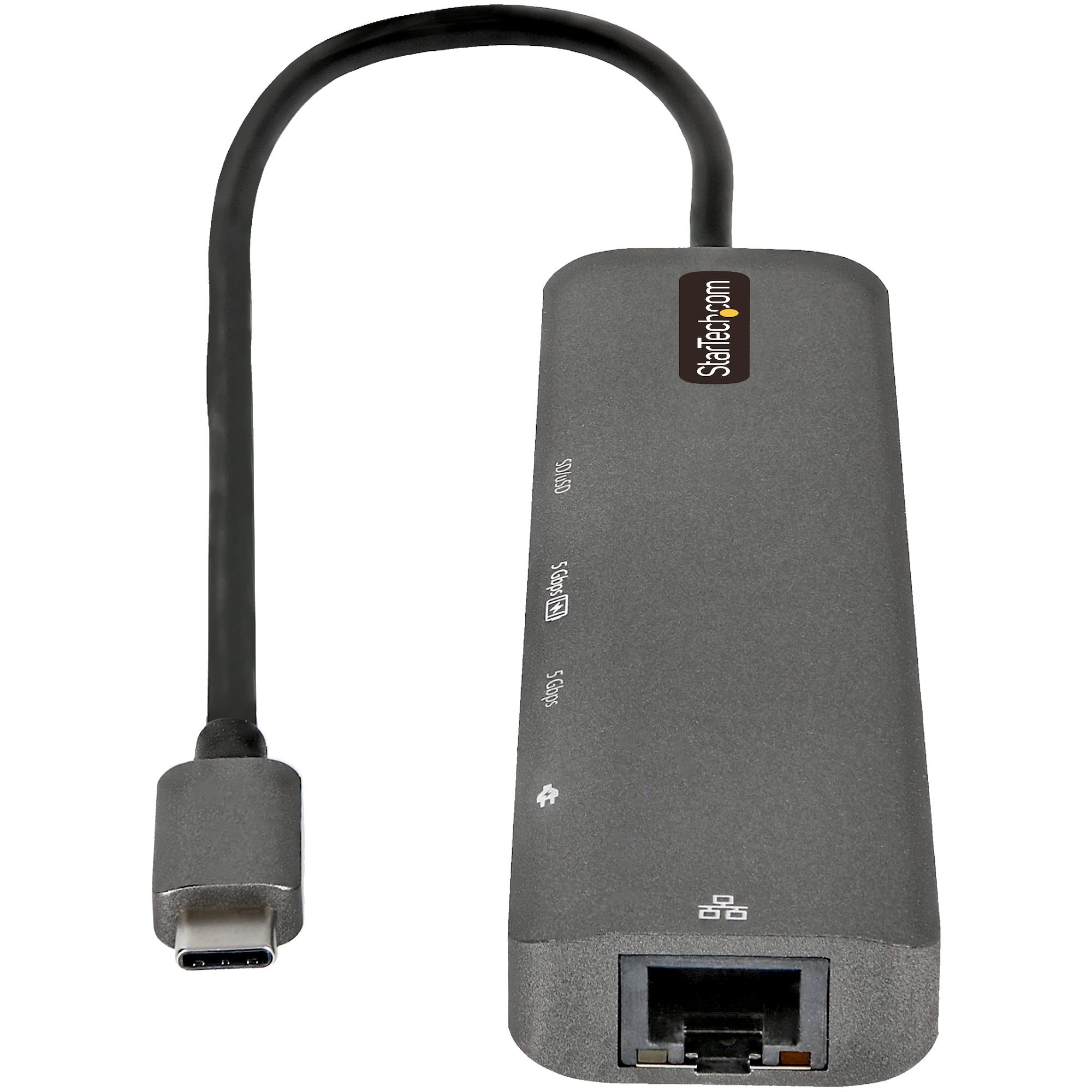

Startech DKT30CHSDPD1 USB C Multiport Adapter 4K 60Hz HDMI/GbE
Model # DKT30CHSDPD1
-
SKU: DKT30CHSDPD1
- Pick Up Available
- Australian Warranty
- Checkout Securely
USB-C Multiport Adapter with 4K 60Hz HDMI, GbE and 100W PD
Build a compact mobile workstation with 4K 60Hz HDMI, Gigabit Ethernet, USB-A connectivity, SD and microSD readers and Power Delivery passthrough.
4K 60Hz HDMI
Use a DP 1.4 Alt Mode host for the maximum video mode.
Gigabit Ethernet
Add wired networking and optional StarTech Connectivity Tools.
SD and microSD
Access both common card formats.
Up to 88W charging
A 100W source leaves up to 88W after 12W is reserved.
What to know
One USB-A port carries 5Gbps data; the second USB-A port is a 7.5W power-only charging port. A USB-C power adapter is not included.
Frequently asked questions
What video output and resolution does the DKT30CHSDPD1 support?
It supports one HDMI display up to 4K 60Hz on a compatible DP 1.4 Alt Mode host.
How many external displays can the DKT30CHSDPD1 connect?
It supports one external HDMI display.
Does the DKT30CHSDPD1 charge the connected laptop?
Yes. It accepts up to 100W, reserves 12W and provides up to 88W to the laptop.
Which USB ports are included on the DKT30CHSDPD1?
It includes one USB-A 5Gbps data port, one USB-A 7.5W power-only charging port and one USB-C PD input-only port.
What other connections or readers does the DKT30CHSDPD1 include?
It includes Gigabit Ethernet plus separate SD and microSD card-reader slots.
What must the host USB-C port support?
The host must support DP Alt Mode; 4K 60Hz requires suitable DP 1.4 capability, and charging requires USB Power Delivery.
Is a separate power adapter required or included?
A USB-C power adapter is not included. The adapter may run from bus power or use a compatible USB-C PD source.
What cable and warranty are supplied with the DKT30CHSDPD1?
It has an attached 336mm USB-C host cable. It is backed by a 3-year StarTech.com manufacturer warranty.
Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.
(DKT30CHSDPD1)
Features and highlights
- Seven-in-one portable USB-C multiport adapter
- HDMI output up to 4K 60Hz on compatible DP 1.4 hosts
- One USB-A 5Gbps data port and one USB-A 7.5W power-only charging port
- SD and microSD card readers
- Gigabit Ethernet connection
- 100W USB Power Delivery 3.0 input with up to 88W to laptop
- Attached 336mm USB-C host cable
- StarTech Connectivity Tools support for compatible environments
Specifications
| Product type | Portable USB-C multiport adapter |
|---|---|
| Video output | 1 x HDMI |
| Maximum resolution | 4K 60Hz on a compatible DP 1.4 Alt Mode host |
| Displays supported | 1 |
| USB ports | 1 x USB-A 5Gbps data; 1 x USB-A 7.5W power-only charging; 1 x USB-C 100W PD input only |
| Card readers | SD and microSD |
| Networking | Gigabit Ethernet |
| Power Delivery | 100W PD 3.0 input; 12W reserved; up to 88W to laptop |
| Power adapter | Not included; USB bus powered or host USB-C PD adapter |
| Cable length | 336mm |
| Dimensions / weight | 472mm total product length including cable; 34 x 14mm body cross-section; 76g |
| Package dimensions / weight | 152 x 216 x 34mm; 146g |
| In the box | USB-C multiport adapter and product documentation |
| UPC | 065030891790 |
| Warranty | 3 years |
| SKU | DKT30CHSDPD1 |
| Barcode # | 65030891790 |
| Brand | STARTECH |
| Shipping Weight | 0.1400kg |
| Shipping Width | 0.003m |
| Shipping Height | 0.021m |
| Shipping Length | 0.015m |
