StarTech USB to Dual DisplayPort Mini Dock with GbE LAN - Dual 4K 60 Hz USBA2DPGB
Model # USBA2DPGB
-
SKU: USBA2DPGB
- Pick Up Available
- Australian Warranty
- Checkout Securely

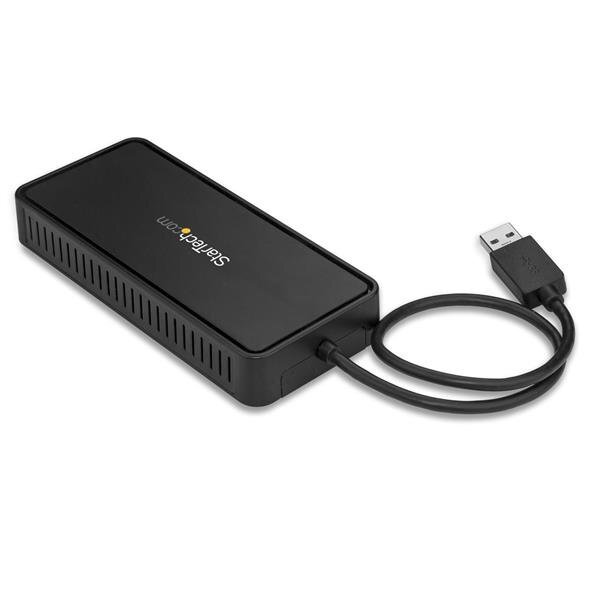

StarTech USB-A Dual DisplayPort 4K Mini Dock with Gigabit Ethernet
Add two DisplayPort monitors and wired Gigabit Ethernet to a USB-A laptop through a compact, bus-powered DisplayLink mini dock.
Why choose USBA2DPGB?
Two DisplayPort outputs support dual displays up to 4K 60Hz.
DisplayLink DL-6950 chipset enables USB graphics.
Gigabit Ethernet adds reliable 10/100/1000Mbps wired networking.
Best-fit applications
- Dual-monitor productivity from a USB-A laptop
- Portable workstations and shared office desks
- Adding wired Ethernet to laptops without an RJ-45 port
Australian warranty assurance
Australian version supplied by DeviceDeal. Covered by the official StarTech.com manufacturer warranty in Australia for 3 years. Retain your DeviceDeal tax invoice. Warranty service is subject to StarTech terms, eligibility and product assessment.
Information verified against the supplied DeviceDeal source workbook, the exact DeviceDeal product page and exact-SKU official StarTech.com product data.
Read DeviceDeal buying guidesFrequently asked questions
How many displays does USBA2DPGB support?
It supports two DisplayPort monitors, with dual-display resolutions up to 4K 60Hz on compatible equipment.
Can it run one display above 4K?
StarTech lists up to 5120 x 2880 at 60Hz for a single display when both DisplayPort outputs are used.
Does the dock include Gigabit Ethernet?
Yes. It provides one 10/100/1000Mbps RJ-45 port with full-duplex and auto-MDIX support.
Does it charge the laptop?
No. It is a USB-A bus-powered adapter and does not provide laptop charging.
Does it provide extra USB peripheral ports?
No. The dock provides two DisplayPort outputs and Gigabit Ethernet, but no downstream USB hub ports.
Is DisplayLink software required?
Yes. Video output uses the DisplayLink DL-6950 chipset, so compatible DisplayLink software is required.
Which operating systems are supported?
Operating-system support depends on the current DisplayLink driver. Check the exact laptop OS before deployment.
What warranty applies in Australia?
This Australian version is supplied by DeviceDeal with the official 3-year StarTech.com manufacturer warranty in Australia, subject to StarTech terms and assessment.
(USBA2DPGB)
Features and highlights
- Two DisplayPort outputs support dual displays up to 4K 60Hz
- DisplayLink DL-6950 chipset enables USB graphics
- Gigabit Ethernet adds reliable 10/100/1000Mbps wired networking
- Compact USB-powered design suits travel and hot desks
- Integrated 30cm USB-A host cable reduces port strain
- TAA compliant with a 3-year StarTech.com warranty
StarTech USB-A Dual DisplayPort 4K Mini Dock with Gigabit Ethernet
Product ID: USBA2DPGB
Display
| Video outputs | 2 x DisplayPort |
|---|---|
| Displays supported | 2 |
| Dual-display maximum | 4096 x 2160 at 60Hz or 3840 x 2160 at 60Hz |
| Single-display maximum | 5120 x 2880 at 60Hz using both DP ports |
| 4K support | Yes, on both video ports |
| Graphics chipset | DisplayLink DL-6950 |
Network and host
| Ethernet | 10/100/1000Mbps RJ-45; full duplex and auto-MDIX |
|---|---|
| Host interface | USB-A, USB 3.2 Gen 1 / USB 3.0, up to 5Gbps |
| Attached host cable | 300mm |
| Power source | USB powered |
| UASP / fast-charge | No / No |
Physical
| Dimensions | 130 x 58 x 20mm |
|---|---|
| Weight | 126g |
| Operating temperature | 0 to 40°C |
| Included | Mini dock and quick-start guide |
| TAA compliant | Yes |
| Warranty | 3 years |
Platform note
| Software | DisplayLink software is required. The supplied source lists older Windows and macOS versions; current StarTech overview highlights Windows and ChromeOS. Verify the current driver for the exact target OS. |
|---|
| SKU | USBA2DPGB |
| Barcode # | 65030874328 |
| Brand | Startech |
| Shipping Weight | 0.2400kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.001000000m3 |
