StarTech.com · CDP2HVGUASPD

StarTech 7-in-1 USB-C Travel Dock - HDMI/VGA - 100W PD

Add HDMI or VGA video, two 10Gbps USB ports, Gigabit Ethernet, microSD and up to 100W PD input through one USB-C host connection.

7-in-1 dockUSB 10Gbps100W PD inputPresentation Mode

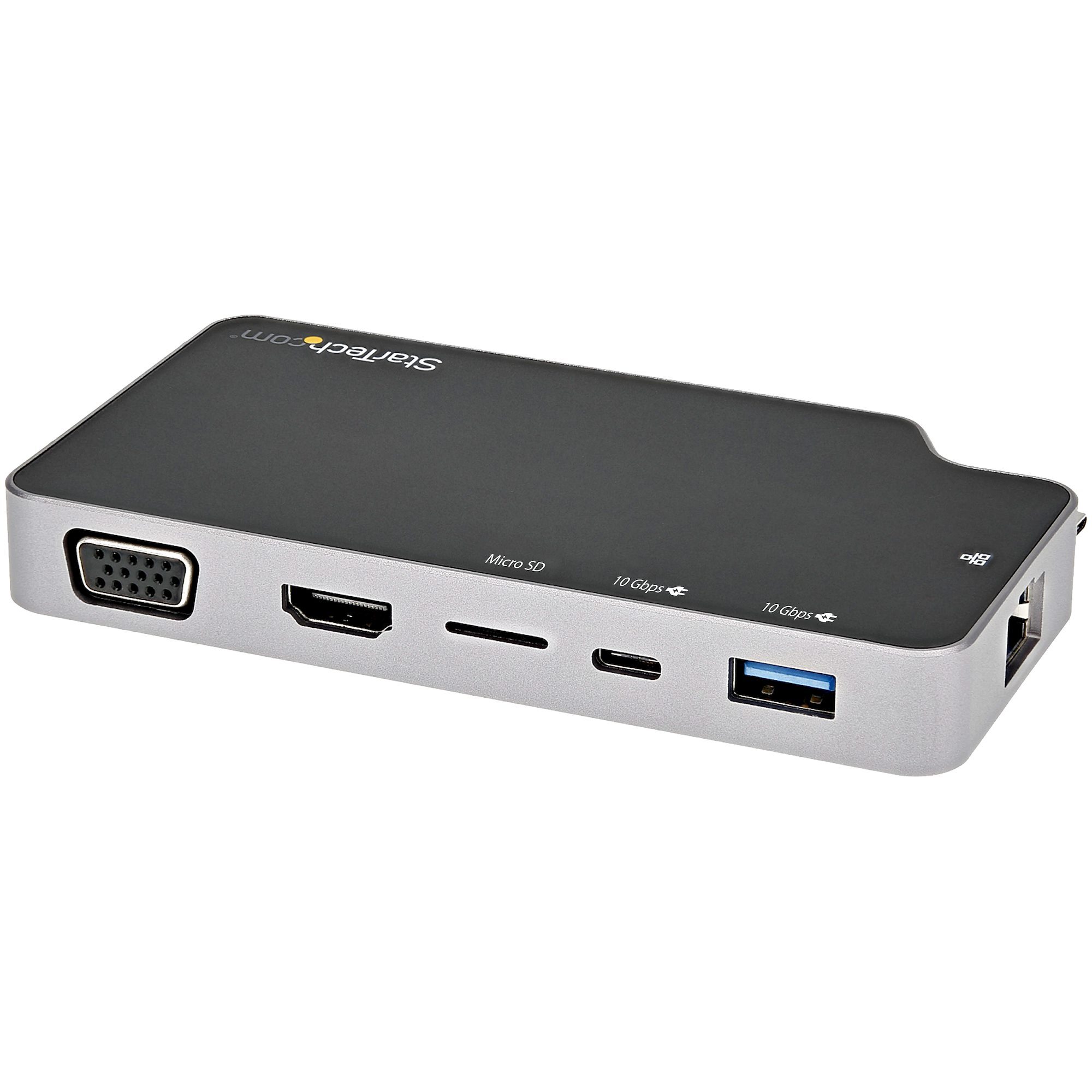

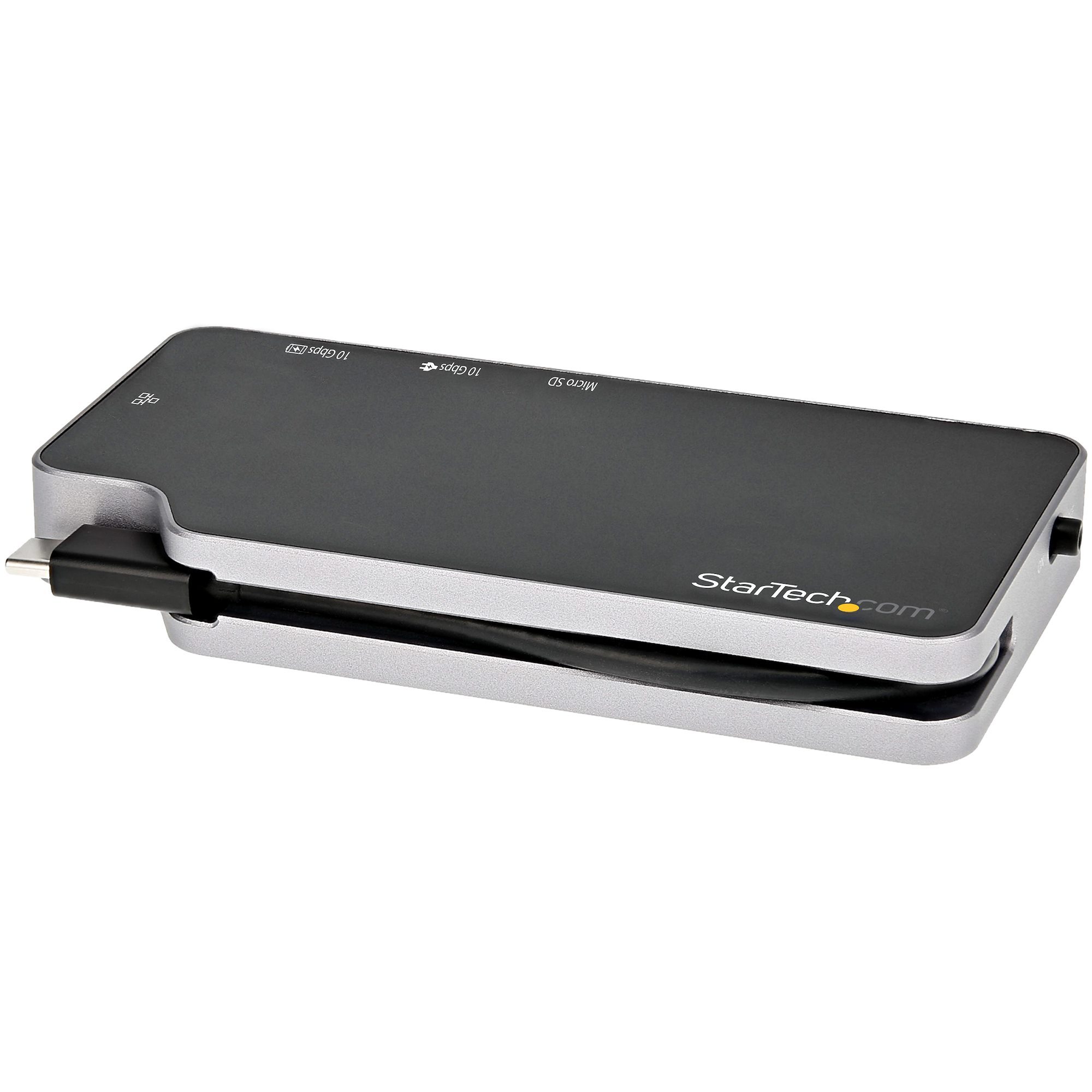

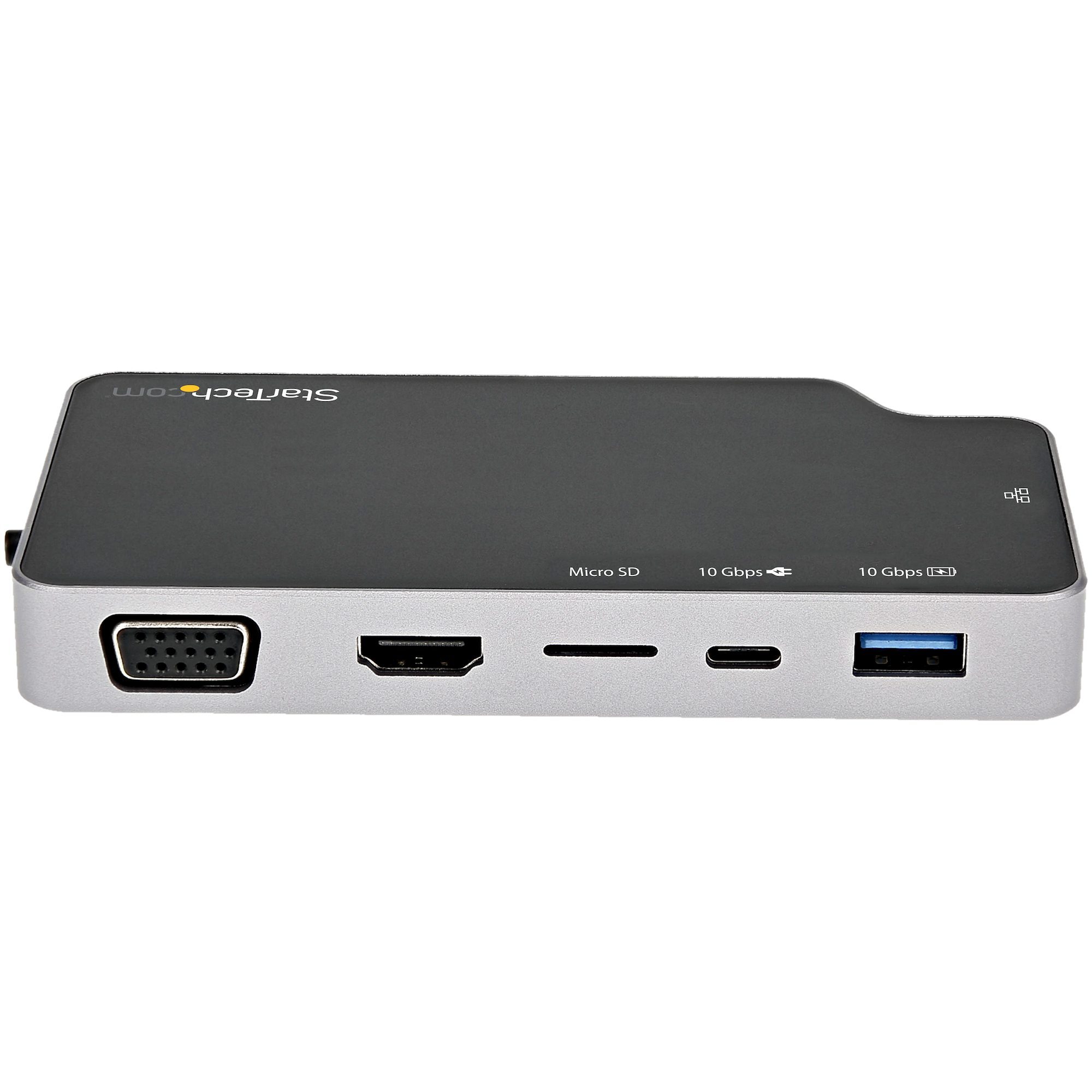

StarTech CDP2HVGUASPD 7-in-1 USB-C HDMI VGA travel dock

Product overview

CDP2HVGUASPD is a portable 7-in-1 adapter with a Presentation Mode switch. It supports one display, a multifunction USB-C port, USB-A fast charging, Gigabit Ethernet and microSD access.

Features that matter

HDMI or VGA display

Connect one HDMI display at up to 4K 30Hz or one VGA display at up to 1920 x 1080 at 60Hz.

Two 10Gbps USB ports

Includes USB-A 10Gbps with BC 1.2 fast charging and USB-C 10Gbps data when the port is not used for PD input.

Network and storage

Adds Gigabit Ethernet with PXE and Wake-on-LAN plus a microSD card slot.

Presentation Mode switch

When enabled, helps prevent screen saver, sleep and power-save interruptions during presentations.

What to know before ordering

Power allocation

Accepts up to 100W PD input, reserves 15W for the dock and provides up to 85W to a compatible host. Charger not included.

Single-display operation

The official specification supports one display. Use either HDMI or VGA, not two independent displays.

Host requirement

Full functionality requires USB-C DisplayPort Alt Mode, USB data and USB Power Delivery support from the host.

Warranty confidence in Australia

Australian version · Official StarTech.com warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is StarTech CDP2HVGUASPD?

CDP2HVGUASPD is a 7-in-1 USB-C travel dock with HDMI/VGA video, USB, Ethernet, microSD and Power Delivery.

What is the maximum resolution?

HDMI supports up to 3840 x 2160 at 30Hz and VGA supports up to 1920 x 1080 at 60Hz. One display is supported.

What must the USB-C port support?

Full functionality requires a host USB-C port supporting DisplayPort Alt Mode, USB data and USB Power Delivery.

How much power reaches the laptop?

With a 100W charger, the dock reserves 15W and can provide up to 85W to a compatible host. Actual power is negotiated by the equipment.

What does Presentation Mode do?

When enabled, it helps prevent the computer from starting its screen saver, sleeping or entering power-save mode.

Does it require a driver?

The dock supports automatic driver setup on compatible systems; platform-specific Ethernet or management features may require supported drivers or utilities.

What is included in the package?

The package contains one USB-C multiport adapter and one quick-start guide. A USB-C charger is not included.

What warranty applies in Australia?

CDP2HVGUASPD is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.

(CDP2HVGUASPD)

Features and highlights

CDP2HVGUASPD key capabilities

Product-specific highlights verified for this exact StarTech.com model.

HDMI or VGA display

Connect one HDMI display at up to 4K 30Hz or one VGA display at up to 1920 x 1080 at 60Hz.

Two 10Gbps USB ports

Includes USB-A 10Gbps with BC 1.2 fast charging and USB-C 10Gbps data when the port is not used for PD input.

Network and storage

Adds Gigabit Ethernet with PXE and Wake-on-LAN plus a microSD card slot.

Presentation Mode switch

When enabled, helps prevent screen saver, sleep and power-save interruptions during presentations.

Key highlights

HDMI 4K 30Hz or VGA 1080p
USB-A and USB-C 10Gbps
Gigabit Ethernet plus microSD
Up to 85W host charging from 100W input
Official 3 years StarTech.com manufacturer warranty in Australia

Technical specifications

StarTech CDP2HVGUASPD

Verified specifications and package details for the exact model.

General and Ports

Product type

7-in-1 USB-C travel dock

Video outputs

HDMI; VGA

USB ports

USB-A 10Gbps with BC 1.2; USB-C 10Gbps / PD input

Network

Gigabit Ethernet RJ-45

Card reader

MicroSD

Attached cable length

130mm

Warranty

3 Years

UPC

065030875493

Video, USB and Network

Maximum HDMI resolution

3840 x 2160 at 30Hz

Maximum VGA resolution

1920 x 1080 at 60Hz

Displays supported

USB data rate

Up to 10Gbps

Ethernet

10/100/1000Mbps

Network features

PXE; Wake-on-LAN

Presentation Mode

Switchable stay-awake function

Power and Requirements

Power Delivery input

Up to 100W PD 3.0

Dock power reserve

15W

Maximum available to host

Up to 85W

Power source

USB bus powered or host USB-C charger

Charger included

Host requirements

USB-C DisplayPort Alt Mode; USB data; USB Power Delivery for charging

Hardware and Physical

Chipsets

Realtek RTD2141DS; RTS5423; RTL8153B; RTS5306

Colour / material

Black and grey aluminium / plastic

Product dimensions (L x W x H)

68 x 125 x 16mm

Product weight

126g

Operating temperature

070°C

Storage temperature

-1055°C

Humidity

590% RH, non-condensing

Packaging and In the Box

Package dimensions (W x D x H)

172 x 145 x 32mm

Shipping weight

190g

Package contents

USB-C multiport adapter; quick-start guide
