USB C Multiport Adapter, USB-C Mini Travel Dock w/ 4K HDMI or 1080p VGA, 3x USB 3.0 Hub - DKT30CHVAUSP
Model # DKT30CHVAUSP
-
SKU: DKT30CHVAUSP
- Pick Up Available
- Australian Warranty
- Checkout Securely

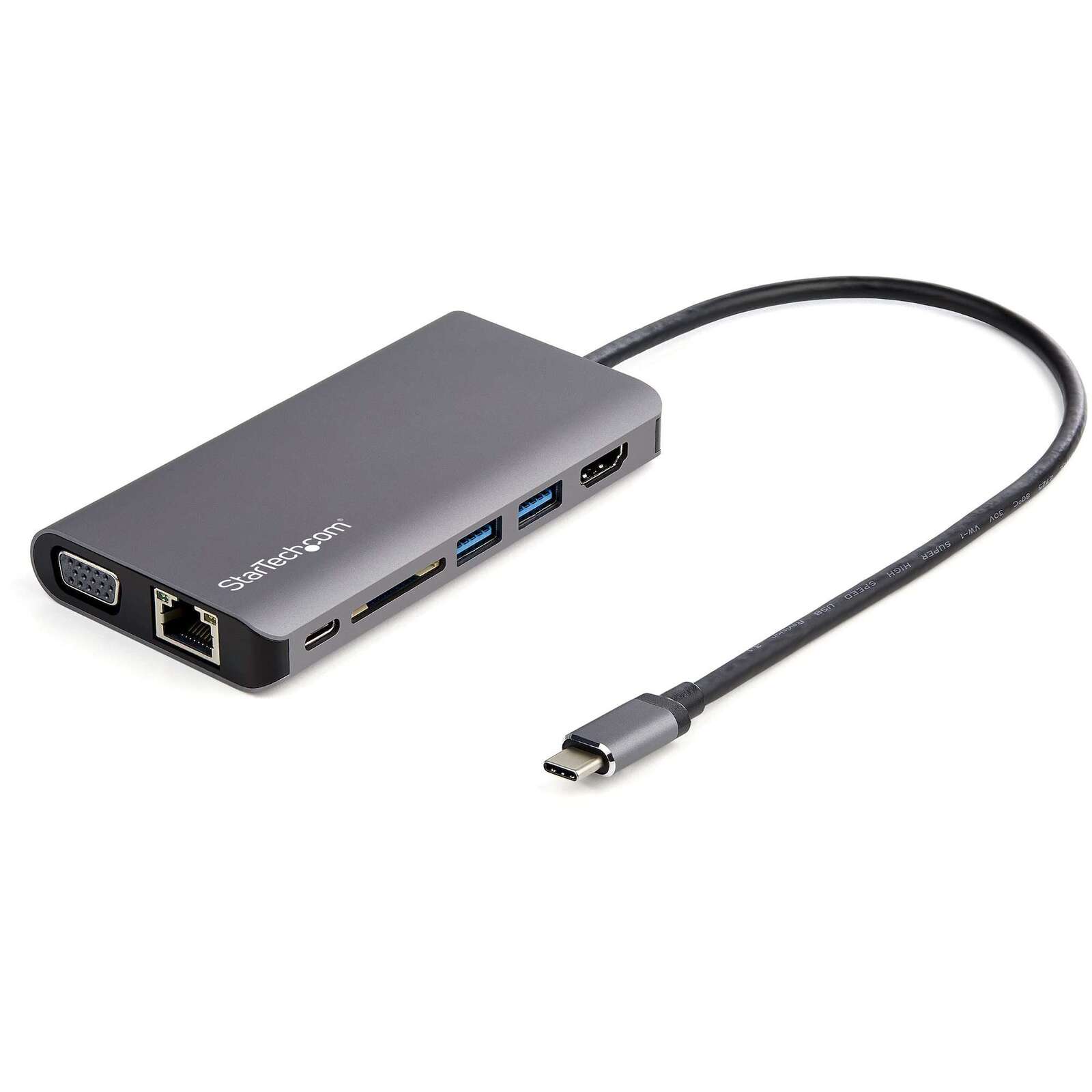

USB-C Travel Dock with 4K HDMI or VGA, SD, Audio and 100W PD
Connect one modern or legacy display plus USB devices, wired networking, SD media and headset audio through an extended-cable USB-C travel dock.
HDMI or VGA
Choose 4K 30Hz HDMI or 1920 x 1200 60Hz VGA for one display.
USB-A and USB-C
Connect two USB-A devices and one dual-purpose USB-C device.
SD, audio and Ethernet
Add media, headset and Gigabit network access.
Up to 85W charging
A 100W source leaves up to 85W after 15W is reserved.
What to know
Only one video output can be used at a time. A USB-C power adapter is not included; the dock can operate from USB bus power for standard connectivity.
Frequently asked questions
What video output and resolution does the DKT30CHVAUSP support?
Choose HDMI up to 3840 x 2160 at 30Hz, 4096 x 2160 at 24Hz or 3440 x 1440 at 60Hz, or VGA up to 1920 x 1200 at 60Hz.
How many external displays can the DKT30CHVAUSP connect?
It supports one external display at a time through either HDMI or VGA.
Does the DKT30CHVAUSP charge the connected laptop?
Yes. It accepts up to 100W PD 3.0, reserves 15W and supplies up to 85W to the laptop.
Which USB ports are included on the DKT30CHVAUSP?
It includes two USB-A 5Gbps ports and one dual-role USB-C 5Gbps data / 100W PD input port.
What other connections or readers does the DKT30CHVAUSP include?
It includes Gigabit Ethernet, an SD card reader and a 3.5mm headset/microphone audio port.
What must the host USB-C port support?
The host must support DP Alt Mode for video and USB Power Delivery for charging.
Is a separate power adapter required or included?
A USB-C power adapter is not included or required for standard bus-powered operation; supply a compatible PD adapter for laptop charging.
What cable and warranty are supplied with the DKT30CHVAUSP?
It has an attached 300mm USB-C host cable. It is backed by a 3-year StarTech.com manufacturer warranty.
Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.
(DKT30CHVAUSP)
Features and highlights
- Eight-in-one USB-C travel dock
- HDMI up to 3840 x 2160 at 30Hz or 4096 x 2160 at 24Hz
- VGA up to 1920 x 1200 at 60Hz; one video output at a time

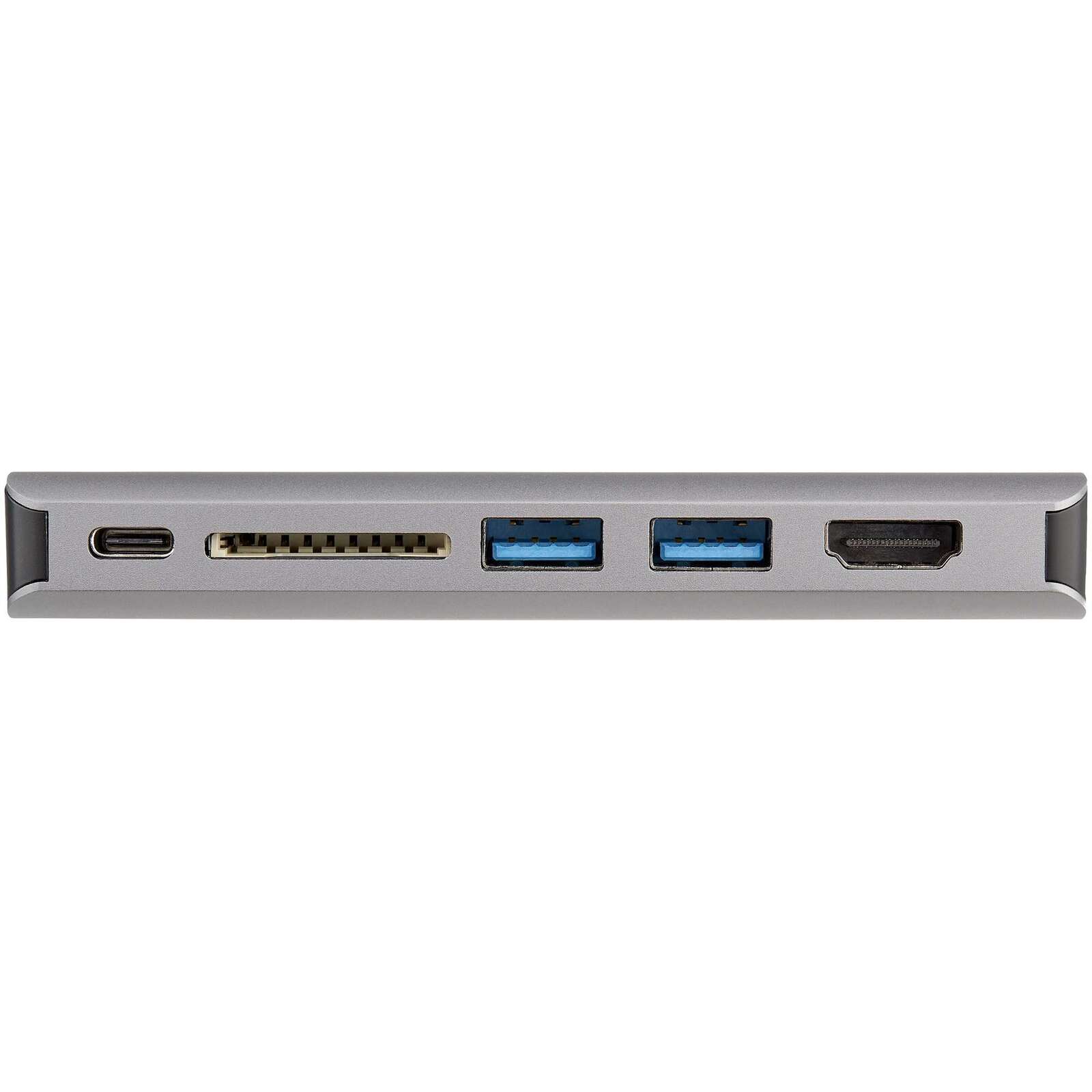

- Two USB-A 5Gbps ports and one dual-role USB-C 5Gbps / PD input
- SD card reader for SD, SDHC, SDXC and microSD with an adapter

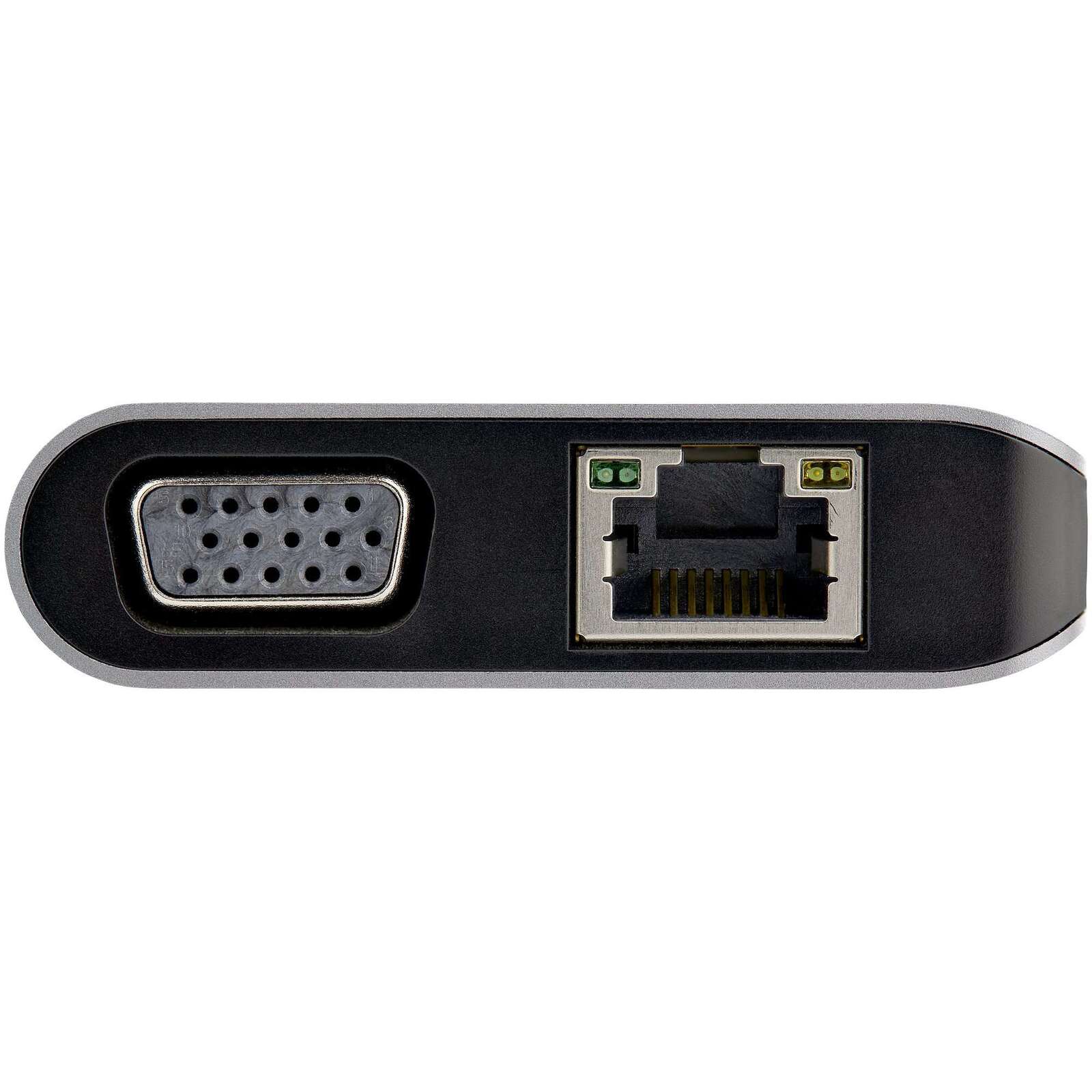

- Gigabit Ethernet and 3.5mm headset/microphone audio
- 100W PD 3.0 input with up to 85W to the laptop

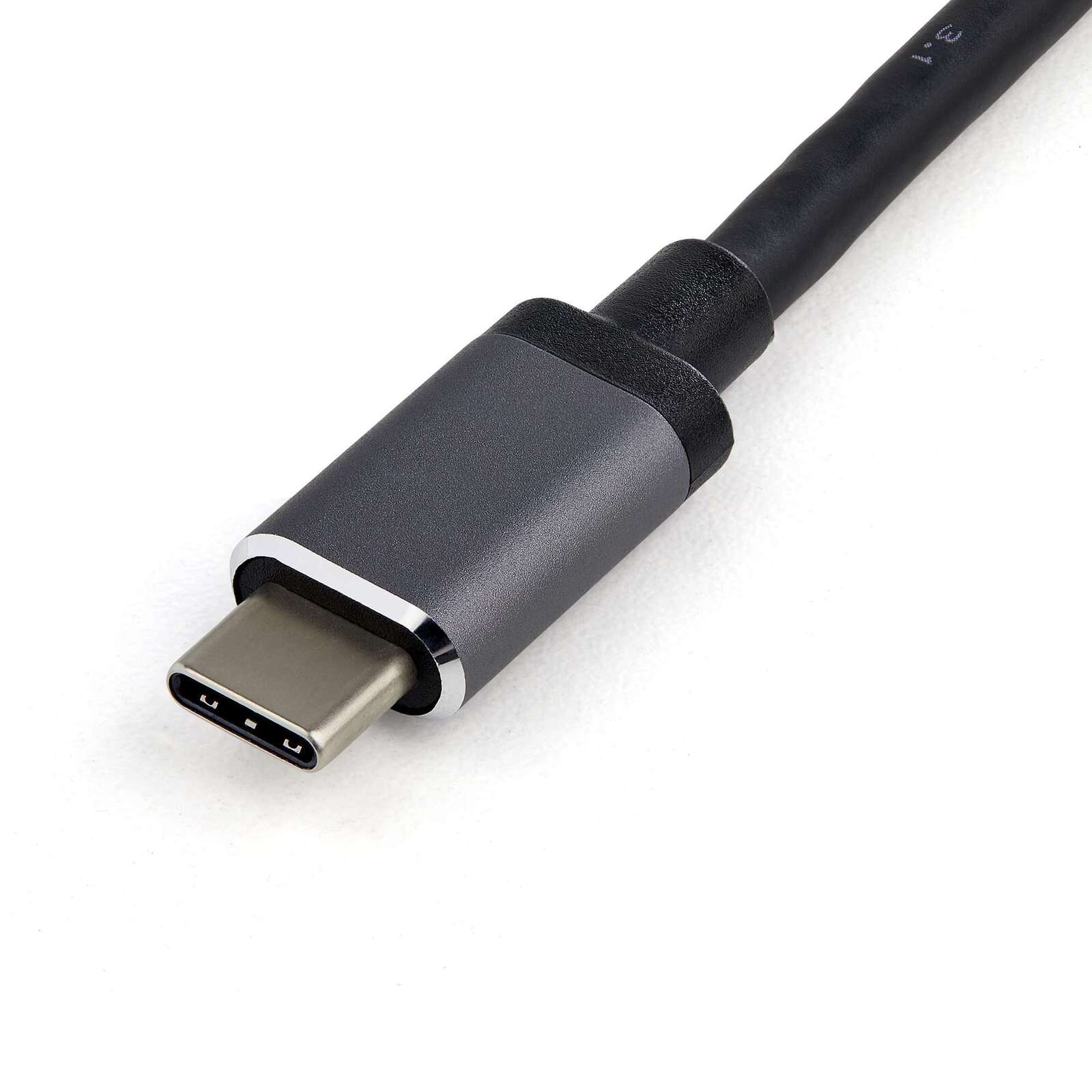

- Attached 300mm USB-C host cable
Specifications
| Product type | Portable USB-C travel dock |
|---|---|
| Video outputs | 1 x HDMI; 1 x VGA; one output at a time |
| HDMI resolution | 3840 x 2160 at 30Hz; 4096 x 2160 at 24Hz; ultrawide 3440 x 1440 at 60Hz |
| VGA resolution | 1920 x 1200 at 60Hz |
| Displays supported | 1 |
| USB ports | 2 x USB-A 5Gbps; 1 x dual-role USB-C 5Gbps / 100W PD input |
| Card reader | SD, SDHC and SDXC; microSD with an adapter |
| Networking / audio | Gigabit Ethernet; 3.5mm headset/microphone port |
| Power Delivery | 100W PD 3.0 input; 15W reserved; up to 85W to laptop |
| Power adapter | Not included; USB bus powered or host USB-C PD adapter |
| Cable length | 300mm |
| Dimensions / weight | 116.5 x 60.8 x 16mm; 125g |
| Package dimensions / weight | 146 x 172 x 33mm; 186g |
| In the box | USB-C docking station and quick-start guide |
| UPC | 065030880244 |
| Warranty | 3 years |
| SKU | DKT30CHVAUSP |
| Barcode # | 65030880244 |
| Brand | STARTECH |
| Shipping Weight | 0.1800kg |
| Shipping Width | 0.003m |
| Shipping Height | 0.017m |
| Shipping Length | 0.015m |
