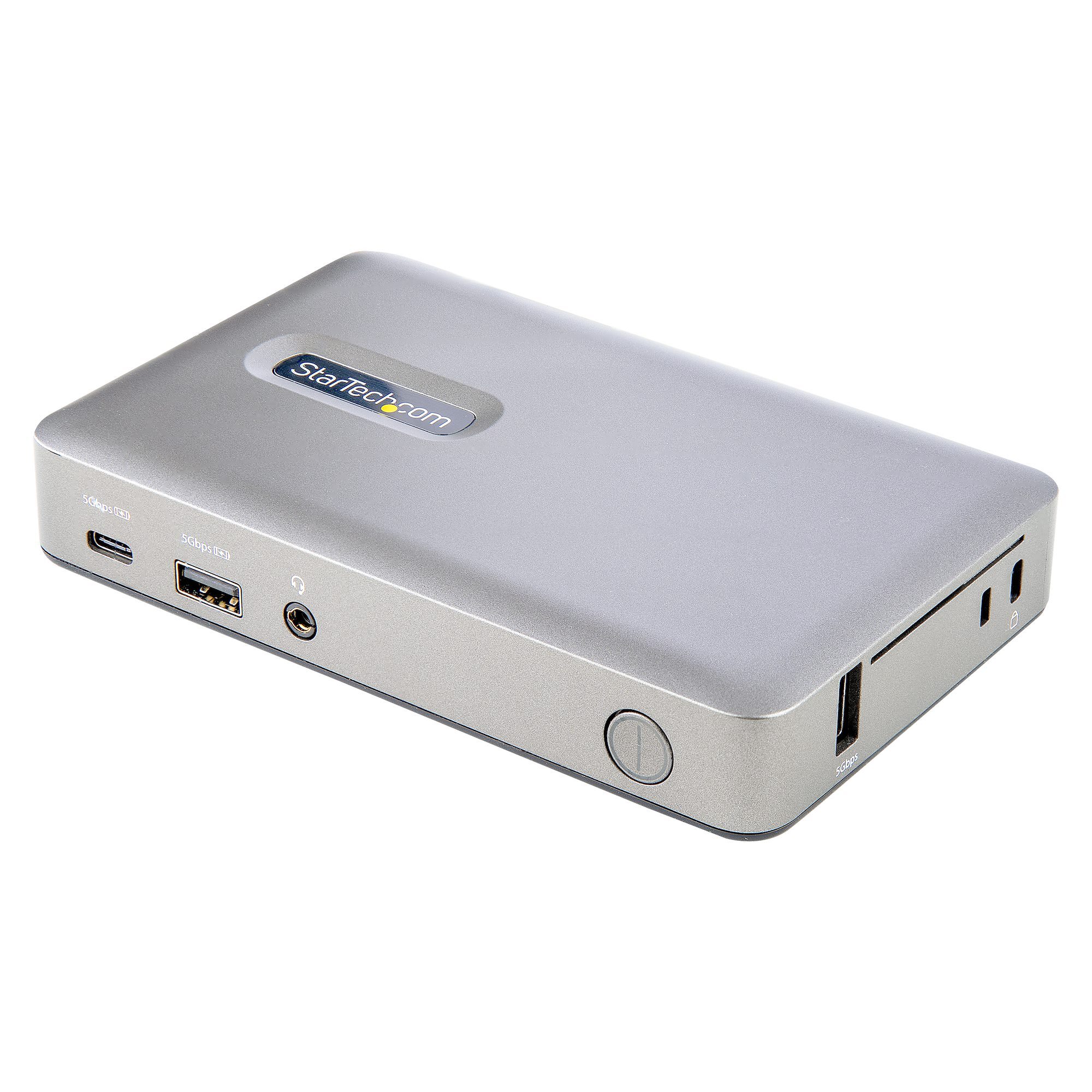

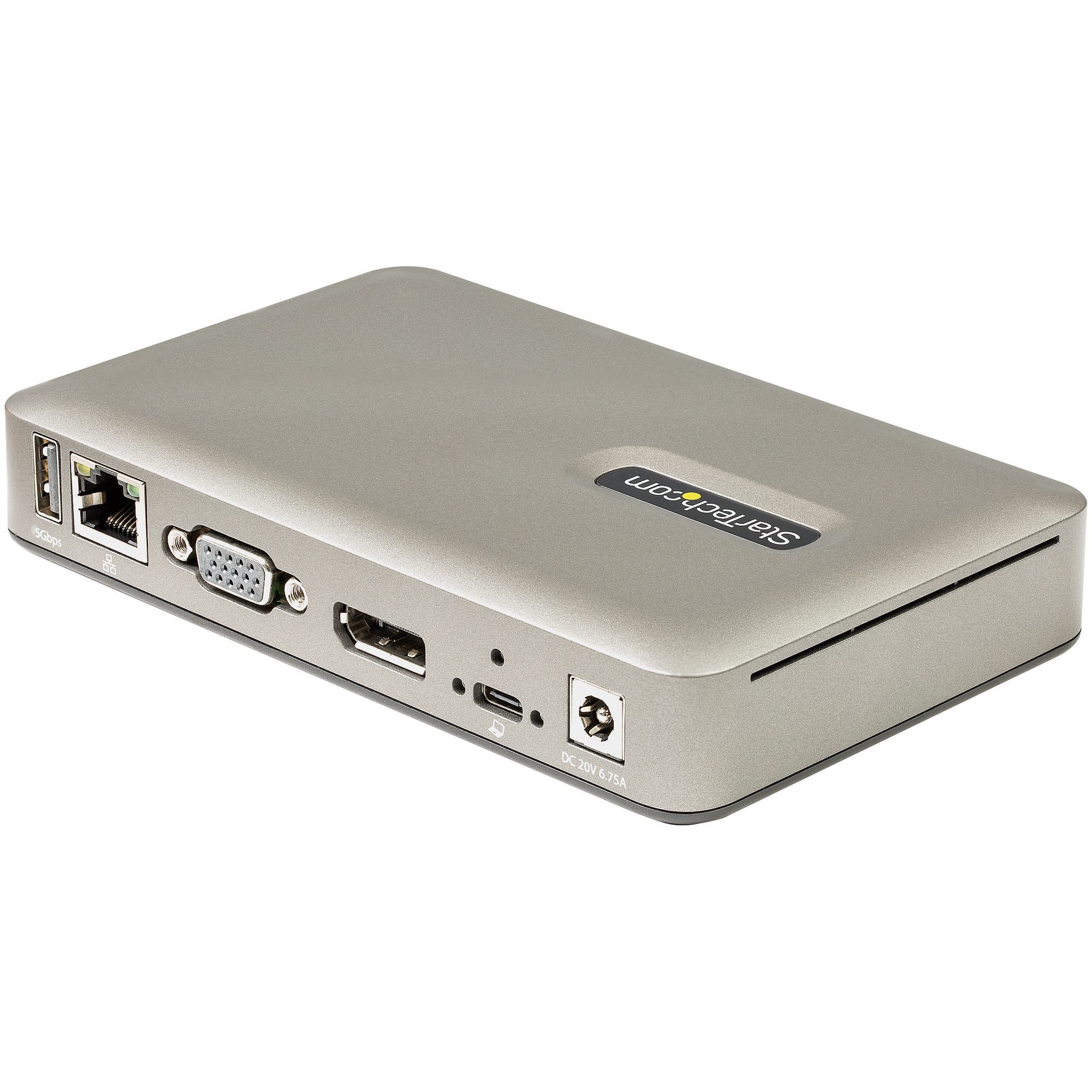

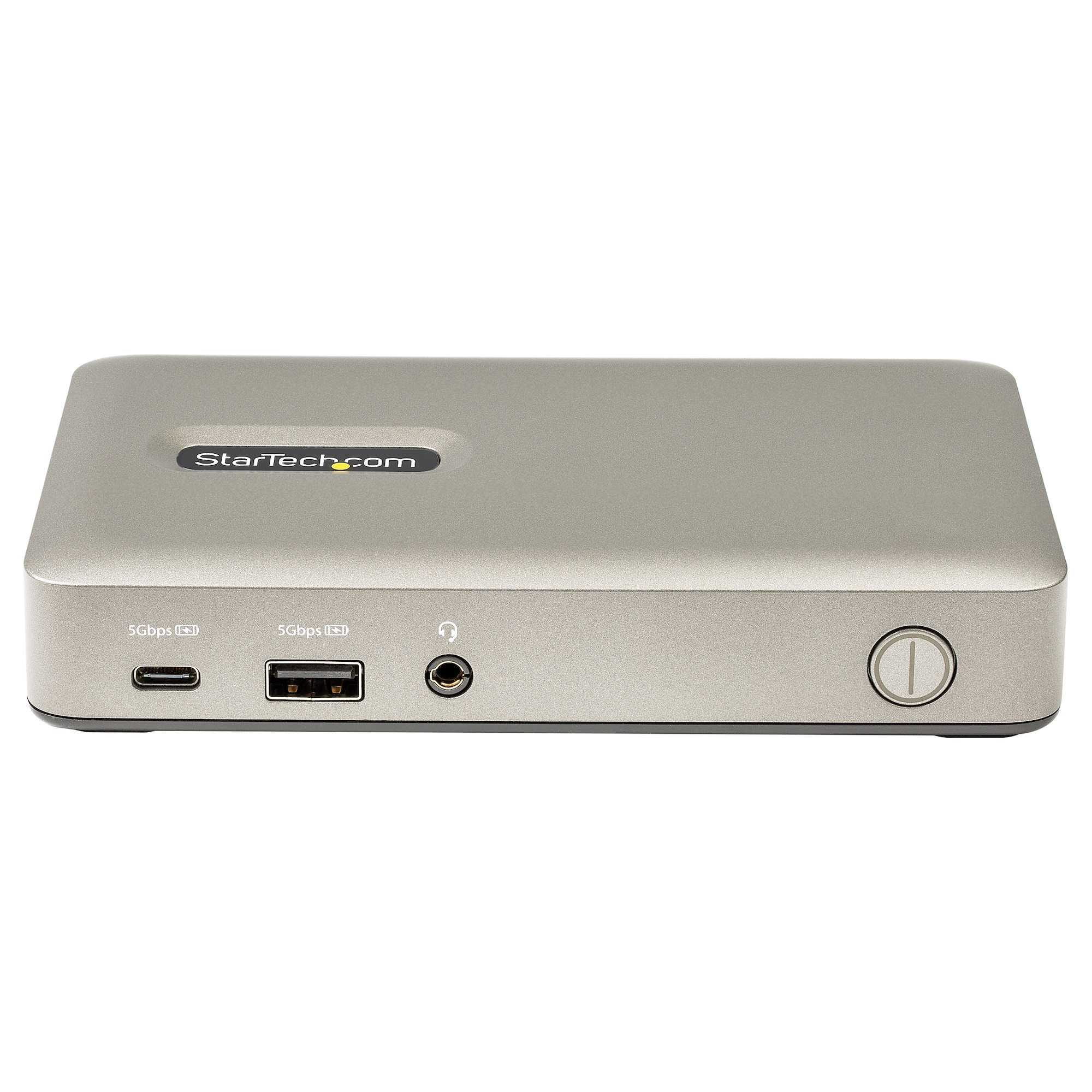

STARTECH.COM | DKM30CHDPD

Compact USB-C Dock with DisplayPort, VGA and 65W Power Delivery

Equip a desk, hot-desk or meeting space with a choice of 4K DisplayPort or VGA video, four USB ports, Gigabit Ethernet, headset audio and 65W USB-C charging.

Choose DP or VGA

Connect one DisplayPort or one VGA monitor; the two outputs cannot operate together.

4K DisplayPort

DisplayPort supports up to 4096 x 2160 at 30Hz.

65W charging

USB Power Delivery 3.0 is supplied from the included power adapter.

Driverless setup

Uses USB-C DP Alt Mode without a display driver.

What to know

Only one video output can be used at a time. The host USB-C port must support DisplayPort Alt Mode for video and USB Power Delivery for laptop charging.

Frequently asked questions

Can the DKM30CHDPD use DisplayPort and VGA together?

No. It supports one display at a time, using either DisplayPort or VGA.

What is the maximum DisplayPort resolution?

DisplayPort supports up to 4096 x 2160 at 30Hz.

What is the maximum VGA resolution?

VGA supports up to 1920 x 1200 or 1920 x 1080 at 60Hz.

Does it charge a USB-C laptop?

Yes. It provides up to 65W USB Power Delivery 3.0 to a compatible host.

Does it require a display driver?

No. It uses the host USB-C DisplayPort Alt Mode capability.

How many USB ports are available?

It provides one USB-C 5Gbps port and three USB-A 5Gbps ports.

What is the isolated USB port for?

The isolated HID port is intended for a keyboard or mouse and helps prevent interference from other USB devices.

What must my USB-C port support?

For full operation, the host USB-C port must support DisplayPort Alt Mode for video and USB Power Delivery for charging.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DKM30CHDPD)

Features and highlights

Single-display USB-C dock with selectable DisplayPort or VGA output
DisplayPort up to 4096 x 2160 at 30Hz
VGA up to 1920 x 1200 or 1920 x 1080 at 60Hz
Up to 65W USB Power Delivery 3.0 from included power adapter
One USB-C 5Gbps port and three USB-A 5Gbps ports
One 7.5W BC 1.2 USB-A charging port and one isolated HID port
Gigabit Ethernet with PXE Boot and Wake-on-LAN, plus TRRS headset audio
1m screw-lock USB-C cable, Kensington and Nano security slots, mounting-bracket support

Compatibility check: The USB-C host must support DP Alt Mode and USB Power Delivery. DisplayPort and VGA are alternative single-monitor outputs and cannot be used simultaneously.

Specifications

Product type	Compact single-monitor USB-C docking station
Host connection	USB-C via included 1m screw-lock cable
Video outputs	1 x DisplayPort 1.2; 1 x VGA; one output at a time
DisplayPort resolution	Up to 4096 x 2160 at 30Hz
VGA resolution	Up to 1920 x 1200 or 1920 x 1080 at 60Hz
USB ports	1 x USB-C 5Gbps; 3 x USB-A 5Gbps, including one 7.5W BC 1.2 charging port and one isolated HID port
Networking	Gigabit Ethernet with PXE Boot and Wake-on-LAN
Audio	3.5mm four-position headset port
Laptop charging	Up to 65W USB Power Delivery 3.0
Driver requirement	No display driver required
Operating systems	Windows, macOS, iPadOS, Android and ChromeOS
Security / mounting	Kensington-style and Nano security slots; optional mounting-bracket support
Dimensions / weight	145 x 91 x 27mm; 313g
Package dimensions / weight	253 x 173 x 97mm; 1,358g
In the box	Dock, 1m screw-lock USB-C cable, universal power adapter and documentation
UPC	065030887038
Warranty	3 years

SKU	DKM30CHDPD
Barcode #	65030887038
Brand	STARTECH
Shipping Weight	1.3200kg
Shipping Width	0.009m
Shipping Height	0.025m
Shipping Length	0.017m
