Portable Docking_Station_| Mac & Windows¨ | 4K_|_GbE_|_Thunderboltª 3 Compatible

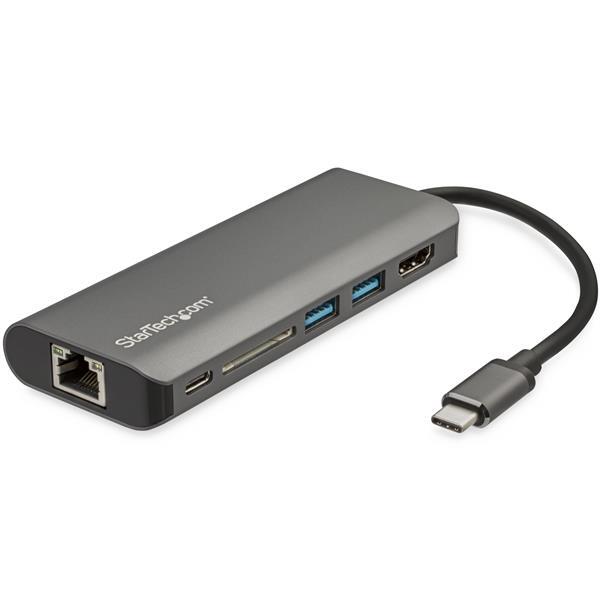

This USB-C multiport adapter with HDMI¨ turns your MacBook Pro, Dell XPS, or other USB-Cª laptop into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI video output, a USB Type-Cª port (data/power), two USB 3.0 Type-A ports, a Gigabit Ethernet port and an SD card reader slot, all through one connection to your laptopÕs USB-C or Thunderbolt 3ª port. Plus, it offers advanced charging through USB Power Delivery 3.0.

Enhance Productivity

The portable docking station connects your laptop to a 4K HDMI monitor (4096 x 2160p) to create a powerful workstation. It can also connect to an ultrawide monitor.

Connect Your Devices

The USB-C to USB 3.0 hub gives you one USB-C port and two USB-A ports to connect your latest and legacy USB devices.

Built-In SD Card Reader

Access your multimedia content with ease. The multiport adapter provides direct access to your SD, SDHCª and SDXCª memory cards or microSD cards (with adapter, sold separately).

Charge Your Laptop and Peripherals

With support for USB PD 3.0 (up to 60W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).

Reliable Network Connectivity

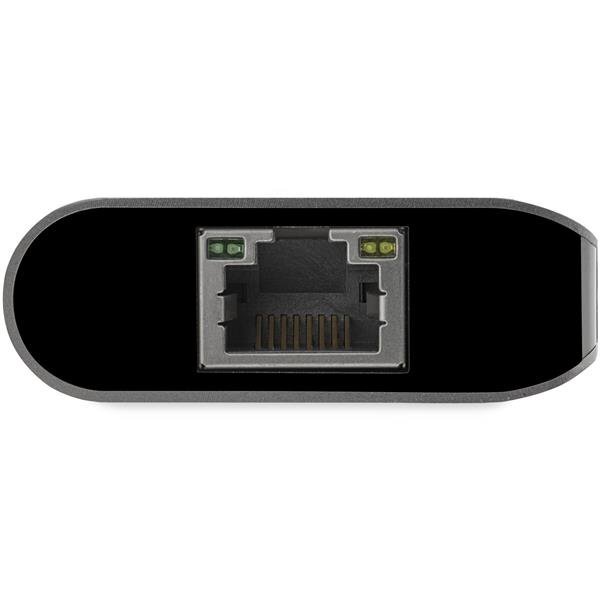

The Gigabit Ethernet port ensures reliable wired network access.

The DKT30CSDHPD3 is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note:_To ensure full adapter functionality, your laptopÕs USB-C port must support USB Power Delivery and DP Alt Mode.



Applications



  • Ideal for meetings and making presentations in the boardroom
  • Transfer photos, videos or other files from your SD cards to your USB-C laptop, tablet or other device
  • Use an HDMI port-equipped television in a hotel room as an external display
+ More- Less



Product Numbers



Ingram Micro Australia

4298558

UPC Code

065030880022

(DKT30CSDHPD3)

Warranty Information
  Warranty 3 Years
Hardware
  4K Support Yes
  Bus Type USB-C
  Chipset ID VIA/VLI - VL102
VIA/VLI - VL817
Genesys Logic - GL823K
Parade - PS176
Realtek - RTL8153
  Displays Supported 1
  Fast-Charge Port(s) No
  Industry Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Performance
  Auto MDIX Yes
  Compatible Networks 10/100/1000 Mbps
  Full Duplex Support Yes
  Maximum Data Transfer Rate 5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
  Maximum Digital Resolutions 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz

UltraWide - 3440 x 1440p @ 60 Hz or 2560x1080 at 60Hz

Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
  Memory Media Type Secure Digital Card
    SDHC (Secure Digital High Capacity)
    SDXC (Secure Digital eXtended Capacity)
    microSD (Micro Secure Digital) (adapter required)
    microSDHC (Micro Secure Digital High Capacity) (adapter required)
    microSDXC (Micro Secure Digital eXtended Capacity) (adapter required)
  Type and Rate USB 3.0 - 5 Gbit/s
  UASP Support Yes
Connector(s)
  Connector Type(s) 1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Male
    1 - HDMI (19 pin) Female
    1 - RJ-45 Female
    2 - USB Type-A (9 pin) USB 3.0 Female
    1 - SD Slot Female
    1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female
Software
  OS Compatibility Windows¨ 7, 8, 8.1, 10
Mac OS¨ 10.11 to 10.14
Chrome OSª
Special Notes / Requirements
  Note Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 or higher and DP alt mode.
    The adapter can connect to a host laptopÕs USB-C port that doesnÕt support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
    A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)
    USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
    Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
  System and Cable Requirements A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode)
    Optional: USB-C power adapter (for example, your laptopÕs USB-C based power adapter)
Power
  Power Delivery 60W
  Power Source USB-Powered
Environmental
  Humidity 5~90% RH (Non-condensing)
  Operating Temperature 0¡C to 45¡C (32¡F to 113¡F)
  Storage Temperature -10¡C to 85¡C (14¡F to 185¡F)
Physical Characteristics
  Cable Length 6 in [152 mm]
  Color Space Gray
  Enclosure Type Aluminum
  Product Height 0.6 in [1.5 cm]
  Product Length 10.6 in [27 cm]
  Product Width 1.8 in [45 mm]
  Weight of Product 3 oz [85 g]
Packaging Information
  Package Height 1.2 in [30 mm]
  Package Length 6.9 in [17.4 cm]
  Package Width 5.6 in [14.3 cm]
  Shipping (Package) Weight 5.5 oz [157 g]
What's in the Box
  Included in Package 1 - multiport adapter
    1 - quick-start guide
SKU DKT30CSDHPD3
Barcode # 65030880022
Brand Startech
Shipping Weight 0.5000kg
Shipping Width 0.145m
Shipping Height 0.030m
Shipping Length 0.170m
