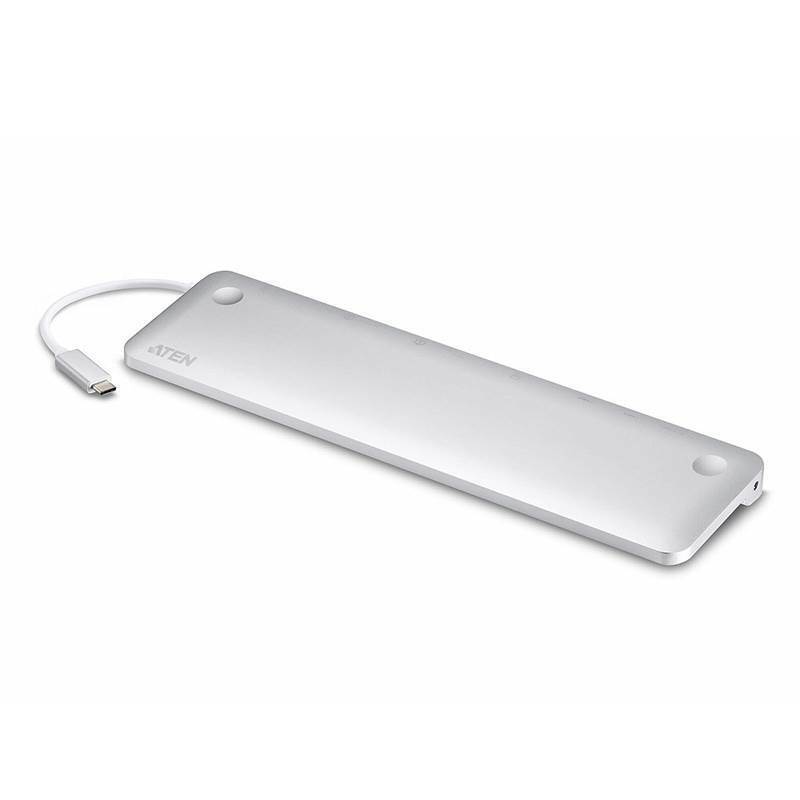

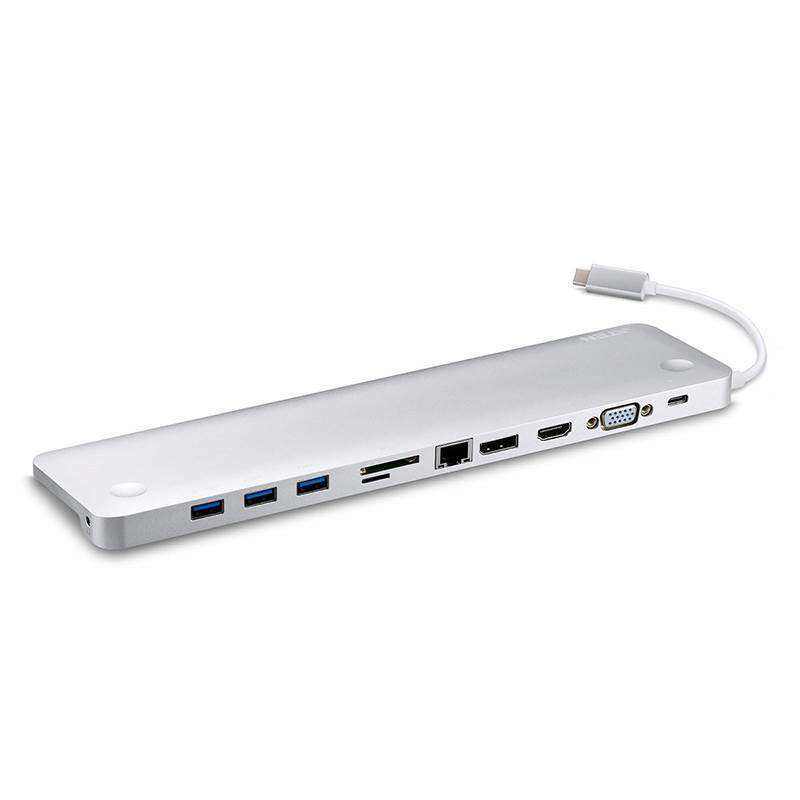

The ultra-sleek ATEN USB-C Multiport Dock with Power Pass-Through is a one-step total upgrade for your laptop that provides all the extra expansion you need. Simply use one cable to add up to 10 devices with power delivery pass-through to boost your productivity with extra HDMI, DisplayPort, VGA, USB3.1 Gen1, SD/MMC/MicroSD, Ethernet and audio connections.




Stylish and Smart Design

With a sleek, ergonomic design, the docking station’s aluminum enclosure makes it lightweight yet rugged, meaning you can place your laptop directly on top of the docking station to save space, type comfortably and keep your laptop cool.



One Cable for Power, Video, Audio, Data

Use the single USB-C cable to charge, transfer data and expand your workstation with up to 10 ports. The docking station not only offers the flexibility of three video interface options (HDMI, DisplayPort and VGA), but also it is equipped with readers for SD/MMC/MicroSD memory cards. You can connect a headset/microphone or an array of USB Type-A peripherals, such as external hard drives, or a full-sized keyboard and mouse, to complete your workstation.

To keep charging all your power-hungry devices and peripherals while working, the dock provides 60W of power delivery pass-through via your laptop’s USB-C AC power adapter.




Stunning 4K or Dual HD Monitor Setup

This versatile dock allows to extend your MacBook or Chromebook to an additional monitor and enjoy an ultra high-definition visual experience. You can also mirror or extend your Windows USB-C laptop to two monitors and improve your productivity and get more things done.



Superior Anti-Interference (EMI) Capability

Increase cable braid shielding density by 85% to ensure reliable and secured connectivity and operation from signal interference by other devices.




Package Contents

  • 1 x UH3234 USB-C Multiport Dock with Power Pass-Through
  • 1 x User Instructions

The ATEN UH3234 USB-C Ultra-Slim Multiport Dock is an ultra-sleek, one-step total upgrade for your laptop that provides all the extra expansion capabilities that you need. Simply use one cable to add up to 10 devices, with power delivery pass-through to boost your productivity with extra HDMI, DisplayPort, VGA, USB 3.1 Gen 1, SD/MMC/MicroSD, Ethernet and Audio connectivity.

With Power Delivery Pass-Through up to 60W, UH3234 can charge your laptop while connected to the docking station. The UH3234 provides power to matched USB-C Windows or Mac laptops with PD Profile specifications of 20V/ 3A, 12V/3A, 9V/3A and 5V/3A.

Enjoy stunning 4K video or a dual HD monitor setup with HDMI, VGA, and DisplayPort functionality. The UH3234 routes video from a source computer to a DisplayPort or HDMI monitor via a single cable while maintaining the highest quality 4K resolution. You can also mirror or extend your Windows USB-C laptop to two monitors in 1080P.

This ergonomic, plug-and-play device (no software drivers are needed) is compatible with all major operating systems (Windows and OS X). Save space on your desktop by placing your laptop directly on top of the lightweight yet rugged docking station or display the dock next to your monitors for a stylish, minimalist workstation.




  • Connects up to 10 devices instantly through a USB-C cable
  • Provides Power Delivery Pass-through up to 60W after deduction of 15W used by the dock*
  • Supported power profiles include 20V/3A, 12V/3A, 9V/3A and 5V/3A power specification
  • Supports 4K resolution on a single HDMI or DisplayPort display, and Dual 1080p on a DisplayPort and an HDMI or VGA** monitor
  • 1 x USB 3.1 Gen 1 Type A port supports Battery Charging Specification Revision 1.2 (BC 1.2) for Fast-Charging device
  • Built-in memory card readers (SD/MMC/Micro SD)***
  • Audio line-in and line-out
  • Gigabit Ethernet
  • Stylish and ultra slim docking station
  • Enhanced EMI protection by increasing the cable braid density and adding conductive foam
  • The rear feet of 12' MacBook fit right into the mounting pits on UH3234.
    * With Intel 7th- Generation Core Processor (Kaby Lake) and above. For video output to work through a USB-C port, it must support DP Alt Mode.Power Delivery Pass-Through requires original USB-C charger from laptop.
    **1. For video output to work through a USB-C port, it must support DP Alt Mode. For Dual-View to work, a computer's graphics card must support MST technology.
        2. Mac computers only support single-view output.
    ***SD and Micro SD Card cannot be used at the same time; functionality accords to the order of insertion.




Computer Connections 1
Connectors
Computer 1 x USB-C Male
Device 1 x USB 3.1 Gen1 Type A Female with BC1.2*
2 x USB 3.1 Gen1 Type A Female*

*The total output of 3 x USB 3.1 Gen1 Type A Female is 10W (5V/2A).
Video Output 1 x DisplayPort Female
1 x HDMI Female
1 x VGA Female
LAN Ports 1 x Gigabit Ethernet Female
Audio 1 x 3.5mm stereo 4-pole microphone and headphone jack
Power 1 x USB-C Female

Power Delivery Pass-Through up to 60W*

*Supported power profiles include 20V/3A, 12V/3A, 9V/3A and 5V/3A power specification.
Performance
Flash Memory 1 x SD/SDHC/SDXC card slot*
1 x Micro SD/SDHC/SDXC (up to 128 GB) card slot*

*SD and Micro SD Card cannot be used at the same time; functionality accords to the order of insertion.
Video Resolution Single-View :*
DisplayPort - 3840 x 2160@30
HDMI - 3840 x 2160@30
VGA - 1920 x 1200@60

Dual-View :**
DisplayPort/HDMI - 1920 x 1080@60
DisplayPort/VGA - 1920 x 1080@60

*With Intel 7th-Generation Core Processor (Kaby Lake) and above. For video output to work through a USB-C port, it must support DP Alt Mode.
** For Dual-View to work, a computer's graphics card must support MST technology. Mac computers only support a single-view output.
Power Consumption TBD
Environmental
Operating Temperature 0°C to 40°C (32°F to 122°F)
Storage Temperature -10°C to 70°C (-4°F to 158°F)
Humidity 10% to 90% relative humidity, non-condensing
Physical Properties
Housing Aluminum
Weight 0.32 kg ( 0.7 lb )
Dimensions (L x W x H) 28.00 x 7.50 x 1.45 cm
(11.02 x 2.95 x 0.57 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

(UH3234-AT)

Computer Connections 1
Connectors
Computer 1 x USB-C Male
Device 1 x USB 3.1 Gen1 Type A Female with BC1.2*
2 x USB 3.1 Gen1 Type A Female*

*The total output of 3 x USB 3.1 Gen1 Type A Female is 10W (5V/2A).
Video Output 1 x DisplayPort Female
1 x HDMI Female
1 x VGA Female
LAN Ports 1 x Gigabit Ethernet Female
Audio 1 x 3.5mm stereo 4-pole microphone and headphone jack
Power Supports USB Power Delivery 2.0 for laptop charging up to 60W, power profiles include 5V, 9V, 12V, 20V (additional USB-C power adapter needed)*

*Supports USB-C PD power adapter only, cannot work with USB-C QC power adapter.
Performance
Flash Memory 1 x SD/SDHC/SDXC card slot*
1 x Micro SD/SDHC/SDXC (up to 128 GB) card slot*

*SD and Micro SD Card cannot be used at the same time; functionality accords to the order of insertion.
Video Resolution Single-View :*
DisplayPort - 3840 x 2160@30
HDMI - 3840 x 2160@30
VGA - 1920 x 1200@60

Dual-View :**
DisplayPort/HDMI - 1920 x 1080@60
DisplayPort/VGA - 1920 x 1080@60

*With Intel 7th-Generation Core Processor (Kaby Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html
For video output to work through a USB-C port, device with DP Alt Mode support is required.
** For Dual-View to work, a computer's graphics card must support MST technology. Mac computers only support a single-view output.
Power Consumption 5V:15WBTU
Environmental
Operating Temperature 0°C to 40°C (32°F to 122°F)
Storage Temperature -10°C to 70°C (-4°F to 158°F)
Humidity 10% to 90% relative humidity, non-condensing
Physical Properties
Housing Aluminum
Weight 0.32 kg ( 0.7 lb )
Dimensions (L x W x H) 28.00 x 7.50 x 1.45 cm
(11.02 x 2.95 x 0.57 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
SKU UH3234-AT
Barcode # 672792009310
Brand Aten
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.150m
Shipping Cubic 0.000750000m3

Manufacturer Warranty: 2 Years Limited Warranty
