STARTECH.COM | DKT31CHDVCM

USB-C 10Gbps Mini Dock with HDMI, DisplayPort or VGA and 75W PD

Choose HDMI, DisplayPort or VGA for one external screen, then add three 10Gbps USB ports, Gigabit Ethernet and charging passthrough.

Three video choices

Use 4K HDMI, 4K DisplayPort or 1080p VGA for one display.

Three 10Gbps USB ports

Connect two USB-A devices and one USB-C device.

Gigabit Ethernet

Add reliable wired network access.

Up to 60W charging

A 75W source leaves up to 60W after the dock reserves 15W.

What to know

Only one video output can be used at a time. A USB-C power adapter is not included; the dock can operate from bus power for standard functions.

Frequently asked questions

What video output and resolution does the DKT31CHDVCM support?

Choose HDMI or DisplayPort up to 4K 60Hz on a suitable DP 1.4 Alt Mode host, or VGA up to 1080p.

How many external displays can the DKT31CHDVCM connect?

It supports one external display at a time through HDMI, DisplayPort or VGA.

Does the DKT31CHDVCM charge the connected laptop?

Yes. It accepts up to 75W Power Delivery, reserves 15W and can provide up to 60W to the laptop.

Which USB ports are included on the DKT31CHDVCM?

It includes two USB-A 10Gbps ports and one USB-C 10Gbps downstream data port.

What other connections or readers does the DKT31CHDVCM include?

It includes Gigabit Ethernet and three alternative video outputs; it does not include a card reader.

What must the host USB-C port support?

The host must support DP Alt Mode for video, with suitable DP 1.4 capability required for 4K 60Hz, and USB Power Delivery for charging.

Is a separate power adapter required or included?

A USB-C power adapter is not included. The dock is bus powered for standard use, or accepts a compatible PD source for charging.

What cable and warranty are supplied with the DKT31CHDVCM?

It has an attached 240mm USB-C cable that wraps around the circular enclosure. It is backed by a 3-year StarTech.com manufacturer warranty.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DKT31CHDVCM)

Features and highlights

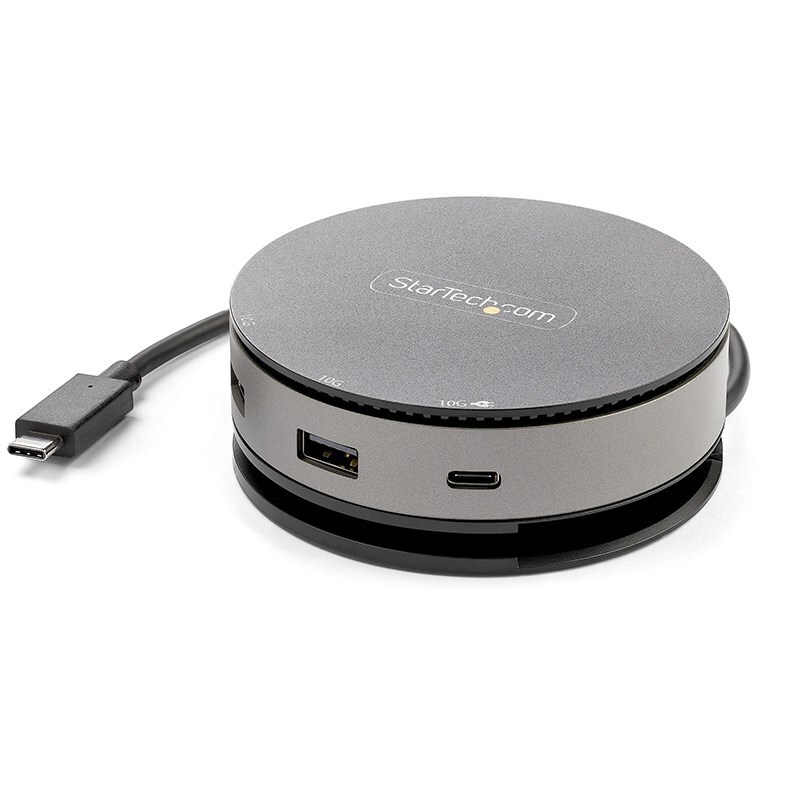

Circular portable USB-C 10Gbps mini dock
HDMI or DisplayPort up to 4K 60Hz on a suitable DP 1.4 Alt Mode host
VGA output up to 1080p
One external display supported at a time

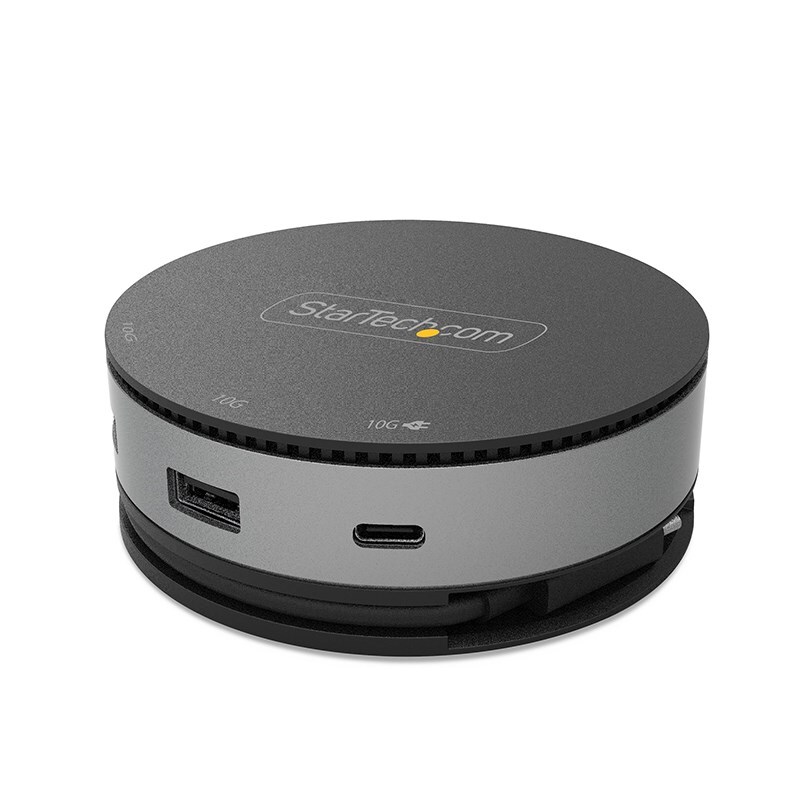

Two USB-A and one USB-C 10Gbps downstream ports
Gigabit Ethernet connection
75W Power Delivery passthrough with up to 60W available to the laptop
Attached 240mm wraparound USB-C host cable

Compatibility check: The host USB-C port must support DP Alt Mode for video. 4K 60Hz requires suitable DP 1.4 Alt Mode capability; charging requires USB Power Delivery.

Specifications

Product type	Portable USB-C 10Gbps mini dock

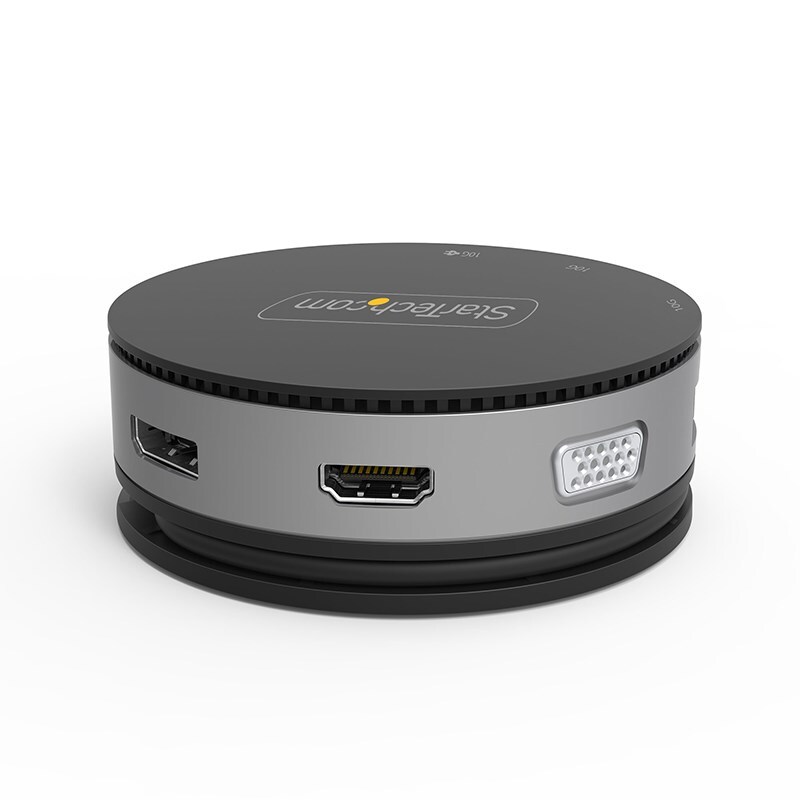

Video outputs	1 x HDMI; 1 x DisplayPort; 1 x VGA; one output at a time
Maximum digital resolution	4K 60Hz with suitable DP 1.4 Alt Mode host
Maximum VGA resolution	1080p
Displays supported	1
USB hub	2 x USB-A 10Gbps; 1 x USB-C 10Gbps
Networking	Gigabit Ethernet
Power Delivery	75W input; 15W reserved; up to 60W to laptop
Power adapter	Not included
Cable length	240mm
Enclosure	Circular design with wraparound cable
Warranty	3 years

SKU	DKT31CHDVCM
Barcode #	65030882552
Brand	STARTECH
Shipping Weight	0.2800kg
Shipping Width	0.004m
Shipping Height	0.015m
Shipping Length	0.013m

Warranty and Australian supply

DKT31CHDVCM is supplied by DeviceDeal as an Australian-market product and carries the official 3-year StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
