StarTech.com · CDP2HDUACP2

StarTech USB-C HDMI Multiport Adapter - USB-A/C - 100W PD

undefined

4K 30HzUSB-A/C 5Gbps100W PD input3-year warranty

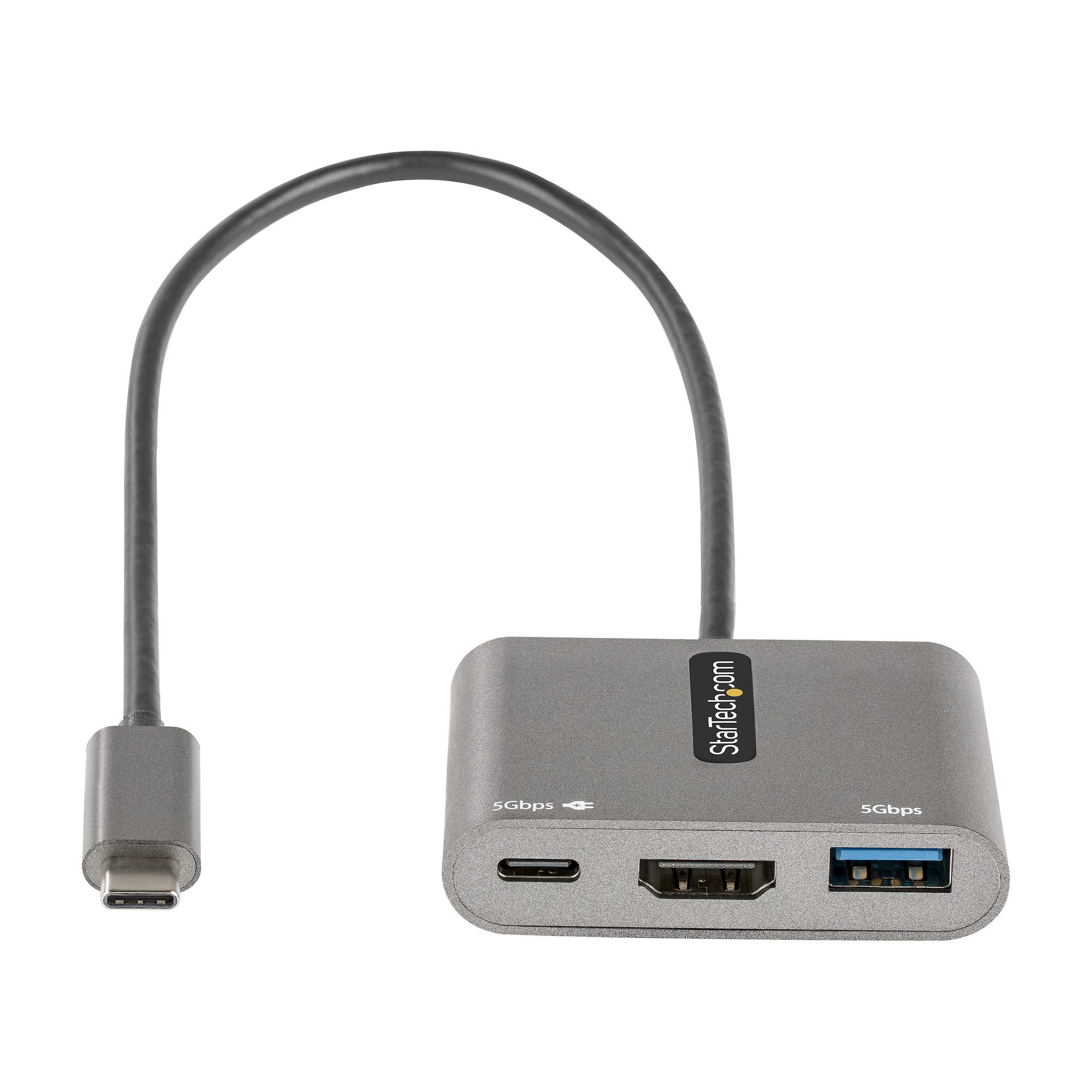

StarTech CDP2HDUACP2 grey USB-C HDMI multiport adapter

Product overview

undefined

Features that matter

One HDMI display

Connect a monitor, projector or television at up to 3840 x 2160 at 30Hz or 4096 x 2160 at 24Hz.

USB-A and multifunction USB-C

Adds one USB-A 5Gbps port with BC 1.2 charging plus a USB-C port that supports 5Gbps data or USB-C Power Delivery input.

Up to 100W PD input

Accepts a charger up to 100W, reserves 8W for the adapter and provides up to 92W to the host when supported.

Extra-long attached cable

The 340mm host cable helps reduce connector strain on 2-in-1 devices and laptops positioned on risers.

What to know before ordering

Host requirement

Full functionality requires a host USB-C port with DisplayPort Alt Mode video and USB Power Delivery support.

Charger not included

A compatible USB-C charger is optional. Without one, the adapter is bus-powered and the multifunction USB-C port can be used for downstream 5Gbps data.

Power allocation

With a 100W charger, 8W is reserved for the adapter and up to 92W remains for the host. Actual charging is negotiated by the equipment.

Warranty confidence in Australia

Australian version · Official StarTech.com warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is StarTech CDP2HDUACP2?

CDP2HDUACP2 is a grey USB-C multiport adapter with HDMI, USB peripheral connectivity and Power Delivery pass-through.

What is the maximum video resolution?

The verified HDMI maximums are 3840 x 2160 at 30Hz and 4096 x 2160 at 24Hz. Lower resolutions are also supported.

What must the host USB-C port support?

For full functionality, the host USB-C port must support DisplayPort Alt Mode and USB Power Delivery.

Can the USB-C port transfer data?

Yes. Without a charger connected, the multifunction USB-C port can operate as a downstream 5Gbps data port.

How much power reaches the laptop?

With a 100W charger, the adapter reserves 8W and can provide up to 92W to a compatible host. Actual power depends on the charger and host.

Does it require a driver?

The adapter supports automatic driver installation and native operation across compatible Windows, macOS, ChromeOS, Linux and Android systems.

What is included in the package?

The package contains one USB-C multiport adapter. A USB-C charger is not included.

What warranty applies in Australia?

CDP2HDUACP2 is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.

(CDP2HDUACP2)

Features and highlights

CDP2HDUACP2 key capabilities

Product-specific highlights verified for this exact StarTech.com model.

One HDMI display

Connect a monitor, projector or television at up to 3840 x 2160 at 30Hz or 4096 x 2160 at 24Hz.

USB-A and multifunction USB-C

Adds one USB-A 5Gbps port with BC 1.2 charging plus a USB-C port that supports 5Gbps data or USB-C Power Delivery input.

Up to 100W PD input

Accepts a charger up to 100W, reserves 8W for the adapter and provides up to 92W to the host when supported.

Extra-long attached cable

The 340mm host cable helps reduce connector strain on 2-in-1 devices and laptops positioned on risers.

Key highlights

Single HDMI display
1 x USB-A plus 1 x USB-C at 5Gbps
Up to 100W input / 92W host charging
340mm attached host cable
Official 3 years StarTech.com manufacturer warranty in Australia

Technical specifications

StarTech CDP2HDUACP2

Verified specifications and package details for the exact model.

General and Connectivity

Product type

USB-C HDMI multiport adapter / mini dock

Host connector

USB-C 5Gbps male

Outputs

HDMI; USB-A 5Gbps; multifunction USB-C 5Gbps / PD input

Displays supported

Attached cable length

340mm

Colour / material

Grey plastic

Warranty

3 Years

UPC

065030892520

Video and USB

Maximum HDMI resolutions

4096 x 2160 at 24Hz; 3840 x 2160 at 30Hz; 3440 x 1440 at 60Hz; 1920 x 1080 at 120Hz

HDMI revision

HDMI 1.4

USB data rate

Up to 5Gbps

USB-A port

5Gbps with BC 1.2 charging

USB-C port

5Gbps data or Power Delivery input

Power and Requirements

Power Delivery input

Up to 100W PD 3.0

Power reserved for adapter

Maximum available to host

Up to 92W

Power source

USB bus powered or host USB-C power adapter

Host requirements

USB-C DisplayPort Alt Mode; USB Power Delivery for charging

Hardware and Compatibility

Chipsets

VIA/VLI VL817; VIA/VLI VL103; Parade PS176

USB compatibility

USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0; backward compatible with USB 2.0 and 1.1

Supported operating systems

Windows; macOS; ChromeOS; Linux; Android

Thunderbolt compatibility

Thunderbolt 3 and 4

Physical and Packaging

Product dimensions (L x W x H)

60 x 40 x 14mm

Product weight

33g

Operating temperature

045°C

Storage temperature

-1070°C

Humidity

1085% RH, non-condensing

Package dimensions (W x D x H)

144 x 174 x 32mm

Shipping weight

84g

Package contents

1 x USB-C multiport adapter
