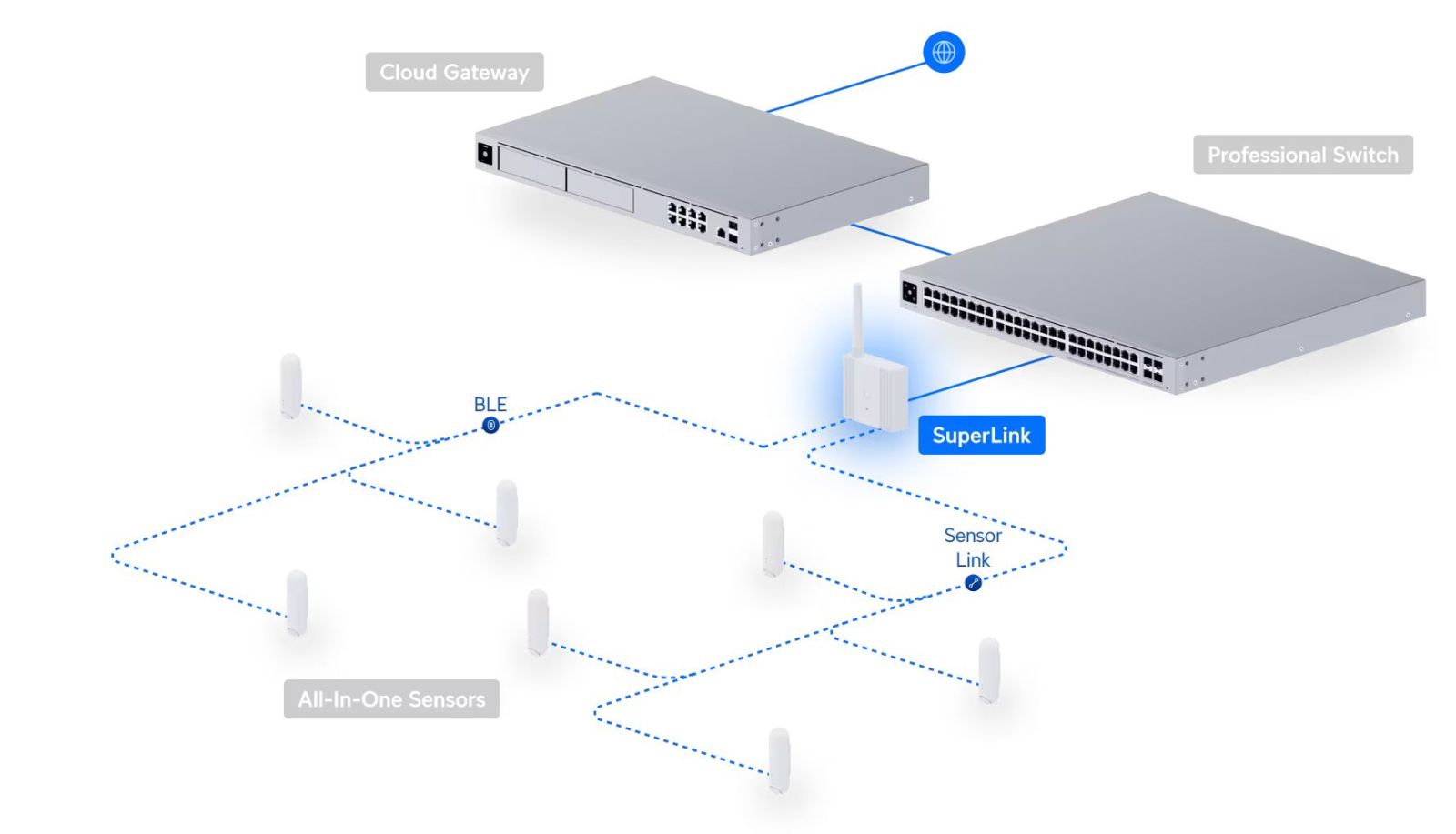

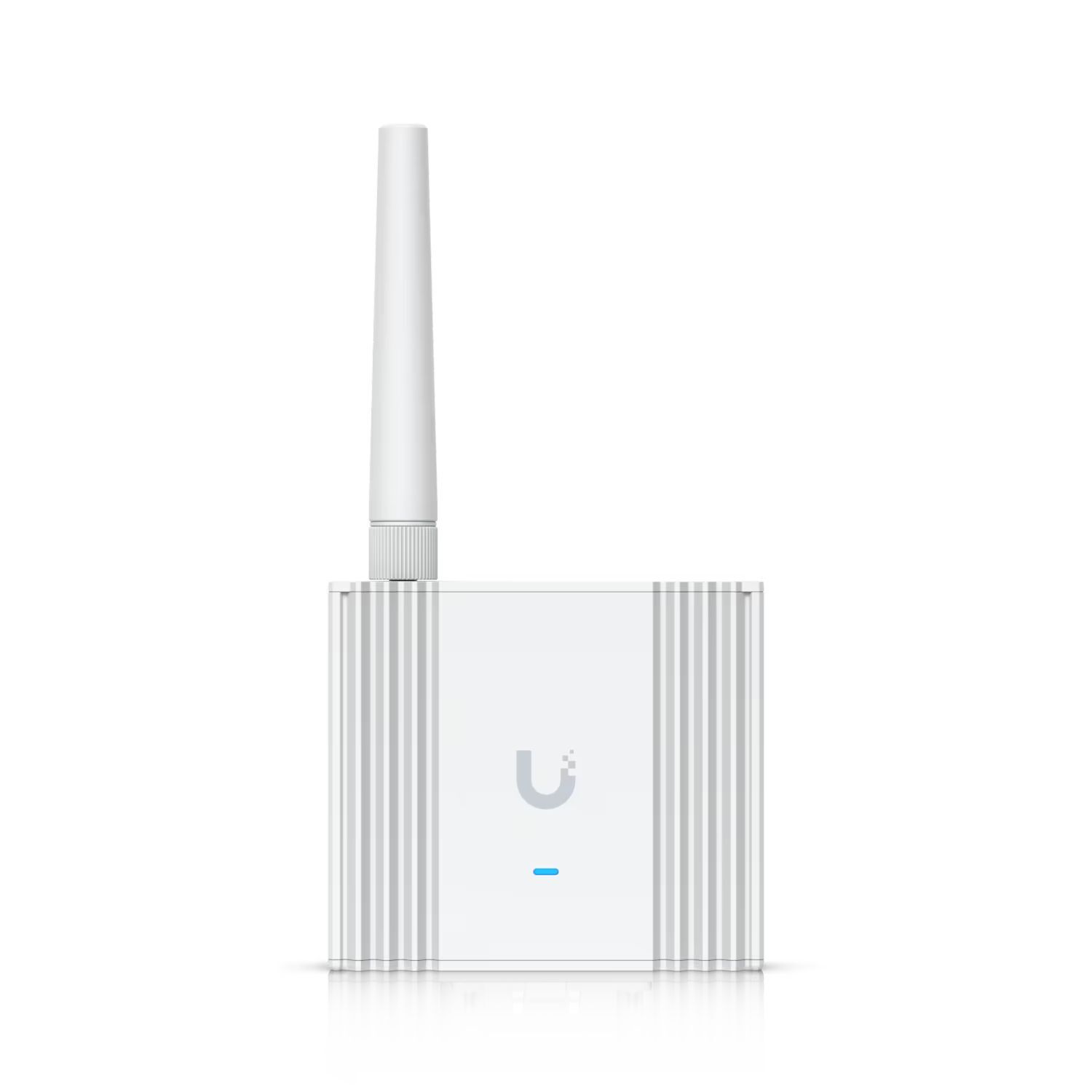

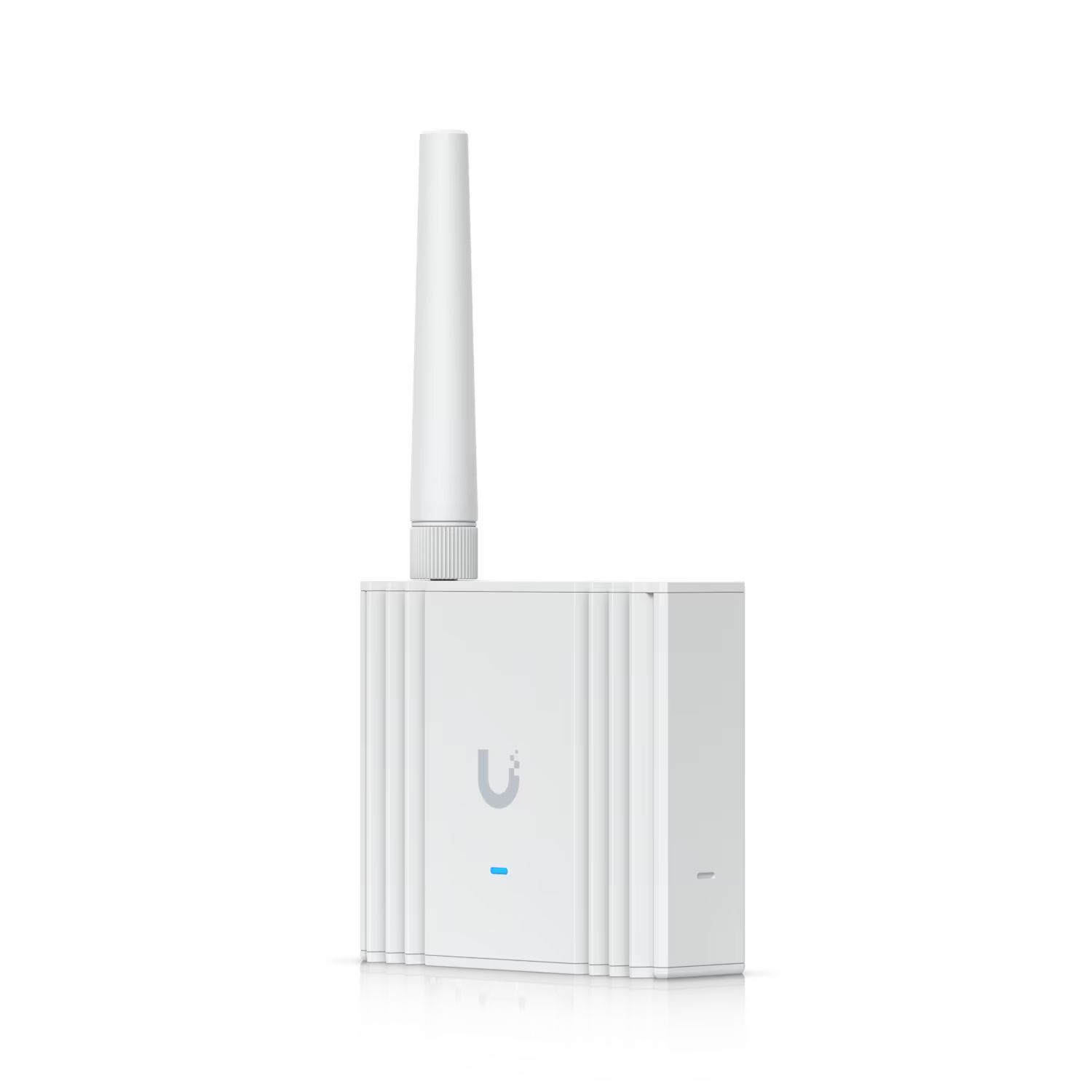

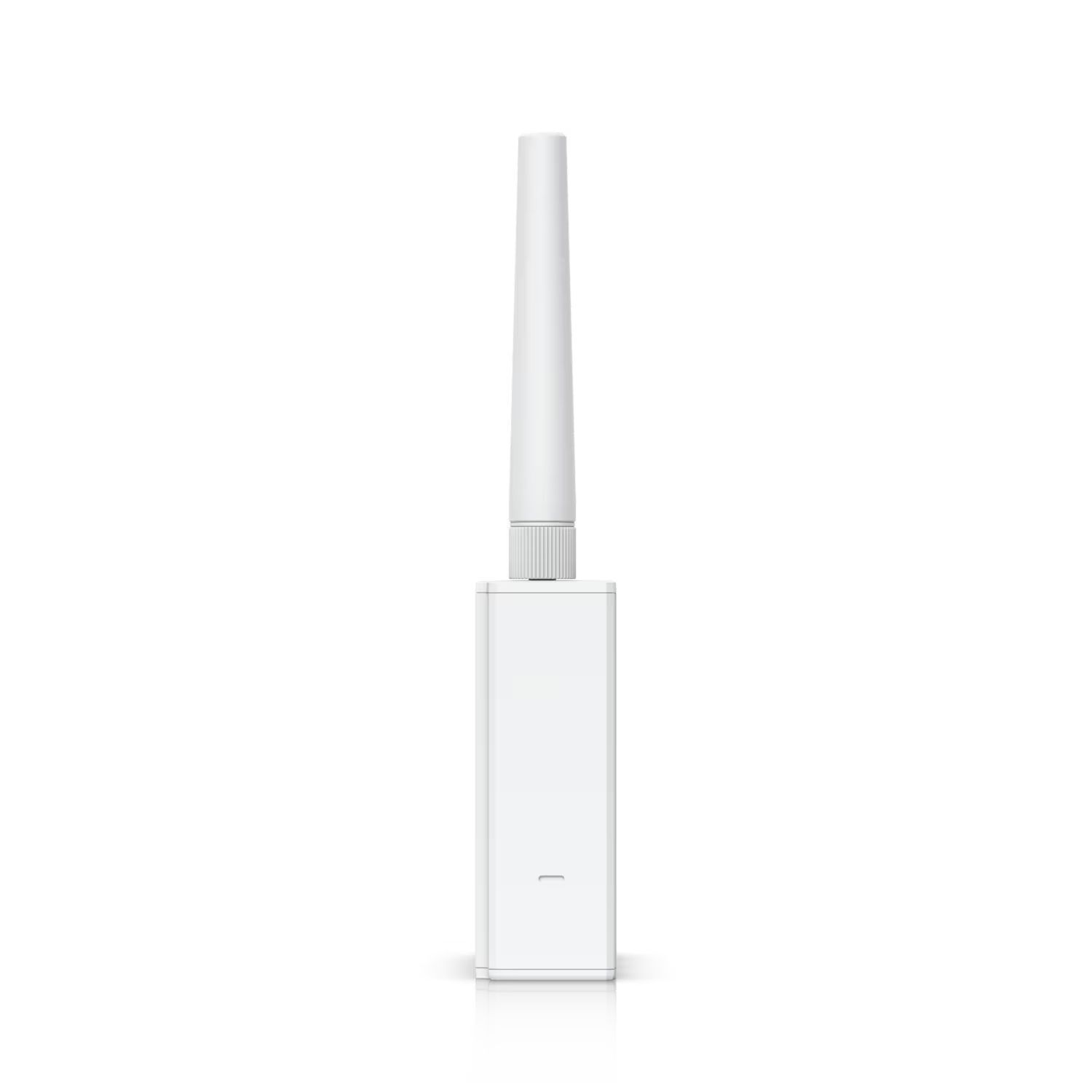

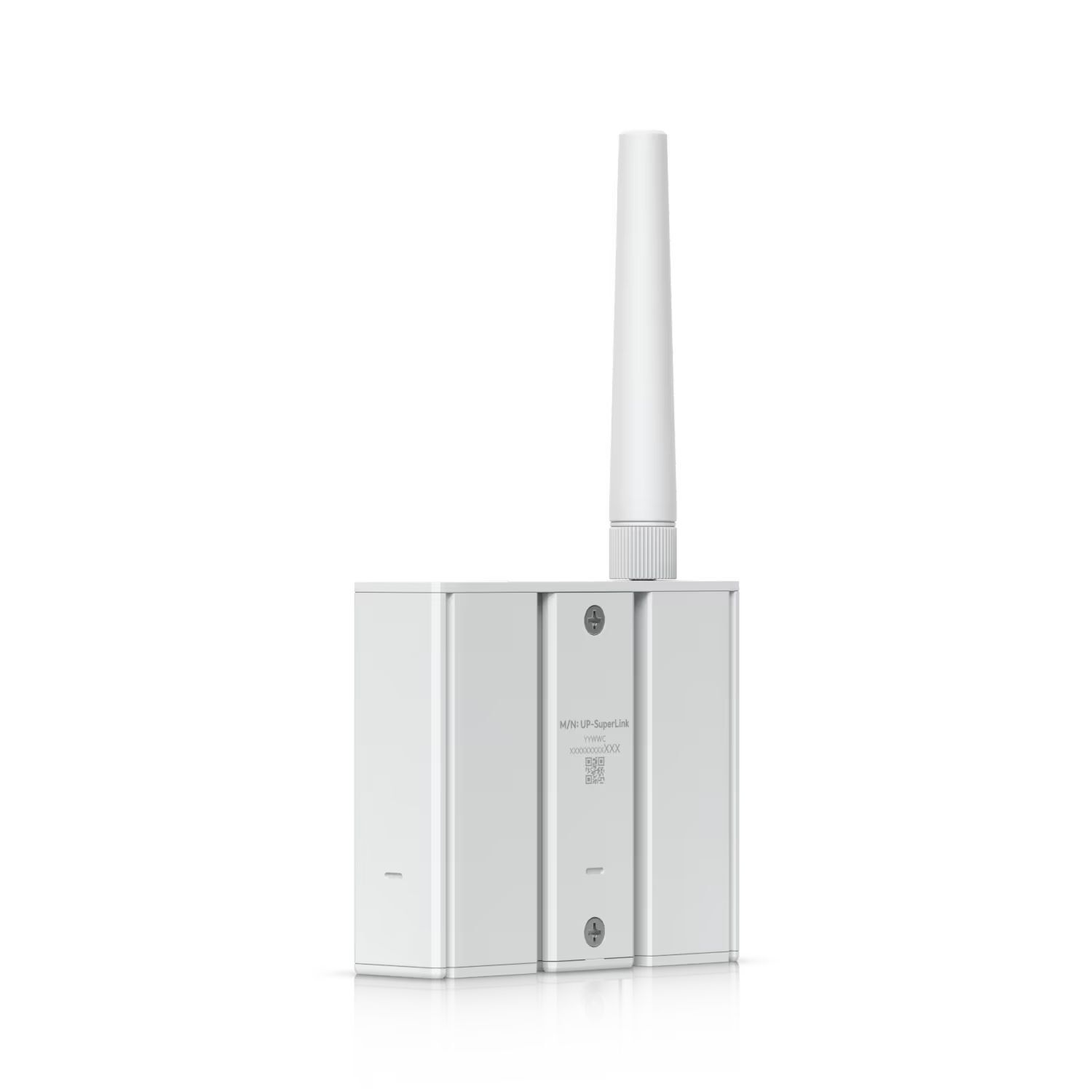

USL-Gateway Proprietary super long-range, low-latency wireless gateway for UniFi Protect Sensors.

96 SuperLink clients* with up to 2 km link range (line of sight)

7 UP-Sense (BLE) devices with improved long-range connectivity**

Powered using PoE or USB Type-C

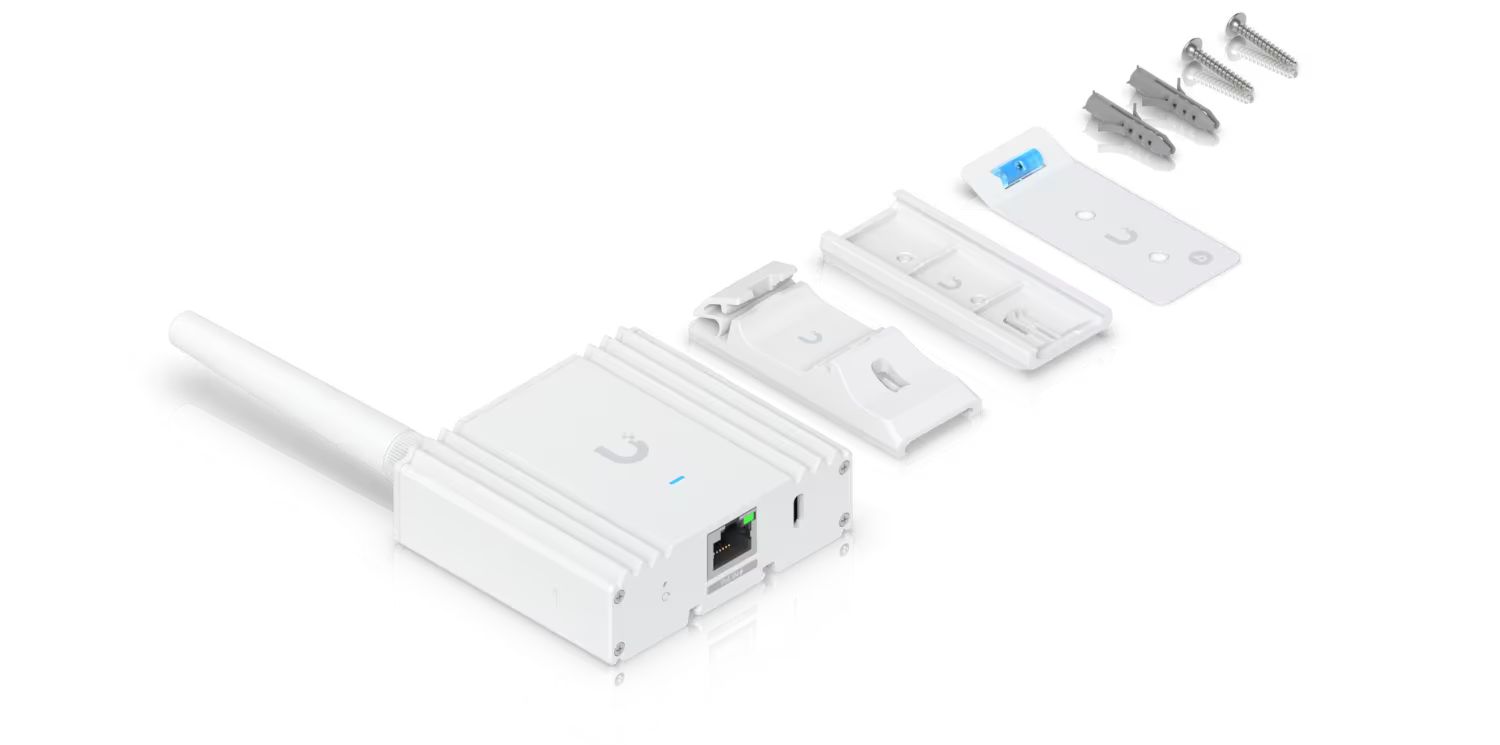

Wall and DIN rail mount options

(UP-SuperLink)

Mechanical

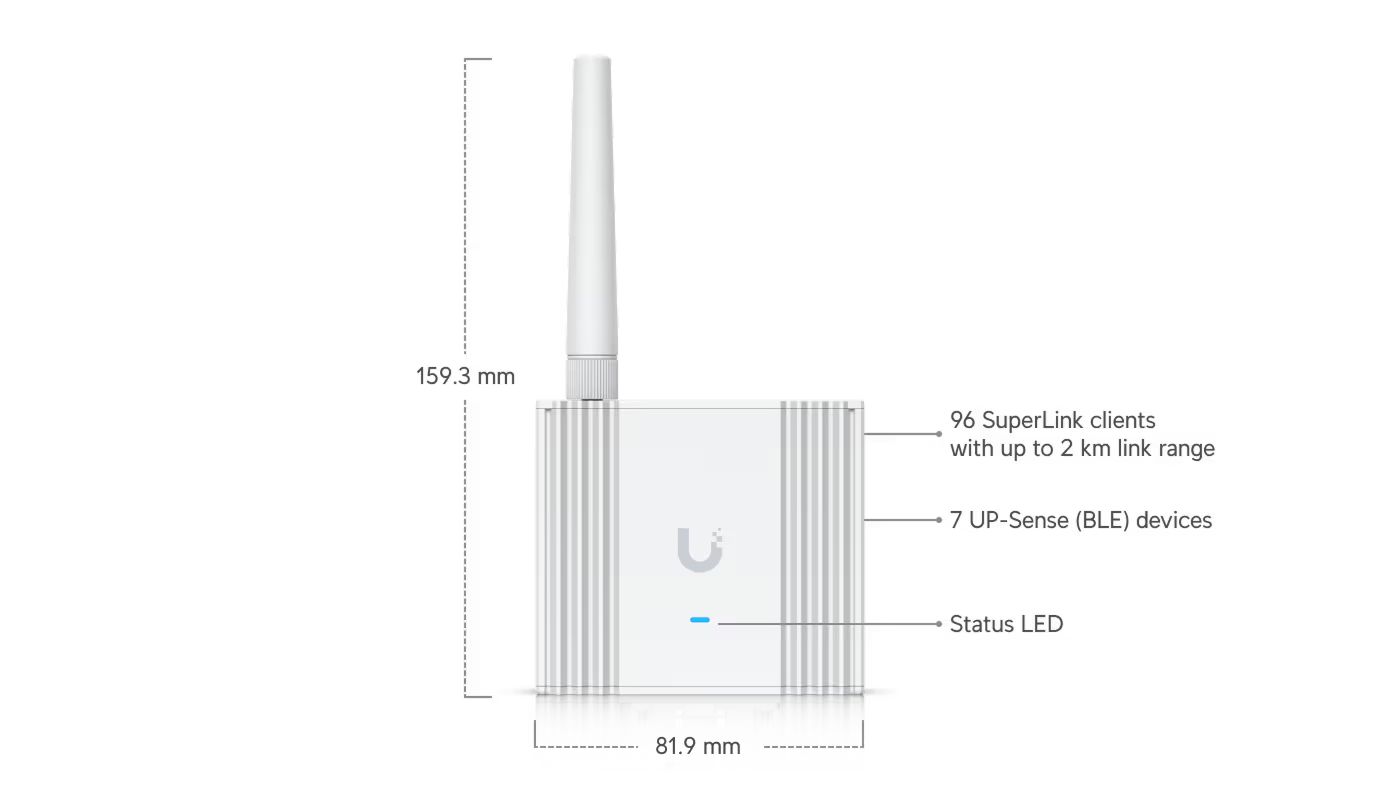

Dimensions With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1")
With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5")
With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2")
Weight 179 g (6.3 oz)
Enclosure material Polycarbonate, aluminum alloy
Mount material Polycarbonate
Hardware

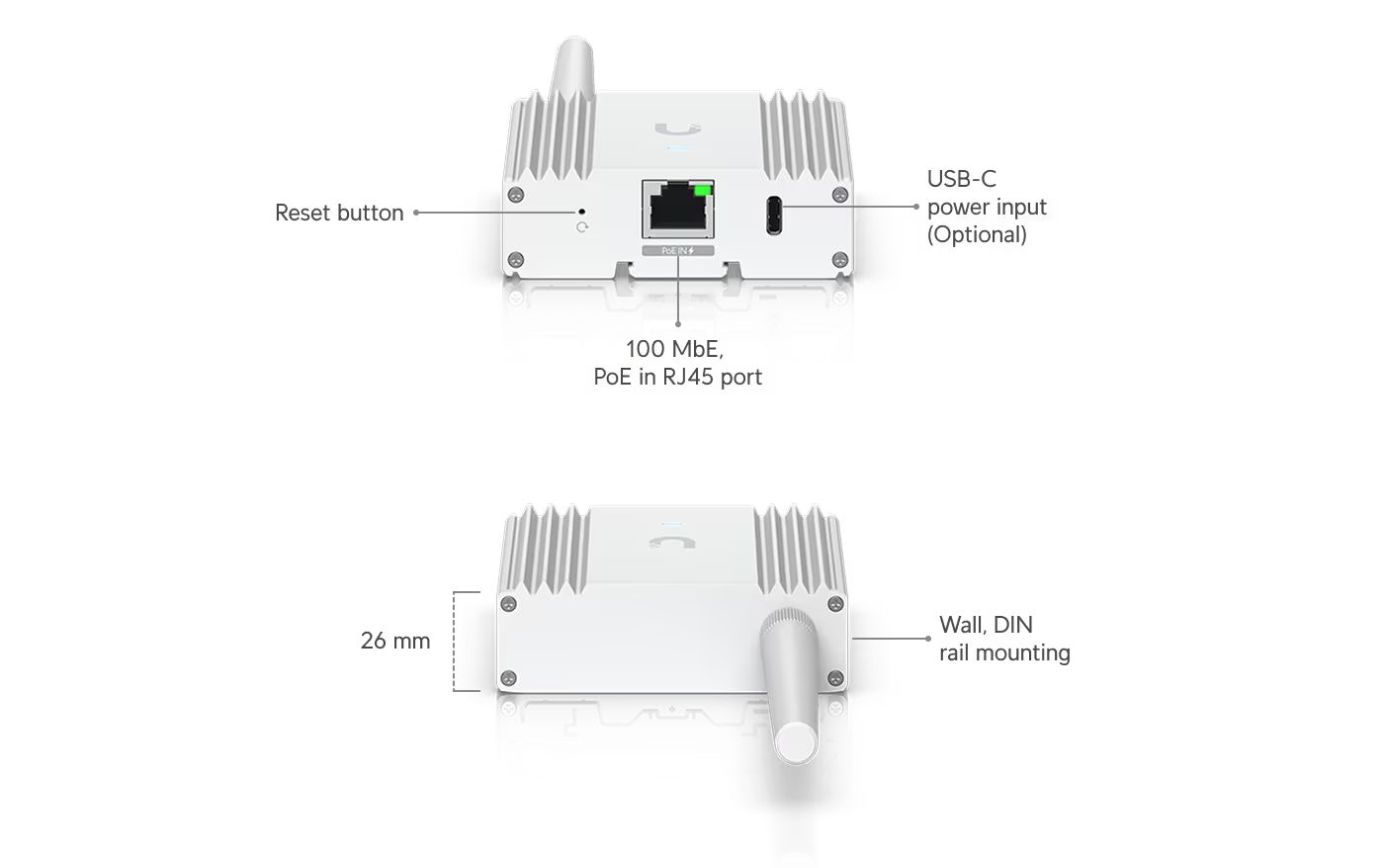

Networking interface (1) 10/100 MbE RJ45 port
Management interface Bluetooth® 5.2
SuperLink (Proprietary)
Power method PoE
USB Type-C, 5V, 1A (Optional)
Max. power consumption 3.4W
ESD/EMP protection Air: ± 8kV
Contact: ± 4kV
Antenna gain
Bluetooth
SuperLink
3 dBi
1 dBi
Max. TX power
Bluetooth
SuperLink
10 dBm
27 dBm
Max. client count
Bluetooth
SuperLink
7
96*
*SuperLink sensors are coming soon.
LED (1) Blue/white
Button (1) Factory reset

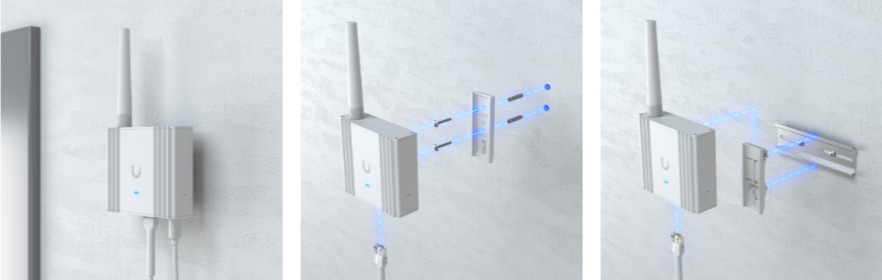

Mounting Wall, DIN rail
Ambient operating temperature 0 to 40° C (32 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications FCC, IC, CE
Software
Web application UniFi Protect
Mobile app UniFi Protect iOS™ and Android™
SKU UP-SuperLink
Barcode # 810084696347
Brand Ubiquiti
Shipping Weight 0.1700kg

Manufacturer Warranty : 1 Year Manufacturer Warranty
