Ubiquiti UDB-Pro Unifi 5 GHz wireless Device Bridge Pro - Connecting a Wire Device to Unifi WiFi Network

5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.

Link at 5+ km distances with a point-to-point connection to another Device Bridge Pro, or uplink seamlessly with UniFi WiFi Auto-Link

(2) GbE ports with (1) PoE output for PoE devices

Powered using PoE/PoE+*

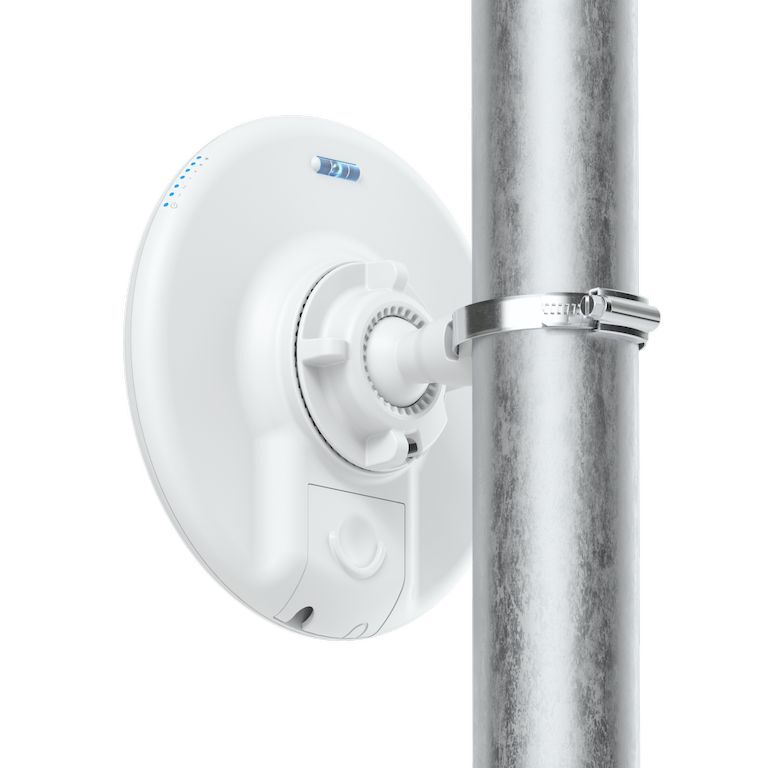

Pole mounting

Weatherproof (outdoor exposed)

Sold as a single unit

Note. Cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.

*PoE adapter included. PoE+ input required for PoE passthrough.



(UDB-Pro)

Mechanical
Dimensions Ø189.5 x 64.3 mm (Ø7.4 x 2.5")
Weight Without mount: 431 g (1 lb)
With mount: 515 g (1.1 lb)
Enclosure material UV-resistant polycarbonate
Mount material UV-stabilized polycarbonate, stainless steel
Pole mount diameter 20–53.1 mm (0.8–2.1") on pipe outer diameter
Wind loading 69 N at 200 km/h (15.5 lbf at 125 mph)
Weatherproofing IPX6
Hardware

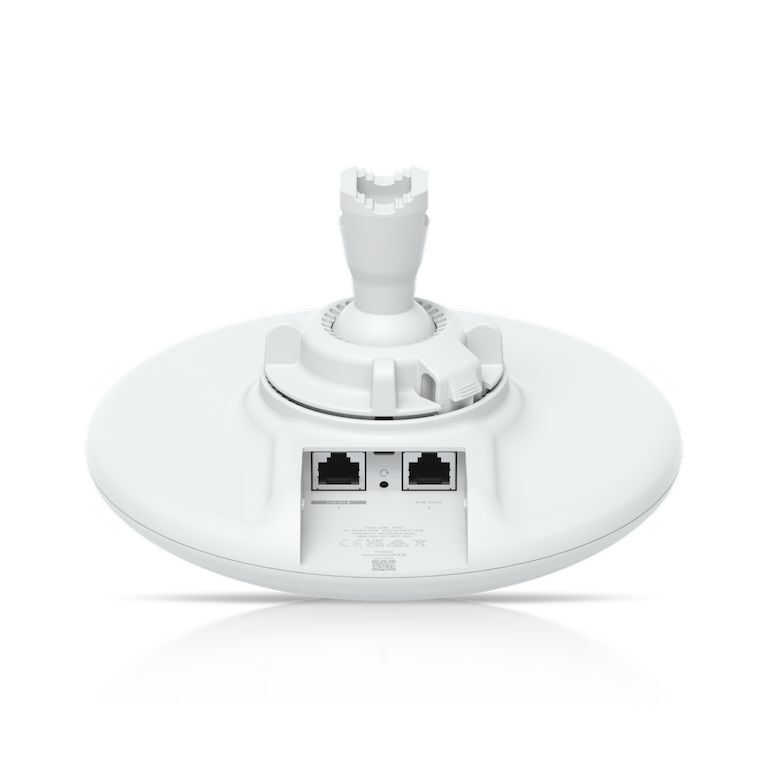

Networking interface (2) GbE RJ45 ports
Management interface Ethernet
WiFi
PoE interface (1) PoE in (PoE output not used)
(1) Passive PoE output
Power method PoE
PoE+ (Required for PoE output)
Power supply UniFi PoE switch
48V, 0.32A PoE adapter (Included)
Supported volatage range 42.5–57V DC
Max. power consumption 9W
Max. TX power
2.4 GHz
5 GHz
6 GHz


25 dBm
Max. data rate
2.4 GHz
5 GHz
6 GHz


867 Mbps (BW80)
MIMO
2.4 GHz
5 GHz
6 GHz


2 x 2
Antenna gain
2.4 GHz
5 GHz
6 GHz


19 dBi
Antenna Internal
Range 5+ km
LEDs Power, Ethernet, (4) signal strength
Button Factory reset
Mounting Pole, wall (Included)
Ambient operating temperature -40 to 60° C (-40 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac
Wireless security WPA2 AES (Always On)
Operating frequency*
US/CA




Worldwide

U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz

5150 - 5875 MHz
*Depends on regulatory region.
Channel bandwidth 20/40/80 MHz
Max. conducted TX power 25 dBm (Combined)
Modulation BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6)
SKU UDB-Pro
Barcode # 810084698198
Brand UBIQUITI
Shipping Weight 3.0000kg

Manufacturer Warranty : 1 Year Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Ubiquiti Device Bridge Pro,5 GHz Wireless Bridge, PoE Output Connects At 5+ km Distances /Seamlessly Uplinks to UniFi WiFi

Model # UDB-Pro

  • SKU: UDB-Pro

$393.00
In Stock
IN STOCK
