EAP225-Outdoor

8-Port 10/100Mbps Desktop Switch with 4-Port PoE TL-SF1008P With four PoE ports, transfers data and power on one single cable Working with IEEE 802.3af compliant PDs, expands home and office network Requires no configuration and installation

(EAP225-Outdoor)



WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4GHz, 5GHz
Signal Rate 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions Multiple SSIDs(Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power CE:<20dBm(2.4GHz,EIRP),<25dBm(5GHz,EIRP)
FCC:<23dBm(2.4GHz),<22dBm(5GHz)
MANAGEMENT
Omada Controller Software Yes
Email Alerts Yes
Management MAC Access Control Yes
System Logging Local/Remote Syslog Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE、FCC、RoHS

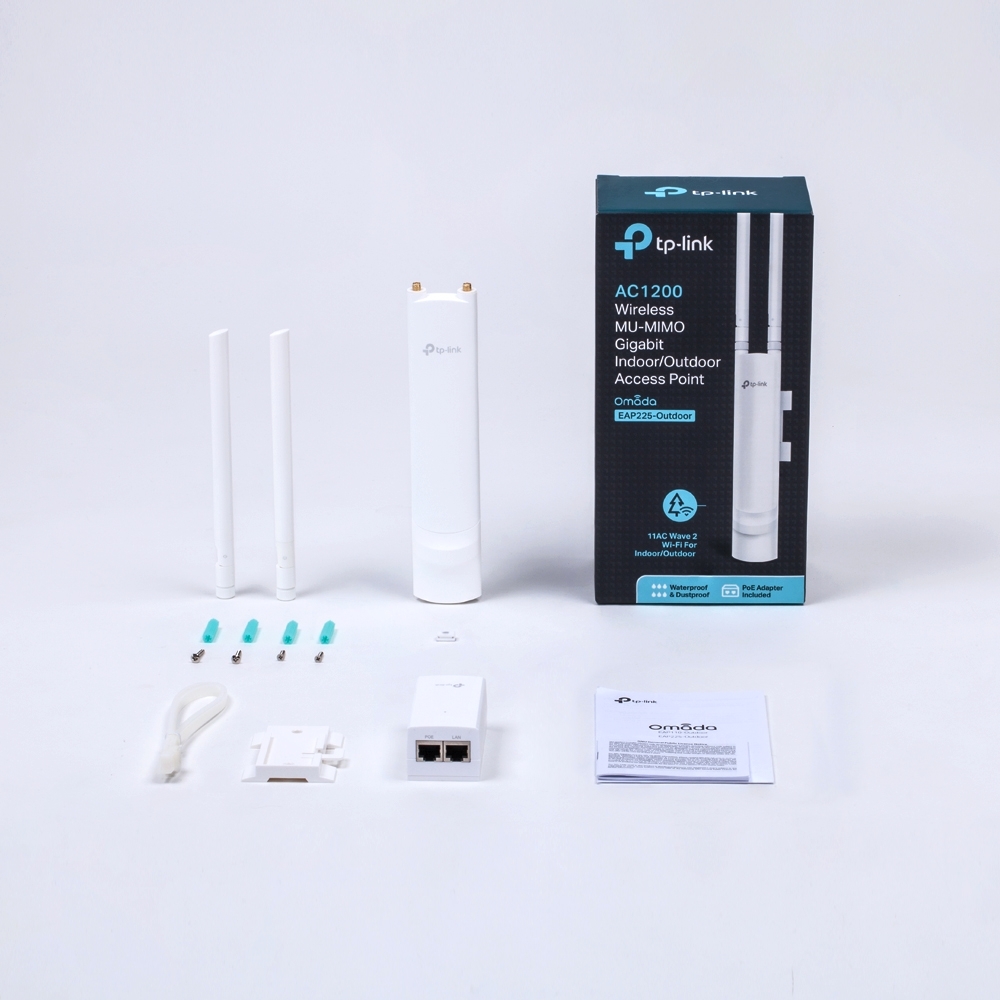

Package Contents AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
EAP225-Outdoor
Power Adapter
Mounting Kits
Installation Guide
Environment Operating Temperature: -30℃~70℃ (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
HARDWARE FEATURES

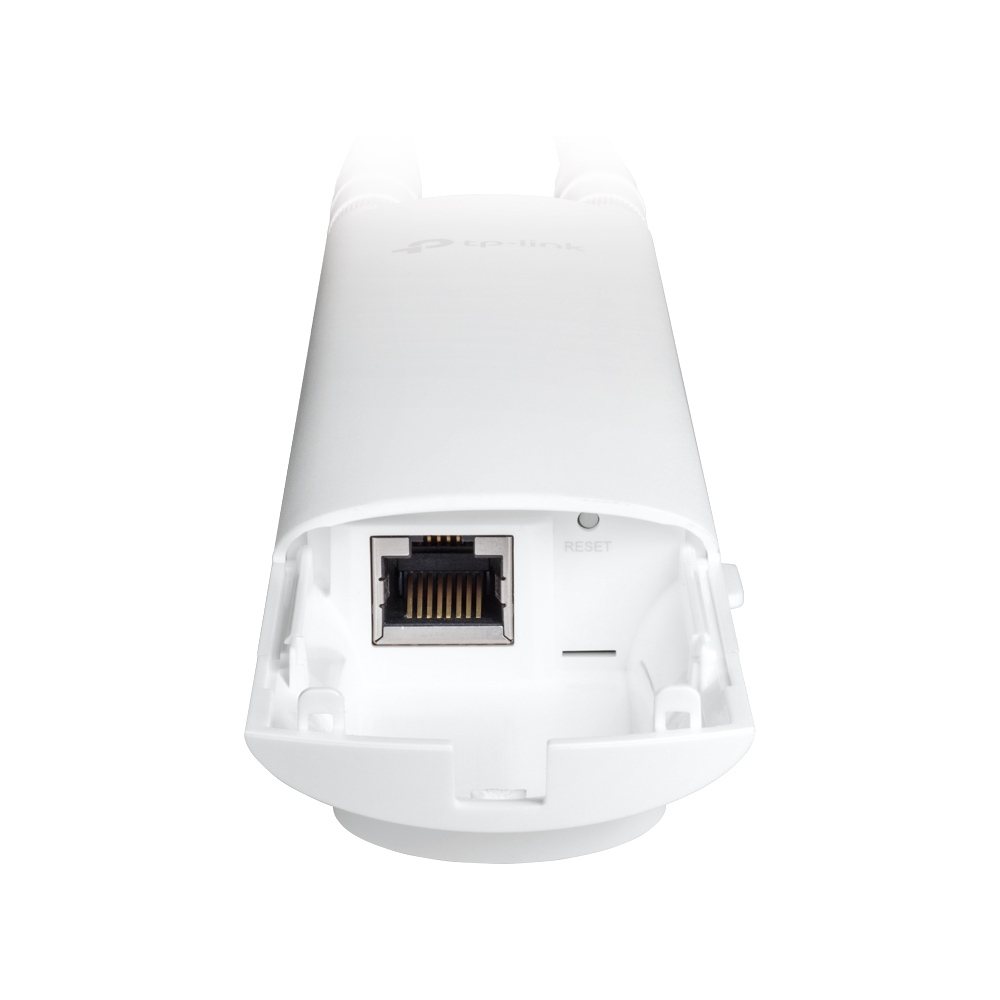

Interface Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE)
Button Reset
Power Supply 802.3af/A PoE
24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 10.5W
Dimensions ( W x D x H ) 215.7*45*37.7mm (without antenna & mounting kit)
403.8*90.7*55.2mm (with antenna & mounting kit)
Antenna 2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi
Weatherproof Enclosure IP65
Mounting Pole/Wall Mounting (Kits included)
Hardware Watch Dog Yes
SKU EAP225-Outdoor
Barcode # 6935364083571
Brand TP-Link
Shipping Weight 0.6400kg
Shipping Width 0.140m
Shipping Height 0.100m
Shipping Length 0.270m
Shipping Cubic 0.003780000m3
