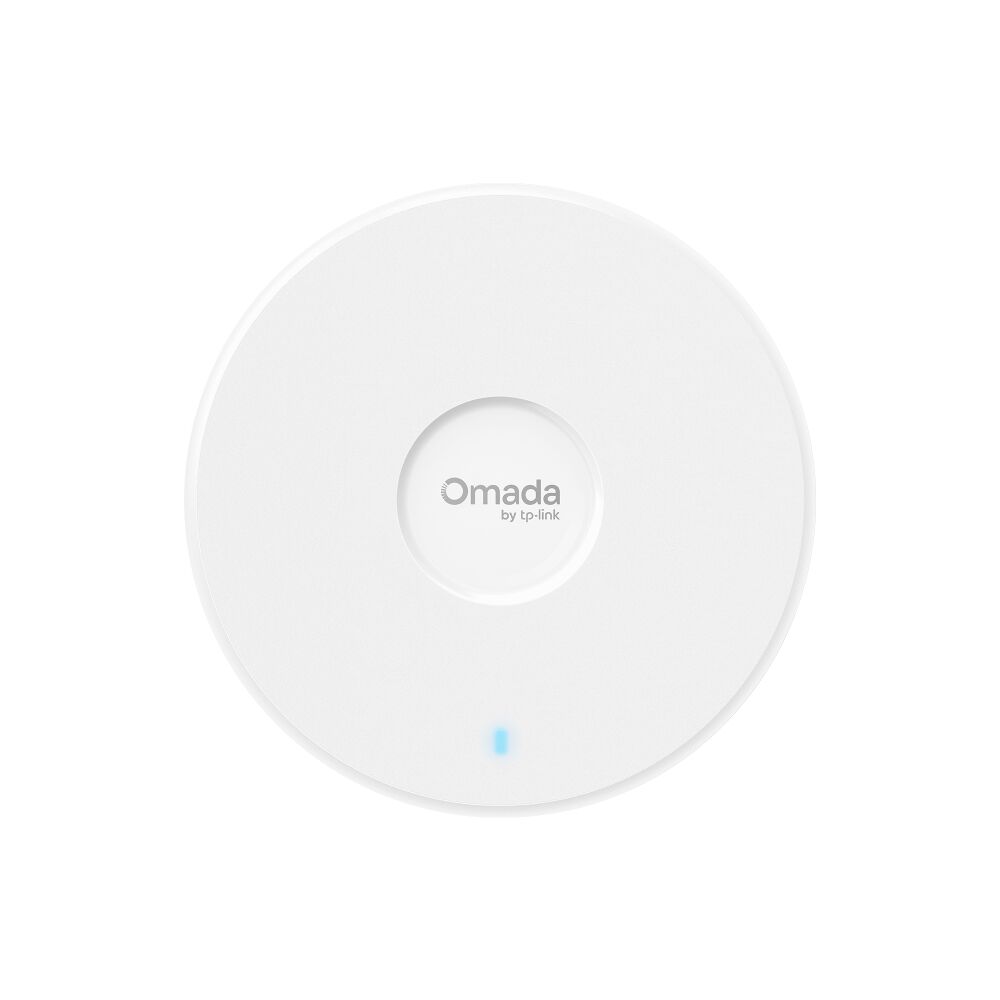

TP-LINK EAP720 Omada BE3600 Ceiling Mount Dual-Band Wi-Fi 7 Access Point
Model # EAP720
-
SKU: EAP720
- Pick Up Available
- Australian Warranty
- Checkout Securely
BE3600 Ceiling Mount Wi-Fi 7 Access Point
- Dual-Band 4-Stream Wi-Fi 7: Up to 3.6 Gbps (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).†
- 1× 2.5G Port: Ensures fast connectivity throughout the network.
- Low Latency and Interference: Multi-Link Operation, Multi-Rus, and 4K -QAM ensure high performance of your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation (power adapter included). Omada SDN for one-click setup.
- Advanced Features: Supports centralised management, Mesh, and Seamless Roaming.△
- More Connections and Wider Coverage: Supports 250+ concurrent clients* and covers up to 1500 ft² (140 ㎡) **for reliable and extensive wireless connectivity.
(EAP720)
| Category | Specification |
|---|---|
| Hardware Features | |
| Interface | 1× 2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE or 12V/1.5A DC |
| Max. Power Consumption | - 16.8 W (PoE) - 13.0 W (DC) |
| Dimensions (W × D × H) | 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm) |
| Antennas | - 2.4 GHz: 2× 4.0 dBi - 5 GHz: 2× 5.0 dBi |

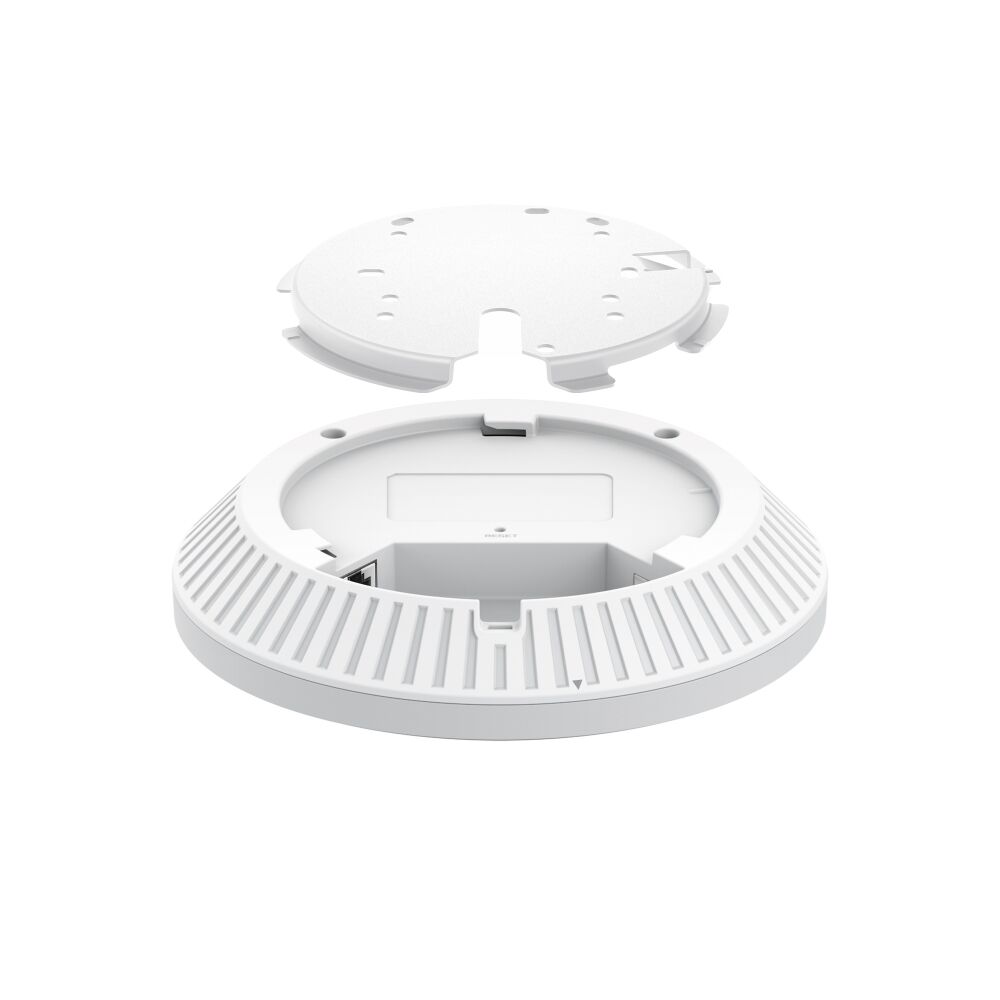

| Mounting | Ceiling / Wall / Junction Box Mounting (Kits Included) |
| Wireless Features | |
| Coverage | 140㎡ (1500 ft²)*** |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | - 2.4 GHz: 688 Mbps <br> - 5 GHz: 2882 Mbps |
| Wireless Functions | - MLO‡ <br> - 4K-QAM‡ <br> - EHT160‡ <br> - Mesh△ <br> - Seamless Roaming <br> - OFDMA‡ <br> - Load Balance <br> - Band Steering <br> - Beamforming <br> - Airtime Fairness <br> - Multiple SSIDs: 16 (8 per band) <br> - Wireless Schedule <br> - Reboot Schedule <br> - QoS (WMM) <br> - Rate Limit <br> - Static IP / Dynamic IP <br> - RADIUS Accounting <br> - MAC Authentication |
| Wireless Security | - Captive Portal Authentication△ <br> - Access Control <br> - MAC Filter (up to 4,000) <br> - Client Isolation <br> - VLAN <br> - Rogue AP Detection <br> - WPA/WPA2/WPA3 Personal & Enterprise |
| Transmission Power | - < 20 dBm (2.4 GHz, EIRP) <br> - < 23 dBm (5 GHz, band 1 & 2, EIRP) <br> - < 28 dBm (5 GHz, band 3, EIRP) |
| Management Features | |
| Omada App | Yes |
| Centralized Management | - Omada Central (Cloud-Based) <br> - Omada Hardware Controller <br> - Omada Software Controller |
| Cloud Access | Yes (Requires Omada Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging | Local / Remote Syslog |
| Web-Based Management | Yes |
| Others | |
| Certification | CE, FCC, RoHS, IC |
| Package Contents | - Omada Wi-Fi 7 Ceiling Mount Access Point EAP720 <br> - Installation Guide <br> - Ceiling/Wall/Junction Box Mounting Kit <br> - Power Adapter |
| Environment - Operating | Temp: 0 °C–40 °C (32 °F–104 °F), Humidity: 10%–90% non-condensing |
| Environment - Storage | Temp: -40 °C–70 °C (-40 °F–158 °F), Humidity: 5%–90% non-condensing |
| SKU | EAP720 |
| Barcode # | 1210002608732 |
| Brand | TP-LINK |
| Shipping Weight | 1.0000kg |
