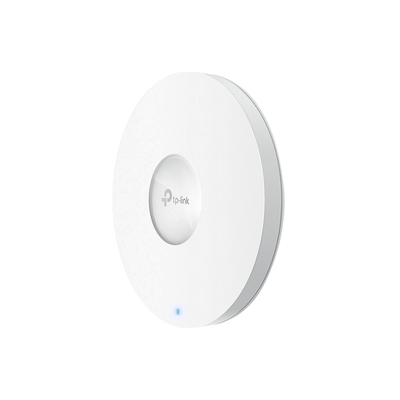

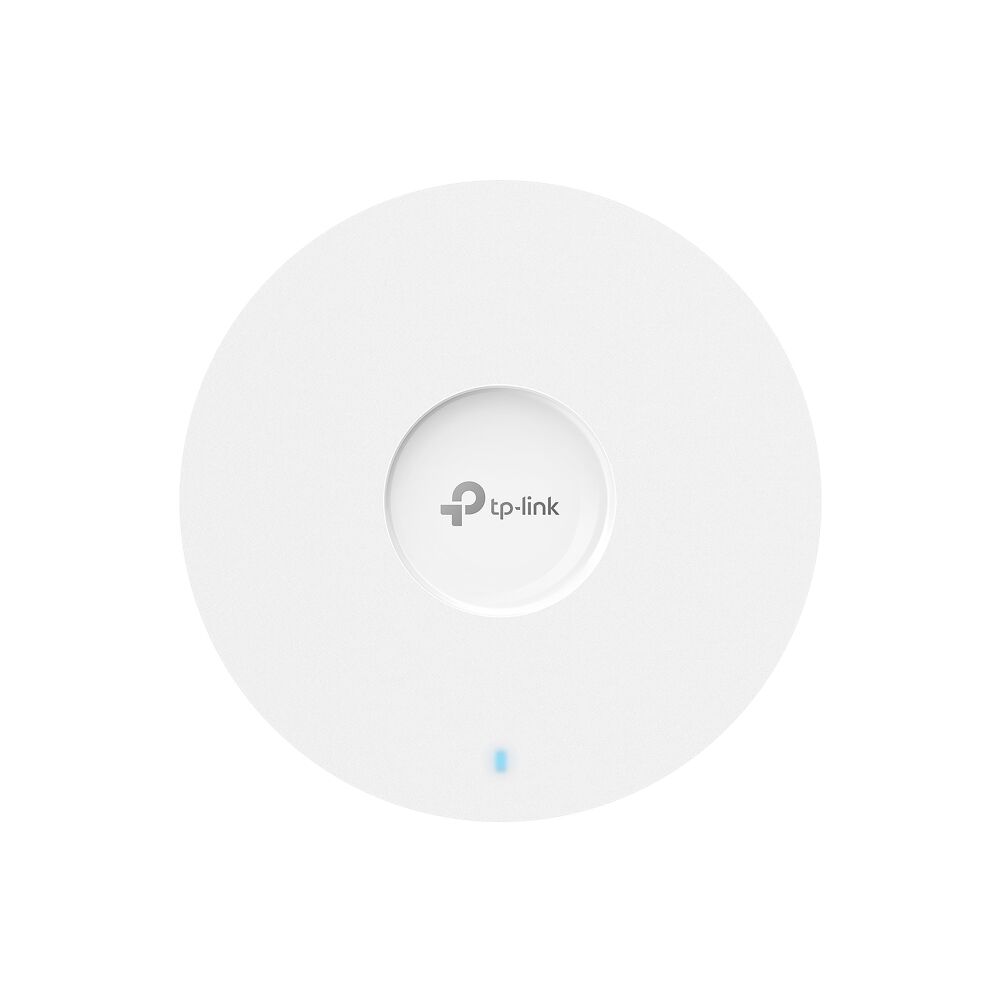

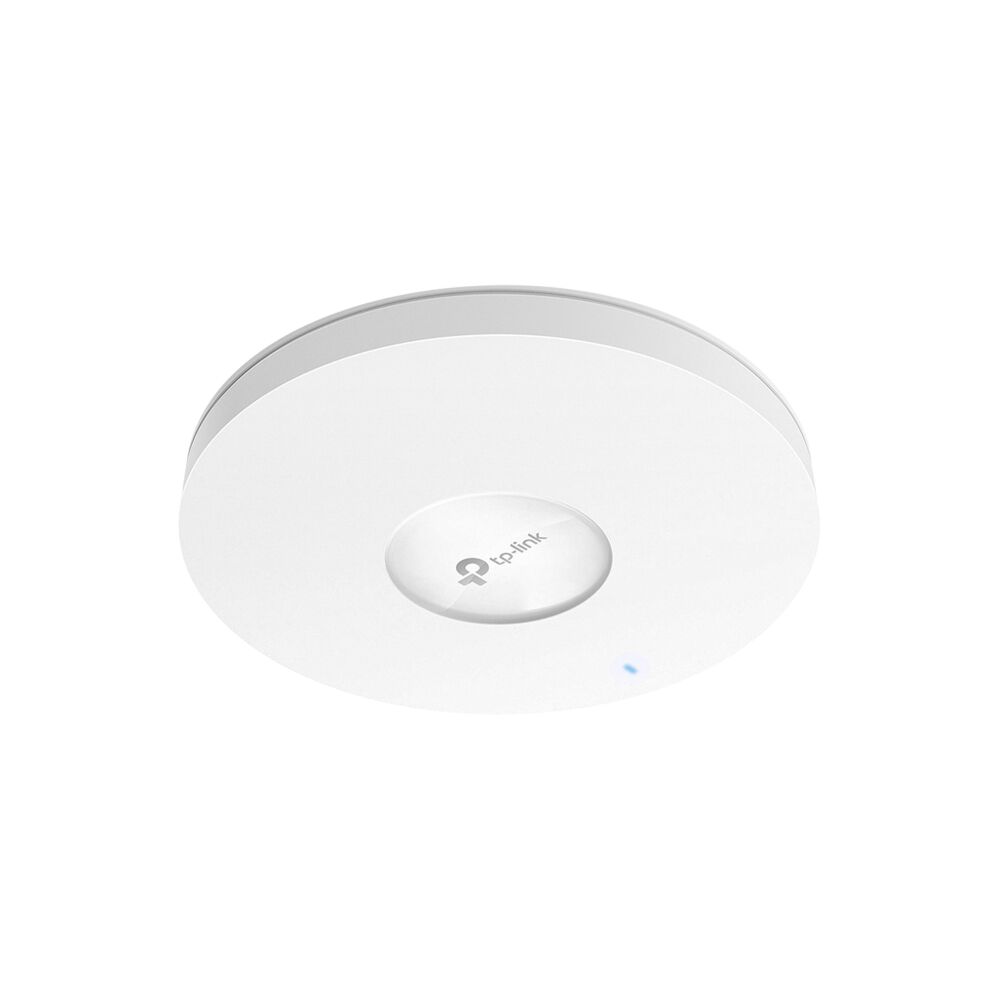

EAP653-UR

AX3000 Ceiling Mount WiFi 6 Access Point

Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz^†
Ultra-range wireless coverage by more antennas with higher transmit power
Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc^‡
Advanced Features: Omada Mesh, Seamless Roaming, etc^§
PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
Ultra-Slim Design: Φ6.3 in × 1.3 in elegant design brings more agility
Integrates with the Omada SDN platform for centralised management

(EAP653-UR)

HARDWARE FEATURES
Interface	1× Gigabit PoE+ Port
Button	Reset
Power Supply	• 802.3at PoE • 12V DC / 1.5 A (Power Adapter IS NOT included) • 48V Passive PoE
Max. Power Consumption	• EU: 14.2 W • US: 15.5 W
Dimensions ( W x D x H )	6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna	Internal Omni • 2.4 GHz: 2× 5 dBi • 5 GHz: 3× 5 dBi

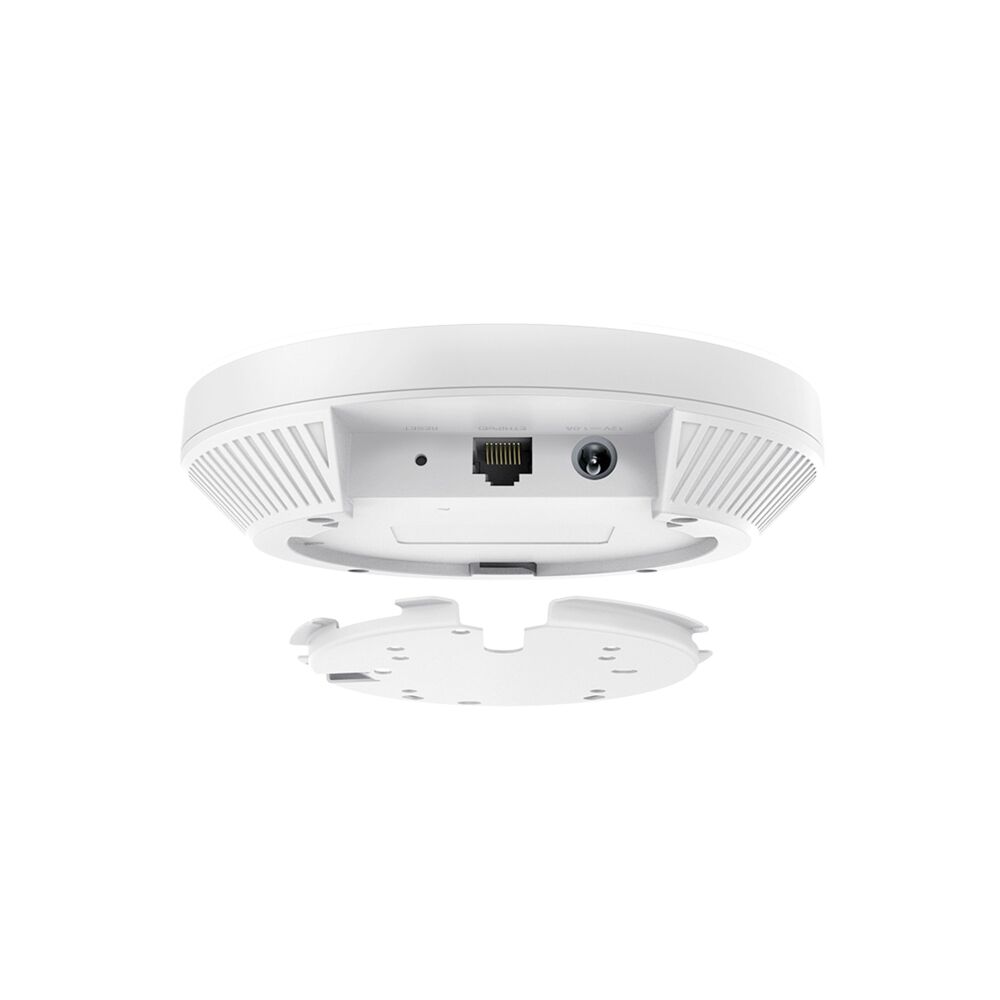

Mounting	• Ceiling /Wall Mounting (Kits included) • Junction Box Mounting

WIRELESS FEATURES
Coverage	185 ㎡ (2000 ft²)^***
Concurrent Clients	250+^**
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: Up to 2402 Mbps^† • 2.4 GHz: Up to 574 Mbps^†
Wireless Functions	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO(2G: 22 MU-MIMO DL/UL; 5G:22 MU-MIMO DL/UL) • HE160 (160 MHz Bandwidth)^‡ • Seamless Roaming(802.11k/v/r)^§ • Omada Mesh^§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication^§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <29 dBm(5 GHz, Band3, EIRP) • FCC: <26 dBm (2.4 GHz) <27 dBm (5 GHz)

Management Features
Omada App	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS
Certification	CE, FCC, RoHS
Package Content	• EAP653 UR • Ceiling/Wall Mounting Kit • Installation Guide Note: DC adapter is not included in the package, and is sold separately.
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

SKU	EAP653-UR
Barcode #	8885020620566
Brand	TP-LINK
Shipping Weight	0.4400kg
Shipping Width	0.062m
Shipping Height	0.232m
Shipping Length	0.246m
