Ubiquiti U6 Mesh ProIndoor/Outdoor WiFi 6 AP,4 Spatial Stream,An Integrated Super Antenna & Gigabit Passthrough Port,PoE Power,185 m² Coverage

Ubiquiti U6 Mesh Pro Indoor/outdoor WiFi 6 AP ,PoE ,Weatherproof ,4 spatial streams



Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.

WiFi 6

4 spatial streams

185 m² (2,000 ft²) coverage with the integrated omnidirectional super antenna

350+ connected devices

Powered using PoE

GbE uplink with (1) GbE passthrough port

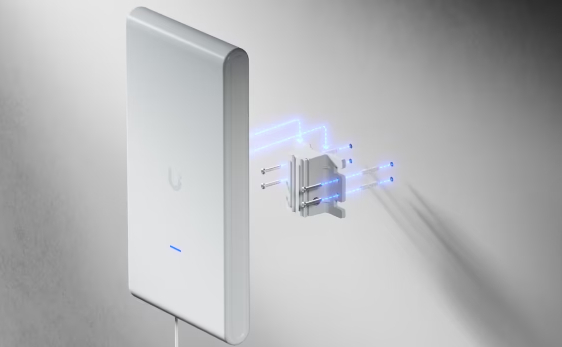

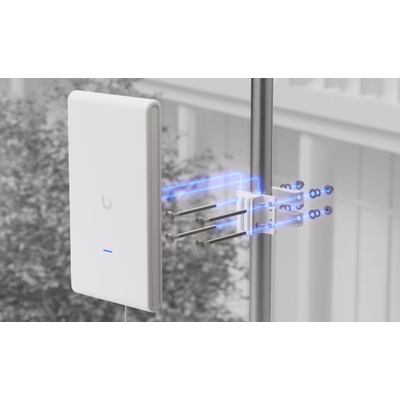

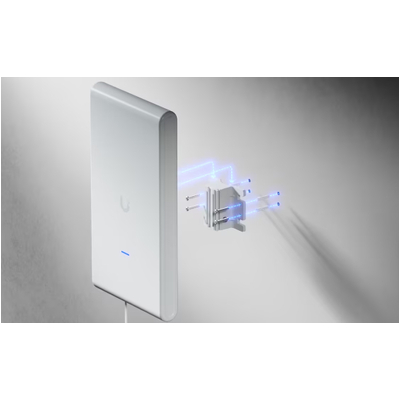

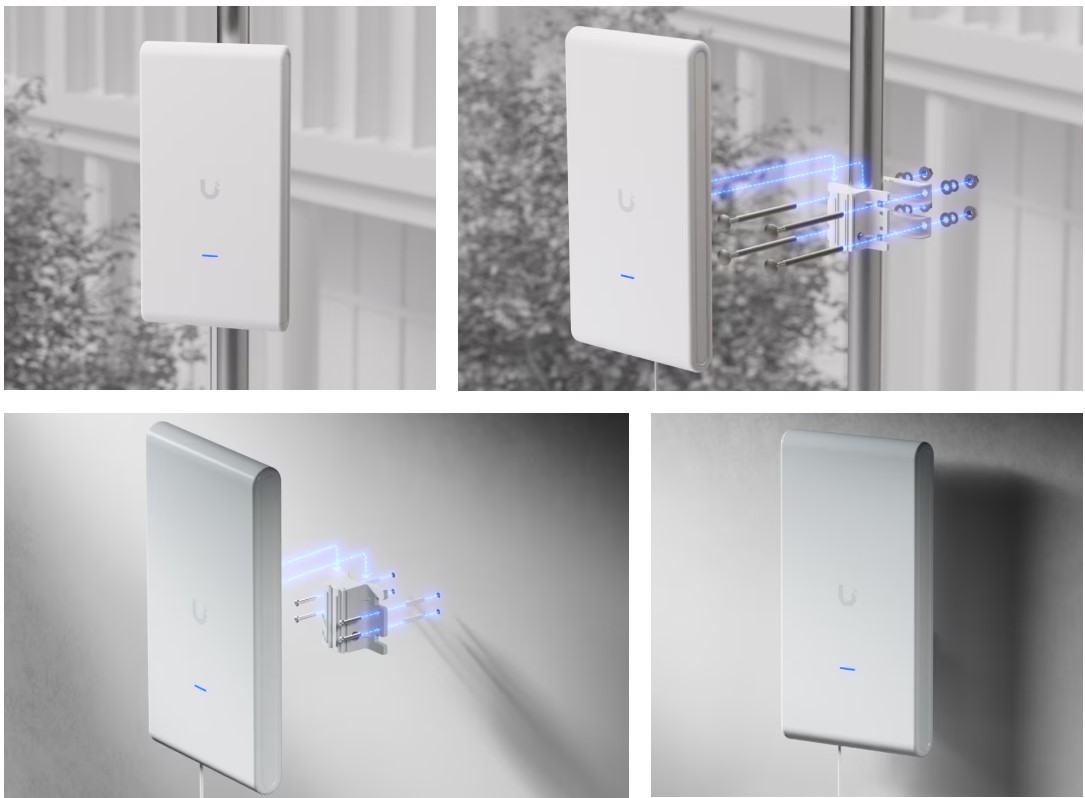

Versatile wall and pole mounting

Weatherproof (outdoor exposed)

(U6-Mesh-Pro)

Technical Specifications

Mechanical

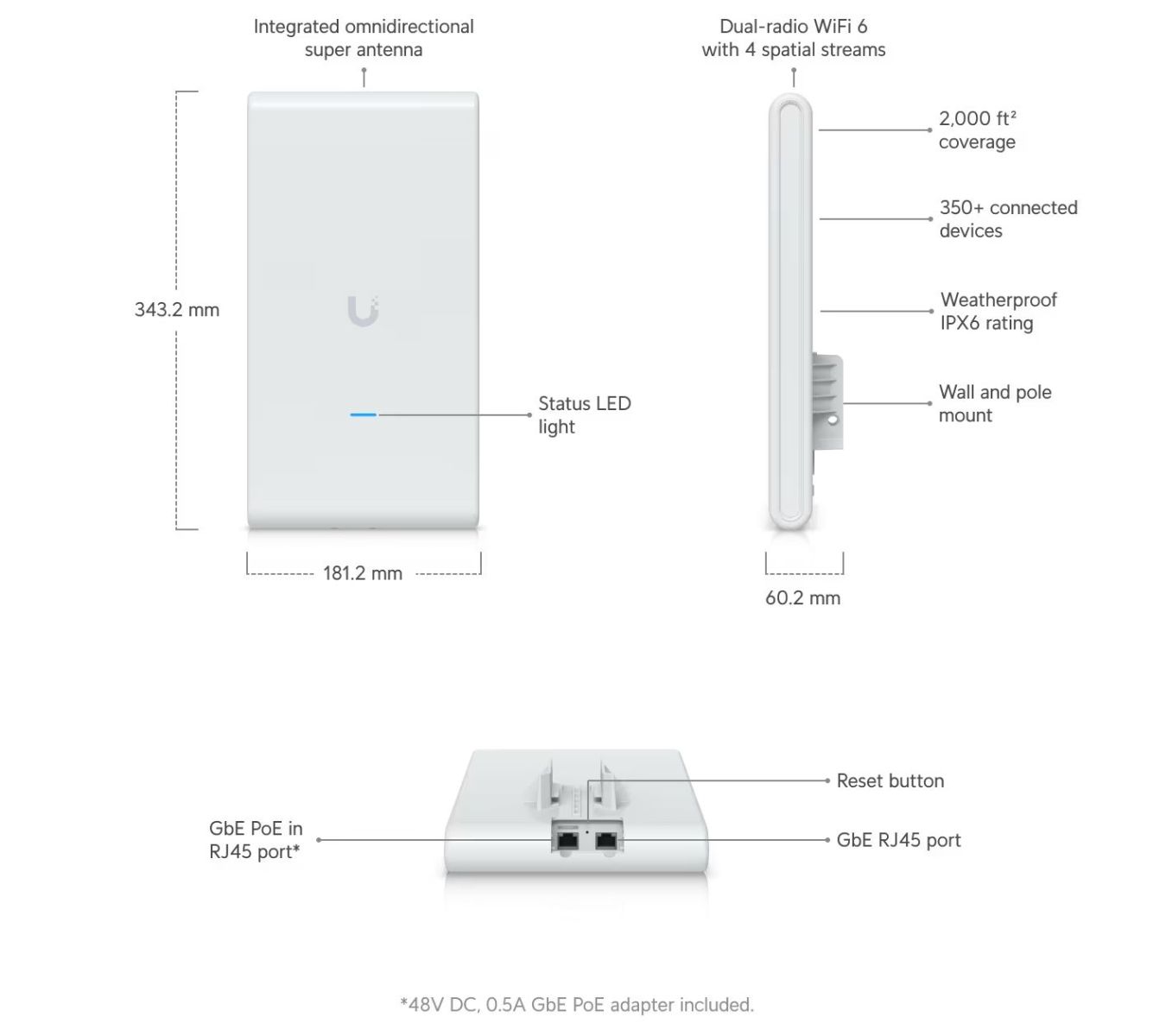

Dimensions 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
Weight 819 g (1.8 lb)
Enclosure material UV-stabilized polycarbonate
Mount material Aluminum alloy, steel
Pole mount diameter 1~2.5" on pipe outer diameter
Weatherproofing IPX6
Hardware
Networking interface (2) GbE RJ45 ports
Management interface Ethernet
WiFi
Power method PoE
Power supply UniFi PoE switch
48V, 0.5A PoE adapter (Included)
Supported voltage range 42.5—57V DC
Max. power consumption 9W
Max. TX power
2.4 GHz
5 GHz
6 GHz
22 dBm
27 dBm
–
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (DL/UL MU MIMO)
2 x 2 (DL/UL MU-MIMO)
–
Throughput rate
2.4 GHz
5 GHz
6 GHz
573.5 Mbps
2.4 Gbps
–
Antenna gain
2.4 GHz
5 GHz
6 GHz
8 dBi
8 dBi
–
LEDs White/blue
Button Factory reset

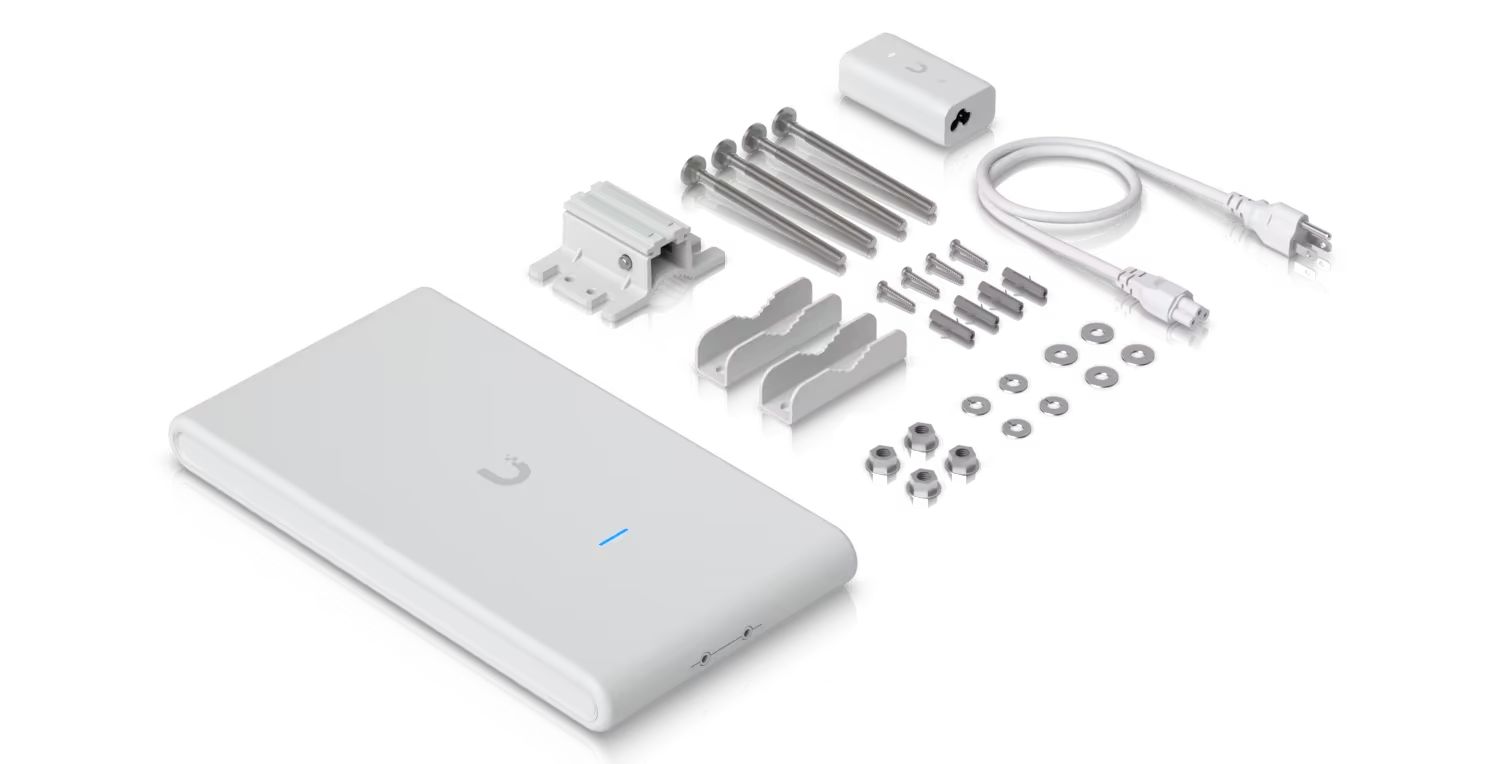

Mounting Wall, pole (Included)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 350+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Application Requirements
UniFi Network Version 8.1.127 and later
SKU U6-Mesh-Pro
Barcode # 810084697085
Brand Ubiquiti
Shipping Weight 0.8190kg

Manufacturer Warranty
