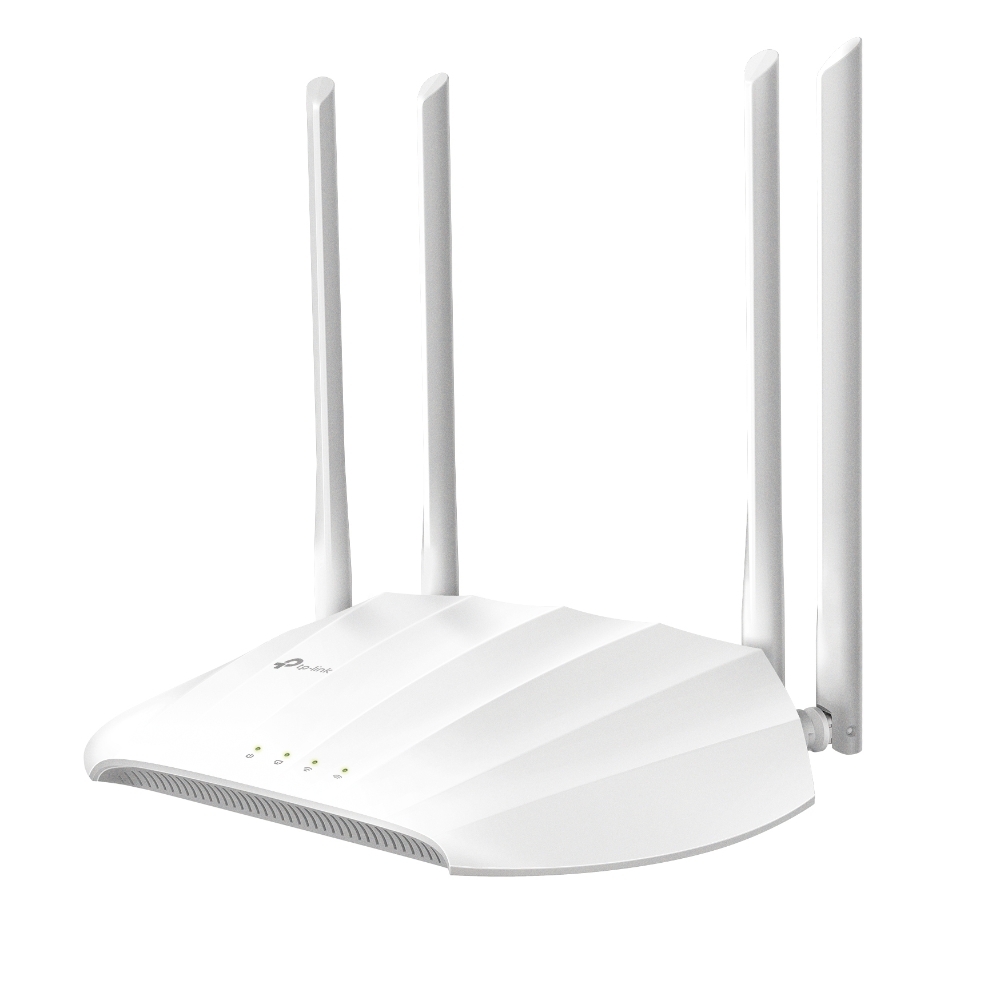

TP-Link TL-WA1201 AC1200 Wireless Access Point, AC1200 Dual-Band Wi-Fi, Passive POE, Multiple Modes, MU-MIMO, Boosted Coverage, Captive Portal

TL-WA1201

(TL-WA1201)

HARDWARE FEATURES
Interface	1× 10/100/1000 Mbps Ethernet Port (Supports Passive PoE)

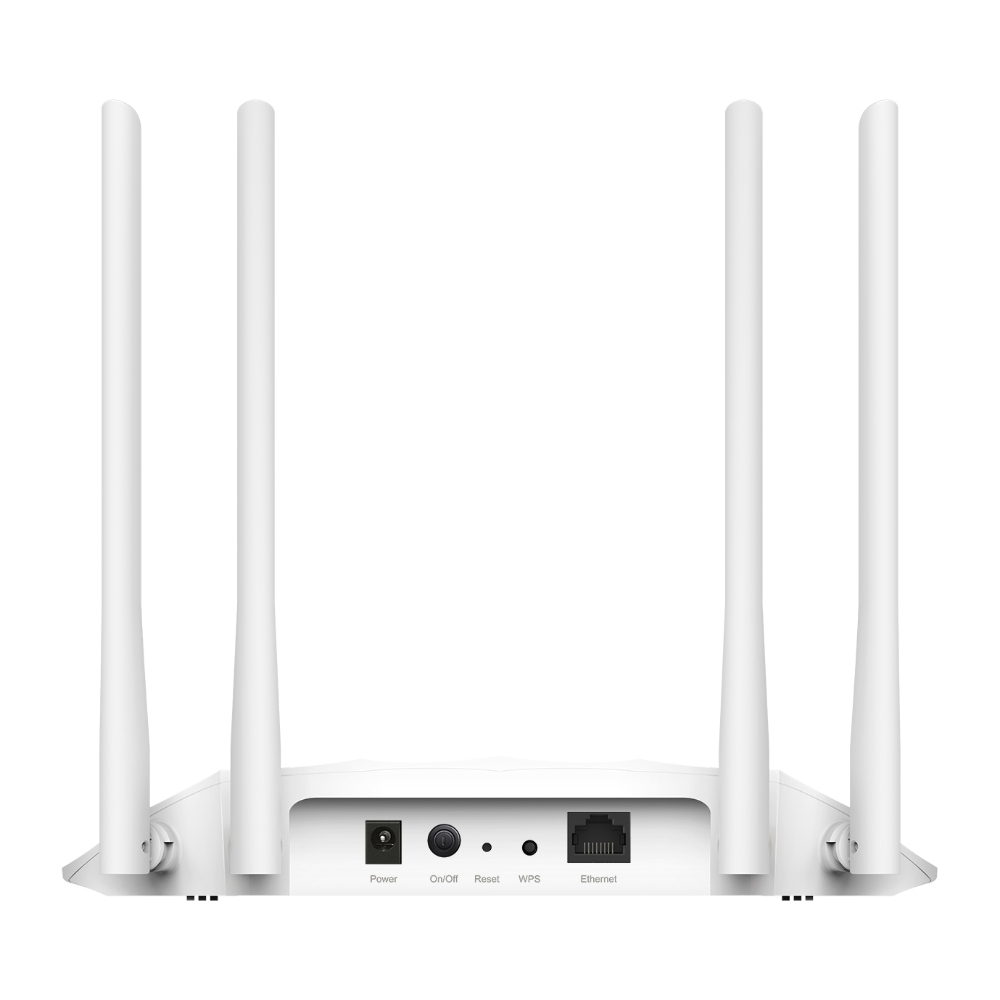

Button	Power On/Off Button, WPS Button, Reset Button
External Power Supply	12V/1.5A
Wireless Standards	IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
Dimensions ( W x D x H )	225×145.5×37 in (400×255×72 mm)
Antenna Type	4 Fixed High Performance Antennas

WIRELESS FEATURES
Frequency	2.4 GHz and 5 GHz
Signal Rate	867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
Reception Sensitivity	5 GHz: 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm 11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm 11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm 11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm 2.4 GHz: 11g 54Mbps: -78 dBm 11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm 11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
Transmit Power	CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz) FCC: <30dBm(2.4GHz&5GHz)
Wireless Modes	Access Point, Range Extender, Client, Multi-SSID
Wireless Functions	Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
Wireless Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
DHCP	Server, DHCP Client List
Quality of Service	WMM
Advanced Functions	Captive Portal

OTHERS
Certification	CE, FCC, RoHS
Package Contents	Wireless Access Point TL-WA1201 Power Adapter RJ45 Ethernet Cable Quick Installation Guide PoE Power Injector
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Environment	Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Protocol Support	IPv4, IPv6

SKU	TL-WA1201
Barcode #	6935364084035
Brand	TP-LINK
Shipping Weight	0.8800kg

Manufacturer Warranty: 3 Year Manufacturer Warranty
