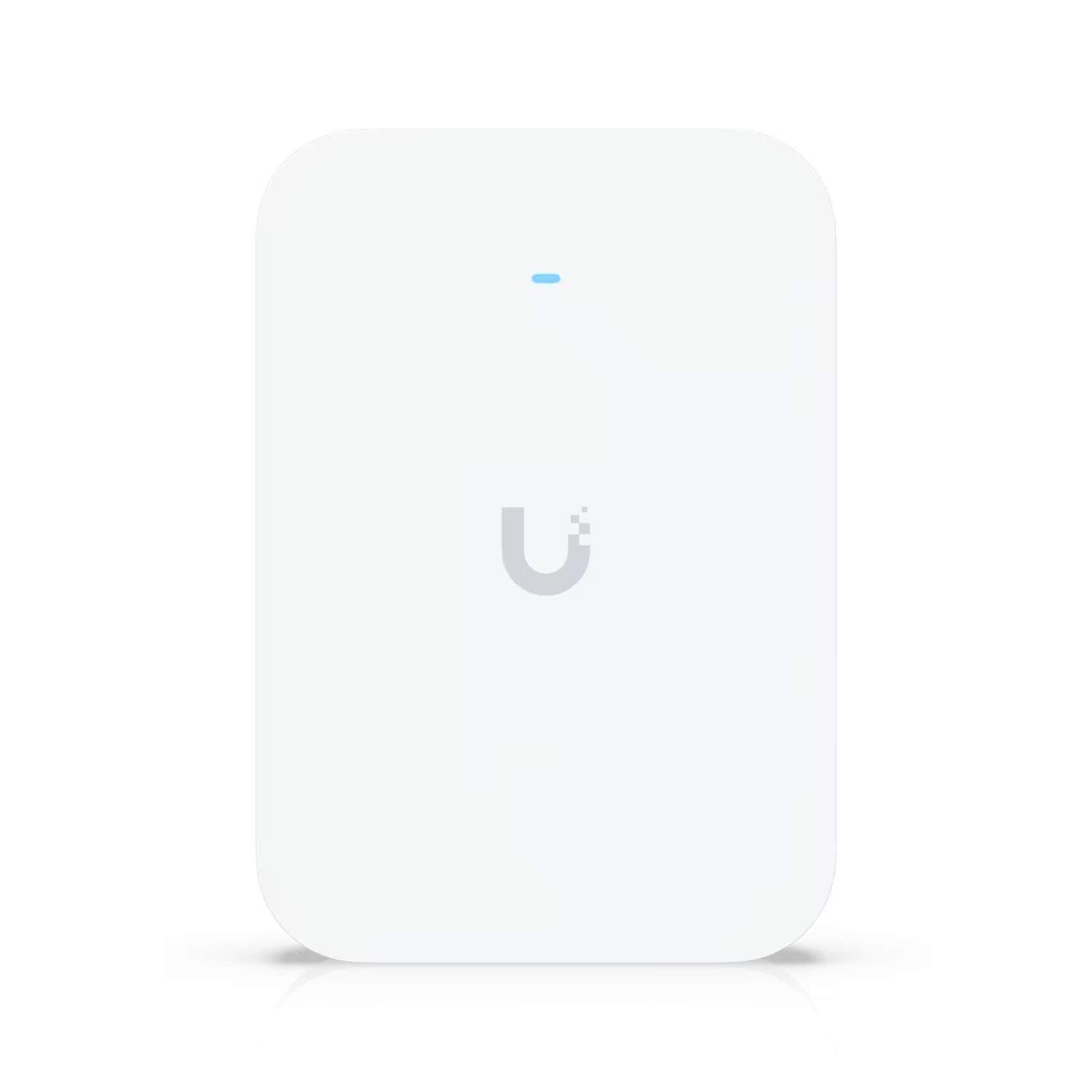

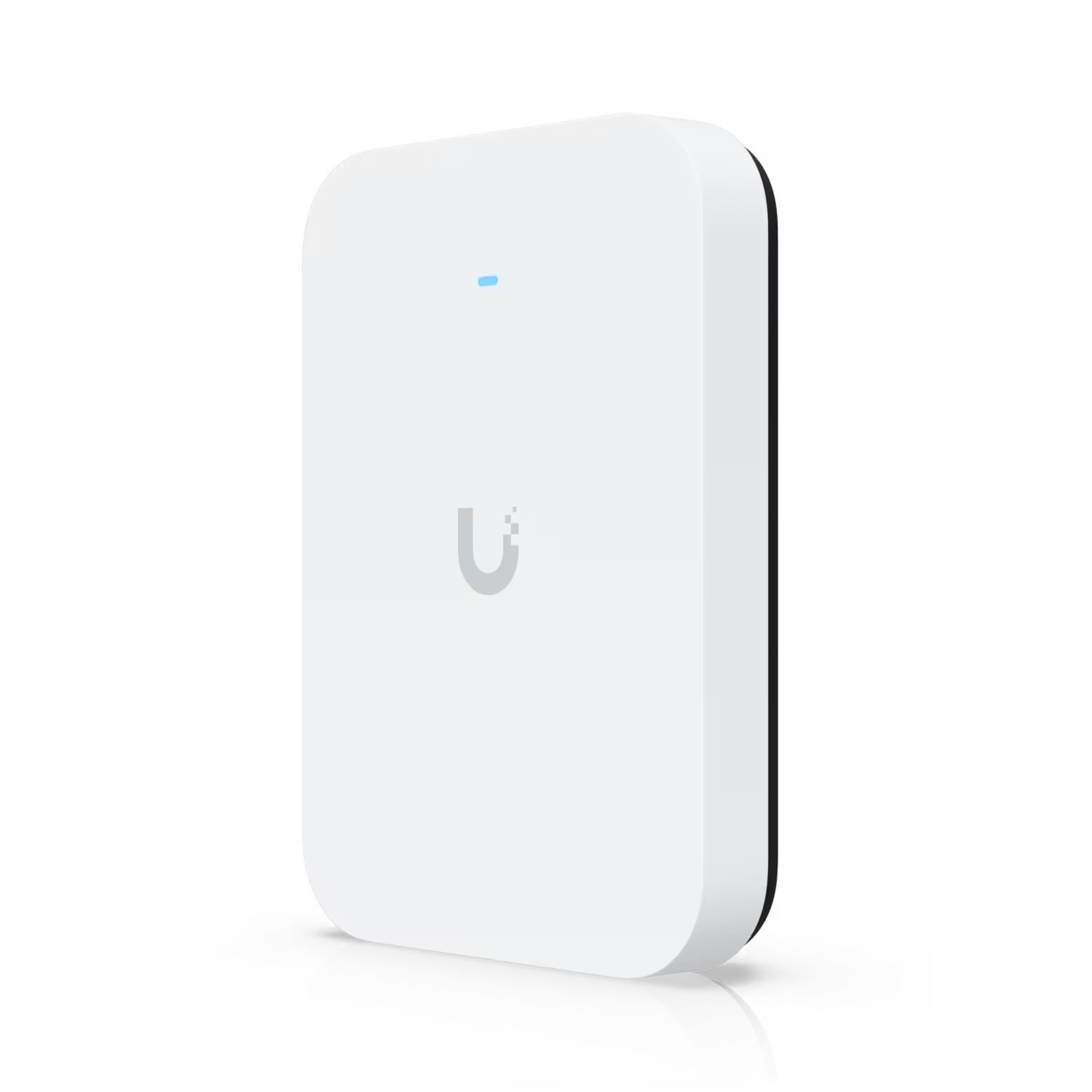

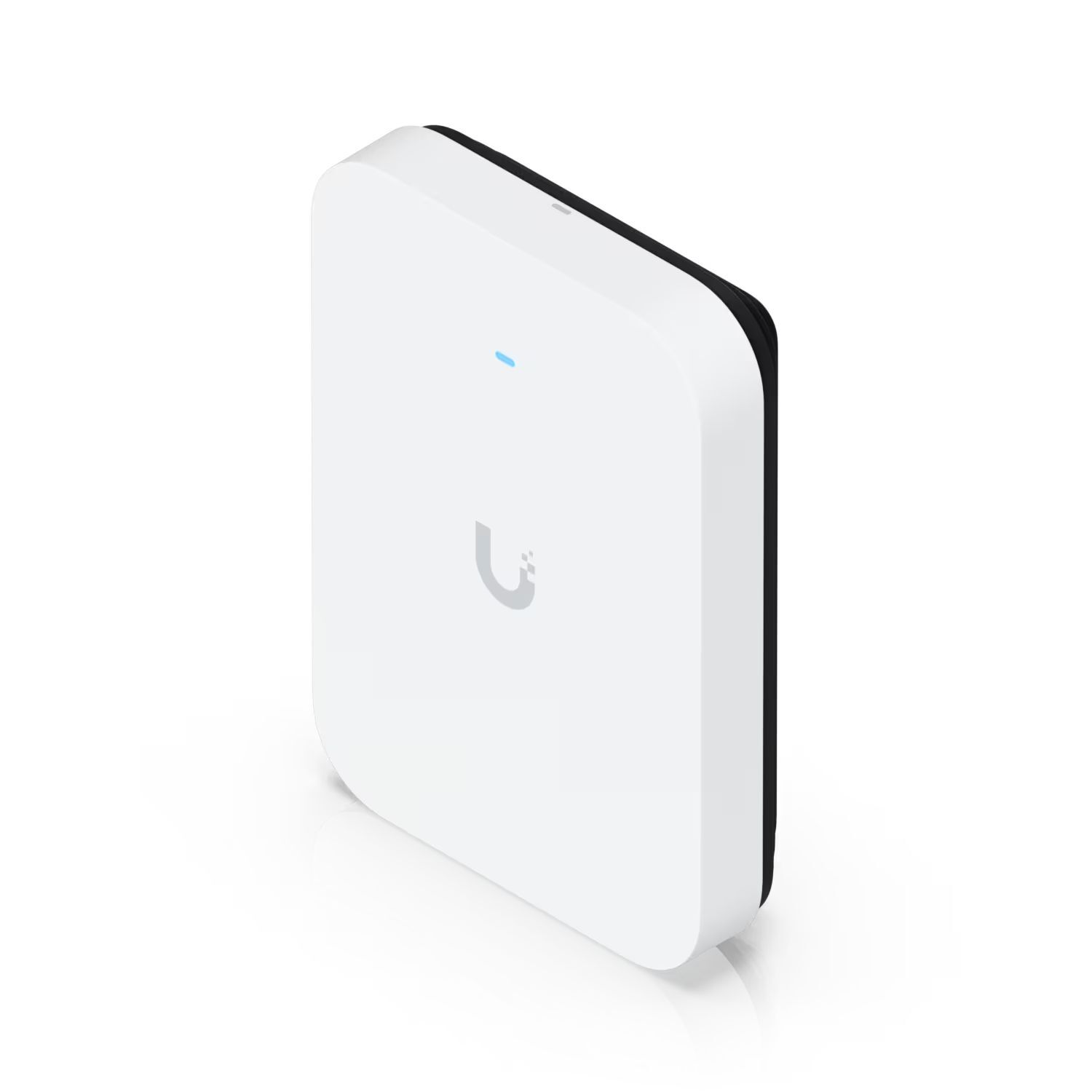

Ubiquiti U7-Pro-XG-Wall Wall-mounted 6 GHz-ready WiFi 7 Access Point
Model # U7-Pro-XG-Wall
-
SKU: U7-Pro-XG-Wall
- Pick Up Available
- Australian Warranty
- Checkout Securely
Wall-mounted 6 GHz-ready WiFi 7 AP with 1/2.5/10 GbE support.
(U7-Pro-XG-Wall)
Overview
| Item | Specification |
|---|---|

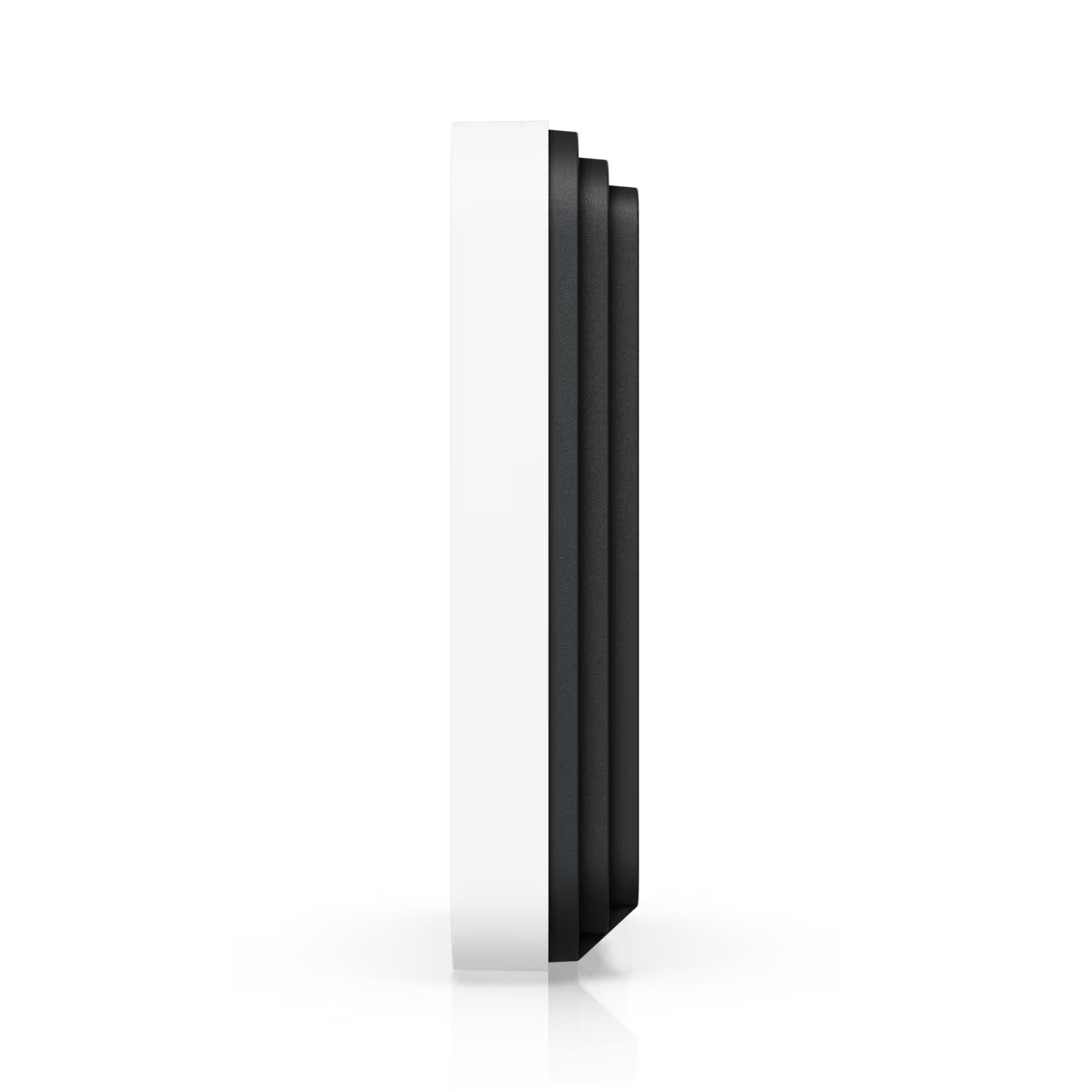

| Dimensions | 155 × 108 × 33.5 mm (6.1 × 4.3 × 1.3 in) |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 10 GbE |

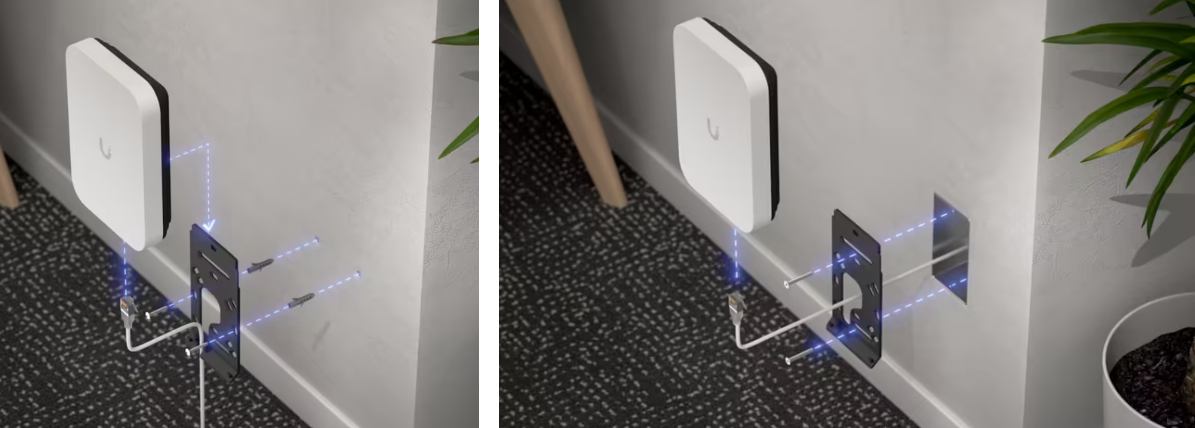

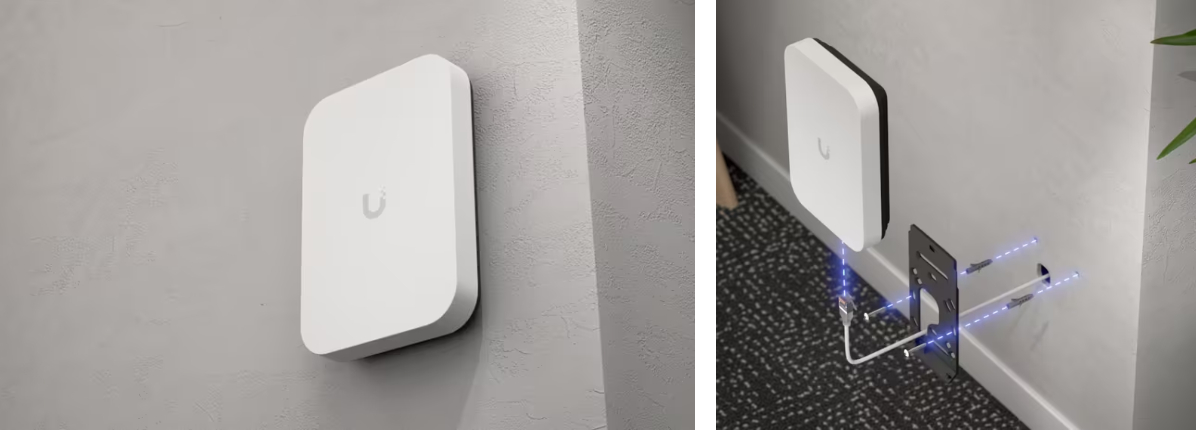

| Mounting | Wall |
| Power Method | PoE+ |
Performance – MIMO
| Band | MIMO |
|---|---|
| 6 GHz | 2×2 (DL/UL MU-MIMO) |
| 5 GHz | 2×2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2×2 (DL/UL MU-MIMO) |
Max Data Rate
| Band | Max Data Rate |
|---|---|
| 6 GHz | 5.8 Gbps (BW 320) |
| 5 GHz | 4.3 Gbps (BW 240) |
| 2.4 GHz | 688 Mbps (BW 40) |
Antenna Gain
| Band | Gain |
|---|---|
| 6 GHz | 6 dBi |
| 5 GHz | 6 dBi |
| 2.4 GHz | 4 dBi |
Max TX Power
| Band | TX Power |
|---|---|
| 6 GHz | 24 dBm |
| 5 GHz | 26 dBm |
| 2.4 GHz | 23 dBm |
Wireless Capabilities
| Feature | Supported |
|---|---|
| Max BSSIDs | 8 per radio |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k RRM | ✓ |
| Advanced Radio Management | ✓ |
Security & Guest Access
| Feature | Supported |
|---|---|
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Portal | ✓ |
| Custom Branding Page | ✓ |
| Voucher Authentication | ✓ |
| Payment-Based Authentication | ✓ |
| External Portal Server | ✓ |
| Password Authentication | ✓ |
| Guest Network Isolation | ✓ |
| PPSK | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Isolation | ✓ |
| WiFi Schedules | ✓ |
| RadSec (RADIUS over TLS) | ✓ |
| Dynamic RADIUS VLAN | ✓ |
Hardware
| Item | Specification |
|---|---|
| Max Power Consumption | 22 W |
| Voltage Range | 42.5–57 V DC |

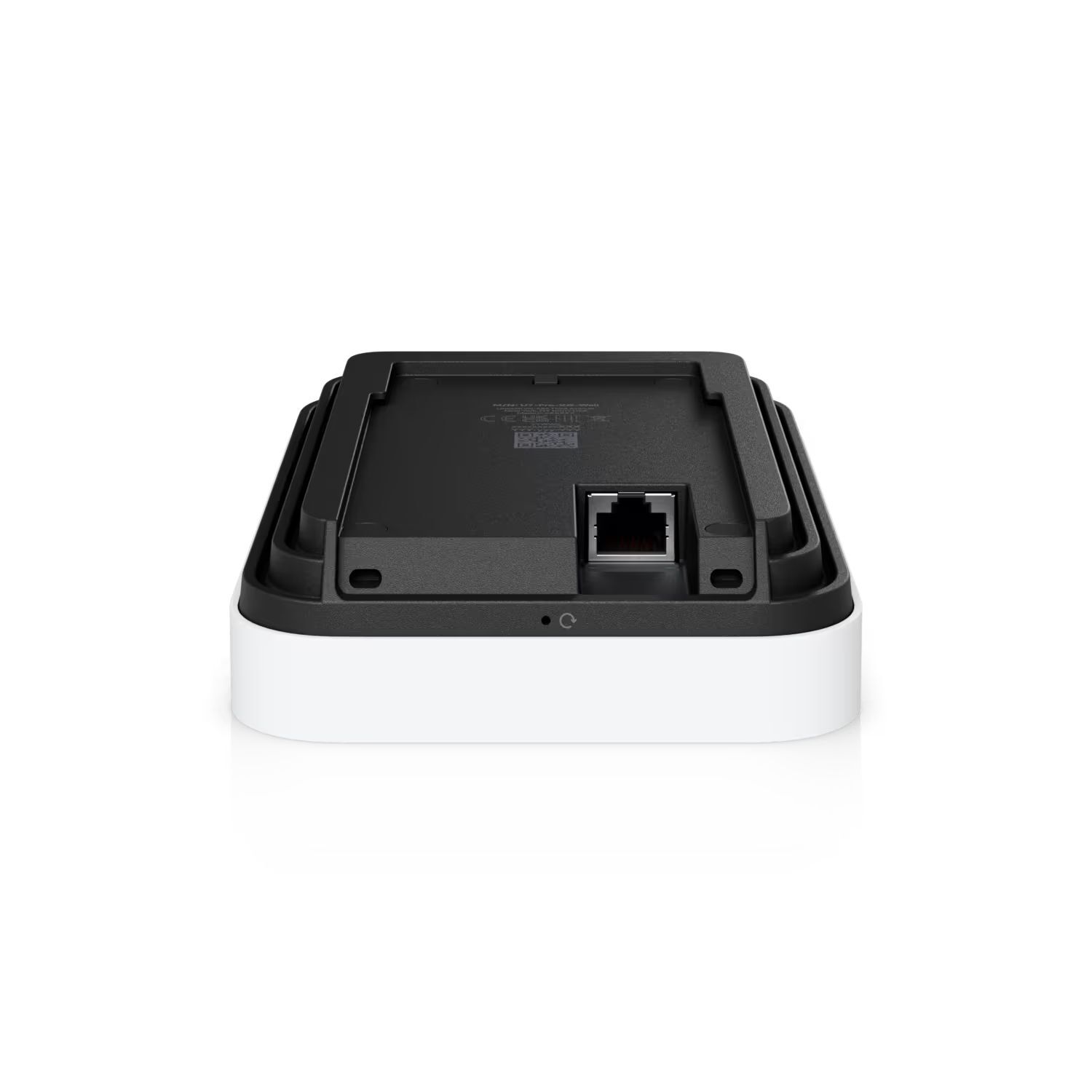

| Network Interface | (1) 10 GbE RJ45 |
| Weight | 505 g (1.1 lb) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum alloy |

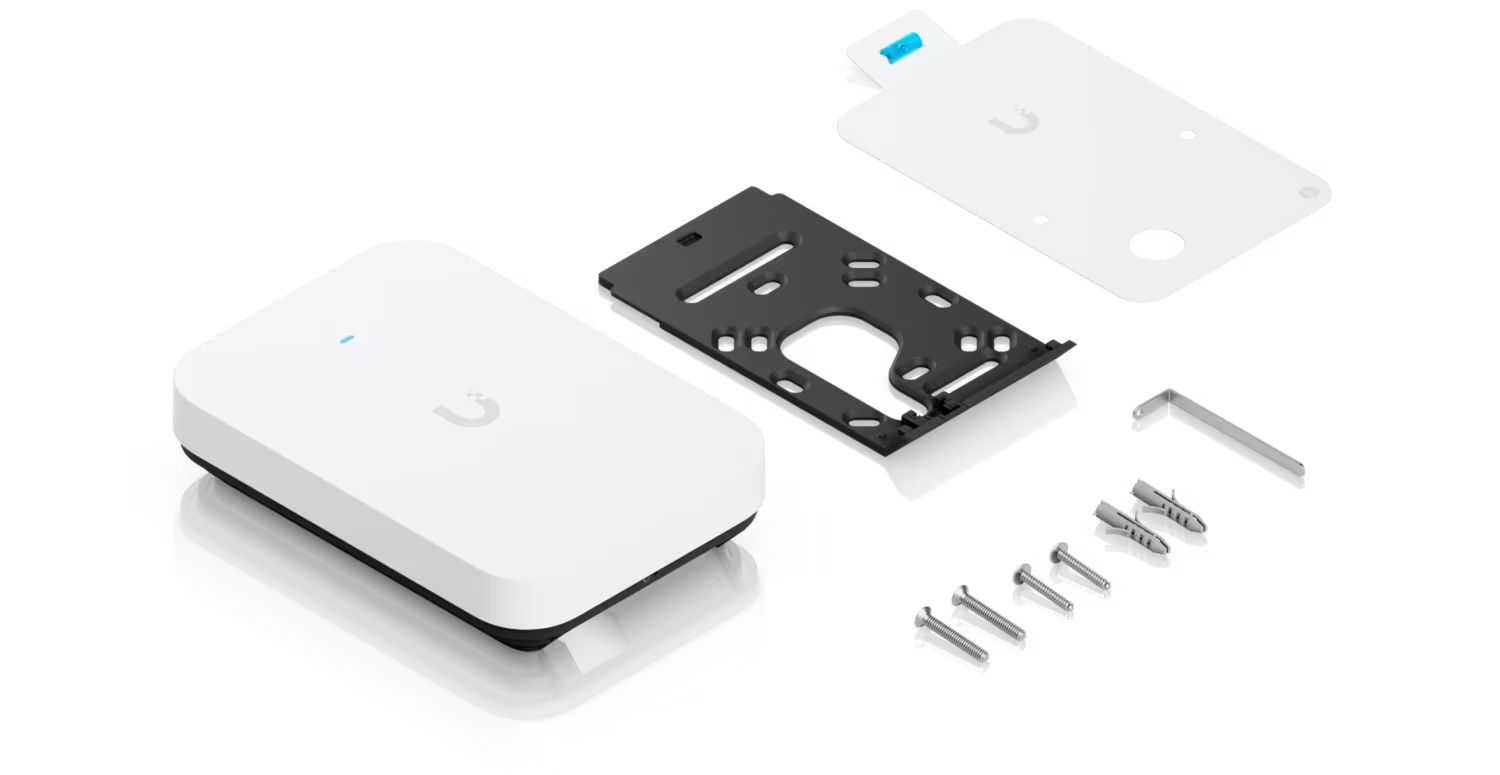

| Mount Material | Aluminum alloy |
| LEDs | System, W/B |
Environmental & Compliance
| Item | Specification |
|---|---|
| Channel Bandwidth | HT / VHT / HE / EHT up to 320 MHz |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Operating Temperature | -30 to 40°C (-22 to 104°F) |
| Operating Humidity | 5–95% (non-condensing) |
Software Requirements
| Item | Requirement |
|---|---|
| Application | UniFi Network v10.0+ |
| iOS App | v10.29.3+ |
| Android App | v10.31.1+ |
| SKU | U7-Pro-XG-Wall |
| Brand | Ubiquiti |
| Shipping Weight | 0.5050kg |
Manufacturer Warranty : 1 Year Manufacturer Warranty
