Ubiquiti UBB-XG Unifi Building to Building Bridge 10G Unifi 60 GHz wireless bridge with a 10 Gbps SFP+ interface Features: 5 GHz backup radio Operational range of up to 500 meters 6 Gbps throughput rate Additional GbE RJ45 port with PoE++ Integrated outer diameter alignment LED for easy setup Adopt the UBB-XG in Minutes with Your UniFi Network Application and: Centrally manage multiple networks from an intuitive interface Enjoy real-time device insights and deep configuration options Upgrade device firmware remotely Manage network users and guests with ease Personalize the design, architecture, and privacy of guest hotspots Set up devices quickly and manage them on the go with a powerful mobile app Mechanical Dimensions Ø191.77 x 58.95 mm Weight Without mount: 1.7 kg With mount: 2.85 kg Enclosure materials Aluminum alloy, UV-resistant polycarbonate Mount material Stainless steel Mounting 60G precision alignment pole mount (included) Pole compatibility: Ø25.4-63.5 mm Weatherproong IPX6 Hardware Management interface Ethernet Bluetooth Networking interface (1) GbE RJ45 port (1) 1/10G SFP+ port Button Factory-reset LED R/G/B Power method PoE++ Passive PoE [4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)] Power supply UniFi PoE switch 48V, 0.65A Gigabit PoE adapter (included) Supported voltage range 48VDC ± 10% Max. power consumption 31.2W Throughput rate 5 GHz 866.6 Mbps 60 GHz 6 Gbps Maximum range 500+ m (1,640+ ft) Operating temperature -40 to 55° C (-40 to 131° F) Operating humidity 5 - 95% noncondensing

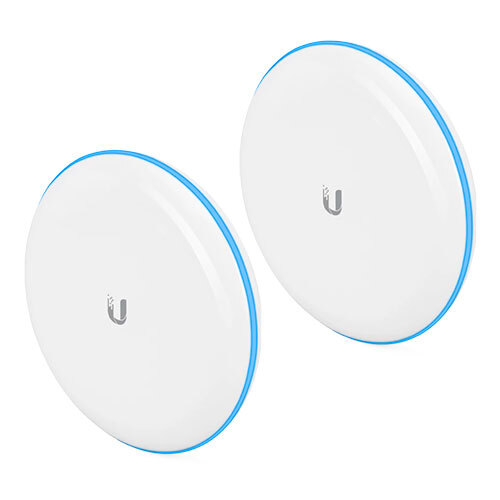

(UBB-XG)

Mechanical
Dimensions Ø191.8 x 59 mm (Ø7.6 x 2.3")
Weight Without mount: 1.7 kg (3.8 lb)
With mount: 2.9 kg (6.3 lb)
Enclosure materials Aluminum alloy, UV-resistant polycarbonate
Mount material Stainless steel
Mounting 60G precision alignment pole mount (Included)
Pole compatibility: Ø25.4-63.5 mm (Ø1-2.5")
Weatherproofing IPX6
Hardware
Networking interface (1) GbE RJ45 port
(1) 1/10G SFP+ port
Management interface Ethernet
Bluetooth
Power method PoE++
Passive PoE [4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)]
Power supply UniFi PoE switch
48V, 0.65A Gigabit PoE adapter (included)
Supported voltage range 48V DC ± 10%
Max. power consumption 31.2W
Throughput rate
5 GHz
60 GHz

866.6 Mbps
6 Gbps
Maximum range 500+ m (1,640+ ft)
LEDs R/G/B
Button Factory-reset
Operating temperature -40 to 55° C (-40 to 131° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE, terragraph
Software
WiFi standards 802.11ad/ay
802.11ac (WiFi 5)
Wireless security WPA2 AES (Always On)
Operating modes PtP
VLAN Management VLAN only
RF
Operating frequency* 57 to 66 GHz
*Dependent on regional regulations.
Channel bandwidth 2,160/4,320 MHz (Channel Bonding Enabled)
Operating channels* 58,320/59,400/60,480/61,560/62,640/63,720/64,800 MHz
*Dependent on regional regulations.
Backup RF
Operating frequency*
US/CA




Worldwide

U-NII-1: 5,150 - 5,250 MHz
U-NII-2A: 5,250 - 5,350 MHz
U-NII-2C: 5,470 - 5,725 MHz
U-NII-3: 5,725 - 5,850 MHz

5,150 - 5,725 MHz
*Dependent on regional regulations.
Channel bandwidth 20/40/80 MHz
SKU UBB-XG
Brand Ubiquiti
Shipping Weight 3.0000kg

Manufacturer Warranty: 1 Year Manufacturer Warranty
