TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE Access Point up to 27dBm, 2T2R, 802.11a/n, 16dBi Directional Antenna, Weatherproof
Model# CPE510
-
SKU: CPE510
- Pick Up Available
- Australian Warranty
- Checkout Securely

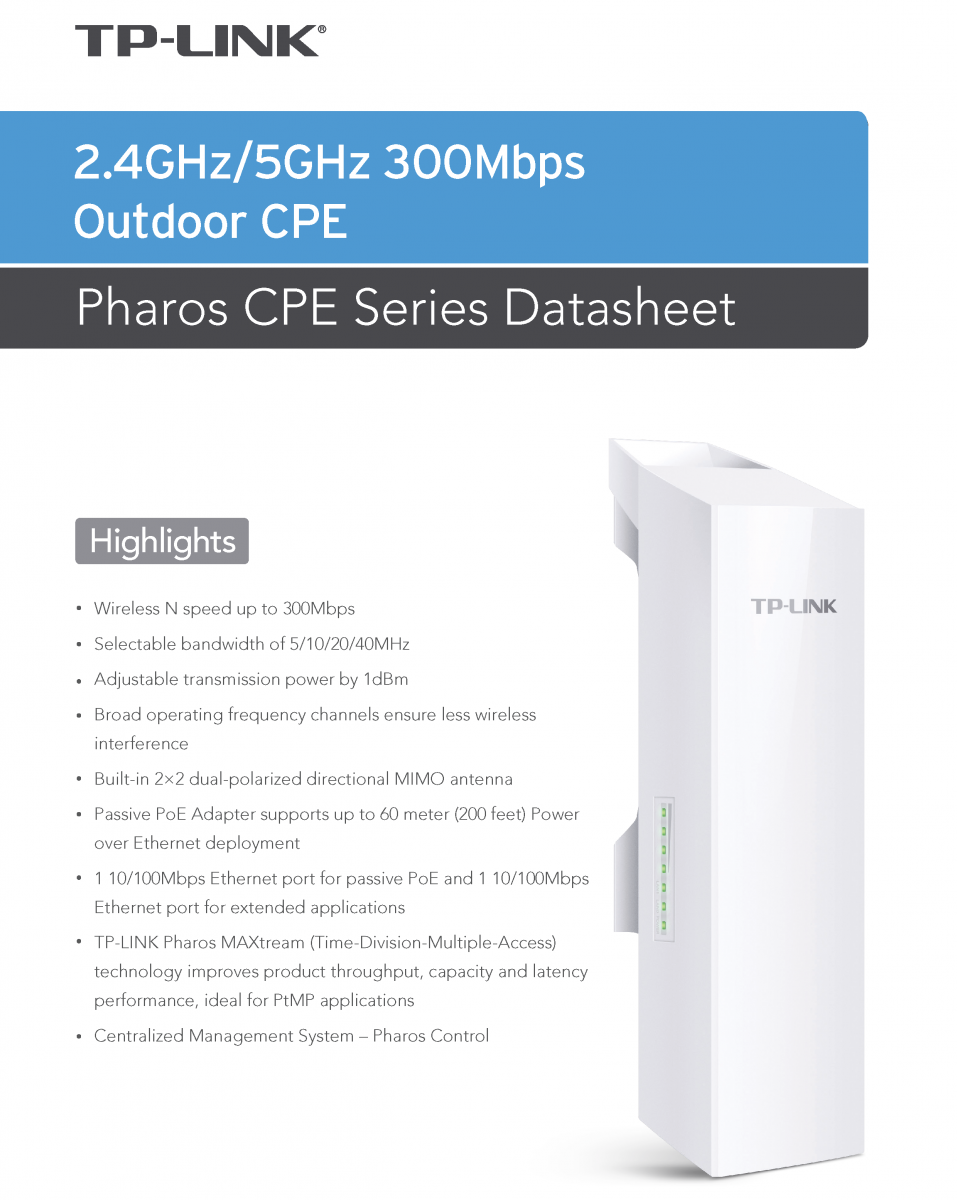

TP-LINK CPE510 5GHz 300Mbps 13dBi Outdoor CPE - Built-in 13dBi 2x2 dual-polarized directional MIMO antenna - 0 to 27dBm/500mw - 3 Years Limited Warranty
Features
- Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 27dBm/500mw

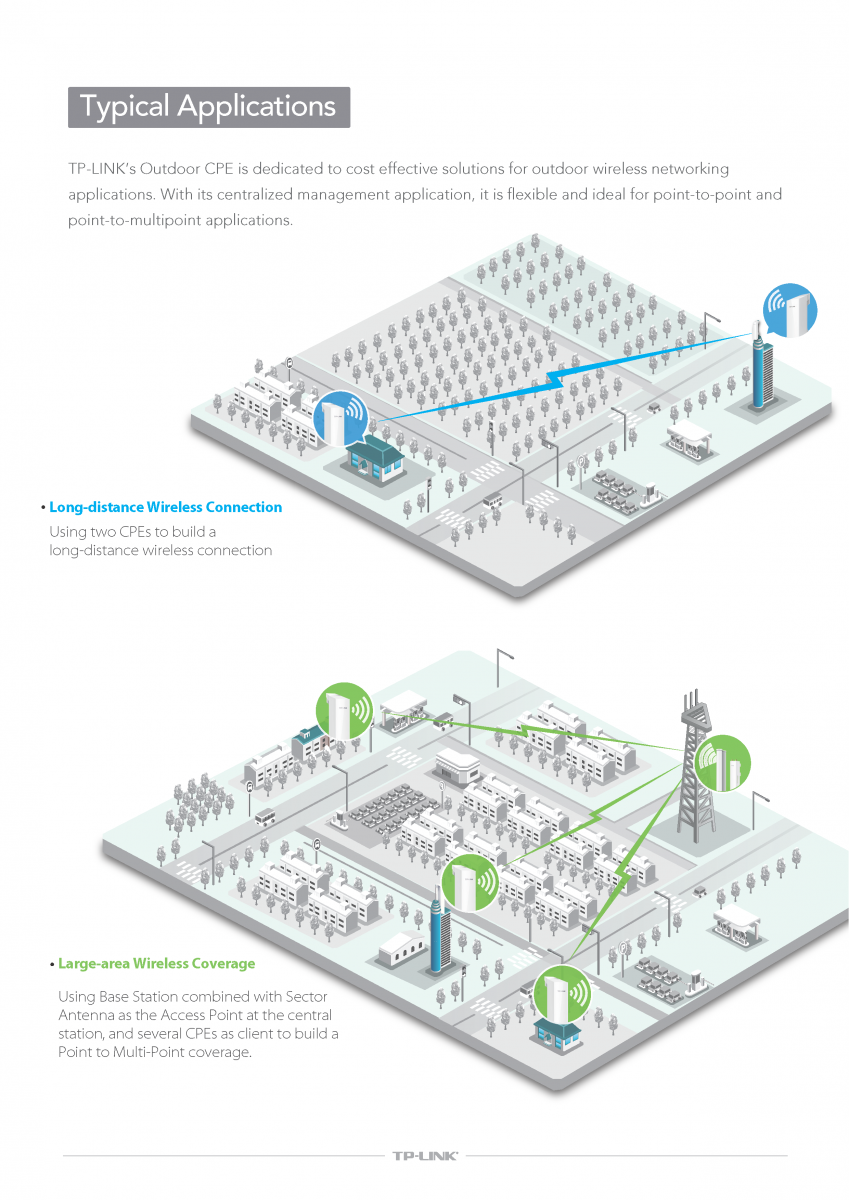

- System-level optimizations for more than 15km long range wireless transmission

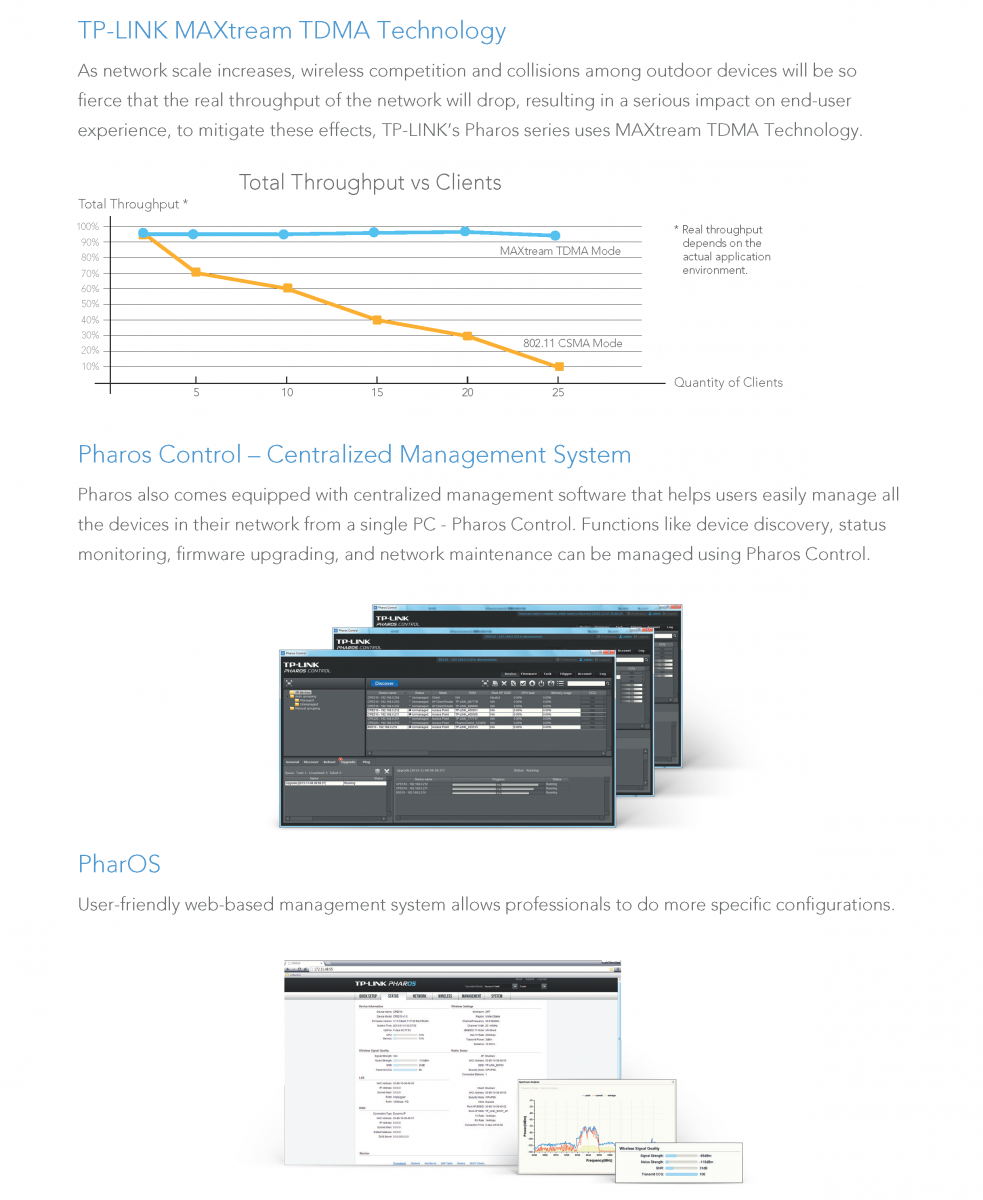

- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
(CPE510)
Physical Characteristics
| Form Factor | Pole-mountable |
| Height | 60 mm |
| Width | 79 mm |
| Depth | 224 mm |
Miscellaneous
| Package Contents |
|
| Certifications & Standards |
|
| System Requirements |
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
Interfaces/Ports
| Ethernet Technology | Fast Ethernet |
| Ethernet | |
| USB | No |
| HDMI | No |
| VGA | No |
| Number of Network (RJ-45) Ports | 2 |
| Audio Line Out | No |
| Serial Port | No |
| Network (RJ-11) | No |
| Powerline | No |
| Management Port | No |
| PoE (RJ-45) Port | Yes |
| PoE PD Port | Yes |
General Information
| Product Type | Wireless Bridge |
| Manufacturer Part Number | CPE510 |
| Manufacturer Website Address | http://www.tp-link.com.au |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Model | CPE510 |
| Product Name | 5GHz 300Mbps 13dBi Outdoor CPE |
| Brand Name | TP-Link |
Technical Information
| Features | MIMO Technology |
| Weather Proof | |
| Wireless Security |
|
| Wireless Transmission Speed | 300 Mbit/s |
| Wireless LAN Standard | IEEE 802.11n |
| ISM Band | Yes |
| UNII Band | Yes |
| Outdoor Antenna Range | 15 km |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Minimum Frequency | 5.15 GHz |
| UNII Maximum Frequency | 5.85 GHz |
| Antenna Type | Dual Polarized Antenna |
| Antenna Gain (Isotropic) | 13 dBi |
| SKU | CPE510 |
| Barcode # | 6935364070922 |
| Brand | TP-LINK |
| Shipping Weight | 0.7500kg |
| Shipping Width | 0.130m |
| Shipping Height | 0.110m |
| Shipping Length | 0.270m |
| Shipping Cubic | 0.003861000m3 |
Manufacturer Warranty: 3 Year Manufacturer Warranty
