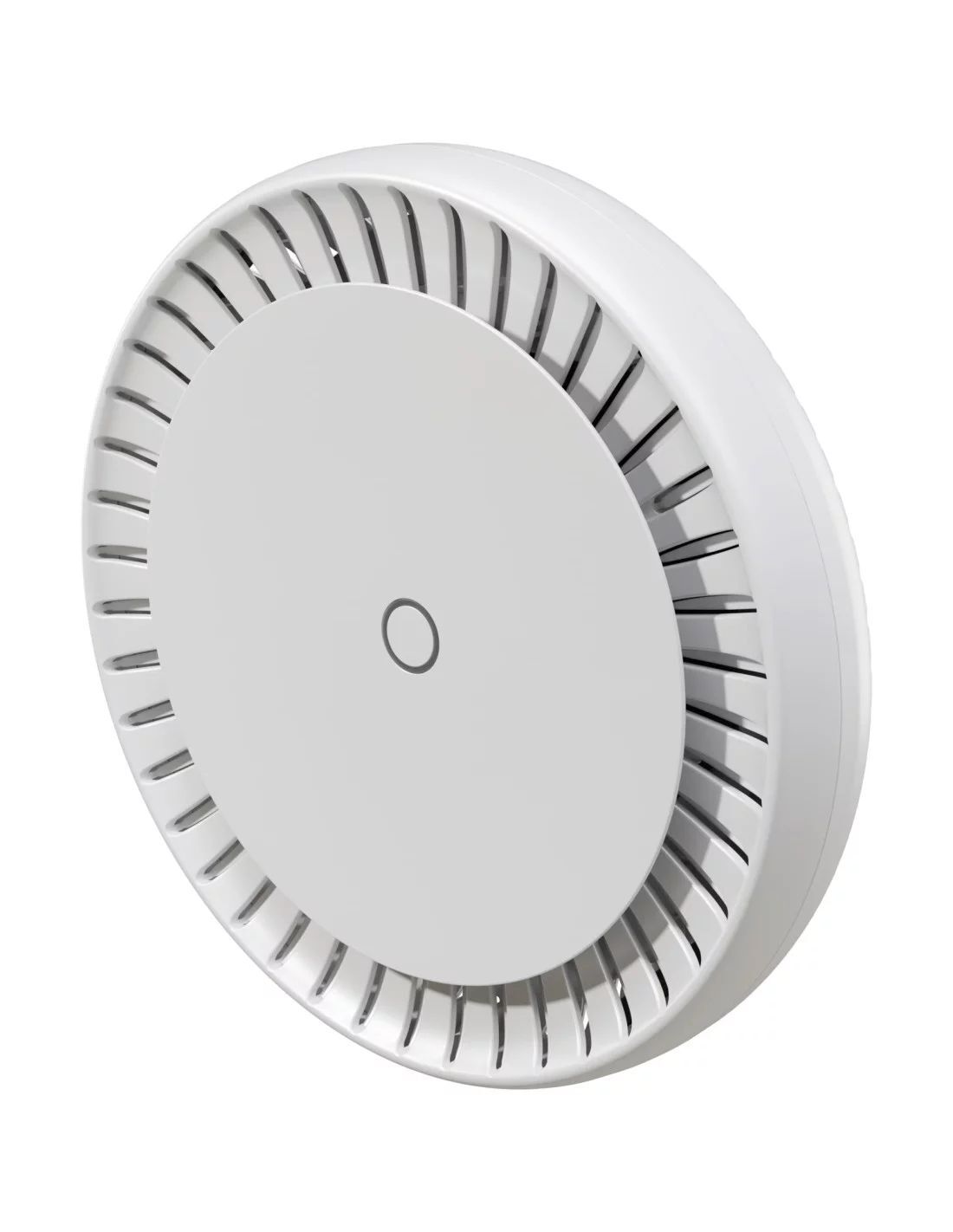

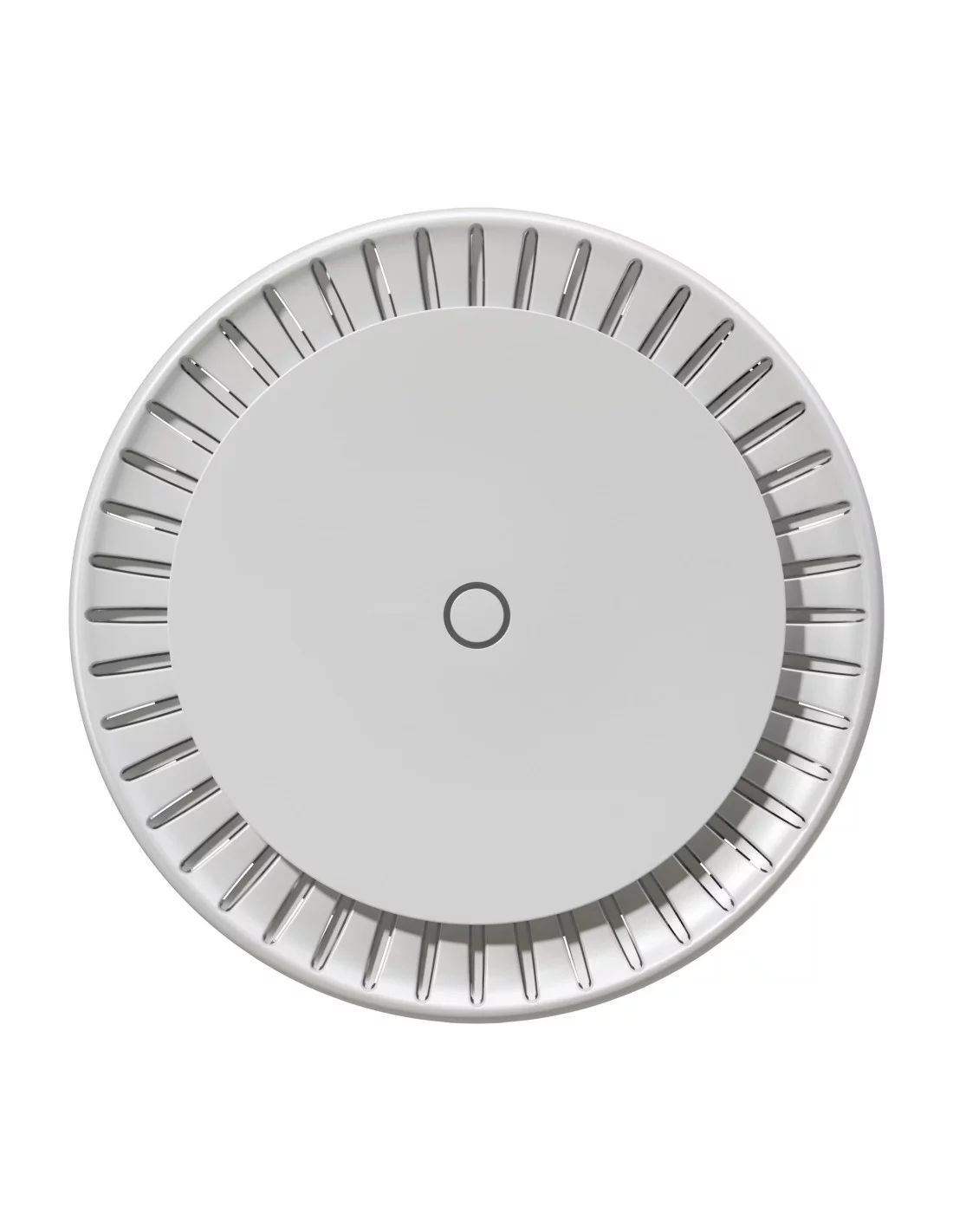

cAPGi-5HaxD2HaxD - MikroTik cAP ax 802.11ax Gen6 Quad-Core CPU 2 Gigabit Ethernet PoE In-Out RouterOS V7 Ceiling WiFi Access Point

When it comes to wireless network in the office, you can’t afford to cut corners and risk inhibiting your team’s performance. You need excellent coverage throughout the premises. You need a device that can handle a large number of clients. You need a reliable, flexible, cost-effective solution: the cAP ax!

Both open office and cubicle layouts usually encounter a variety of network issues: signal gets absorbed, reflected, it becomes unstable. Mirrors, tinted glass, TVs, metal file cabinets all sorts of things can get in the way. Our solution is simple, effective, and elegant: let your access point rise above all the obstacles! In other words, a ceiling access point is a great way to prevent signal loss in large, crowded areas with many obstacles.

There is another benefit to this form-factor: cAP ax remains hidden in plain sight, attracting less unwanted attention than a smoke sensor. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing-fast wireless connection!

With the Generation6 802.11ax wireless standard, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum, if we compare it to the previous generations! But what’s more important than speed is the stability. Our latest AX devices can withstand and navigate even the toughest wireless interference scenarios, offering the most stable and uninterrupted signal to date!

cAP ax features a modern quad-core CPU running at 1.8 GHz, NAND storage, and a gigabyte of RAM. Enough to harvest the full potential of the most powerful networking software on the market RouterOS v7! Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels – cAP ax can do it all!

Compared to the previous generation, cAP ax offers multiple enhanced authentication types: OWE, WPA3-PSK, WPA3-EAP, and 802.11r roaming.

cAP ax is also a great way to make your office network installation and maintenance so much easier, as it features PoE-in and PoE-out. That’s right – you can use cAP ax to power other devices, such as network switches, CCTV cameras, or even another cAP ax! And, speaking of easy office networks... Just a few clicks in our latest wifiwave2 CAPsMAN central management system and you’re done setting up hundreds of cAP ax devices! You can use all sorts of MikroTik devices to run CAPsMAN effortlessly, for example - your main gateway.

(CAPGI-5HAXD2HAXD)



  • Dual-band WiFi 6 (802.11ax)
  • 5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
  • 2.4 GHz (2x2 MU-MIMO and OFDMA) band with a 573.5 Mbps throughput rate
  • Operates at full 4x4 MIMO with 160 MHz bandwidth
  • 300+ concurrent client capacity
  • Guest Traffic Isolation, which enhances wireless network security and lowers traffic congestion
  • Included universal mounting plate, backing plate, and screw kit
Details
Product code cAPGi-5HaxD2HaxD
Architecture ARM 64bit
CPU IPQ-6010
CPU core count 4
CPU nominal frequency auto (864 - 1800) MHz
Switch chip model IPQ-6010
RouterOS license 4
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $129.00

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 6
Wireless 2.4 GHz chip model QCN-5022
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 1200 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 5.5
Wireless 5 GHz chip model QCN-5052
Wireless 5 GHz generation Wi-Fi 6
WiFi speed AX1800

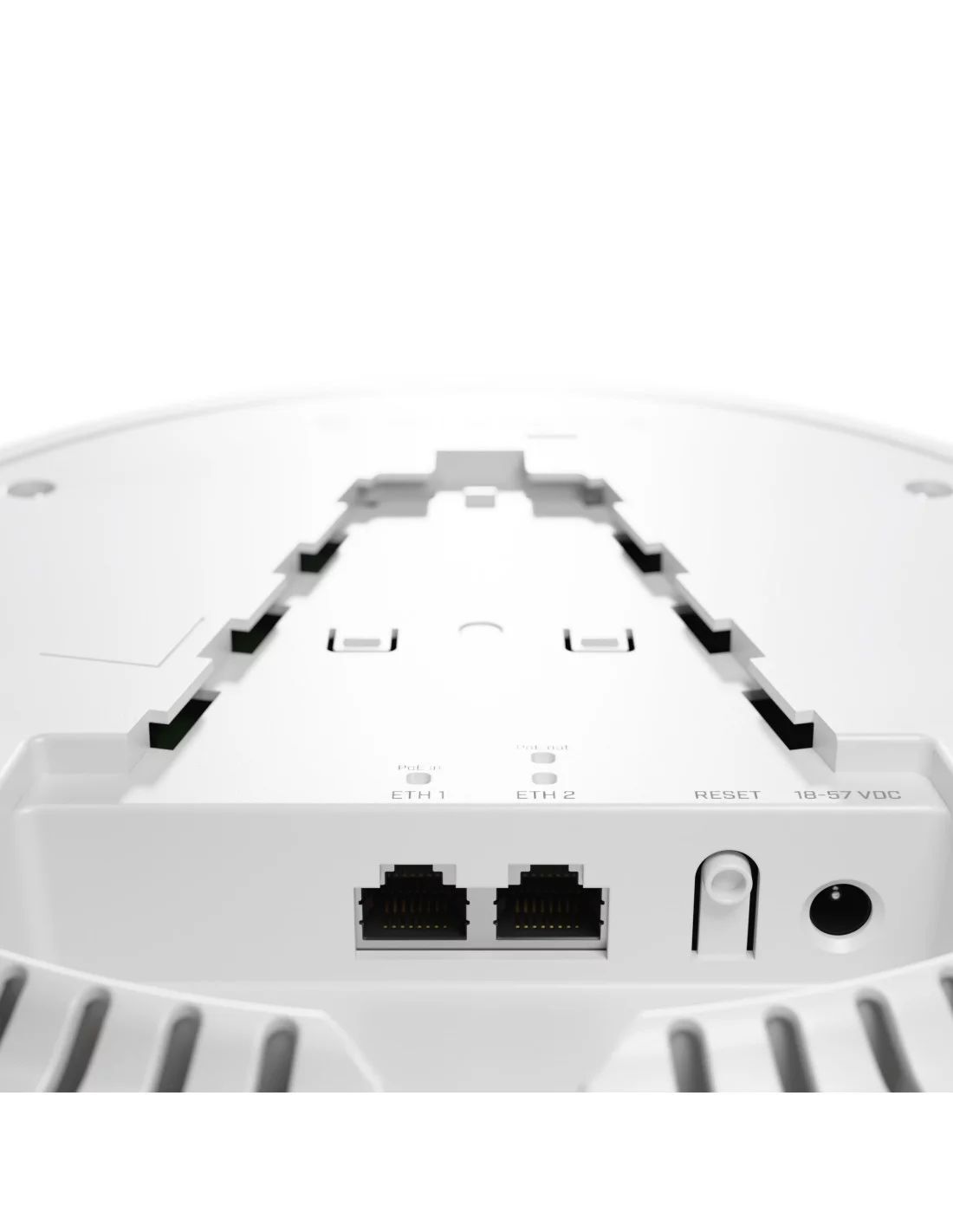

Ethernet

Details
10/100/1000 Ethernet ports 2
Number of 1G Ethernet ports with PoE-out 1

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 18-57 V
Max power consumption 36 W
Max power consumption without attachments 9 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 18-57 V

PoE-out

Details
PoE-out ports Ether2
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 600 mA
Max out per port output (input 30-57 V) 400 mA
Max total out (A) 600 mA
Total output current 0.4
Total output power 19.2

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP 20

Other

Details
CPU temperature monitor Yes
Mode button Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s   -100
11MBit/s   -94
6MBit/s 24 -96
54MBit/s 21 -80
MCS0 24 -96
MCS7 20 -75
MCS9 19 -70
MCS11 17 -67
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 24 -96
54MBit/s 21 -80
MCS0 24 -96
MCS7 20 -75
MCS9 19 -70
MCS11 17 -67
SKU CAPGI-5HAXD2HAXD
Barcode # 4752224008473
Brand MIKROTIK
Shipping Weight 1.0000kg

Manufacturer Warranty
