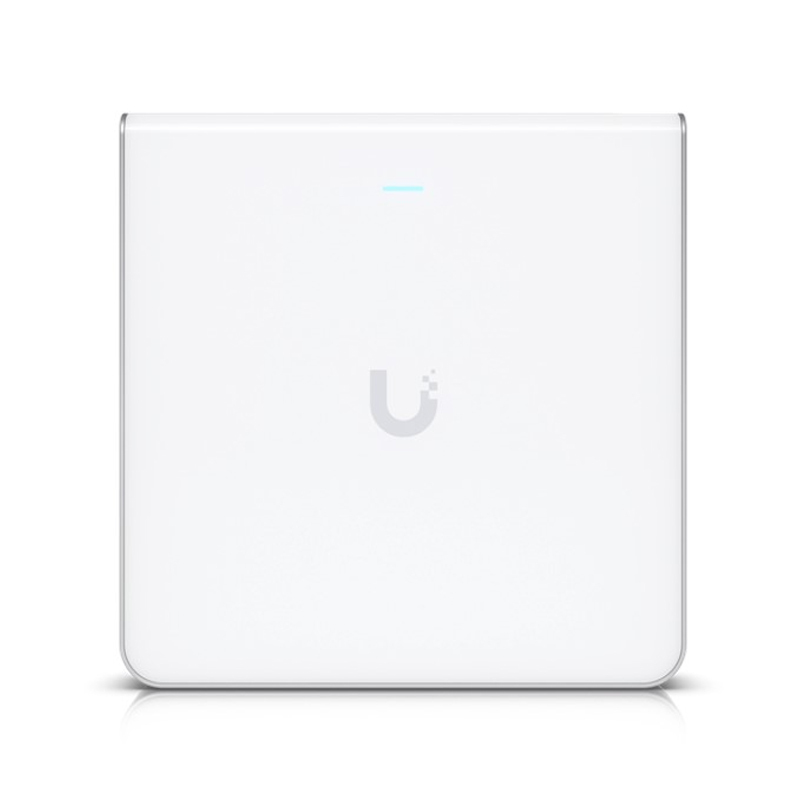

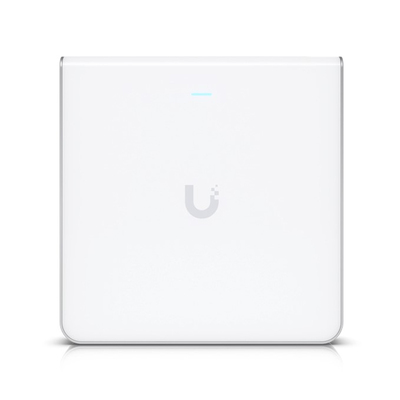

Ubiquiti Networks U6 Enterprise In-Wall UniFi PoE Wi-Fi 6E Tri-Band Access Point

Interface: Data in: 1x 2.5GbE RJ45, Data out: 4x 1GbE RJ45 - Management interface: Ethernet, Bluetooth - PoE interface: 1x PoE+ input, 1x PoE output - Power method: PoE+, PoE++ (required for PoE output)





Sleek, wall-mounted WiFi 6E access point with an integrated four-port switch designed for high-density office networks.

Features:
- WiFi 6 support (2.4/5/6 GHz bands)
- 10.2 Gbps aggregate throughput rate
- 4-port Gigabit switch with (1) PoE output
- (1) 2.5GbE RJ45 port (PoE In)
- Powered with PoE+ or PoE++ (required for PoE output)
- Use with our USW Enterprise switches for maximum throughput



115 m² (1,250 ft²) coverage

600+ connected devices

WiFi6E (4x4 MIMO)

Powered using PoE+/PoE++*

(4) GbE ports with (1) PoE output

2.5GbE uplink

(U6-ENTERPRISE-IW)

Mechanical

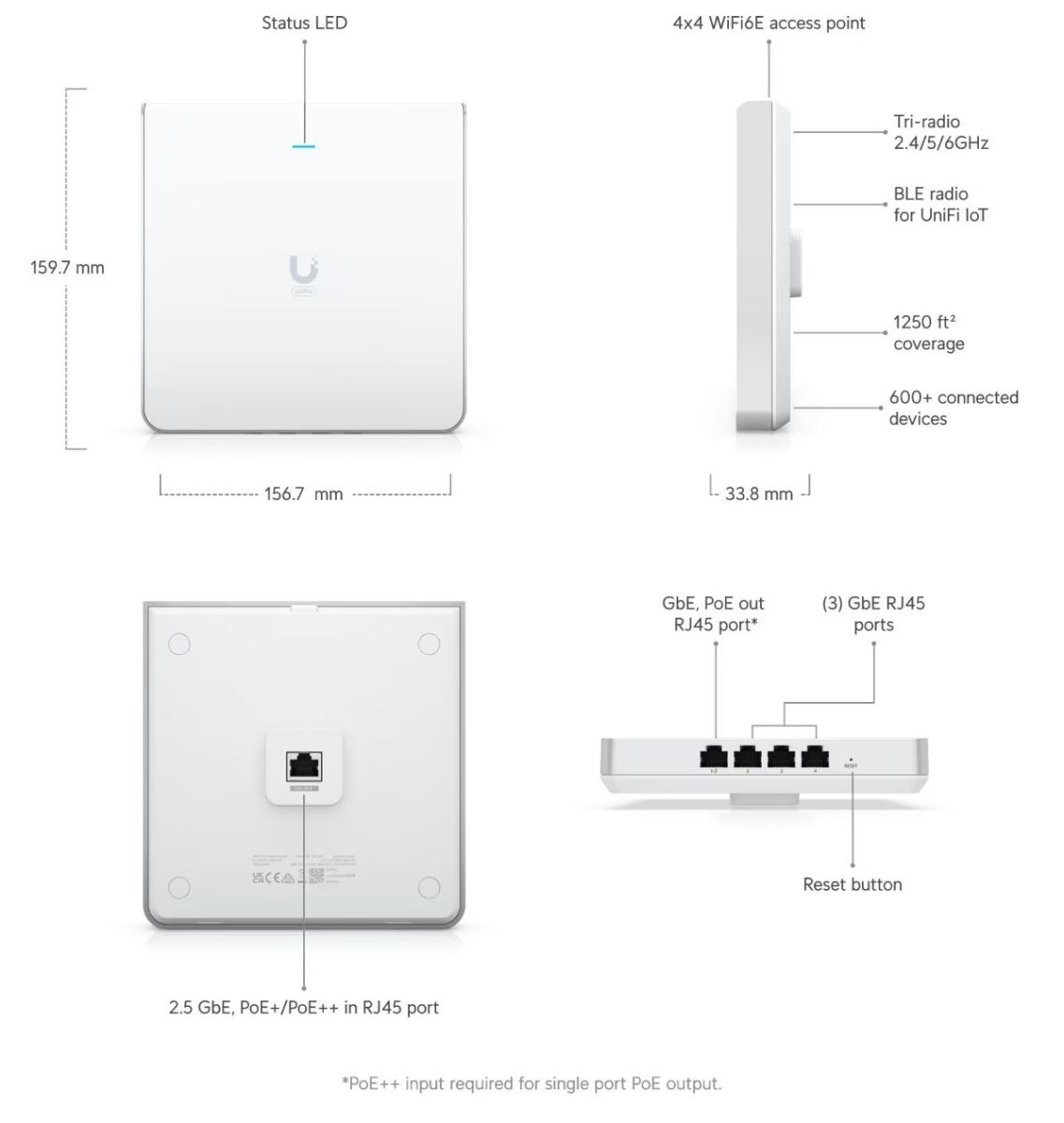

Dimensions 159.7 x 156.7 x 33.8 mm (6.3 x 6.2 x 1.3")
Weight 884 g (1.95 lb)
Enclosure materials Polycarbonate, aluminum
Mount material Aluminum
Hardware
Networking interface (1) Data in: 2.5GbE RJ45 port
(4) Data out: GbE RJ45 ports
Management interface Ethernet
Bluetooth
PoE interface (1) PoE+ input
(1) PoE output
Power method PoE+
PoE++ (required for PoE output)
Power supply UniFi PoE switch
Max. power consumption Excluding PoE output: 21W
Max. PoE wattage per port by PSE 15.4W
Supported voltage range 44—57V DC
Max. TX power
2.4 GHz
5-7 GHz

22 dBm
26 dBm
MIMO
2.4 GHz
5 GHz
6 GHz

2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz
6 GHz

573.5 Mbps
4.8 Gbps
4.8 Gbps
Antenna gain
2.4 GHz
5 GHz
6 GHz

4 dBi
5.8 dBi
5.8 dBi
LED White/blue
Button Factory reset
Operating temperature -30 to 60° C (-22 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6/WiFi 6E
Wireless security protocols WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent client support 600+
Zero-wait DFS Yes*
*Supported with upcoming firmware versions.
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6/6E) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Application Requirements
UniFi Network Version 7.2.85 and later
SKU U6-ENTERPRISE-IW
Barcode # 810010077523
Brand Ubiquiti
Shipping Weight 1.5000kg

Manufacturer Warranty: 1 Year Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Ubiquiti U6 Enterprise In-Wall UniFi PoE Wi-Fi 6E Tri-Band Access Point

Model # U6-ENTERPRISE-IW

  • SKU: U6-ENTERPRISE-IW

$562.00
$584.00
SAVE $22.00 (4%)
In Stock
