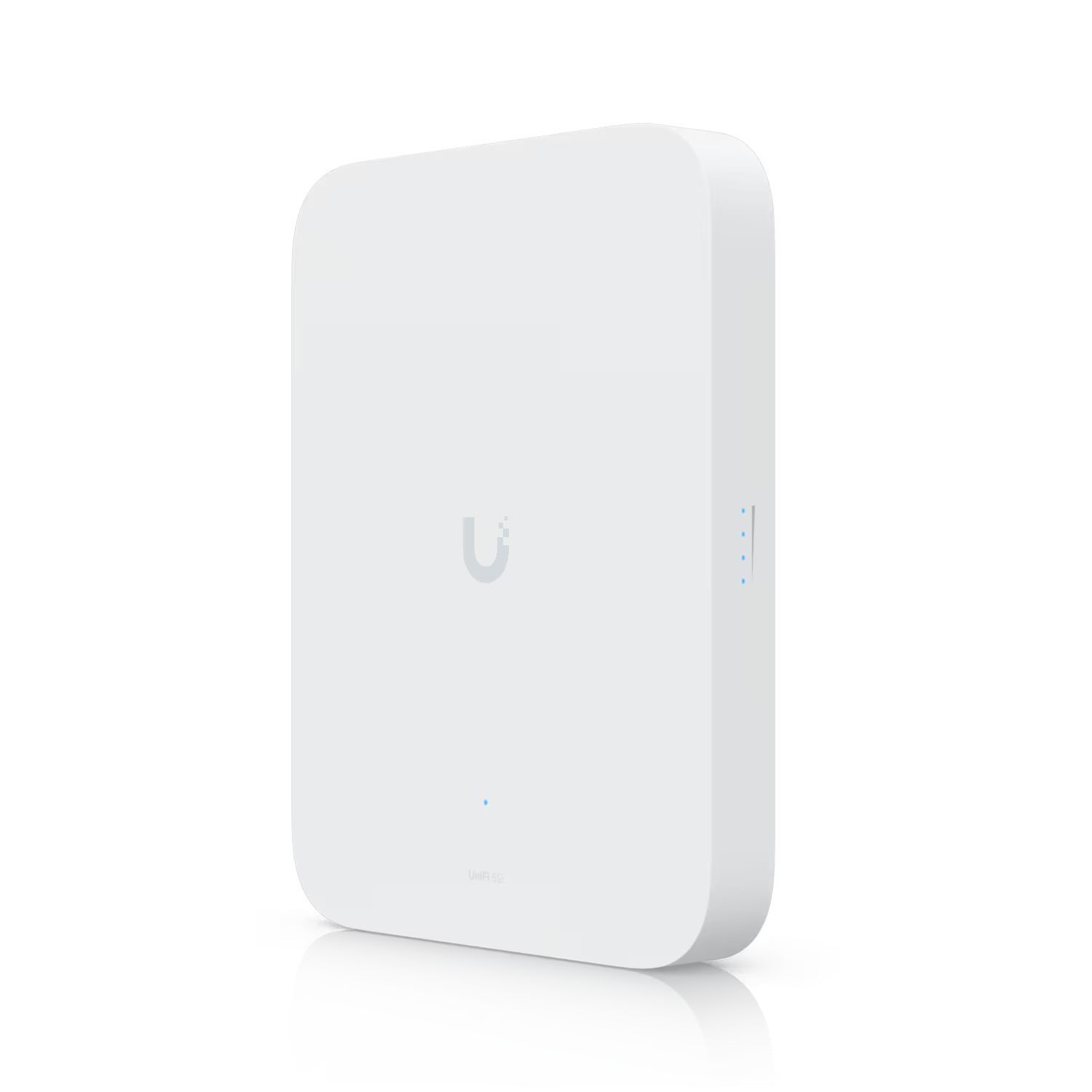

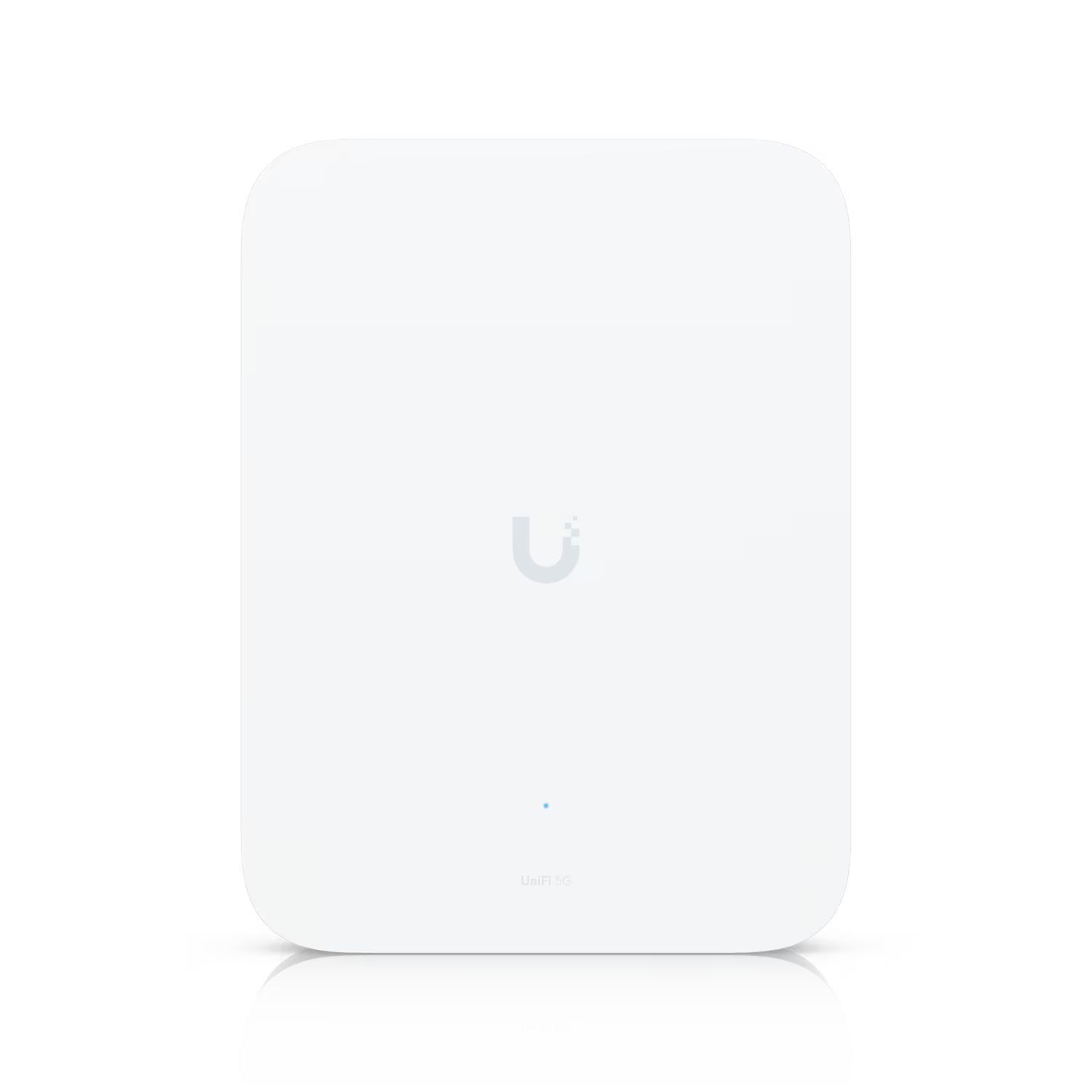

UniFi Outdoor 5G Modem

3.4 Gbps Peak Speed | Directional Antennas | Outdoor Rated

Ensure peak cellular performance for your UniFi consoles and Cloud Gateways with the full-performance Outdoor 5G Modem. Engineered for superior signal acquisition, this device features high-gain directional antennas and a ruggedized exterior to withstand the elements. With blistering 3.4 Gbps speeds and carrier-grade certifications, it serves as the ultimate high-speed primary or secondary internet source for mission-critical network deployments.

Main Features

Full-Performance 5G: Massive 3.4 Gbps downlink for high-bandwidth enterprise needs.
Directional Antennas: Integrated high-gain antennas for superior signal strength in weak areas.
Dual SIM Failover: Supports seamless carrier switching to maintain absolute uptime.
Remote SIM Technology: Innovative Remote SIM capability** for simplified management and access.

Technical Specs

Throughput: 3.4 Gbps Download / 900 Mbps Upload
Certifications: AT&T, T-Mobile, and Verizon Certified*
Durability: Weatherproof design optimized for outdoor installation.
Connectivity: Powered via PoE; integrates with UniFi Consoles.
Slots: Physical Dual SIM support for redundant carrier paths.

Advanced Cellular Resilience Outdoors

The UniFi Outdoor 5G Modem is the professional’s choice for robust internet connectivity. By placing the 5G radio outside the building and utilizing directional antennas, it overcomes common indoor signal interference. Combined with Remote SIM management and seamless failover, it provides an airtight safety net for any UniFi Cloud Gateway. Whether you're providing high-speed internet to a remote site or securing a backup link for your main office, this modem delivers uncompromising 5G performance.

(U5G-Max-Outdoor)

Detailed Specifications

Cellular Connectivity

Radio Technology

5G NR, 4G LTE, 3G UMTS

5G Peak Speeds

NSA: 3.4 Gbps DL / 560 Mbps UL | SA: 1.8 Gbps DL / 650 Mbps UL

4G LTE Peak Speeds

Downlink: 1.6 Gbps | Uplink: 210 Mbps

SIM Support

(1) Nano SIM; (1) Nano-SIM or eSIM

Antennas

(6) Embedded antennas (includes 2 high-gain DL: 9 dBi, 85°x85°)

Hardware & Interface

Networking Port

(1) 2.5 GbE RJ45 port

Power Method

PoE Input | Max. Consumption: 14.5W

Indicators / Controls

LEDs, (1) Factory-reset button

Mechanical & Environmental

Dimensions

Device: 220 x 165 x 66.9 mm (8.7 x 6.5 x 2.6")

Weight / Material

1.2 kg (2.6 lb) | Aluminum-alloy, UV-stabilized Polycarbonate

Weatherproofing

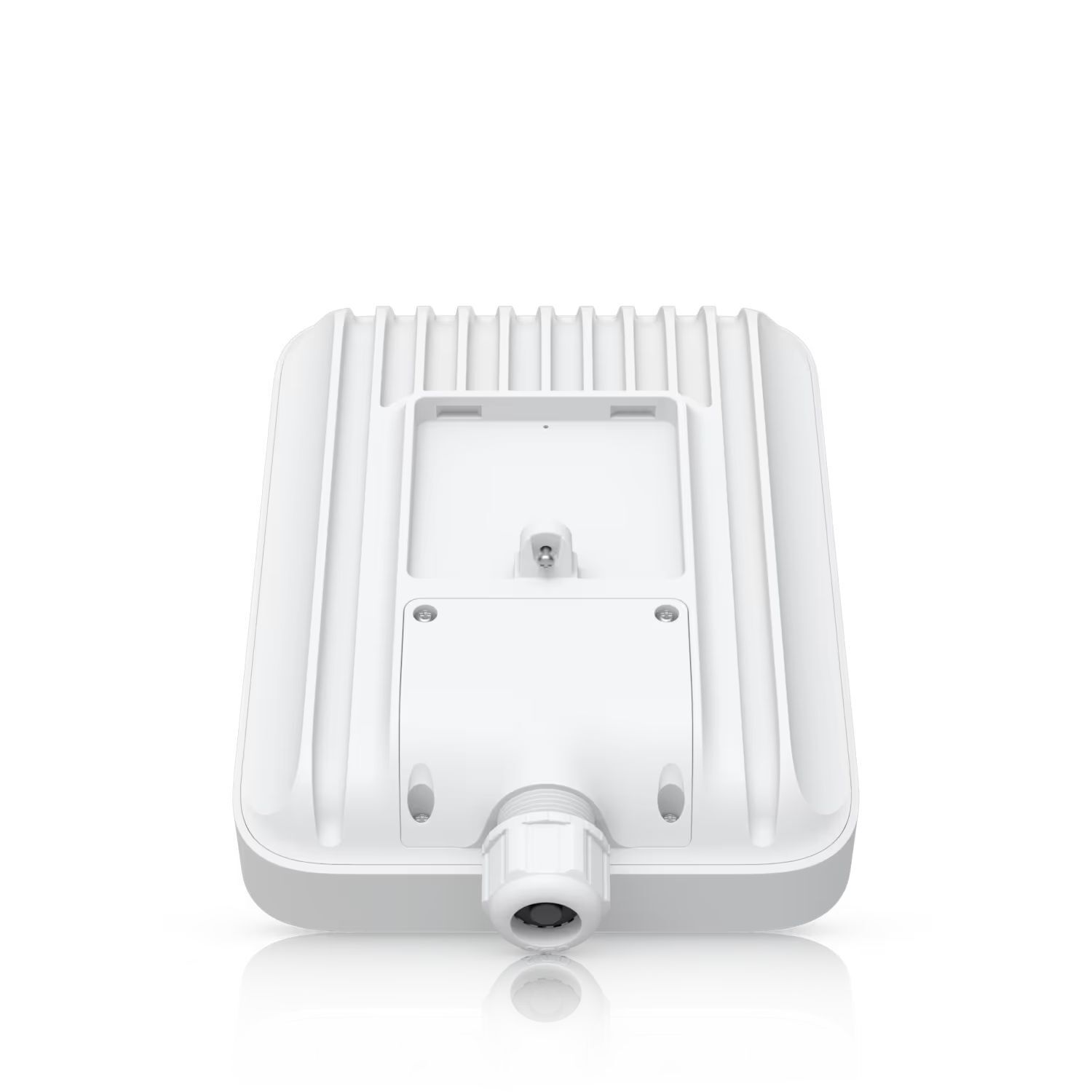

IPX6 (IP67 with cable-gland door kit)

Operating Range

-40 to 65 °C (-40 to 149 °F) | 5 to 95% noncondensing

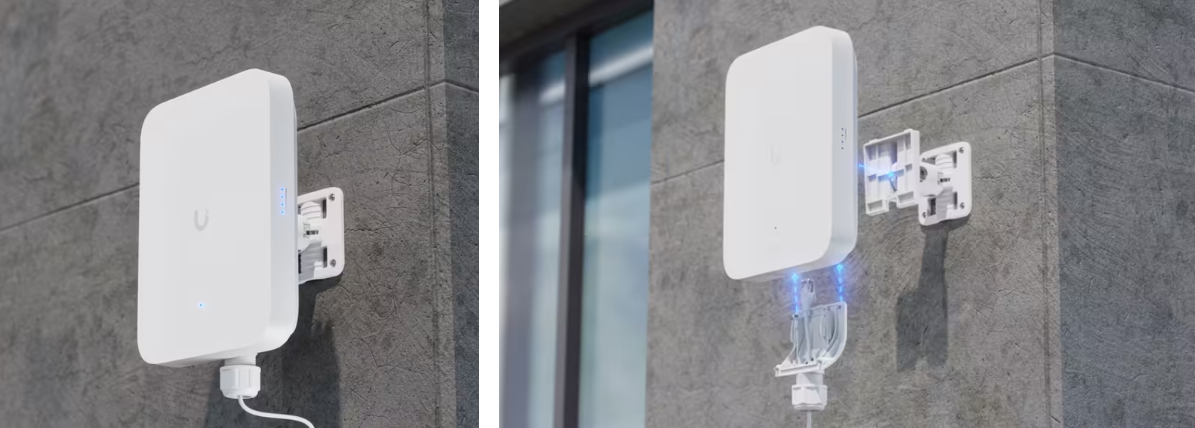

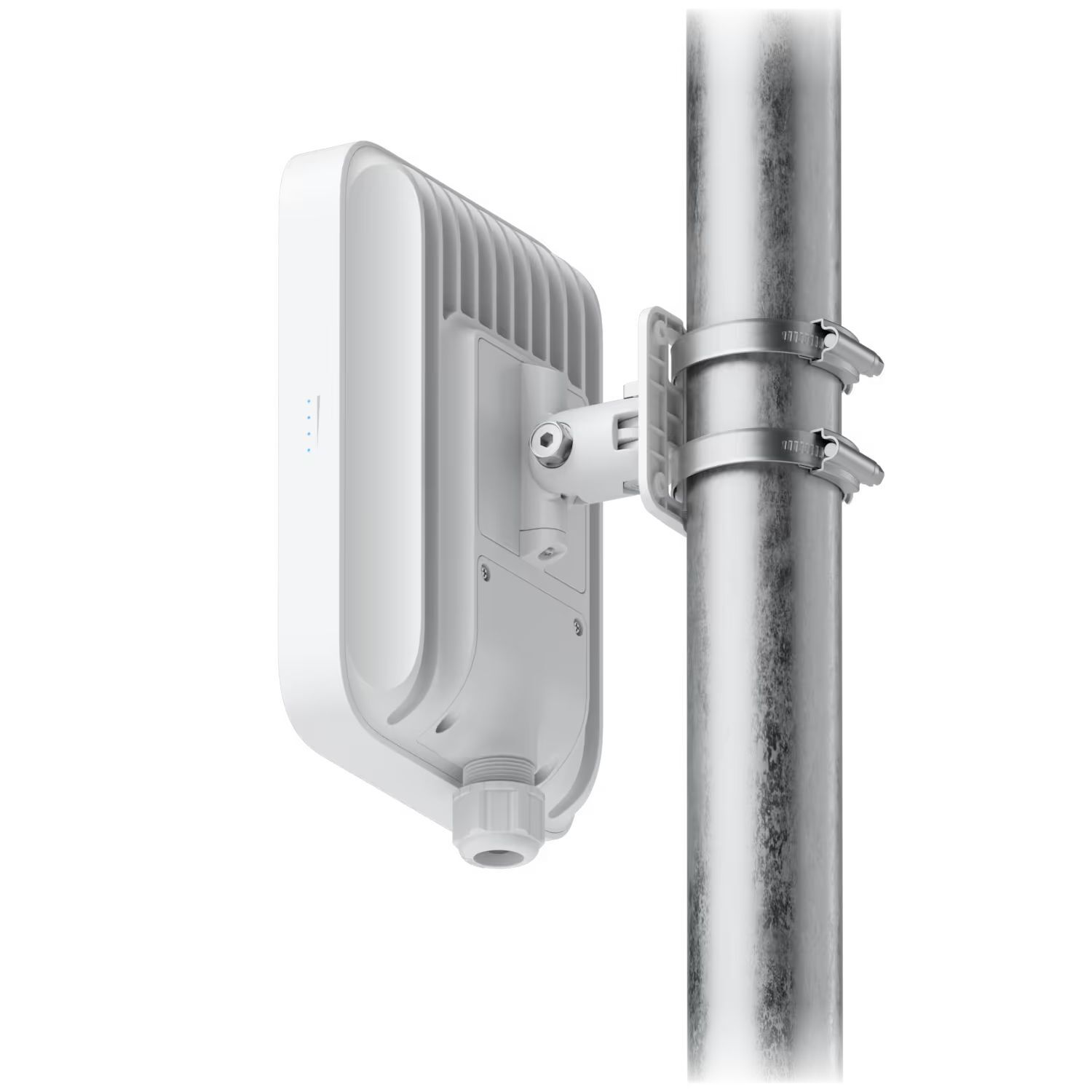

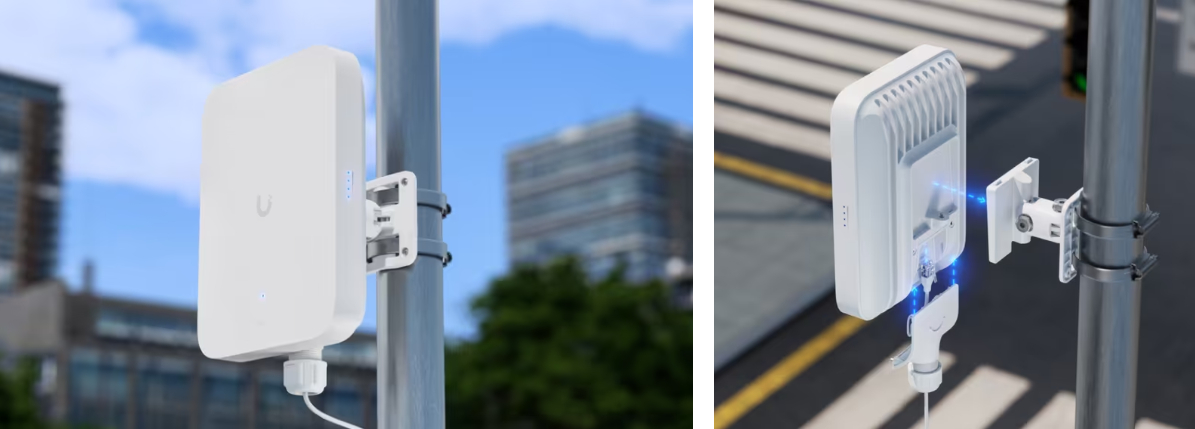

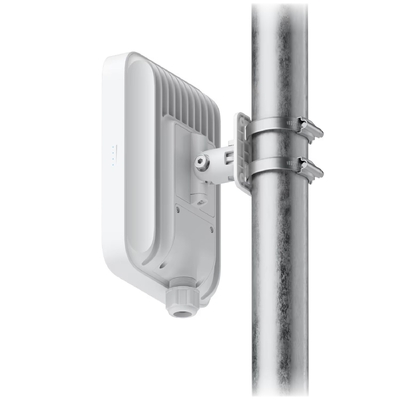

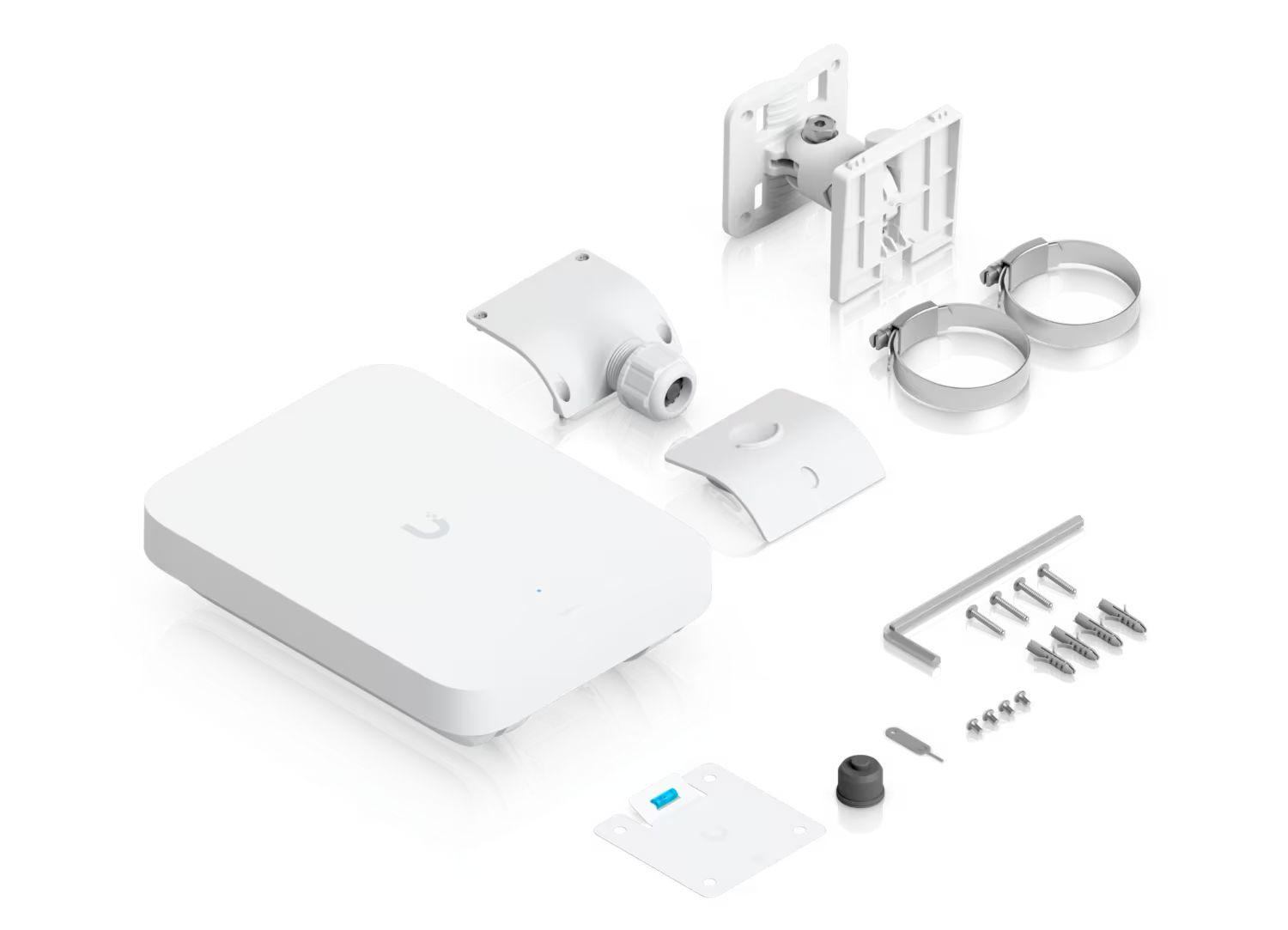

Mounting & Installation

Options

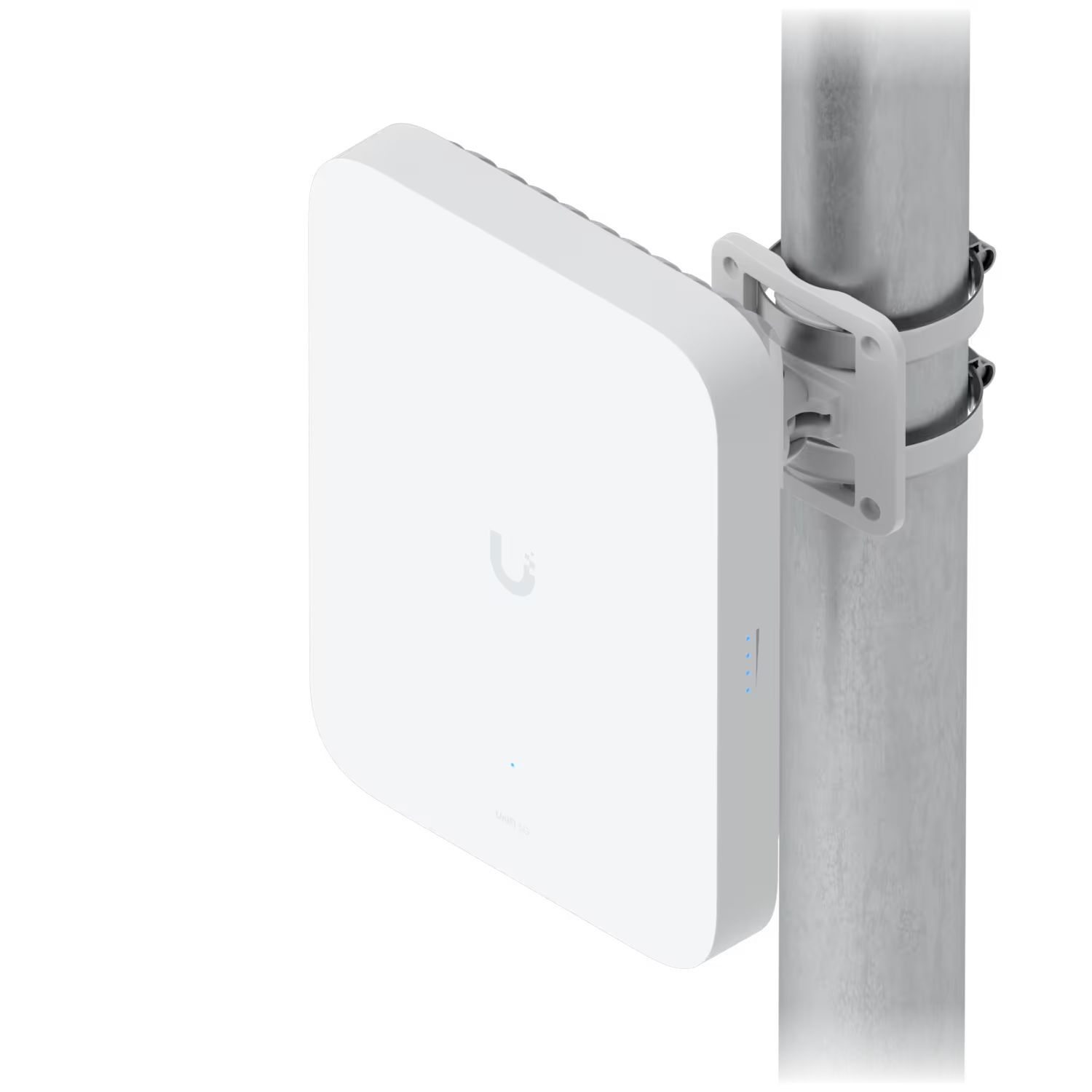

Pole mount, Wall mount (Included)

Pole Diameter

1–2.5" (25–63.5 mm) outer pipe diameter

Wind Loading

91N at 200 km/h (20.45 lbf at 125 mph)

Certifications & Compliance

Compliance: FCC, IC, CE, PTCRB, GCF, NDAA Compliant

Carrier Certified: AT&T, T-Mobile, Verizon

SKU	U5G-Max-Outdoor
Brand	Ubiquiti
Shipping Weight	1.3500kg
Shipping Width	0.121m
Shipping Height	0.220m
Shipping Length	0.165m

Manufacturer Warranty : 1 year Manufacturer Warranty
