• Line-interactive UPS Topology
• Generator Compatible
• Automatic Voltage Regulation (AVR)
• High-speed Ethernet Data Transmission
• Surge and Spike Protection
• PowerPanel Management Software
• Energy Saving Technology
• Simulated Sine Wave Output
• LCD Status Display
• USB Connectivity Port
• Serial Connectivity Port

General

Phase

Single Phase

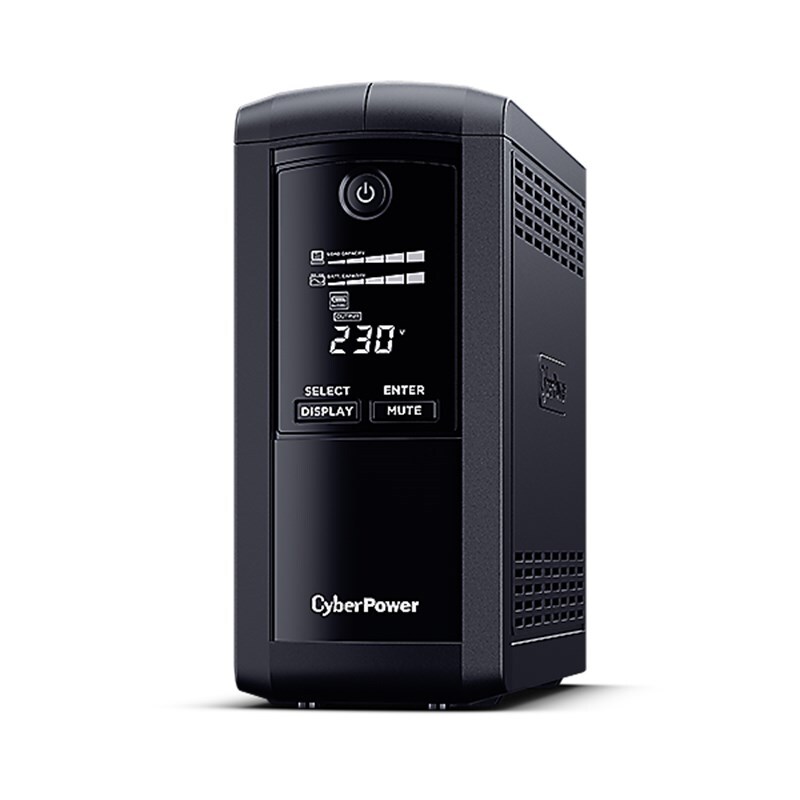

Form Factor

Tower

UPS Topology

Line-interactive

Energy Saving Technology

GreenPower UPS™ Bypass Technology

Input

Generator Compatibility

Yes

Nominal Input Voltage ( Vac )

230 ± 10%

Input Voltage Range ( Vac )

167 ~ 295

Input Frequency ( Hz )

50 ± 5

60 ± 5

Input Frequency Detection

Auto-sensing

Rated Input Current ( A )

3.04

Input Connector Type

IEC C14

Detachable Power Cord Plug Type

AU x 1

Power Cord Length (ft.)

5

Power Cord Length (m.)

1.5

Output

Capacity (VA)

700

Capacity (Watts)

390

On Battery Waveform

Simulated Sine Wave

On Battery Voltage(s) ( Vac )

230 ± 10 %

On Battery Frequency ( Hz )

50 ± 1%

60 ± 1%

Automatic Voltage Regulation (AVR)

Single Boost, Single Buck

Overload Protection

Circuit Breaker

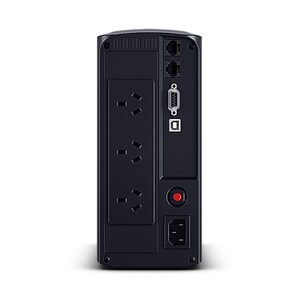

Outlet(s) - Total

3

Outlet Type

AU x 3

Outlet(s) - Battery & Surge Protected

3

Typical Transfer Time ( ms )

4

Battery

Runtime at Half Load ( min )

10

Runtime at Full Load ( min )

1

Typical Recharge Time ( Hours )

8

Start On Battery

Yes

User-replaceable

No

Battery Type

Sealed Lead-acid

Surge Protection & Filtering

Surge Suppression ( Joules )

450

EMI/RFI Filtration

Yes

Phone/Network Protection RJ11/RJ45 (Combo)

1-in, 1-out

Management & Communications

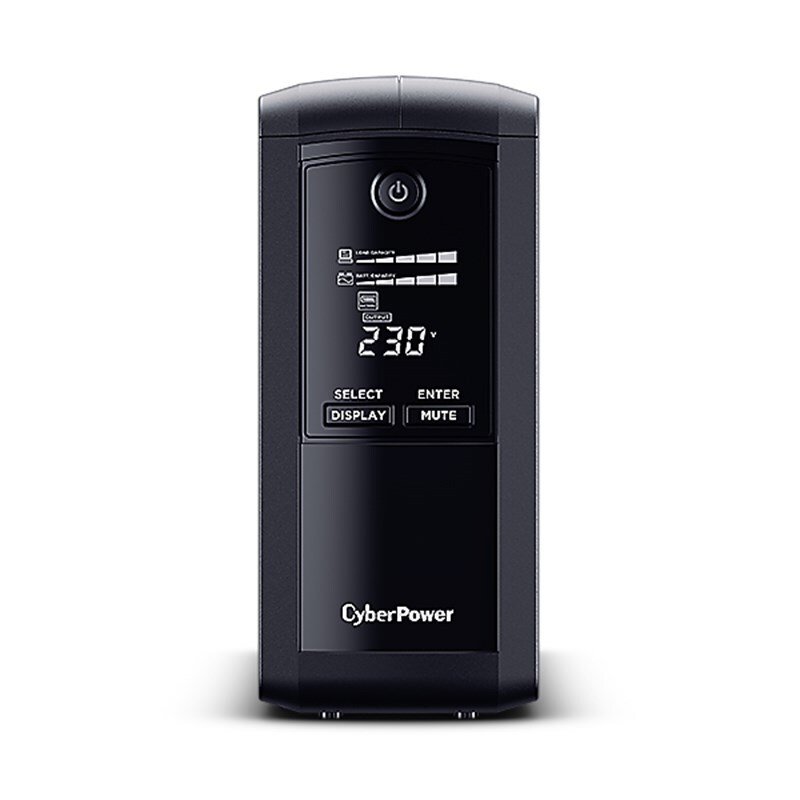

LCD Panel

Yes

LCD Information Display

Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information

LCD Setting & Control

Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning

LED Indicators

Power On

HID Compliant USB Port(s)

1

Audible Alarms

Battery Mode, Low Battery, Overload, UPS Fault

Management Cable ( pcs )

USB Cable x1

Ethernet Data Transmission Speed

Up to 1Gbps

Power Management Software

PowerPanel Personal (Recommended)

Physical

Enclosure Construction

Plastic

Color

Black

Physical Size - UPS Module

Dimensions (WxHxD) (in.)

3.9 x 8.9 x 10.2

Dimensions (WxHxD) (mm.)

100 x 227 x 260

Weight (lbs.)

11.33

Weight (kg.)

5.14

Shipping Dimensions

Dimensions (WxHxD) (in.)

11.81 x 13.19 x 5.63

Dimensions (WxHxD) (mm.)

300* x 335 x 143

Weight (lbs.)

12.7

Weight (kg.)

5.76

Environmental

Operating Temperature (°F)

32 ~ 104

Operating Temperature (°C)

0 ~ 40

Operating Relative Humidity (Non-condensing) ( % )

0 ~ 90

Operating Elevation ( feet/meters )

0-9,843 feet (0-3,000 meters)

Storage Temperature (°F)

-4 ~ 122

Storage Temperature (°C)

-20 ~ 50

Storage Relative Humidity (Non-condensing) ( % )

0 ~ 90

Storage Elevation ( feet/meters )

0-9,843 feet (0-3,000 meters)

Online Thermal Dissipation ( BTU/hr )

9.5

Audible Noise at 1.0M from Surface of Unit ( dBA )

40

Certifications

Certifications

CE, RCM

RoHS

Yes

WARRANTY

Product Warranty Period (Year)

2

Battery Warranty Period (Year)

2

Connected Equipment Guarantee

40,000 AUD ; 2 years

Manufacturer Warranty: 2 Years Limited Warranty
