Value Pro Series Line-Interactive UPS

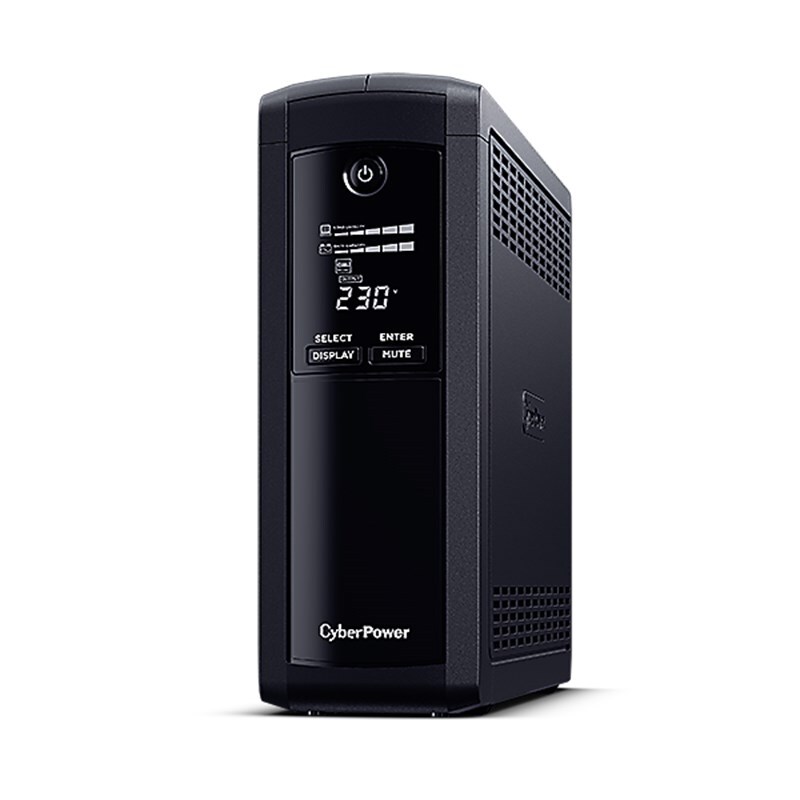

CyberPower VP1600ELCD

The CyberPower VP1600ELCD provides reliable battery backup and protection for office PCs and other electronic devices against surges, spikes, brownouts and other power incidents. It combines GreenPower UPS™ energy-saving technology, Automatic Voltage Regulation, an LCD status display and high-speed data line protection.

What is the CyberPower VP1600ELCD?

The VP1600ELCD is a 1600VA / 960W line-interactive tower UPS for home, office and back-office applications. It provides four AU outlets, up to 11 minutes runtime at half load, Automatic Voltage Regulation and USB and serial connectivity for power monitoring and configuration.

1600VA 960W output capacity

11 min Runtime at half load

AU x 4 Four total power outlets

1Gbps High-speed data line transmission

Reliable Power Protection

Battery backup and voltage regulation for connected electronic equipment.

The VP1600ELCD uses a line-interactive UPS topology and provides surge and spike protection. Its Automatic Voltage Regulation function maintains a stabilised 230V output for connected equipment by using single boost and single buck regulation.

The UPS is also generator compatible and supplies a simulated sine wave output while operating on battery power.

Energy, Monitoring and Connectivity Features

Designed for clear status information, efficient operation and connected management.

Energy Saving Technology

GreenPower UPS™ Bypass Technology improves operating efficiency and helps minimise energy consumption.

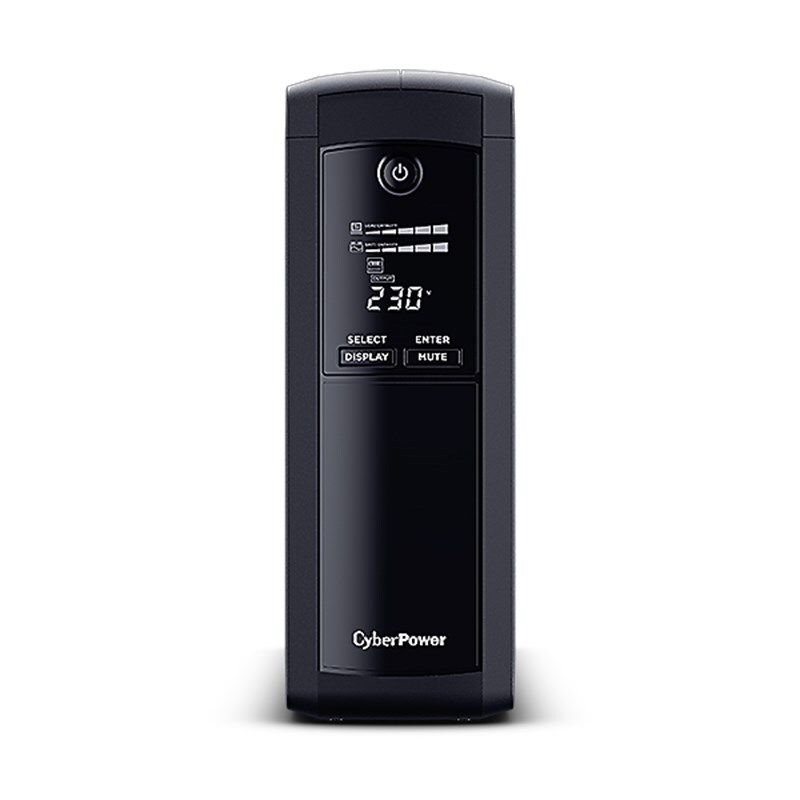

LCD Status Display

The multifunction LCD provides clear information about power and battery conditions.

PowerPanel Management

PowerPanel Personal software is recommended for real-time monitoring and configuration.

High-Speed Data Protection

RJ11/RJ45 protection helps safeguard phone, network and communication equipment against surges and spikes while supporting 1Gbps data transmission.

USB Connectivity

One HID-compliant USB port is provided for communication with a connected system.

Serial Connectivity

An RS232 serial port provides an additional communication option.

What's in the Box

Supplied items listed for the CyberPower VP1600ELCD.

VP1600ELCD UPS
USB cable
User's manual
Product registration card

Regional contents note: Product contents may vary by region. Refer to the user's manual or quick start guide for detailed information.

Frequently Asked Questions

Quick answers about the CyberPower VP1600ELCD.

What is the output capacity of the VP1600ELCD?

The UPS is rated at 1600VA and 960W.

How long does the battery run at half load?

The specified runtime at half load is 11 minutes. Runtime at full load is 2 minutes.

How many outlets does it provide?

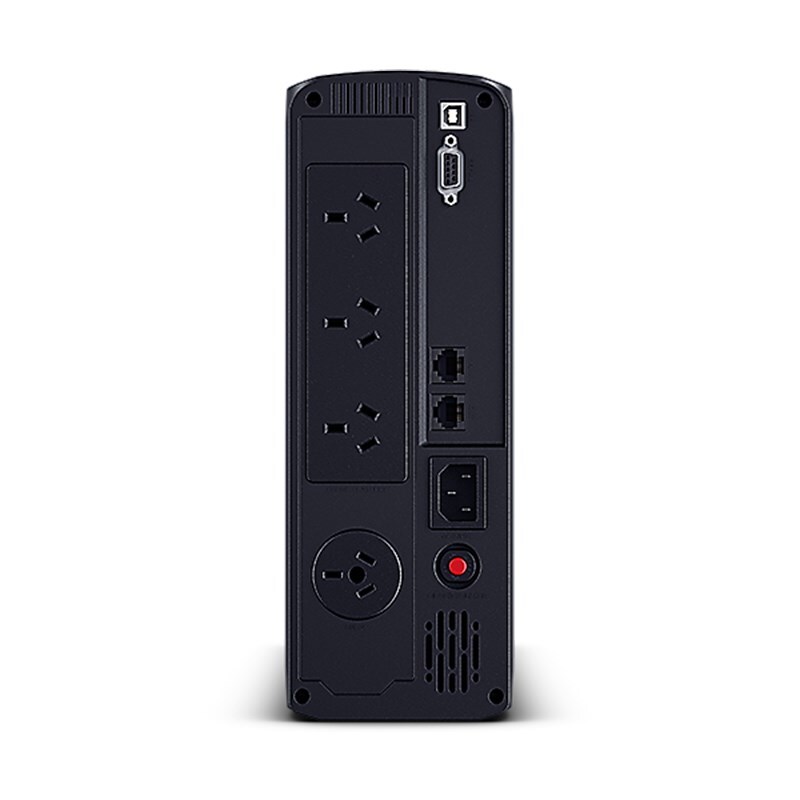

It provides four AU outlets in total: three battery and surge protected outlets and one surge-only protected outlet.

Does it regulate voltage without switching to battery?

Yes. Automatic Voltage Regulation uses single boost and single buck regulation to stabilise the output voltage.

Does the VP1600ELCD include network protection?

Yes. It includes one-in, one-out RJ11/RJ45 protection for phone, network and communication equipment, with support for 1Gbps data transmission.

Which management software is supported?

PowerPanel Personal is the recommended power management software.

Is the battery user-replaceable?

No. The supplied technical specifications list the sealed lead-acid battery as not user-replaceable.

(VP1600ELCD)

Line-interactive UPS Topology
Generator Compatible
Automatic Voltage Regulation (AVR)
High-speed Ethernet Data Transmission
Surge and Spike Protection
PowerPanel Management Software
Energy Saving Technology
Simulated Sine Wave Output
LCD Status Display
USB Connectivity Port
Serial Connectivity Port

CyberPower VP1600ELCD Specifications

Review the UPS topology, input and output, battery, protection, communication, physical and environmental specifications.

Specification	Details
General
Model Name	VP1600ELCD
UPS Topology	Line-interactive
Energy Saving Technology	GreenPower UPS™ Bypass Technology
Input
Nominal Input Voltage	230 ± 10% Vac
Input Voltage Range	167–295 Vac
Input Frequency	50 ± 5Hz, 60 ± 5Hz
Input Frequency Detection	Auto-sensing
Rated Input Current	6.96A
Input Connector Type	IEC C14
Output
Capacity	1600VA / 960W
On-Battery Waveform	Simulated sine wave
On-Battery Voltage	230 ± 10% Vac
On-Battery Frequency	50 ± 1%, 60 ± 1%
Automatic Voltage Regulation	Single boost, single buck
Overload Protection	Circuit breaker
Total Outlets	4
Outlet Type	AU x 4
Battery and Surge Protected Outlets	3
Surge-Only Protected Outlets	1
Typical Transfer Time	4ms
Battery
Runtime at Half Load	11 minutes
Runtime at Full Load	2 minutes
Typical Recharge Time	8 hours
User-Replaceable	No
Battery Type	Sealed lead-acid
Surge Protection and Filtering
Surge Suppression	450 joules
EMI/RFI Filtration	Yes
Phone/Network Protection	RJ11/RJ45 combo, 1-in and 1-out
Management and Communications
LCD Panel	Yes
LED Indicator	Power on
HID-Compliant USB Ports	1
Serial Port	RS232
Audible Alarms	Battery mode, low battery, overload and UPS fault
Power Management Software	PowerPanel Personal (recommended)
Physical
Form Factor	Tower
Dimensions	100 x 281 x 355mm (W x H x D)
Weight	10.42kg
Environmental
Operating Temperature	0–40°C
Operating Relative Humidity	0–90%, non-condensing
Online Thermal Dissipation	68 BTU/hr
Certifications
Certifications	CE, RCM
RoHS	Yes

Specification notice: Certifications may vary by region. All specifications are subject to change without notice.

SKU	VP1600ELCD
Barcode #	4712856274646
Brand	CYBERPOWER
Shipping Weight	11.2000kg
Shipping Width	0.200m
Shipping Height	0.180m
Shipping Length	0.220m
