3000VA / 3000W
The supplied load capacity is 3kVA / 3kW with pure-sine-wave output.
Eaton 5PX Gen 2 3000VA/3000W 230V Line Interactive 3U Rack/Tower UPS - 5PX3000IRT3UAUG2
Model # 5PX3000IRT3UAUG2
-
SKU: 5PX3000IRT3UAUG2
- Pick Up Available
- Australian Warranty
- Checkout Securely
Eaton SKU 5PX3000IRT3UAUG2
Eaton 5PX3000IRT3UAUG2 3000VA/3000W 3U Rack/Tower UPS
The Eaton 5PX3000IRT3UAUG2 5PX Gen 2 is a 3000VA / 3000W line-interactive pure-sine-wave UPS in a 3U rack/tower format for the IT and network applications listed in the supplied record.
The description lists one IEC C20 16A input, eight IEC C13 10A outputs and two IEC C19 16A outputs, plus RS-232 serial, USB, a communication-card slot and ROO/RPO terminals.
3000VA / 3000WPure sine wave3U rack/tower3-year warrantyDeviceDeal authorised Eaton reseller
Product overview

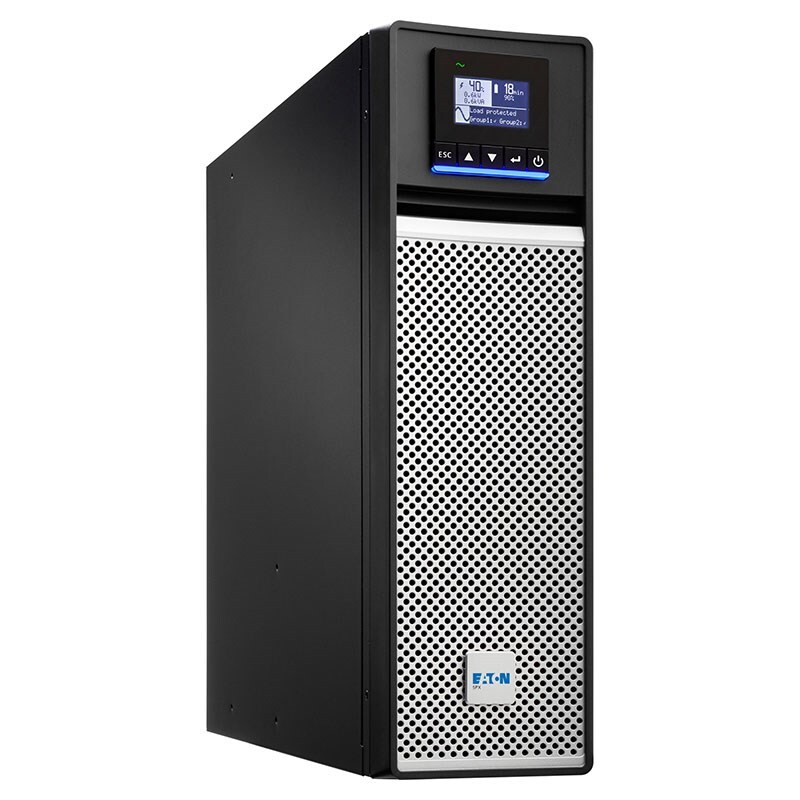

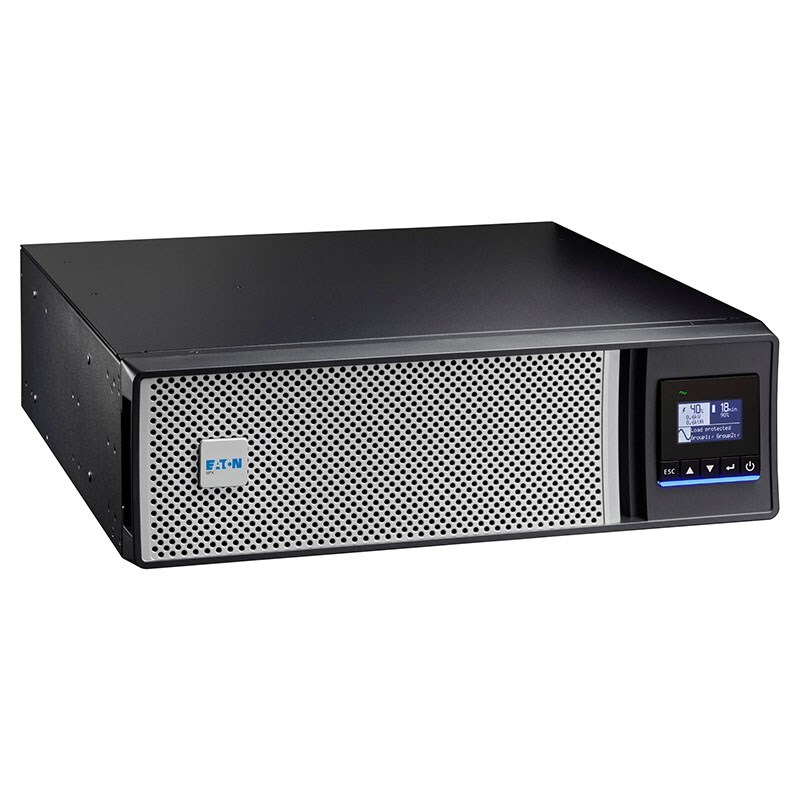

3U rack/tower deployment
The source lists a 3U rack/tower form factor and package contents including a pedestal and rail kits.
Management connectivity
The source lists a graphical LCD, RS-232 serial, USB HID, RJ-45 network connection and Network-M2 or Relay-MS card options.
Source review: The description identifies a 230V UPS, while the structured input-voltage fields include both 120V AC and 230V AC. Both values are retained for review; confirm the required input configuration before purchase.
Frequently asked questions
What power rating is listed for the Eaton 5PX3000IRT3UAUG2?
The supplied load capacity is 3000VA / 3000W.
Which power connections are listed?
The description lists one IEC C20 16A input, eight IEC C13 10A outputs and two IEC C19 16A outputs.
Is the battery replaceable?
Yes. The supplied specification lists the battery as replaceable and hot swappable.
What warranty is supplied?
The source lists a three-year Eaton manufacturer warranty.
(5PX3000IRT3UAUG2)
Features
Eaton 5PX3000IRT3UAUG2 3000VA/3000W 3U Rack/Tower UPS
Power performance
- Line-interactive topology
- Pure sine wave
- 3000VA / 3000W load capacity
- 230V nominal voltage stated in description
Connections
- 1 x IEC C20 16A input
- 8 x IEC C13 10A outputs
- 2 x IEC C19 16A outputs
- RS-232 serial
- USB HID
- RJ-45 network
- ROO / RPO terminals
Operation and installation
- Graphical LCD
- Replaceable hot-swappable battery
- 3U rack/tower
- Pedestal and rail kits listed
- 40dB sound emission
- 40°C maximum operating temperature
Confirm input-voltage configuration, runtime and connected-load requirements for the intended installation.
Technical specifications
Eaton 5PX3000IRT3UAUG2 3000VA/3000W 3U Rack/Tower UPS
| General and power | |
|---|---|
| Brand | Eaton |
| Model / SKU | 5PX3000IRT3UAUG2 |
| Series | 5PX G2 |
| Product type | Line-interactive UPS |
| Topology / waveform | Line-interactive; pure sine wave |
| Load capacity | 3kVA / 3kW |
| Nominal voltage stated in description | 230V |
| Structured input-voltage values | 120V AC; 230V AC |
| Structured output-voltage values | 200V AC; 208V AC; 220V AC; 230V AC; 240V AC |
| Input voltage ranges listed | 150294V AC; 160294V AC |
| Description input-frequency ranges | 4770Hz (50Hz); 56.570Hz (60Hz) |
| Structured input frequency | 70Hz |
| Structured output frequency | 60Hz |
| Connections and management | |
| Input connector | 1 x IEC 60320 C20 (16A) |
| Output receptacles | 8 x IEC 60320 C13 (10A); 2 x IEC 60320 C19 (16A) |
| Serial port | Yes |
| USB HID-compliant port | Yes |
| Network (RJ-45) | Yes |
| Communication-card slot | Stated in description |
| Terminals | ROO / RPO |
| Network-management options | Network-M2 card; Relay-MS card |
| Battery, display and environment | |
| Hot-swappable battery | Yes |
| Replaceable battery | Yes |
| Status display | Graphical LCD: UPS status and measurements |
| Sound emission | 40dB |
| Maximum operating temperature | 40°C |
| Physical properties | |
| Form factor | Rack / tower |
| Rack height | 3U |
| Height | 129mm |
| Width | 438mm |
| Depth | 483mm |
| Approximate weight | 31.10kg |
| Applications and package | |
| Applications listed | IT; storage device; router; network; switch; server |
| Package contents | Pedestal; rail kits |
| Environmental and energy statements | |
| Environmentally friendly | Yes |
| Environmental certification | ENERGY STAR 2.0 |
| ENERGY STAR | Yes |
| SKU | 5PX3000IRT3UAUG2 |
| Barcode # | 743172104724 |
| Brand | EATON |
| Shipping Weight | 38.0000kg |
| Shipping Width | 0.029m |
| Shipping Height | 0.077m |
| Shipping Length | 0.059m |
Warranty information
Eaton 5PX3000IRT3UAUG2 3000VA/3000W 3U Rack/Tower UPS
3-Year Eaton Manufacturer Warranty
DeviceDeal is an authorised Eaton reseller. This product is covered by a three-year Eaton manufacturer warranty in Australia, as listed in the supplied product information.
