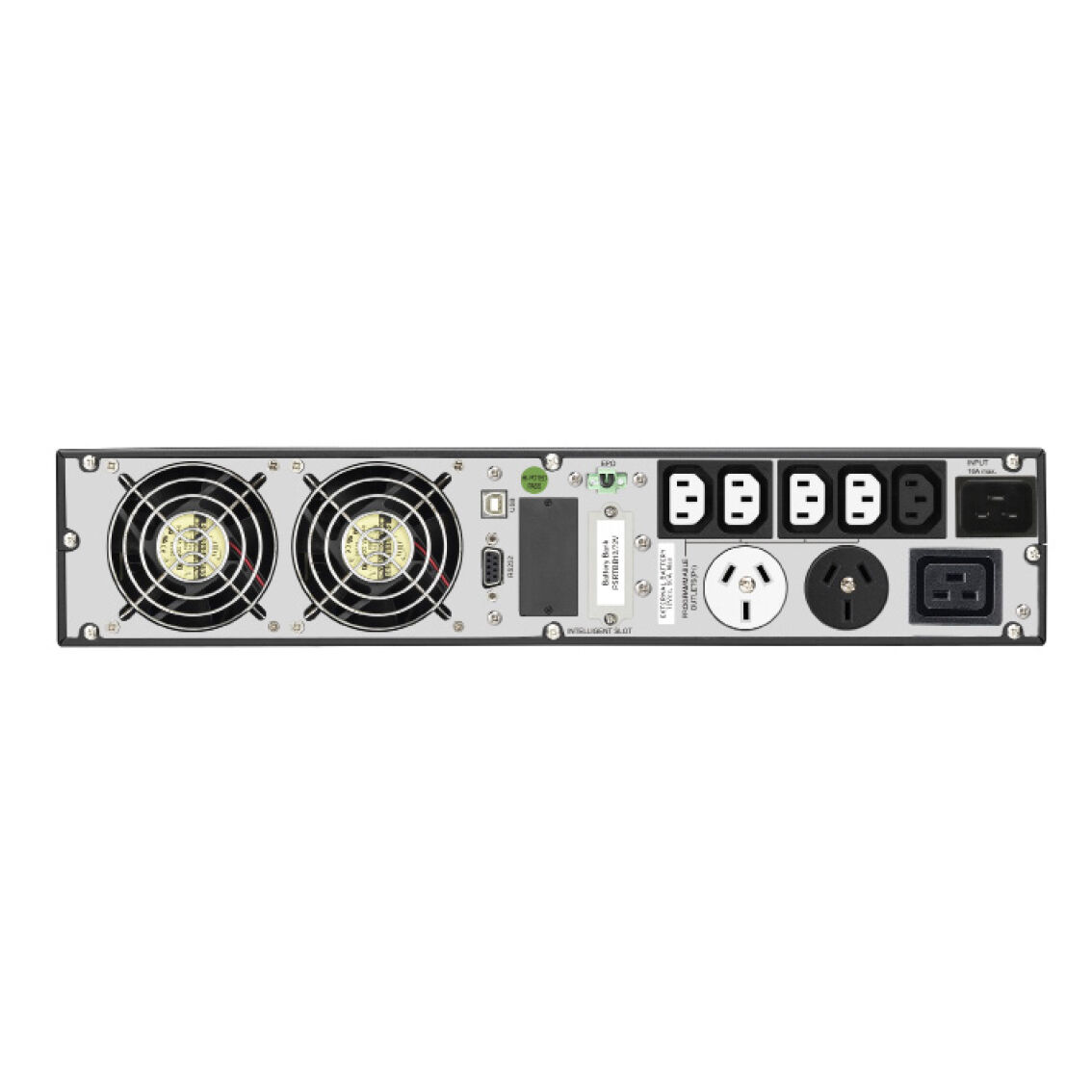

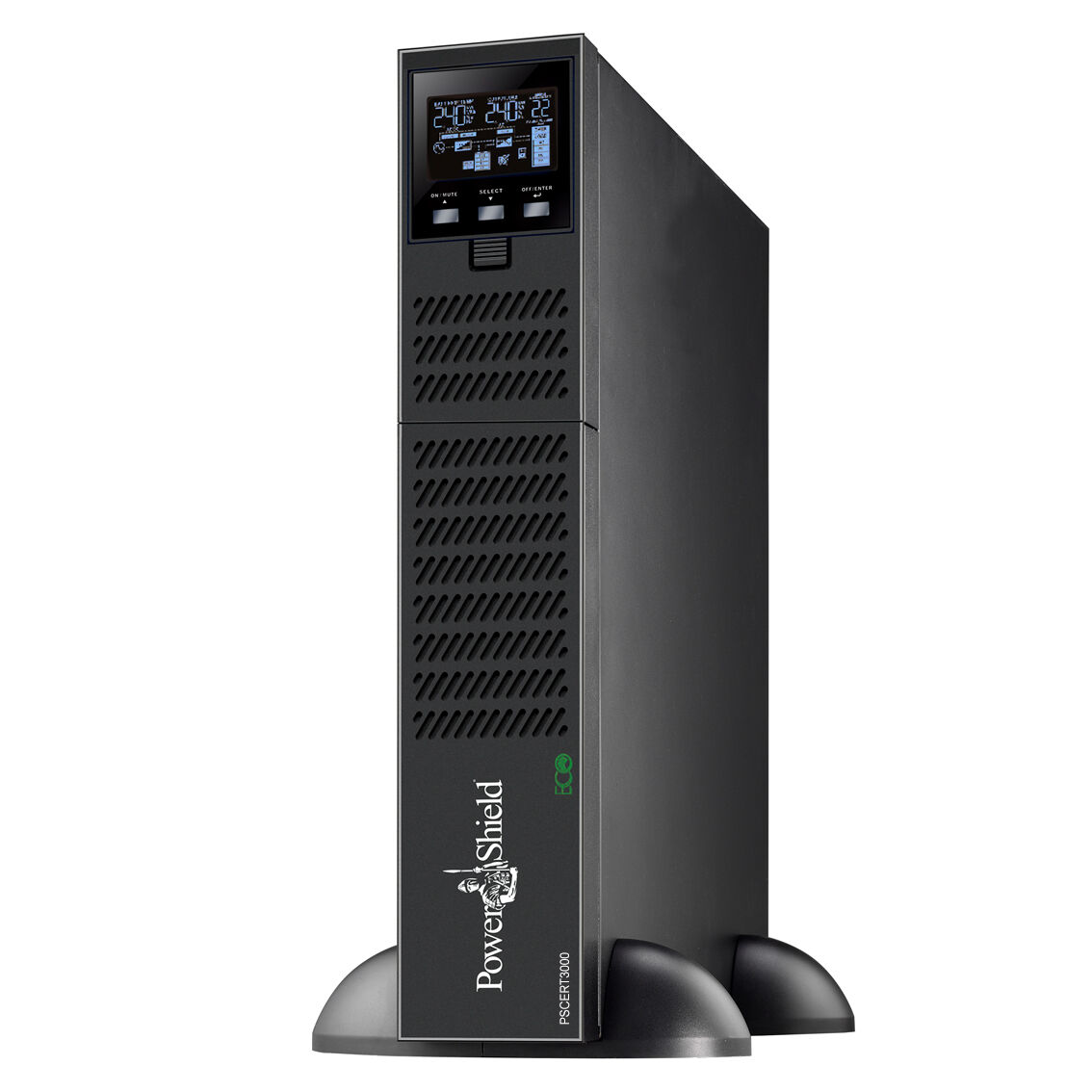

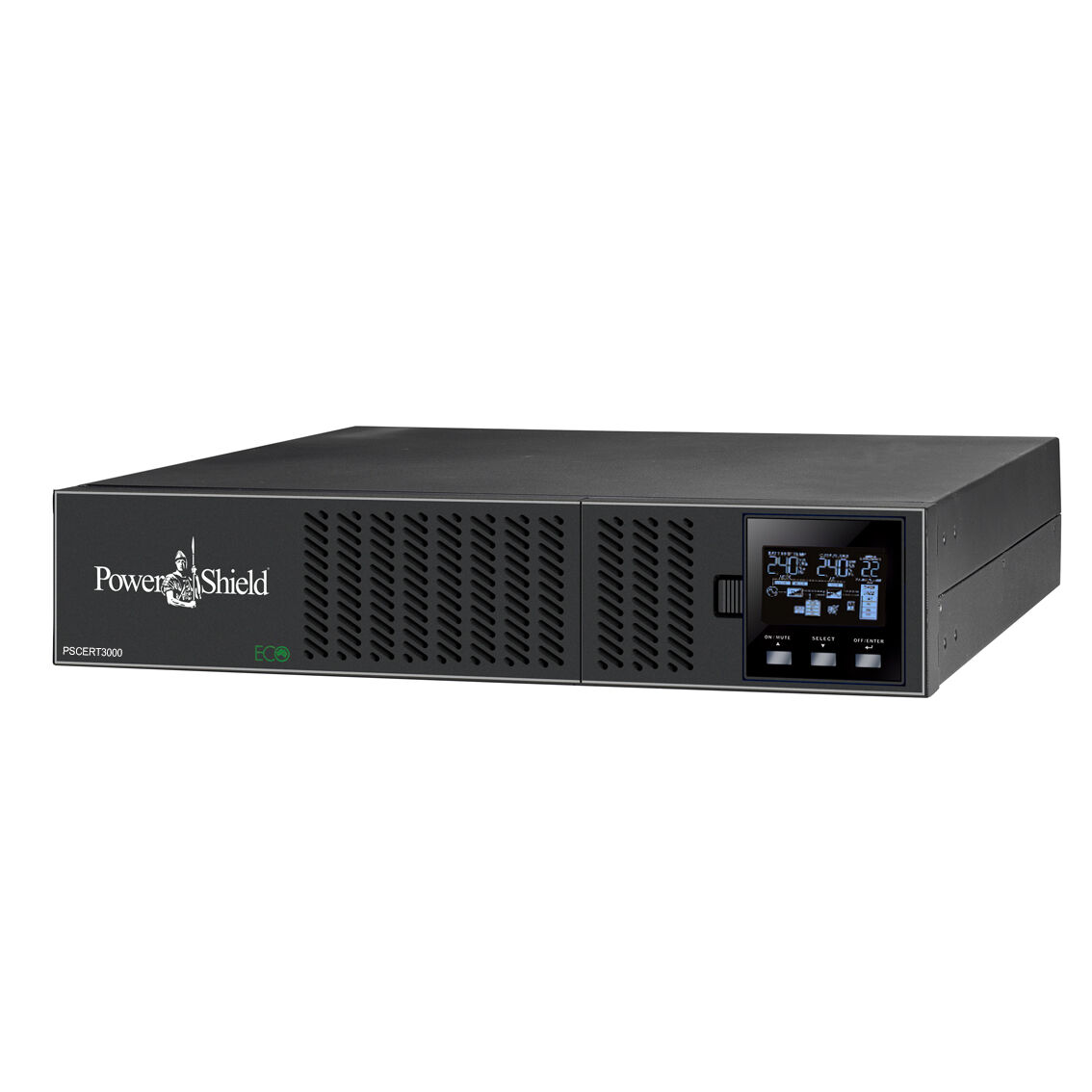

PowerShield Centurion RT 3000VA / 2700W True Online Double Conversion Rack / Tower UPS, Programmable outlets, Hot swap batteries. PSCERT3000
IEC & AUS plugs
-
SKU: PSCERT3000
- Pick Up Available
- Australian Warranty
- Checkout Securely
- 3000VA / 2700 Watts
- True On-Line, Double Conversion
- Output Power Factor 0.9
- User friendly and electronic easy shift LCD display
- Rack or Tower operation (Rack Mounting Rails optional)
- Advanced ECO mode for energy saving
- Generator compatible
- Programmable power management outlets
- Emergency Power Off function (EPO)
- Hot swappable batteries
- Available in 1000, 2000 and 3000 VA models
- USB & RS232 communication
- Optional SNMP, Modbus, AS400 Relay communications are available
- PowerShield NetGuard UPS monitoring and control software included
(PSCERT3000)
Technical Details
| Model Number | PSCERT3000 |
|---|---|
| Capacity | 3000VA/2700W |
| Topology | True online double- conversion,Pure Sine Wave |
| Voltage | 160Vac / 140Vac / 120 / 110Vac ?± 5 % |
| Frequency Range | 40Hz - 70Hz |
| Output Voltage | 240Vac (Selectable 200/208/220/230/240Vac) |
| Frequency Range (Batt. Mode) | 50Hz or 60Hz ?±1Hz |
| Transfer Time | 4ms (Typical) |
| Waveform (Batt. Mode) | Pure Sine Wave |
| Australian Outlets - UPS & Surge Protection | 2 |
| Battery Type & Number | (12 V*9AH) 6 |
| Typical Recharge Time | 4 hours recover to 90% capacity (for standard model only |
| Full Protection | Overload, discharge, thermal, short circuit and overcharge protection |
| Surge Protection | 984 Joules / 22000 Amps |
| Interface | USB or RS232 as standard, Intelligent slot for PSSNMP, PSModbus or PSAS400 dry contact |
| Software | PowerShield?® NetGuard?® software - supports Windows, Linux, Unix and Mac based operating systems |
| HID | Supports Windows, Apple, Linux, NAS and various industrial controllers |
| LCD Alarm | UPS Status, Load & Battery Level, Input/Output Voltage, Batt. Time Remaining and Fault Indicators |
| Audible Alarm | Battery Mode, Bypass Mode, Low Battery (Batt. Mode), Fault, Overload |
| Dimension L x W x H (mm) | 600 x 438 x 88 |
| Net Weight (kgs) | 26.8 |
| Temperature | 0 - 40?°C |
| Humidity | 20 - 90% (RH Non-condensing) |
| Noise Level | < 50dBA @ 1 Meter |
| Safety/EMC | EN62040-1-1 2003, IEC60950-1-1 / EN62040-2 2006 |
| RoHS | Directive 2011/65/EU |
| Warranty | 2 Year ARW |
| SKU | PSCERT3000 |
| Barcode # | 9346909000309 |
| Brand | PowerShield |
| Shipping Weight | 33.8000kg |
| Shipping Width | 0.600m |
| Shipping Height | 0.770m |
| Shipping Length | 0.250m |
| Shipping Cubic | 0.115500000m3 |
