UPS Systems CP1350EPFCLCD

VA
1350
Watts
810
Output Voltage ( Vac )
230 ± 5%
Half Load Runtime ( min )
9.6
Outlets
AU x 6
Energy Saving Technology
Automatic Voltage Regulation (AVR)
Active PFC Compatible
Color LCD Panel

Overview

CyberPower CP1350EPFCLCD with Pure Sine Wave output safeguards mid- to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Designed with GreenPower UPS™ Technology to improve UPS operating efficiency and to minimize its energy consumption, this UPS delivers significant energy cost savings over conventional UPS systems. The UPS provides Automatic Voltage Regulation (AVR) to maintain stable voltage for connected equipment. The product features data line protection with high-speed transmission to safeguard communication equipment against surges/spikes as well as supply 1Gbps speed to transmit data. With tiltable color LCD panel , users can monitor key power and battery information at a glance. The PowerPanel Power Management Software allows user to perform real-time monitoring and configuration.

Features

  • Line-interactive UPS Topology
  • Active PFC Compatible
  • Automatic Voltage Regulation (AVR)
  • Tiltable LCD Panel
  • SNMP/HTTP Remote Management Capability (Optional)
  • Surge and Spike Protection
  • High-speed Ethernet Data Transmission
  • Energy Saving Technology
  • Pure Sine Wave Output
  • Color LCD Panel
  • LED Status Indicator
  • PowerPanel Management Software
  • USB Charging Port(s)
  • Tower Form Factor

What's in the Box

  • CP1350EPFCLCD UPS
  • USB Cable

* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.

(CP1600EPFCLCD)

Energy Saving Technology

The UPS adopts CyberPower's patented GreenPower UPS™ technology to enhance UPS operating efficiency, reduce heat generation, consume less power and save more energy costs than conventional UPS models.

Active PFC Compatible

The equipment with active power factor correction (PFC) design requires Pure Sine Wave source. The UPS provides Pure Sine Wave to meet the requirement of the equipment, enhancing system efficiency and saving electricity costs.

Automatic Voltage Regulation (AVR)

The UPS has built-in Automatic Voltage Regulation (AVR) function that keeps voltages at a safe level when incoming utility power fluctuates, thus providing consistent and reliable power to connected devices.

Color LCD Panel

The color LCD panel is designed with intuitive and graphical user-interface, allowing users to monitor power system and configure settings with ease.

Tiltable LCD Panel

The LCD panel can be tilted upward for easy viewing, which enables users to see clearly when the product is placed in a lower position.

USB Charging Port

The UPS comes with USB charging port to power electronic devices. The USB charging port is plug-and-play design for quick and immediate use, allowing users to conveniently employ USB port to power devices.

Surge-protected Outlets

The UPS outlets absorb surges and spikes caused by thunder and lightning, hence providing complete protection for equipment and devices.

Data Line Protection with High-speed Transmission

The UPS provides data line protection to absorb surges and spikes, while supporting Ethernet data transmission speed up to 1Gbps for efficient data transfer.

Remote Management Capability

Remote management capability enables monitoring and controlling of devices through Remote Management Card. Users can also perform management tasks, such as scheduled shutdowns and reboots. Optional Feature

PowerPanel Business Software

The PowerPanel Management Software can perform power management and system graceful shutdown. This software has achieved VMware Ready™ status, and is compatible with VMware ESXi. It also supports Citrix XenServer and Microsoft Hyper-V. Recommended Software

PowerPanel Cloud Solution

The solution offers a convenient cloud-based management which allows users to access and monitor the UPS systems through a secure web portal or mobile app anytime, anywhere. Free Trial Available

General

PhaseSingle Phase
Form FactorTower
UPS TopologyLine-interactive
Energy Saving TechnologyGreenPower UPS™ Bypass Technology
Active PFC CompatibilityYes

Input

Nominal Input Voltage ( Vac )220
230
240
Input Voltage Range ( Vac )169 ~ 271
Input Frequency ( Hz )50 ± 3
60 ± 3
Input Frequency DetectionAuto-sensing
Rated Input Current ( A )10
Input Connector TypeIEC C14
Detachable Power Cord Plug TypeAU x
Power Cord Length (ft.)6
Power Cord Length (m.)1.83

Output

Capacity (VA)1350
Capacity (Watts)810
On Battery WaveformPure Sine Wave
On Battery Voltage(s) ( Vac )230 ± 5 % (Under a test load of＜60%. When the load＞60%, the output voltage range may＞5%.)
On Battery Frequency ( Hz )50 ± 1%
60 ± 1%
Automatic Voltage Regulation (AVR)Single Boost
Overload ProtectionInternal Current Limiting, Circuit Breaker
Outlet(s) - Total6
Outlet TypeAU x 6
Outlet(s) - Battery & Surge Protected6
Typical Transfer Time ( ms )8 (At normal sensitivity)
USB Charging Port(s)USB-A x 1
USB-C x 1
USB Charging Total Output ( Watts )30
USB-A Charging Output5 V/ 2.4 A Max
USB-C Charging Output5 V/ 2.5 A Max
9 V/ 2 A Max
15 V/ 2 A Max

Battery

Runtime at Half Load ( min )9.6
Runtime at Full Load ( min )2.1
Typical Recharge Time ( Hours )8 (Recover to 90% after full load discharge)
User-replaceableYes
Battery Cartridge (RBP)RBP0146
Battery Cartridge (RBP) Quantity ( pcs )1

Surge Protection & Filtering

Surge Suppression ( Joules )405
Network Protection RJ451-in, 1-out

Management & Communications

LCD PanelYes
LCD TypesColor LCD
Tiltable LCD Panel22°
LCD Information DisplayOperation Type, Power Status, Battery Status, Load Status, Fault & Warning, Event & Log
LCD Setting & ControlAlarm Setting, Input & Output, Battery Setting, Event & Log
LED IndicatorsPower On
HID Compliant USB Port(s)1
Serial PortDry Contact
Audible AlarmsBattery Mode, Low Battery, Overload, UPS Fault
Management Cable ( pcs )USB Cable x1
Ethernet Data Transmission SpeedUp to 1Gbps
Power Management SoftwarePowerPanel Business (Recommended)
SNMP/HTTP Remote MonitoringYes - with optional RMCARD205

Physical Size - UPS Module

Dimensions (WxHxD) (mm.)100 x 281.5 x 354.1
Weight (lbs.)22.05
Weight (kg.)10

Shipping Dimensions

Dimensions (WxHxD) (in.)17.52 x 15.16 x 7.28
Dimensions (WxHxD) (mm.)445 x 385 x 185
Weight (lbs.)24.86
Weight (kg.)11.28

Environmental

Operating Temperature (°F)32 ~ 104
Operating Temperature (°C)0 ~ 40
Operating Relative Humidity (Non-condensing) ( % )0 ~ 95
Operating Elevation ( feet/meters )0-9,843 feet (0-3,000 meters)
Storage Temperature (°F)5 ~ 113
Storage Temperature (°C)-15 ~ 45
Storage Relative Humidity (Non-condensing) ( % )0 ~ 95
Storage Elevation ( feet/meters )0-49,213 feet (0-15,000 meters)
Online Thermal Dissipation ( BTU/hr )19

Certifications

CertificationsCE, RCM
RoHSYes

WARRANTY

Product Warranty Period ( Year )2
Battery Warranty Period ( Year )2
Connected Equipment Guarantee75,000 AUD ; 2 years
SKU CP1600EPFCLCD
Brand CYBERPOWER
Shipping Weight 11.0000kg

Manufacture warranty : 2 years Manufacture warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

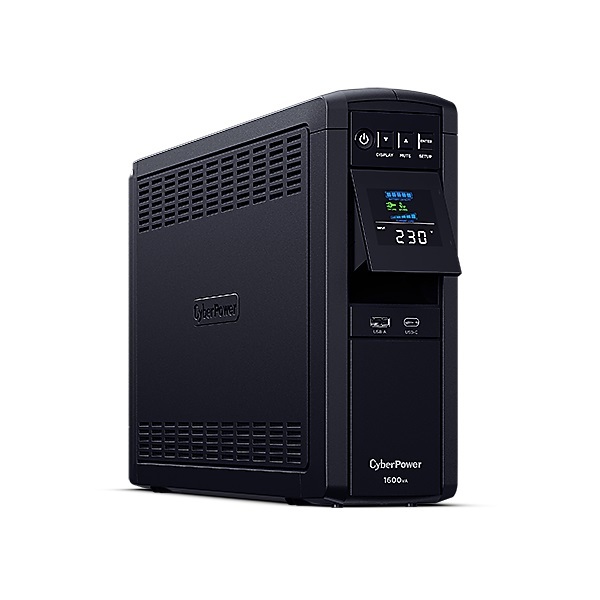

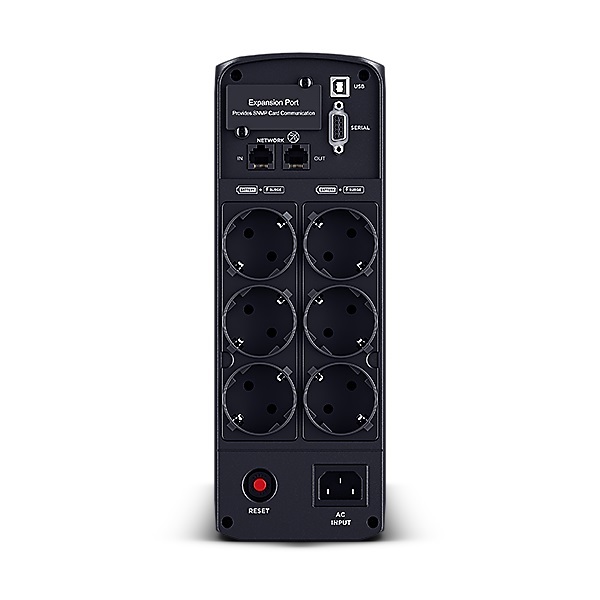

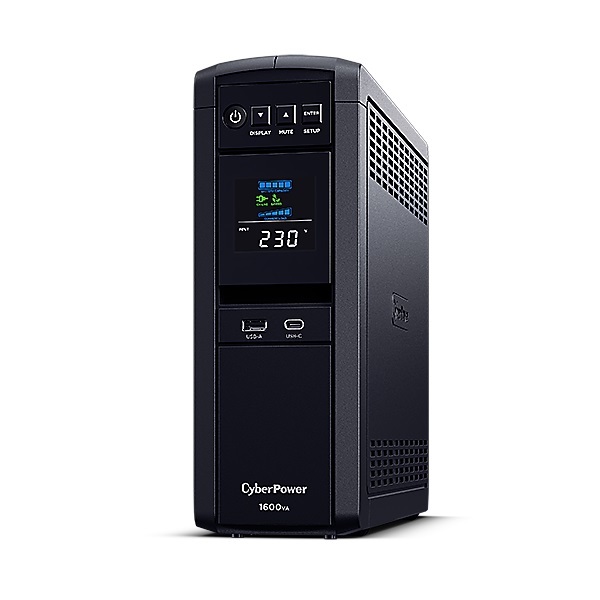

CyberPower CP1600EPFCLCD Backup UPS for Computer and Peripheral with Pure Sine Wave output
