UPS Systems OR600ERM1U-AU

VA
600
Watts
360
Output Voltage ( Vac )
230 ± 10%
Half Load Runtime ( min )
13
Outlets
IEC C13 x 6
Energy Saving Technology
LCD Status Display
Hot-swappable Batteries
Overload Protection

Overview

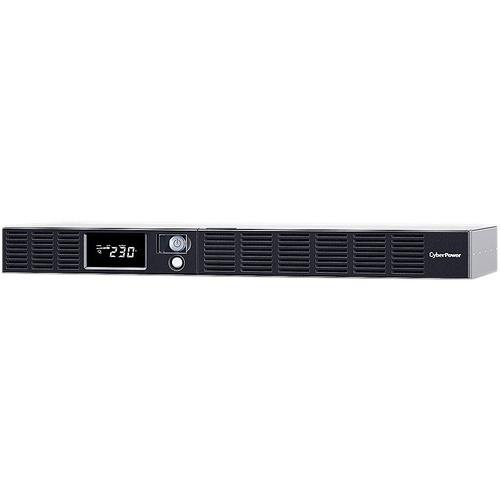

CyberPower OR600ERM1U-AU Line-Interactive UPS offers Simulated Sine Wave output power for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office and server room environment to ensure a reliable backup power supply during power failures. The UPS has a multifunction LCD display which offers real-time information, including input and output voltage levels, load and battery levels, battery runtime, overload warning, and a silent mode. With the network ports on the UPS, it prevents network devices from being subjected to sudden power surges caused by lightning, thereby avoiding potential system damage. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.

Features

  • Line-interactive UPS Topology
  • Simulated Sine Wave Output
  • Overload Protection
  • Surge and Spike Protection
  • Phone/Fax/Modem/DSL/Network Protection
  • USB Connectivity Port
  • SNMP/HTTP Remote Management Capability (Optional)
  • Energy Saving Technology
  • Automatic Voltage Regulation (AVR)
  • Hot-swappable Batteries
  • EMI and RFI Filtration
  • LCD Status Display
  • PowerPanel Management Software

What's in the Box

  • OR600ERM1U-AU UPS
  • Rackmount Ears
  • Power Cord
  • USB Cable
  • User's Manual
  • Product Registration Card

* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.

(OR600ERM1U-AU)

Energy Saving Technology

The UPS adopts CyberPower's patented GreenPower UPS™ technology to enhance UPS operating efficiency, reduce heat generation, consume less power and save more energy costs than conventional UPS models.

Automatic Voltage Regulation (AVR)

The UPS has built-in Automatic Voltage Regulation (AVR) function that keeps voltages at a safe level when incoming utility power fluctuates, thus providing consistent and reliable power to connected devices.

Multifunction LCD Readout

The LCD readout displays clear system information, such as power status, battery status, load status and more. It also features a user-friendly and intuitive interface, allowing users to easily manage and monitor the entire system.

Surge-protected Outlets

The UPS outlets absorb surges and spikes caused by thunder and lightning, hence providing complete protection for equipment and devices.

Data Line Protection

The UPS provides data line protection to protect connected devices from surges and spikes caused by lightning, avoiding potential system damage.

Hot-swappable Batteries

Batteries can be safely replaced without shutting down the UPS or connected equipment, ensuring uninterrupted operation. Please read the safety precautions in the manual before battery replacement.

Short-depth Chassis Design

The UPS is designed with short-depth chassis to optimize space in a rack enclosure and meet different space requirements.

Remote Management Capability

Remote management capability enables monitoring and controlling of devices through Remote Management Card. Users can also perform management tasks, such as scheduled shutdowns and reboots. Optional Feature

PowerPanel Business Software

The PowerPanel Management Software can perform power management and system graceful shutdown. This software has achieved VMware Ready™ status, and is compatible with VMware ESXi. It also supports Citrix XenServer and Microsoft Hyper-V. Recommended Software

PowerPanel Cloud Solution

The solution offers a convenient cloud-based management which allows users to access and monitor the UPS systems through a secure web portal or mobile app anytime, anywhere. Free Trial Available

General

PhaseSingle Phase
Form FactorRackmount
UPS TopologyLine-interactive
Energy Saving TechnologyGreenPower UPS™ Bypass Technology

Input

Nominal Input Voltage ( Vac )230
Input Voltage Range ( Vac )165 ~ 271
Adjustable Voltage Range ( Vac )189 ~ 207 Vac
253 ~ 271 Vac
Input Frequency ( Hz )50 ± 3
60 ± 3
Input Frequency DetectionAuto-sensing
Rated Input Current ( A )10
Input Connector TypeIEC C14
Detachable Power Cord Plug TypeIEC C14 x 1
Power Cord Length (ft.)6
Power Cord Length (m.)1.83

Output

Capacity (VA)600
Capacity (Watts)360
On Battery WaveformSimulated Sine Wave
On Battery Voltage(s) ( Vac )230 ± 10 %
On Battery Frequency ( Hz )50 ± 1%
60 ± 1%
Power Factor0.6
Automatic Voltage Regulation (AVR)Single Boost
Overload ProtectionInternal Current Limiting, Circuit Breaker
Outlet(s) - Total6
Outlet TypeIEC C13 x 6
Outlet(s) - Battery & Surge Protected4
Outlet(s) - Surge-Only Protected2
Typical Transfer Time ( ms )4

Battery

Runtime at Half Load ( min )13
Runtime at Full Load ( min )4
Typical Recharge Time ( Hours )8
Start On BatteryYes
User-replaceableYes
Hot-swappableYes
Battery Cartridge (RBP)RBP0019
Battery Cartridge (RBP) Quantity ( pcs )1

Surge Protection & Filtering

Surge Suppression ( Joules )405
EMI/RFI FiltrationYes
Phone/Network Protection RJ11/RJ45 (Combo)1-in, 1-out

Management & Communications

LCD PanelYes
LCD Information DisplayOperation Type, Power Status, Battery Status, Load Status, Other Information
LCD Setting & ControlMode Setting, Alarm Setting
LED IndicatorsPower On
HID Compliant USB Port(s)1
Serial PortDry Contact
Audible AlarmsBattery Mode, Low Battery, Overload, UPS Fault
Management Cable ( pcs )Power Cord x5, USB Cable x1
Power Management SoftwarePowerPanel Business (Recommended)
SNMP/HTTP Remote MonitoringYes - with optional RMCARD205

Physical

Enclosure ConstructionMetal
ColorSilver
Rackmount EarsYes

Physical Size - UPS Module

Dimensions (WxHxD) (in.)17.0 x 1.7 x 9.3
Dimensions (WxHxD) (mm.)433 x 44 x 235
Weight (lbs.)17.2
Weight (kg.)7.8
Installed Rack Height ( U )1

Shipping Dimensions

Dimensions (WxHxD) (in.)20.9 x 6.1 x 12.4
Dimensions (WxHxD) (mm.)530 x 155 x 315
Weight (lbs.)23.4
Weight (kg.)10.6

Environmental

Operating Temperature (°F)32 ~ 104
Operating Temperature (°C)0 ~ 40
Operating Relative Humidity (Non-condensing) ( % )0 ~ 95
Operating Elevation ( feet/meters )0-9,843 feet (0-3,000 meters)
Storage Temperature (°F)5 ~ 113
Storage Temperature (°C)-15 ~ 45
Storage Relative Humidity (Non-condensing) ( % )0 ~ 95
Storage Elevation ( feet/meters )0-49,213 feet (0-15,000 meters)
Online Thermal Dissipation ( BTU/hr )20

Certifications

CertificationsCE, EAC, RCM
RoHSYes

WARRANTY

Product Warranty Period ( Year )2
Battery Warranty Period ( Year )2
Connected Equipment Guarantee75,000 AUD ; 2 years
SKU OR600ERM1U-AU
Barcode # 4260074981889
Brand CYBERPOWER
Shipping Weight 10.2000kg

Manufacturer Warranty
