Eaton SKU 9PX3000IRT2UANZ

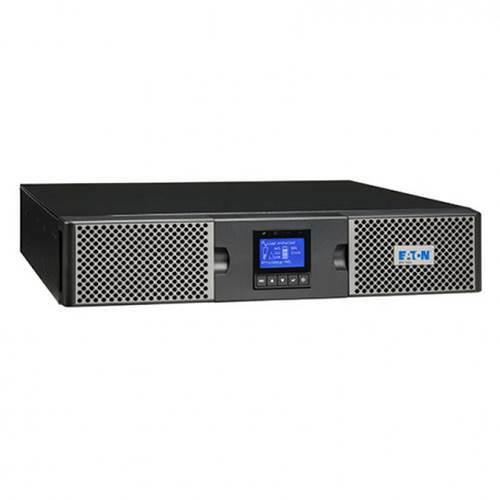

Eaton 9PX3000IRT2UANZ 3000VA/3000W Online 2U Rack/Tower UPS

The Eaton 9PX3000IRT2UANZ 9PX is a single-phase online double-conversion UPS rated at 3000VA / 3000W in a 2U rack/tower format.

The supplied record lists multilingual graphical lcd display, USB HID and serial connectivity.

3000VA / 3000WOnline double conversion2U rack/tower3-Year LimitedDeviceDeal authorised Eaton reseller

Product overview

3000VA / 3000W

The structured load capacity is 3000VA / 3000W.

Online double conversion

The supplied source classifies this model as a double-conversion online UPS.

2U rack/tower installation

The structured form factor is rack/tower with a listed rack height of 2U.

Source review: The description lists six IEC C13 outputs, while the structured receptacle detail lists eight IEC C13 outputs. Both sources list two IEC C19 outputs. The difference is preserved and requires confirmation.

Frequently asked questions

What capacity is listed for the Eaton 9PX3000IRT2UANZ?

The structured specification lists 3000VA / 3000W.

Which output connections are listed?

The description lists 6 x IEC C13 and 2 x IEC C19 16A; the structured field lists 8 x IEC C13 10A; 2 x IEC C19.

Which monitoring interfaces are listed?

The source lists multilingual graphical lcd display, USB HID and a serial port.

What warranty is supplied?

The source lists a three-year limited Eaton manufacturer warranty.

(9PX3000IRT2UANZ)

Features

Eaton 9PX3000IRT2UANZ 3000VA/3000W Online 2U Rack/Tower UPS

Power performance

Online double-conversion topology
Single phase
3000VA / 3000W
Sine wave

Connections and monitoring

Structured input: IEC 60320 C20
Description outputs: 6 x IEC C13 and 2 x IEC C19 16A
Structured outputs: 8 x IEC C13 10A; 2 x IEC C19
Multilingual graphical LCD display
USB HID
Serial port

Installation and support

2U rack/tower
Dimensions (H x W x D): 86.5mm x 440mm x 605mm
Approximate weight: 27.60kg

Confirm the source-review notes, connected load and installation requirements before purchase.

Technical specifications

Eaton 9PX3000IRT2UANZ 3000VA/3000W Online 2U Rack/Tower UPS

Product details
Brand	Eaton
Model / SKU	9PX3000IRT2UANZ
Series	9PX
Product type	Double-conversion online UPS
Phase	Single phase
Status display	Multilingual graphical LCD display
Power
Load capacity	3000VA / 3000W
Input-voltage values listed	230V AC
Output-voltage values listed	200V AC; 208V AC; 220V AC; 230V AC; 240V AC
Input-voltage range	176276V AC
Input frequency	70Hz
Output frequency	60Hz
Waveform	Sine wave
Connections
Structured plug / connector	IEC 60320 C20
Outputs stated in description	6 x IEC C13 and 2 x IEC C19 16A
Structured receptacle detail	8 x IEC C13 10A; 2 x IEC C19
Serial port	Yes
USB HID-compliant port	Yes
Battery
Hot swappable	Yes
Battery size	12V
Battery capacity	9000mAh
Full-load runtime	3 minutes
External battery cabinets	4
Environment and additional fields
Sound emission	40dB
Maximum operating temperature	40°C
Maximum operating elevation	3km
ENERGY STAR	Yes
Certification	TÜV
Physical properties
Form factor	Rack / tower
Rack height	2U
Height	86.5mm
Width	440mm
Depth	605mm
Approximate weight	27.60kg
Applications listed
Application / usage	Storage; gate; server; POS terminal; CCTV camera

SKU	9PX3000IRT2UANZ
Barcode #	743172081384
Brand	EATON
Shipping Weight	35.1000kg
Shipping Width	0.580m
Shipping Height	0.240m
Shipping Length	0.780m
Shipping Cubic	0.108576000m3

Warranty information

Eaton 9PX3000IRT2UANZ 3000VA/3000W Online 2U Rack/Tower UPS

3-Year Limited Eaton Manufacturer Warranty

DeviceDeal is an authorised Eaton reseller. This product is covered by a three-year limited Eaton manufacturer warranty in Australia, as listed in the supplied product information.
